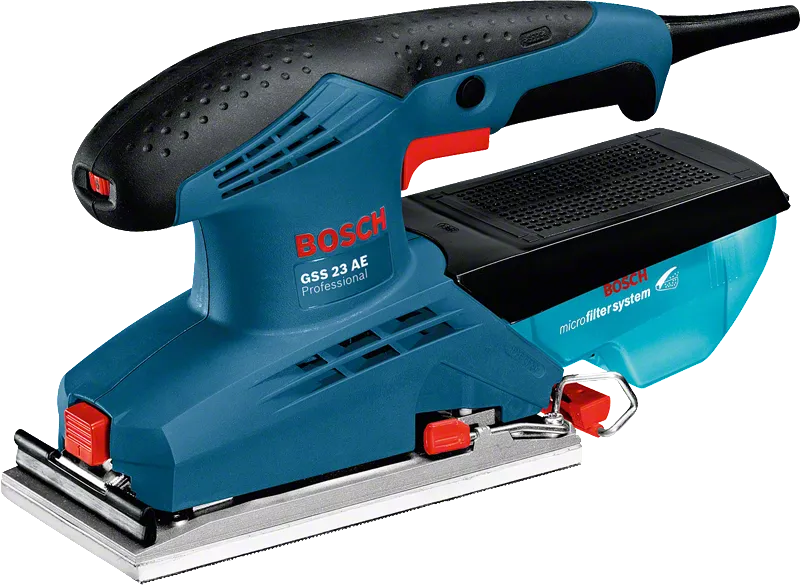

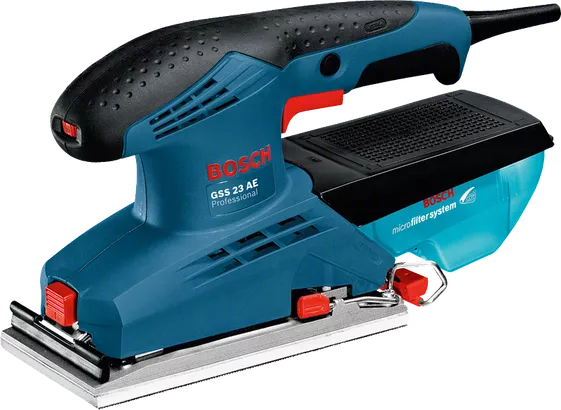

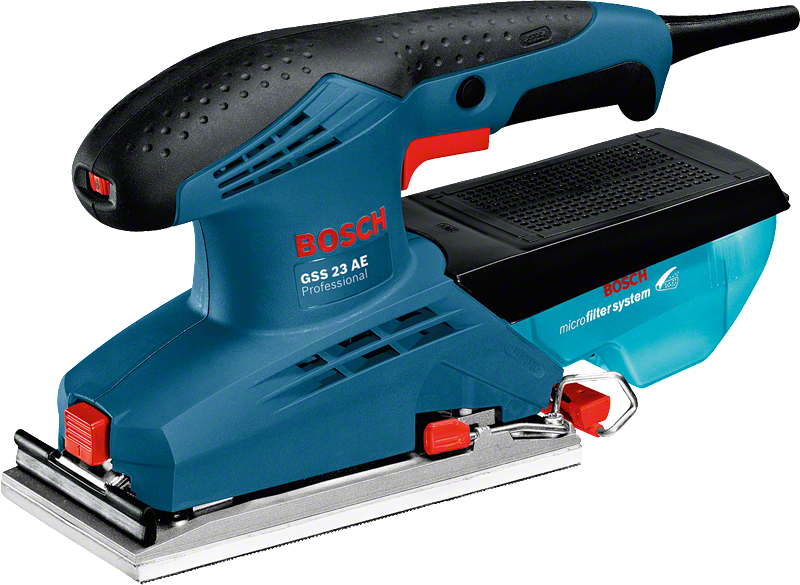

Orbital Sander
GSS 23 AE Professional

with accessory set

The reliable, entry-level orbital sander for multiple sanding applications in the 230-mm category

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 190 W
No-load speed 7,000 – 12,000 rpm
No-load orbital stroke rate 14,000 – 24,000 opm
Orbit diameter 2 mm
Weight 1.7 kg

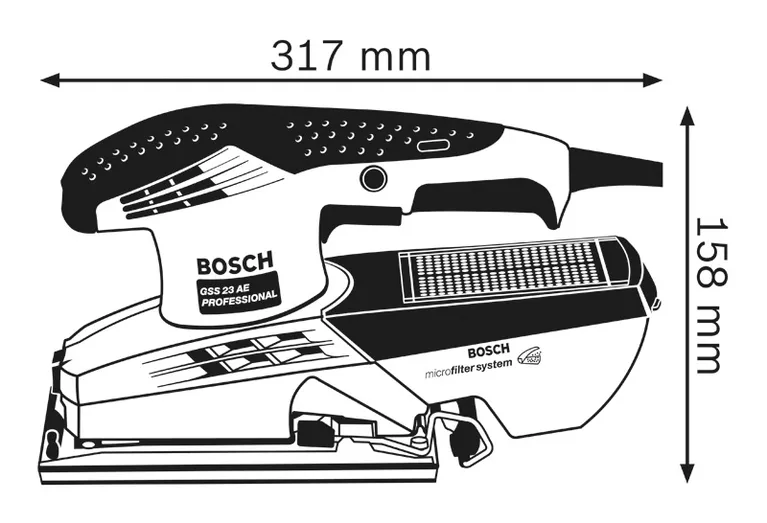

Tool dimensions (width) 98 mm
Tool dimensions (length) 318 mm
Tool dimensions (height) 158 mm
Packaging dimensions (width x length x height) 100 x 360 x 290 mm
Sanding surface
Sanding plate, width 92 mm
Sanding plate, length 182 mm
Sanding sheet for clamping, width 93 mm
Sanding sheet for clamping, length 230 mm
Sanding sheet with hook-and-loop fastening, width 93 mm
Sanding sheet with hook-and-loop fastening, length 185 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 80 dB(A)
Sound power level 91 dB(A)
Uncertainty K 3 dB
Sanding panel materials
Vibration emission value ah 4.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The reliable, entry-level orbital sander for multiple sanding applications in the 230-mm category

  • Robust design with a reinforced clamping system provides durability for the highest tool lifetime
  • Speed selection option enables use in multi-material applications
  • Features a hook-and-loop pad and a tension system for an easy and perfect fit for sanding sheets

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed

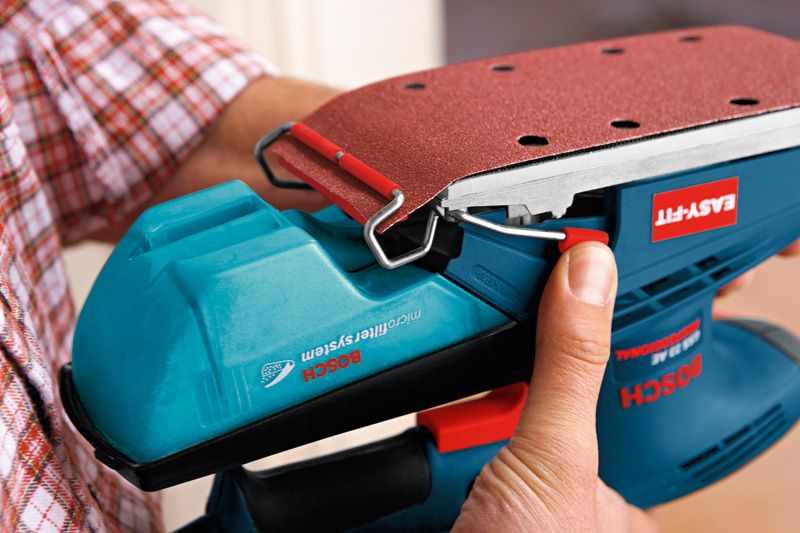

Perfect hold of roll paper or hook-and-loop paper thanks to Easy-Fit system with automatic paper tensioning
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories

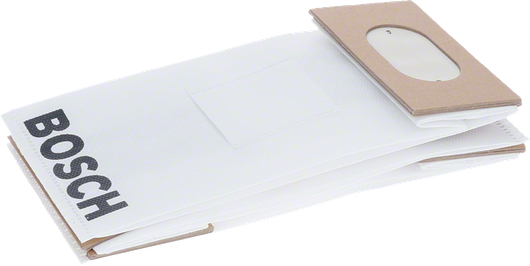

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

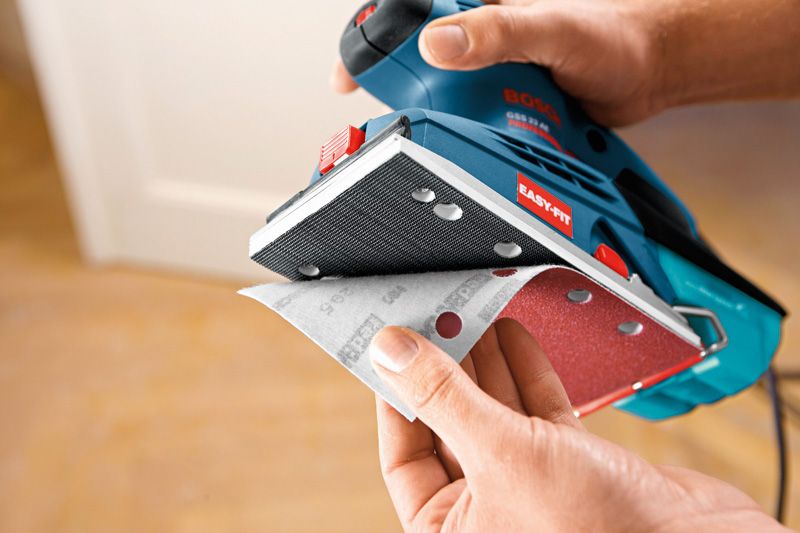

Easy attachment and detachment of sanding paper thanks to hook-and-loop

Scope of supply

with accessory set

Order number: 0 601 070 740

Selected version

Price includes:

  • Hole punch 2 608 190 016
  • Microfilter box (spare part number 2 609 199 059)

Product comparison

Applica­tion
Pad Size (WxL)
Pad Type
Power
Com­pact­ness vs. Removal Rate
GSS 23 AE Professional
GSS 23 AE Professional
en­try-level sanding applica­tions
92mm x 182mm
hook & loop
clamp
190W
GSS 23 A Professional
GSS 23 A Professional
en­try-level sanding applica­tions
92mm x 182mm
clamp
190W
GSS 18V-10 Professional
GSS 18V-10 Professional
en­try-level sanding applica­tions
113mm x 101mm
80mm x 130mm
100mm x 150mm
hook & loop
clamp
18V
GSS 160 Multi Professional
GSS 160 Multi Professional
en­try-level sanding applica­tions
113mm x 101mm
80mm x 130mm
100mm x 150mm
hook & loop
clamp
180W
GSS 140-1 A Professional
GSS 140-1 A Professional
en­try-level sanding applica­tions
113mm x 101mm
hook & loop
clamp
180W
GSS 230 AVE Professional
GSS 230 AVE Professional
high-de­mand sanding applica­tions
92mm x 182mm
hook & loop
clamp
300W
GSS 280 AVE Professional
GSS 280 AVE Professional
high-de­mand sanding applica­tions
114mm x 226mm
hook & loop
clamp
350W
