Cordless Combi

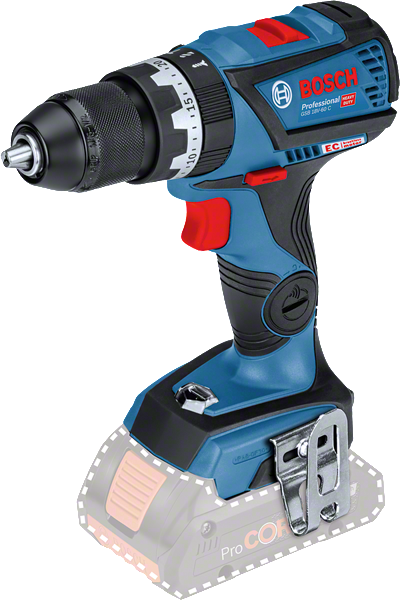

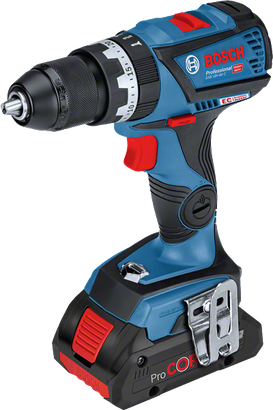

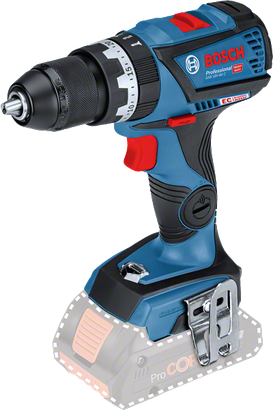

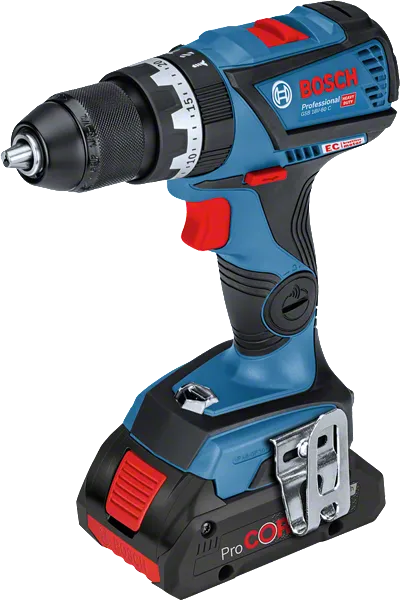

GSB 18V-60 C Professional

Best power-to-size ratio in Bosch´s 18 V category - with brushless motor and impact drilling function

Print

Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

Torque (soft/hard/max.) 31/60/- Nm
No-load speed (1st gear / 2nd gear) 0 – 600 / 0 – 1,900 rpm
Battery type Lithium-ion
Max. impact rate 28,500 bpm
Chuck capacity, min./max. 1.5 / 13 mm
Battery voltage 18 V
Weight excl. battery 1.2 kg
Torque settings 20+2
Drilling diameter
Max. drilling diameter in wood 38 mm
Max. drilling diameter in steel 13 mm
Max. drilling diameter in masonry 13 mm
Screw diameter
Max. screw diameter 10 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 87 dB(A)
Sound power level 98 dB(A)
Uncertainty K 5 dB
Drilling in metal
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in masonry
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²

Advantages

Best power-to-size ratio in Bosch´s 18 V category - with brushless motor and impact drilling function

  • Ideal combination of power and size due to 60 Nm of hard torque and a 174-mm head length
  • KickBack Control for increased user protection, safer work, and perfect tool control; precision clutch for convenience
  • Bluetooth Connectivity option to connect directly to a smartphone for additional tool control

Functions

Icon
Longer motor life - more runtime - more power thanks to brushless motor
 Keyless metal chuck 1.5-13 mm
Long motor lifetime Long motor lifetime because motor shuts off when overloaded, overheated or blocked
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Reduction of wear-out and longer lifetime thanks to controlled over ratcheting system / no over ratcheting
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information

Scope of supply

GSB 18V-60 C

Order number: 0 615 990 J9U

Selected version

* Battery and charger not included
