Impact drills
![GSB 24-2]( "GSB 24-2")
![GSB 24-2]( "GSB 24-2")
![GSB 24-2]( "GSB 24-2")
![GSB 24-2]( "GSB 24-2")

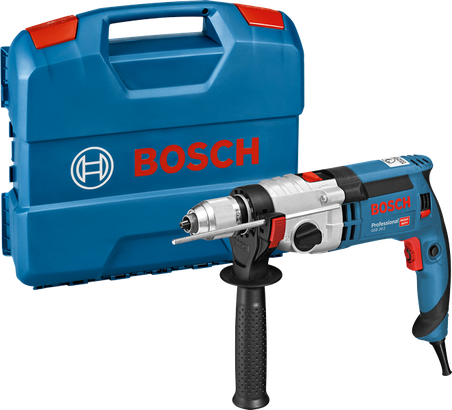

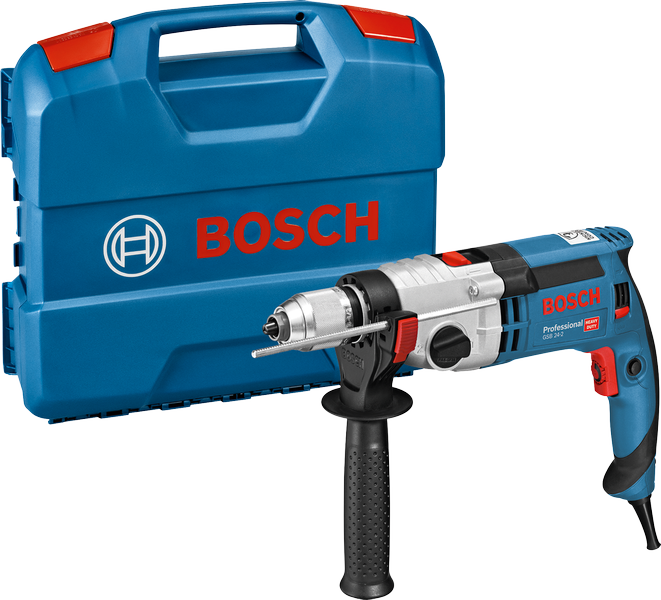

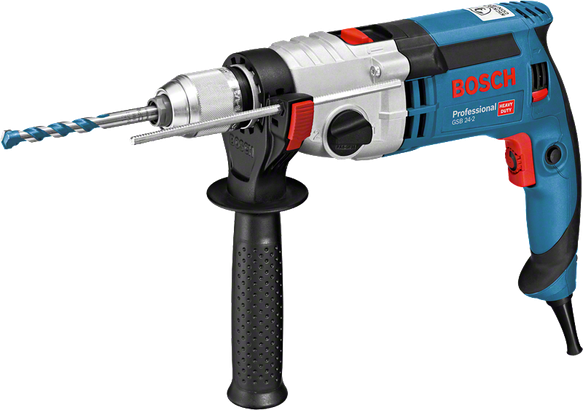

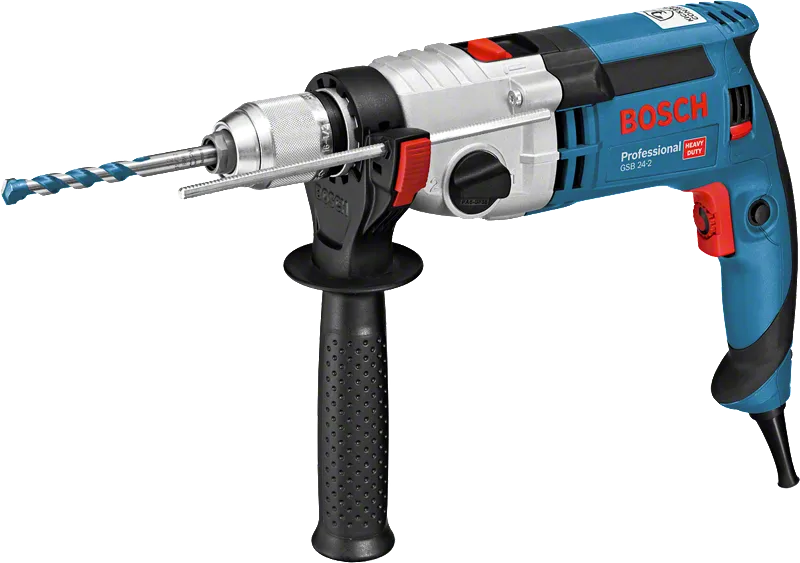

GSB 24-2 Professional
Impact Drill
2-gear impact drill for toughest applications with KickBack Control
- Strong 1,100 W high-performance motor and high torque make it ideal for most heavy-duty applications
- KickBack Control increases user protection
- Sturdy metal gear housing for a long tool lifetime
Functions & key features
with chuck
0 601 19C 841
GSB 24-2 Professional
Your Selection
with chuck
Order number: 0 601 19C 841
Buy nowIncluded in this variant
-
L-CaseOrder number: 1 600 A00 M7X
-
Keyless chuck 13 mmOrder number: 2 608 572 150
-
Auxiliary handleOrder number: 2 602 025 193
-
Depth stop 210 mmOrder number: 1 613 001 010
Technical data
The most important data
Rated input power
1,100 W
No-load speed, 1st gear*
0 – 900 rpm
No-load speed, 2nd gear*
3,000 rpm
Power output*
630 W
Weight*
2.9 kg
Rated speed
580 / 1,900 rpm
Rated torque
9.6 / 3.2 Nm
Chuck capacity, min./max.
1.5 – 13 mm
Impact rate at no-load speed*
0 – 15,300 / 51,000 bpm
Max. torque*
40.0 Nm

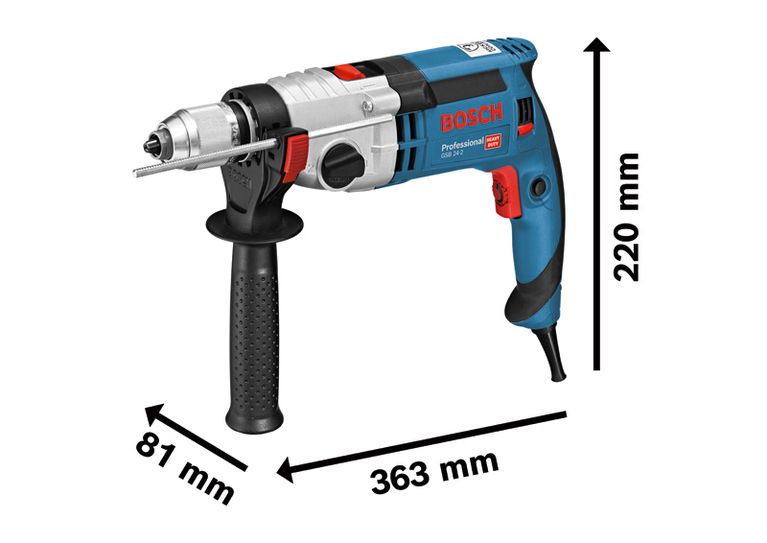

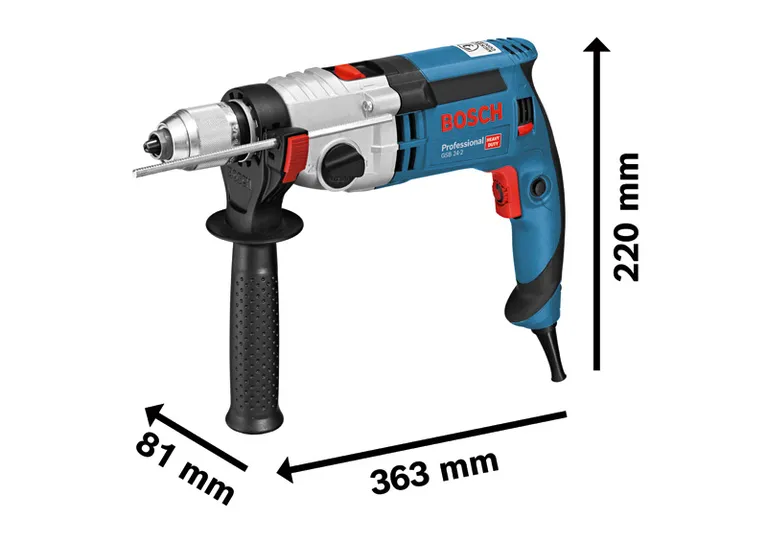

Packaging dimensions (width x length x height)
405 x 441 x 122 mm
Drill chuck, version
13-mm keyless chuck
* You can find more information about the deviations in the following link:
GSB 24-2 Professional: Further information
Product Highlights
The GSB 24-2 Professional is a 2-gear corded impact drill with KickBack Control designed for the toughest jobs. Its strong 1,100 W high-performance motor and high torque make it ideal for most heavy duty applications. It also features KickBack Control for increased user protection. Equipped with a sturdy metal gear housing, this impact drill is extremely robust for a long tool lifetime.
Equipment & Application

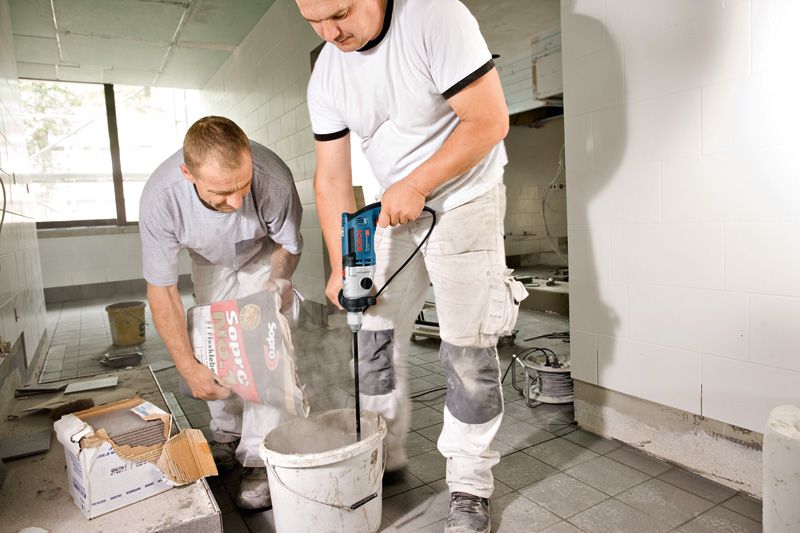

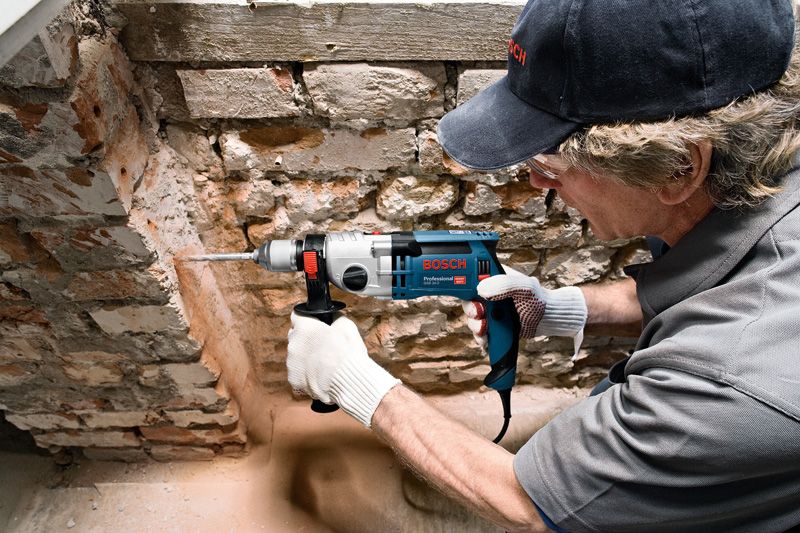

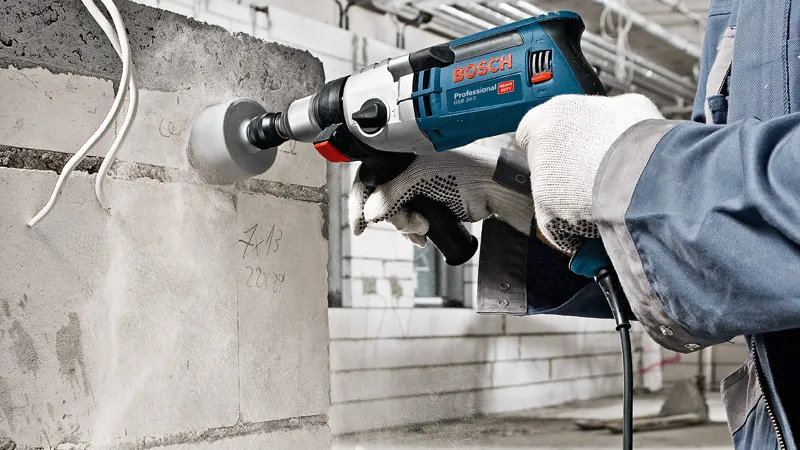

This tool is intended for drilling in masonry, stone, wood, and metal. It is compatible with the dust attachment GDE 16 Cyl Professional.
Additional Information
The GSB 24-2 Professional includes features such as Autolock, rotation control clutch, and speed selection.
