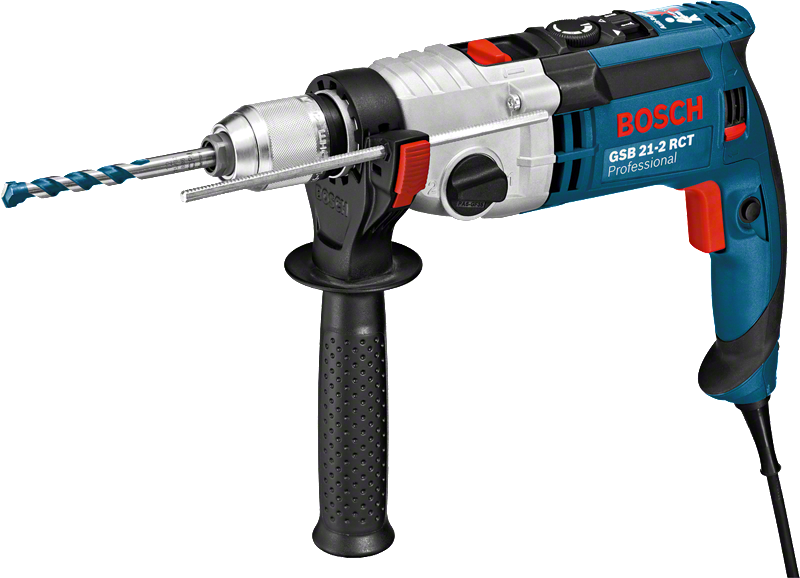

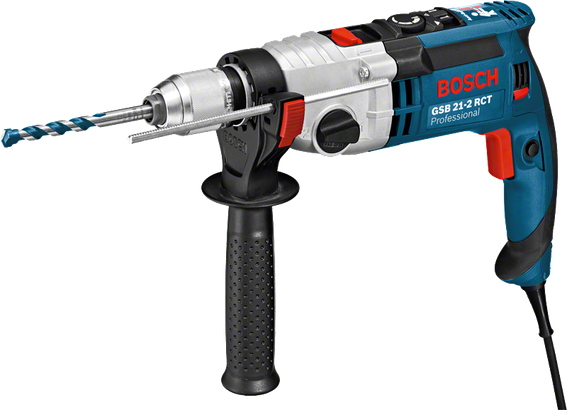

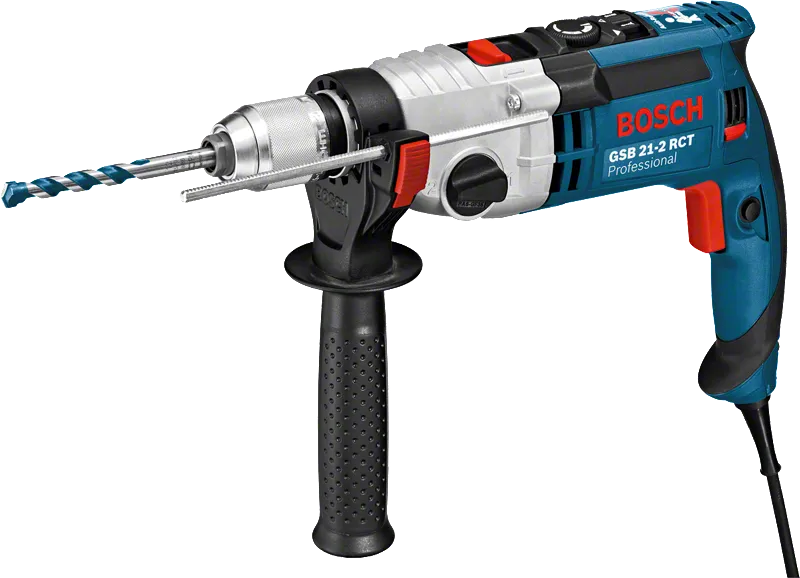

Impact Drill
GSB 21-2 RCT Professional

in carrying case with accessory set

2-gear impact drill for toughest applications with constant speed and torque control

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 1,300 W
No-load speed 0 – 900 / 3,000 rpm
Power output 695 W
Weight 2.85 kg
Rated speed 3,000 rpm
Rated torque 7.8 / 2.6 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm
Impact rate at no-load speed 0 – 15,300 / 51,000 bpm
Max. torque 43.0 / 20.5 Nm
Packaging dimensions (width x length x height) 358 x 385 x 115 mm
Drilling range
Drilling diameter in concrete 22 / 13 mm
Drilling diameter in wood 40 / 25 mm
Drilling diameter in steel 16 / 10 mm
Drilling diameter in masonry 24 / 16 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 95 dB(A)
Sound power level 106 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 5.6 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in concrete
Vibration emission value ah 14.6 m/s²
Uncertainty K 1.8 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

2-gear impact drill for toughest applications with constant speed and torque control

  • Powerful 1,300 W motor with high torque is ideal for heavy-duty applications
  • Constant speed conveniently maintains speed even under intense load
  • Torque control enables torque pre-selection for high precision work

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Metal chuck 1.0 - 13.0 mm
High precision with torque pre-selection preventing overtightening & damaging screw heads and threads
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Best work results with constant speed thanks to electronic regulation of speed - even under load
Comfortable handling of the tool thanks to softgrip

Prices / Package contents


in carrying case with accessory set

Order number: 0 601 19C 740

Selected version

Price includes:

  • Auxiliary handle 2 602 025 193
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010

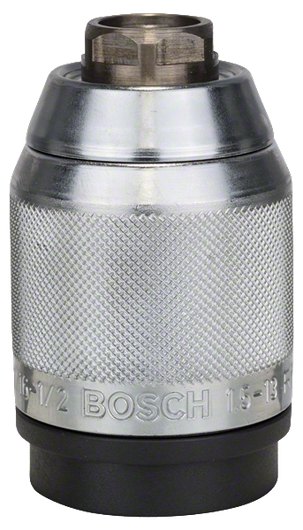

  • Keyless chuck 13 mm 2 608 572 150
