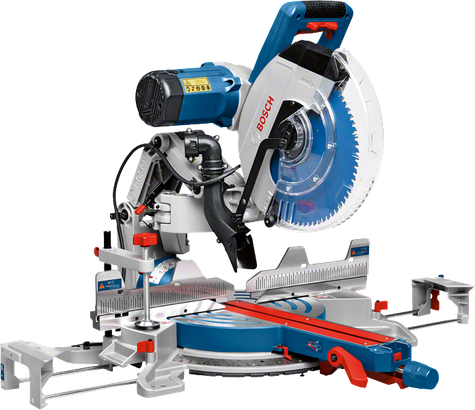

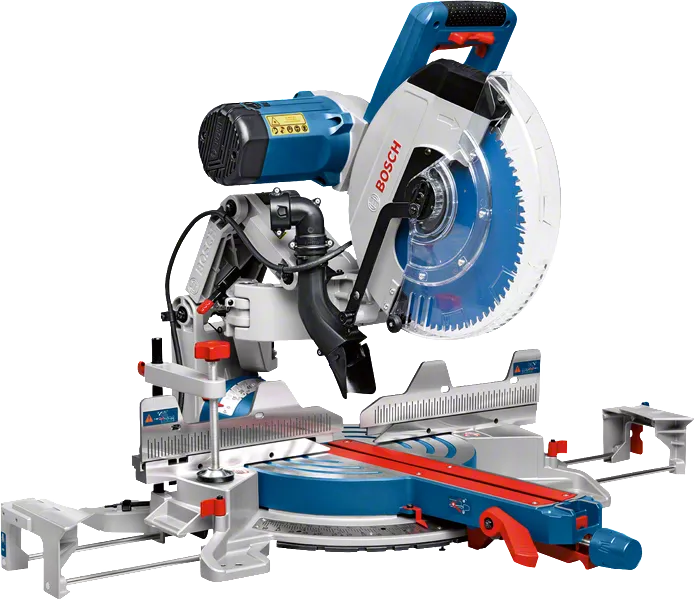

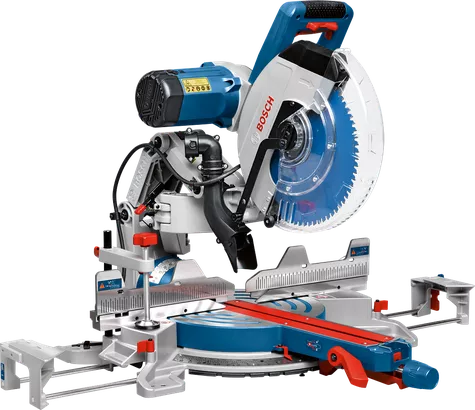

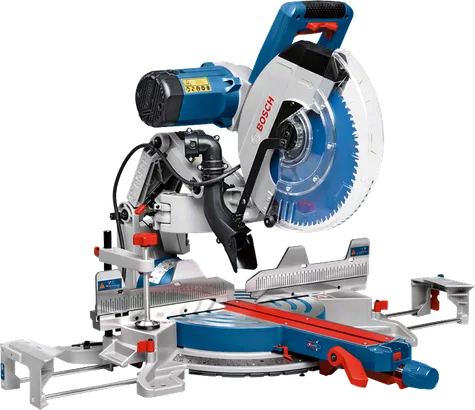

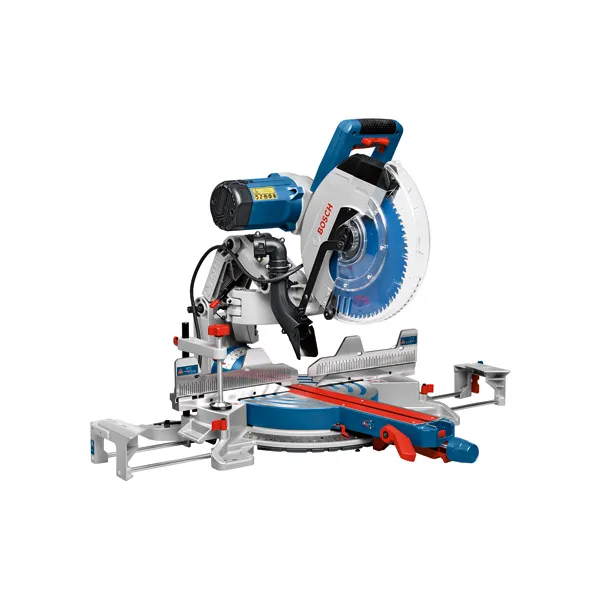

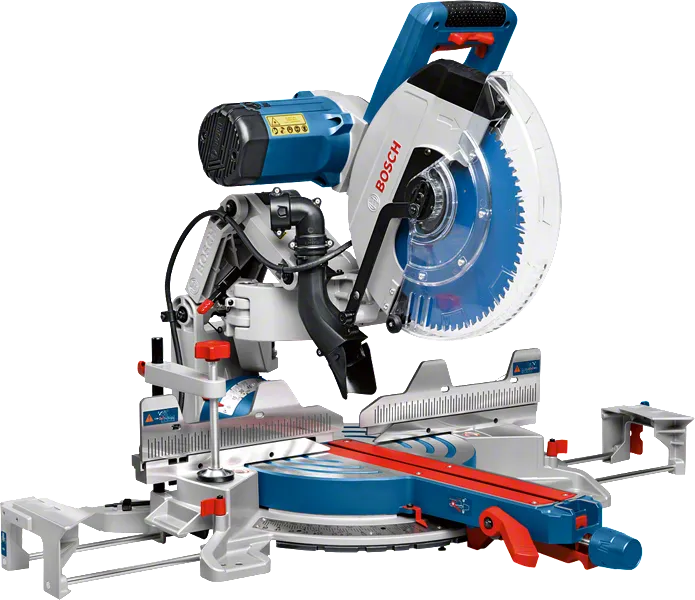

GCM 12 GDL Professional
Mitre Saw
Highest-precision sawing: mitre saw with Bosch´s patented glide arm design
- Innovative, maintenance-free glide arm is extremely robust for precision that lasts
- Glide arm´s hinge design makes the mitre saw compact from front to back
- Double line laser and top-quality saw blade ensure highly accurate cuts
Functions & key features
with accessory set
0 601 B23 640
GCM 12 GDL Professional
Your Selection
with accessory set
Order number: 0 601 B23 640
Buy nowIncluded in this variant
-
Wrench
-
Stop plateOrder number: 1 609 B02 365
-
ClampOrder number: 1 609 B06 203
-
Saw blade 305 mm 60 T
-
Hex key (spare part number 1 609 B00 256)
-
Insert plateOrder number: 1 609 B02 375
-
ScrewOrder number: 1 609 B00 263
-
ColletOrder number: 1 609 B02 585
Technical data
The most important data
Cutting capacity, 0°
104 x 341 mm
Cutting capacity, 45° mitre
104 x 240 mm
Cutting capacity, 45° bevel
51 x 341 mm
Mitre setting
52 ° L / 60 ° R
Bevel setting
47 ° L / 47 ° R
Tool dimensions (width x length x height)
860 x600 x530 mm
No-load speed*
4,000 rpm
Saw blade diameter
305 mm
Saw blade bore diameter
25.4 mm
Weight*
32.1 kg
Rated input power
2,000 W
Packaging dimensions (width x length x height)
570 x 795 x 640 mm
* You can find more information about the deviations in the following link:
GCM 12 GDL Professional: Further information
Product Highlights
With the most accurate cutting results in the Bosch range, the GCM 12 GDL Professional is the top choice for jobs that demand highest precision. The mitre saw´s innovative, maintenance-free glide arm is extremely robust and offers high endurance. Thanks to the glide arm´s hinge design, the GCM 12 GDL Professional is compact from front to back. Equipped with a double line laser and top-quality saw blade, this mitre saw ensures highly accurate cuts reaching a cutting depth of up to 170 x140mm for L-profile (max thickness should be 36mm).
Equipment & Application

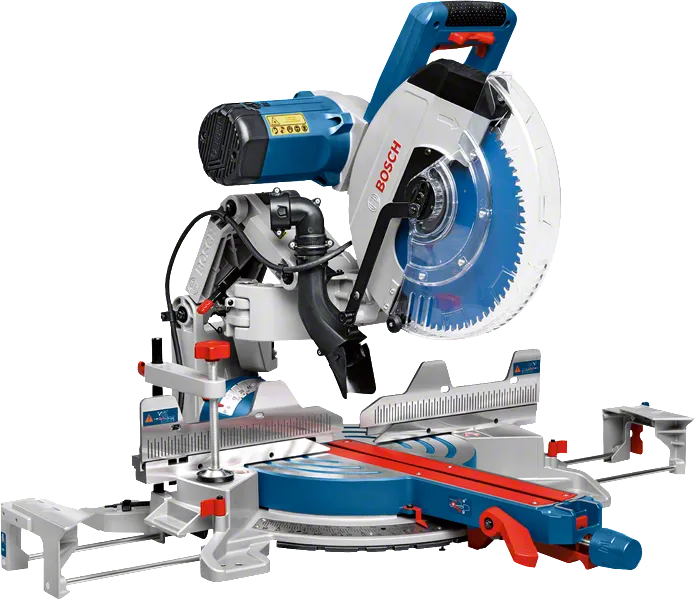

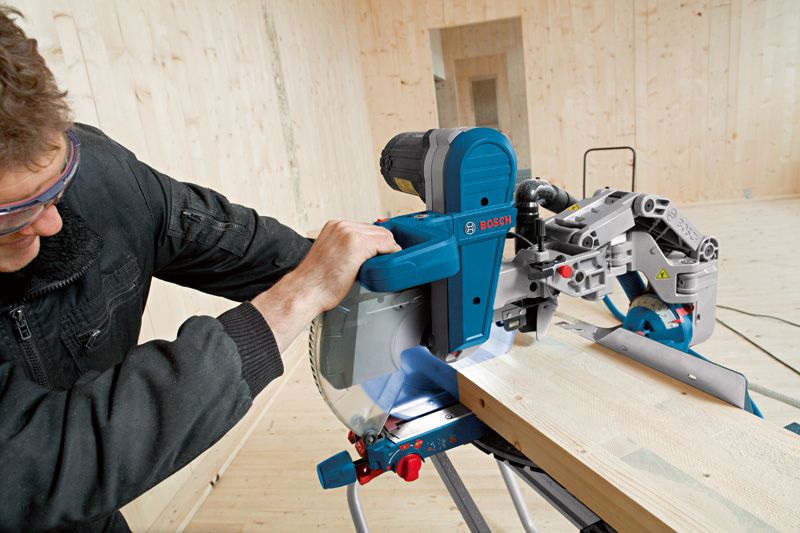

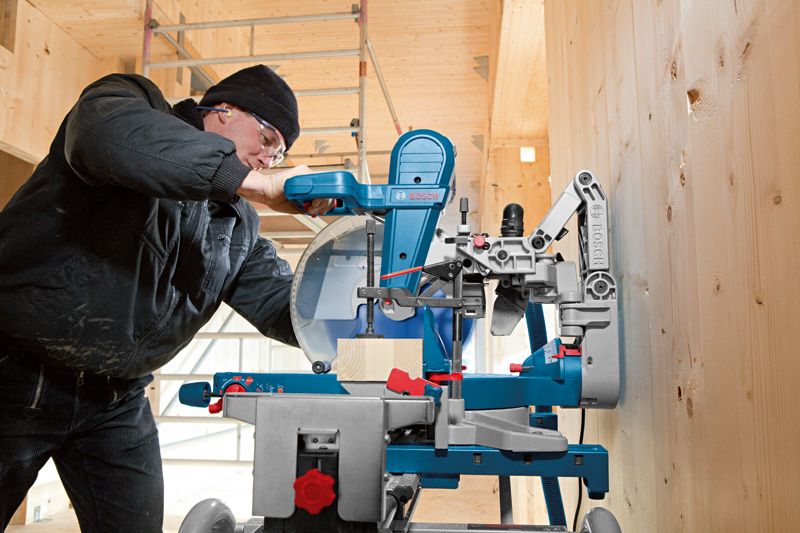

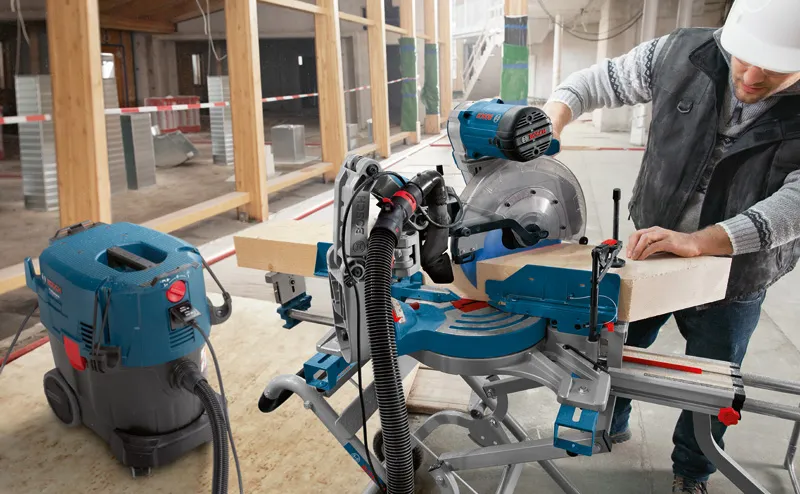

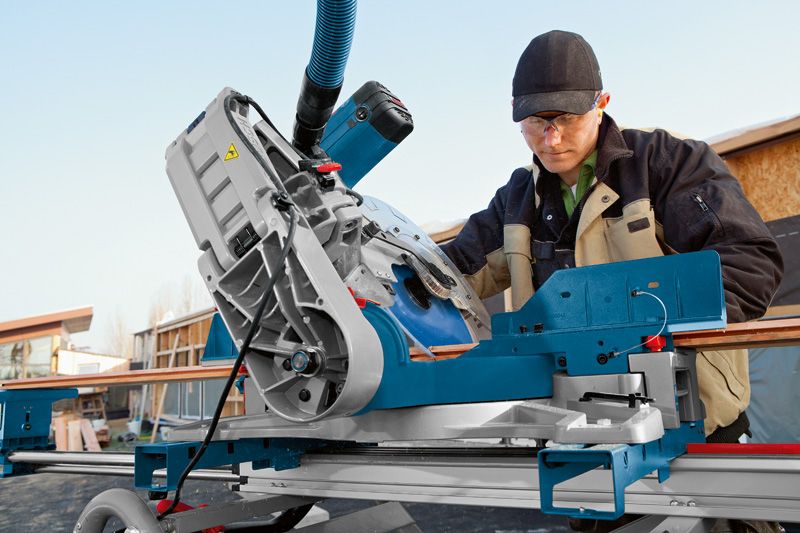

The GCM 12 GDL Professional is intended for cross, mitre bevel and groove cuts in wood, timber beams, and wood composites as well as in board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GCM 12 GDL Professional also includes features such as intelligent brake system, precision double line laser, and soft start.
