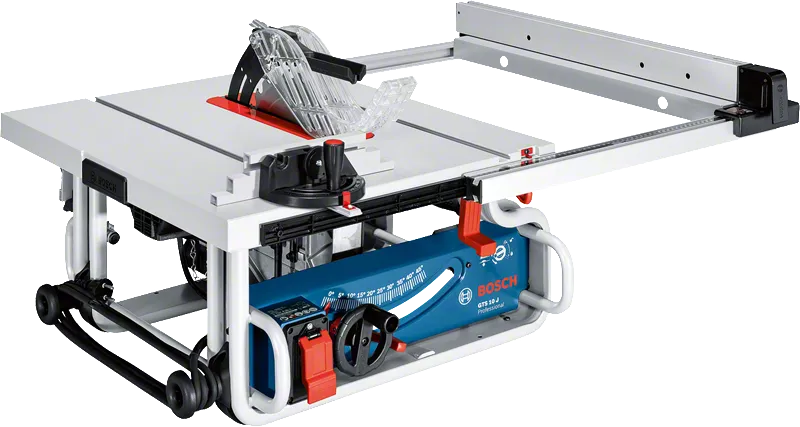

Table Saw
GTS 10 J Professional

with guide rail system accessory

Portable professional performance table saw


Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

Table size 642 x 634 mm
No-load speed 3,650 rpm
Saw blade diameter 254 mm
Cutting height 90° 79 mm
Saw blade bore diameter 30 mm

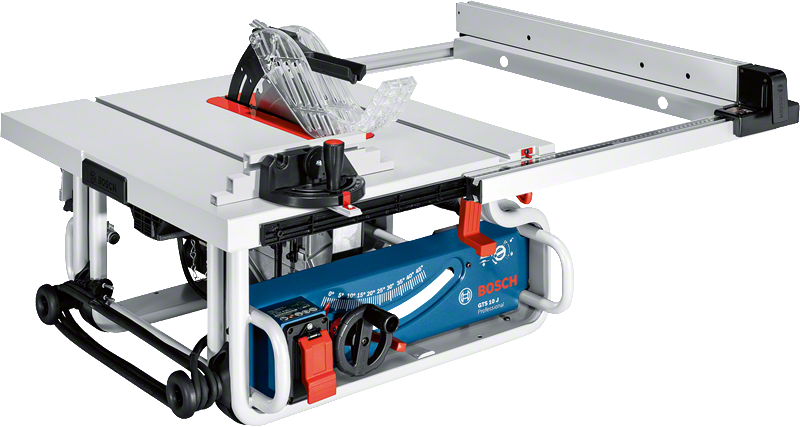

Incline setting 47 ° L / 2 ° R
Weight 27 kg
Max. cutting capacity on the right 635 mm
Max. cutting capacity on the left 255 mm

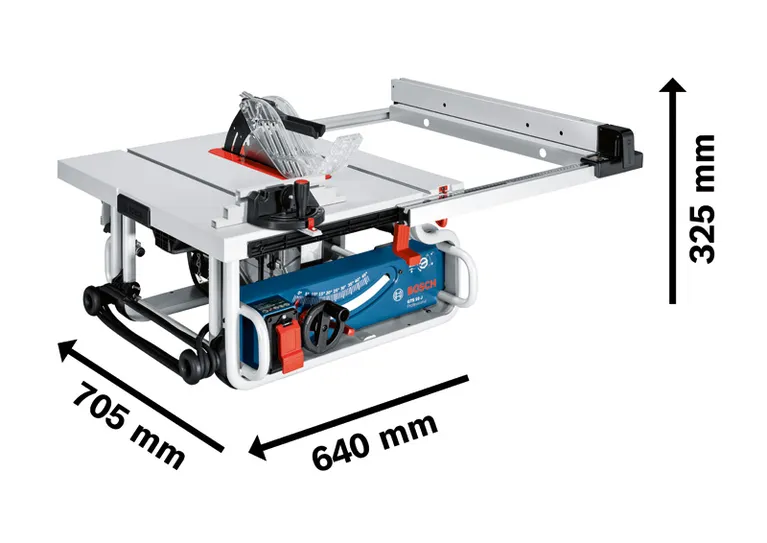

Packaging dimensions (width x length x height) 645 x 825 x 405 mm
Noise/vibration information
Sound pressure level 103 dB(A)
Sound power level 116 dB(A)
Uncertainty K 3 dB


Portable professional performance table saw

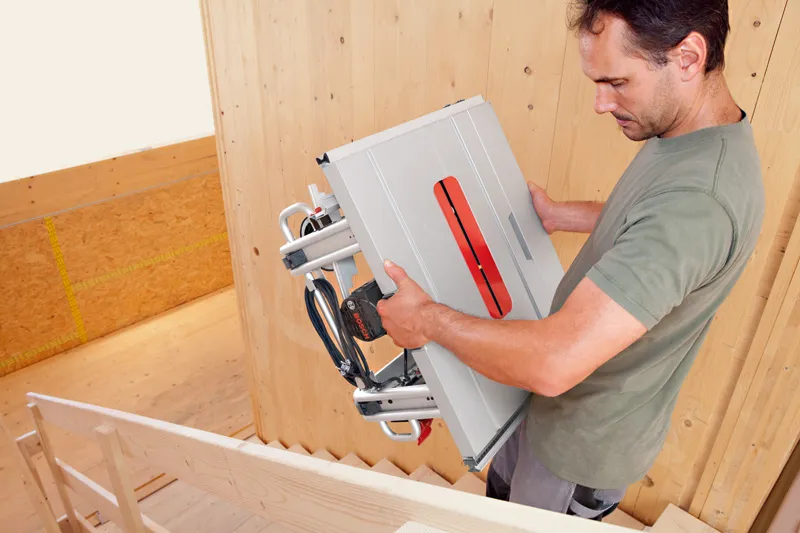

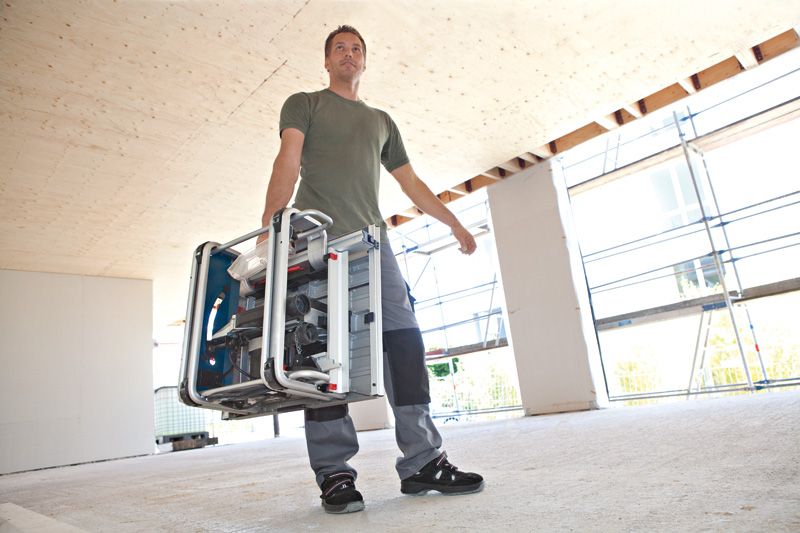

  • Compact design and multiple grip areas for easy and convenient transportation
  • Powerful 1,800 W motor delivers fast work progress
  • Tool-free lowering of riving knife enables quick adjustments for creating concealed cuts


Easy disc / tool change thanks to spindle lock
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

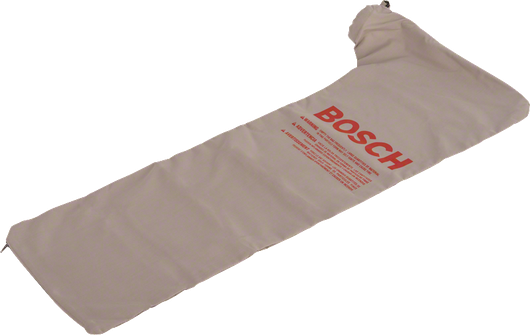

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

Scope of supply

with guide rail system accessory

Order number: 0 601 B30 540

Selected version

Price includes:

  • Kerf insert 2 610 016 584
  • Angle guide 2 610 015 507
  • Push stick 2 610 015 022
  • Vacuum adapter

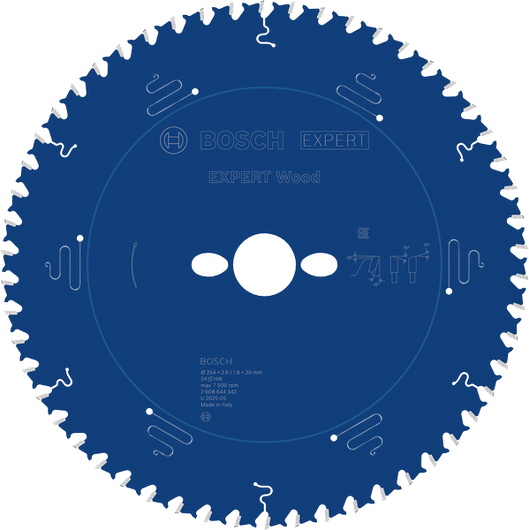

  • Wood saw blade
