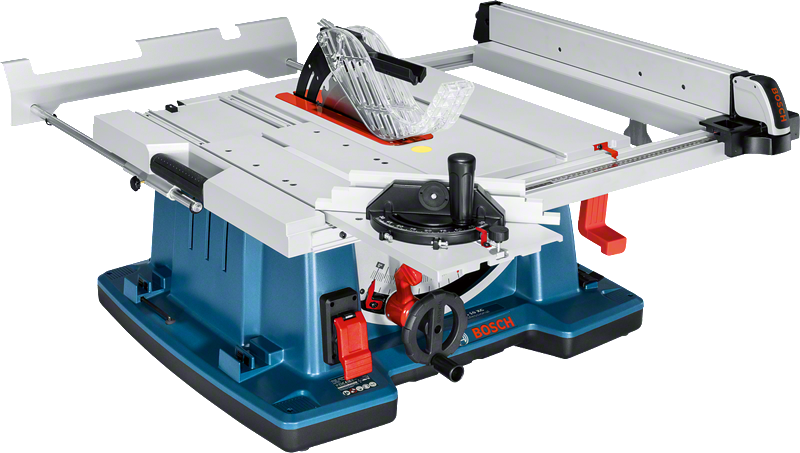

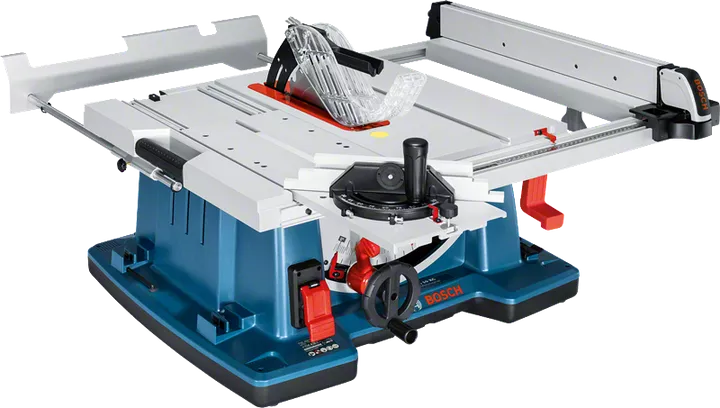

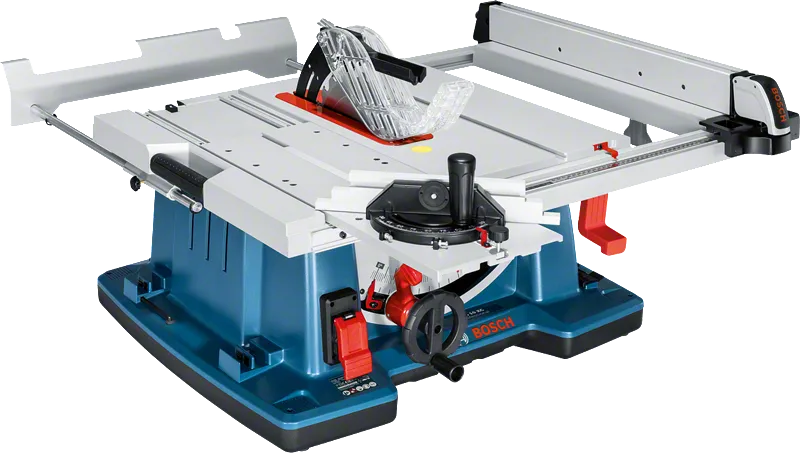

Table Saw
GTS 10 XC Professional

with guide rail system accessory

Versatile performance table saw


Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

Rated input power 2.1 W
Table size 640 x 705 mm

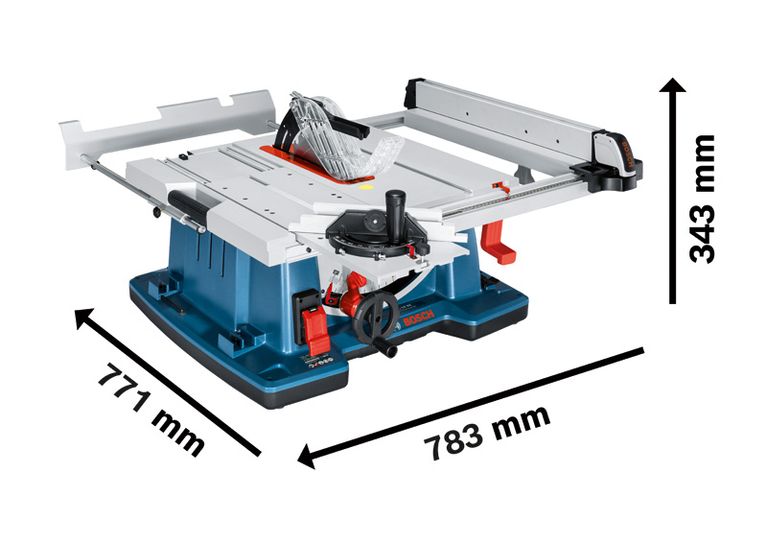

Tool dimensions (width x length x height) 343 mm
No-load speed 3,200 rpm
Saw blade diameter 254 mm
Cutting height 90° 79 mm
Saw blade bore diameter 30 mm
Incline setting 47 ° L / 1 ° R
Weight 35 kg
Max. cutting capacity on the right 635 mm
Max. cutting capacity on the left 250 mm
Packaging dimensions (width x length x height) 830 x 850 x 415 mm
Noise/vibration information
Sound pressure level 98 dB(A)
Sound power level 111 dB(A)
Uncertainty K 3 dB


Versatile performance table saw

  • Powerful motor and Constant Speed feature produce the best results even in toughest applications
  • Integrated slide carriage, table-widener, and table extension enable expansion for workpieces in a variety of sizes
  • Tool-free lowering of riving knife enables quick adjustments for creating concealed cuts


Easy disc / tool change thanks to spindle lock
Best work results with constant speed thanks to electronic regulation of speed - even under load
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

Scope of supply

with guide rail system accessory

Order number: 0 601 B30 440

Selected version

Price includes:

  • Kerf insert 2 610 016 763
  • Angle guide 2 610 015 508
  • Push stick 2 610 015 022
  • Vacuum adapter
  • Wood saw blade
