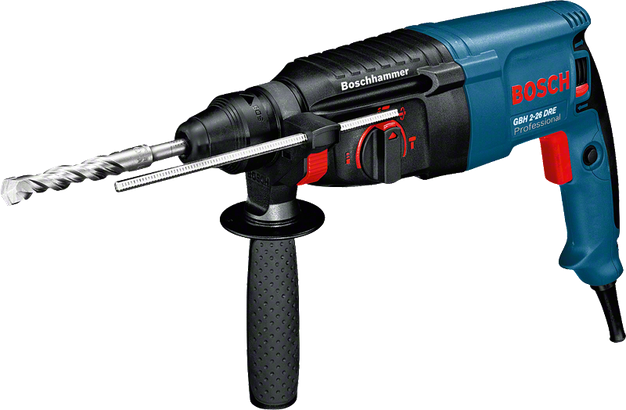

Rotary Hammer with SDS plus
GBH 2-26 DRE Professional

in carrying bag with adapter

The fast all-rounder for daily use

Choose product variation:

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data
Rated input power 800 W
Impact energy 2.7 J
Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Weight 2.8 kg

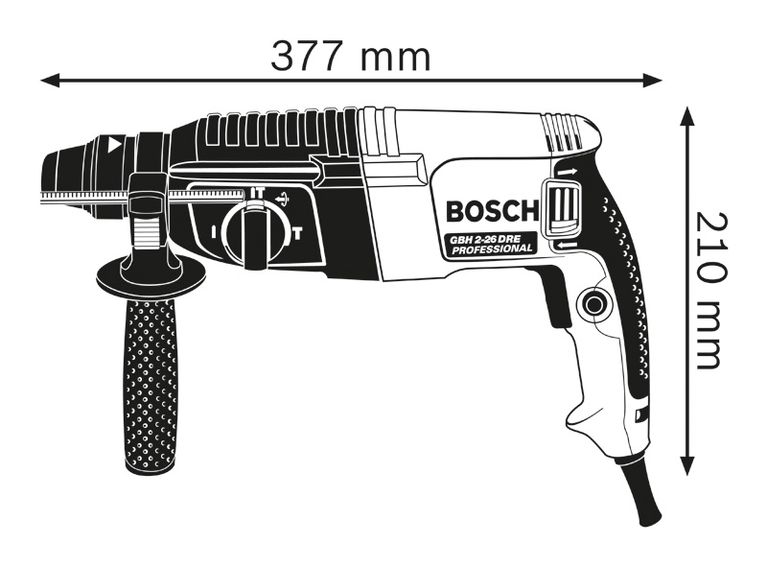

Tool dimensions (width) 83 mm
Tool dimensions (length) 377 mm
Tool dimensions (height) 210 mm
Tool holder SDS plus
Packaging dimensions (width x length x height) 355 x 436 x 106 mm
Voltage, electrical 240 V
Drilling range
Drilling dia. concrete, hammer drill bits 4 – 26 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Max. drilling diameter masonry, core cutters 68 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 17.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 9.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The fast all-rounder for daily use

  • Gets the work done quickly due to fast drilling rate and high chiselling performance because of 800 watt powerful motor and 2.7 joules of impact energy
  • Reliable and robust with long lifetime due to high-quality components
  • Wide range of applications with rotation stop for chiselling work

Functions

Optimal power transmission for small hammers
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Easy and precise control of the RPM thanks to variable speed
Forward / reverse rotation for inserting and removing screws
Construction The professional power tools for construction from Bosch.

Prices / Package contents

in carrying bag with adapter

Order number: 0 611 253 737

Selected version

Price includes:

  • SDS plus adapter for chuck 1 617 000 132
  • Carrying case 2 605 438 098
  • Depth stop 210 mm 1 613 001 010
  • Keyed chuck 1.5 - 13 mm 1 608 571 062
  • Auxiliary handle 2 602 025 141
GBH 2-26 DRE

Order number: 0 611 253 767



Price includes:

  • Auxiliary Handle 1 612 025 058
  • Carrying case 1 615 438 429
  • Chuck 1 608 571 088
  • Cold Chisel 2 608 690 096
  • Depth stop 210 mm 1 613 001 009
  • Masonry Drill 1 618 596 167
  • Pointed chisel 2 608 590 095
  • SELF-DRILLING Wrap 2 608 595 425
Product details

Downloads

Product data sheet

GBH 2-26 DRE Professional
(approx. 1.5 MB)

Download
User Manual

GBH 2-26 DRE (PDF 9.1 MB)

Download
