Cordless rotary hammers
![GDE 18V-26 D]( "GDE 18V-26 D")
![GDE 18V-26 D]( "GDE 18V-26 D")
![GDE 18V-26 D]( "GDE 18V-26 D")

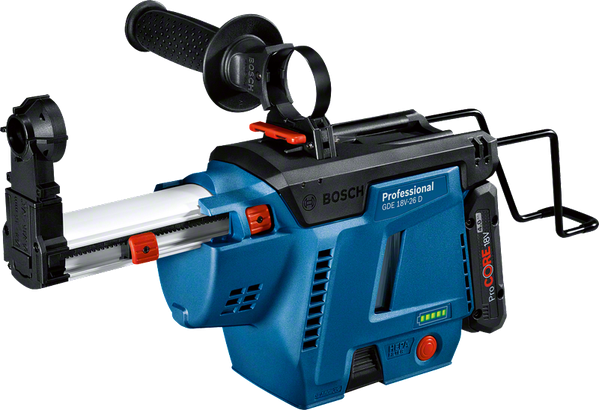

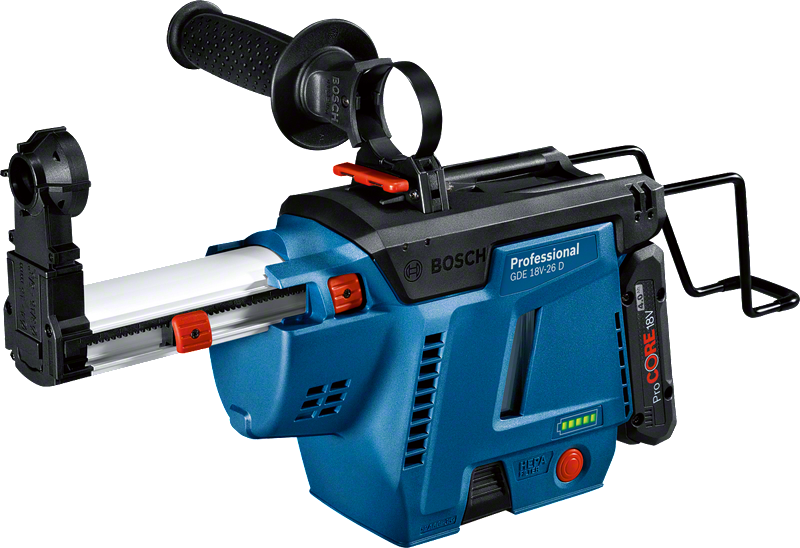

GDE 18V-26 D Professional
Integrated Dust Extractor
Dustless drilling on the go
- Mobile freedom - Dustless mobile work for convenient and clean drilling
- Compatible for use with popular corded and cordless Bosch Professional rotary hammers, such as GBH 2-26/28 (F/L) and GBH 18V-26 D
- High flexibility - 4 interchangeable dust eyes for bits up to 26 mm in diameter and an extension for bits up to 265 mm in length
Functions & key features
in cardboard box
1 600 A01 TX0
GDE 18V-26 D Professional
Your Selection
in cardboard box
Order number: 1 600 A01 TX0
Buy nowIncluded in this variant
-

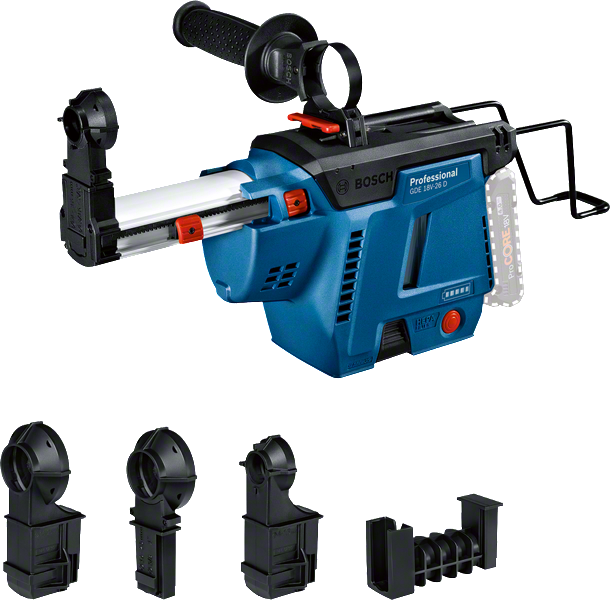

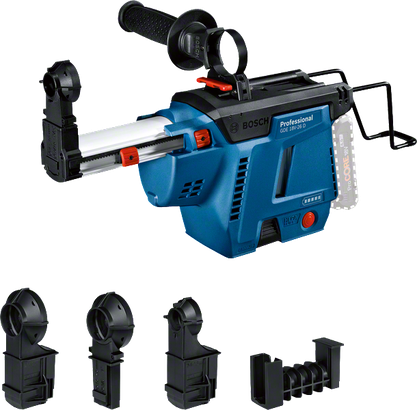

Dust eye quick change chuck, 26 mm diameterOrder number: 1 600 A01 W0J
-
Dust eye quick change chuck, 16 mm diameterOrder number: 1 600 A01 W0K
-
Cardboard box
-
ExtensionOrder number: 1 600 A01 E27
-
Dust eye fixed chuck, 16 mm diameterOrder number: 1 600 A01 E28
-
Dust eye fixed chuck, 26 mm diameterOrder number: 1 600 A01 E29
-
Metal adapterOrder number: 1 600 A01 W0P
Technical data
The most important data
Compatible with

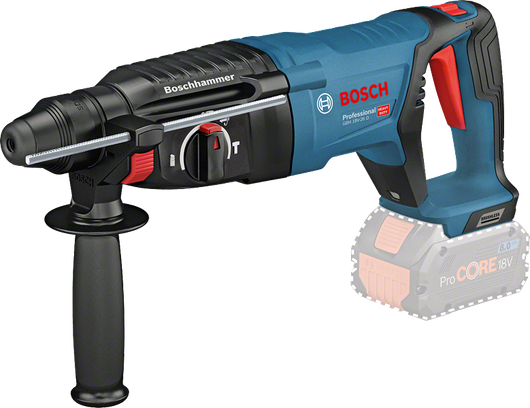

GBH 2-28 (0.611.267.5xx)GBH 2-28 F (0.611.267.6xx)GBH 2-28 L (0.611.268.5xx)GBH 2-26 (0.611.2A3.0xx)GBH 2-26 F (0.611.2A4.0xx)11255VSR (0.611.276.0xx)GBH 18V-26 D (0.611.916.0xx)
Drilling diameter max.
26 mm
Maximum drilling depth
100 mm
Weight*
1.7 kg
Maximum drill bit length
265 mm

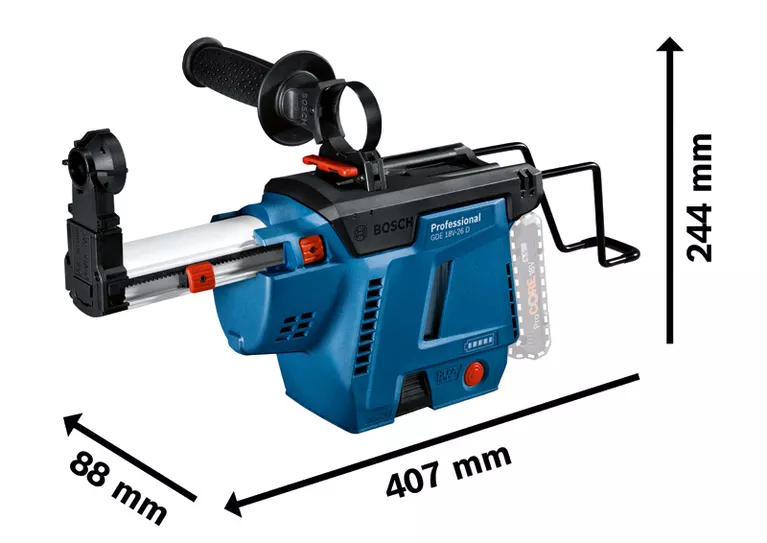

Packaging dimensions (width x length x height)
315 x 400 x 110 mm
* You can find more information about the deviations in the following link:
GDE 18V-26 D Professional: Further information
Product Highlights

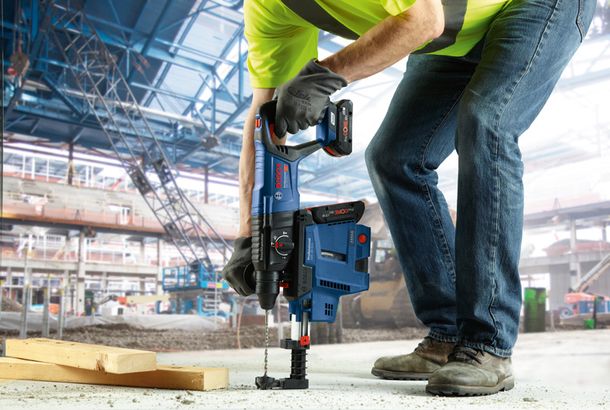

The independently functional 18 V GDE 18V-26 D dust extractor enables dustless mobile work for convenient and clean results in a variety of drilling applications. It can be retrofitted for use with many popular corded and cordless heavy-duty Bosch Professional rotary hammers and includes four interchangeable dust eyes for fixed or quick-change chucks and drill bits up to 26 mm in diameter, as well as an extension for bits up to 265 mm in length.
Equipment & Application
This dust extraction is compatible with the GBH 2-26 (F), GBH 2-28 (F/L), and GBH 18V-26 D Professional, and can be used with all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GDE 18V-26 D also features a HEPA filter.
