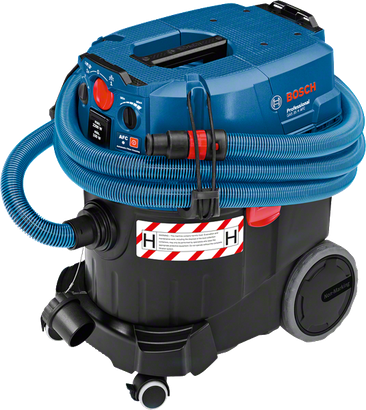

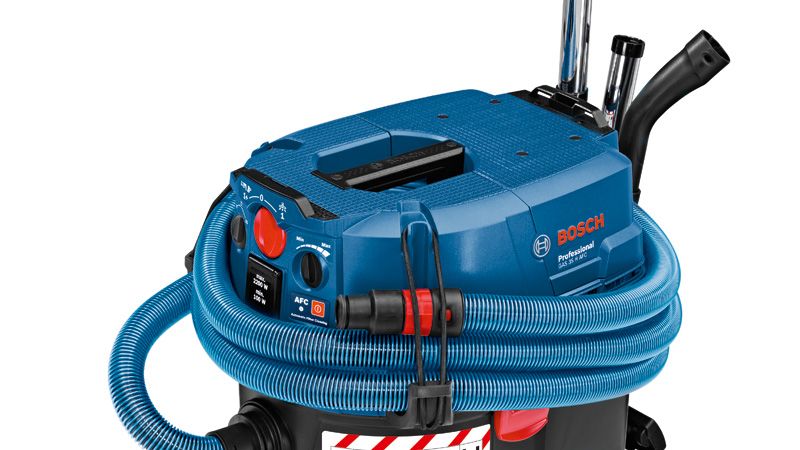

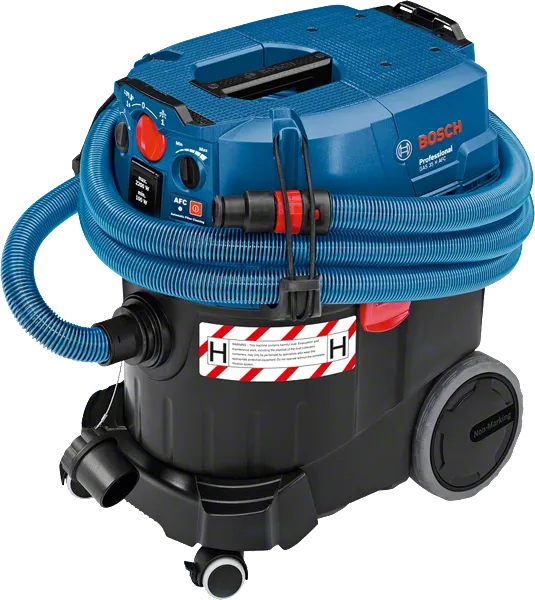

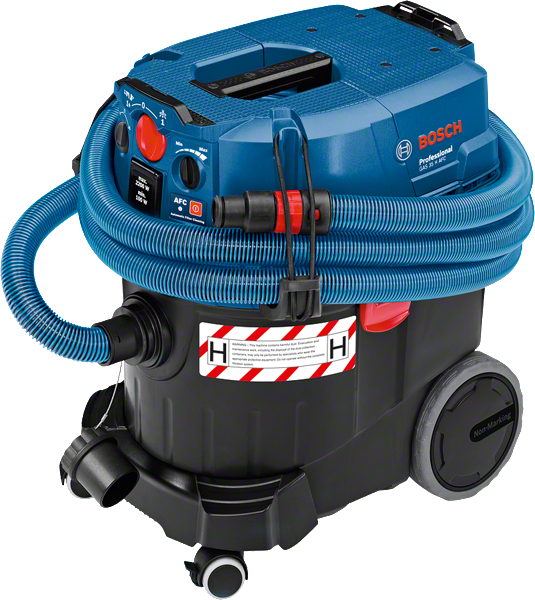

GAS 35 H AFC Professional
Wet/Dry Extractor
H-Class dust extractor for wet/dry hazardous dust applications with automatic filter cleaning
- H-class certified for carcinogenic and pathogenic dust, increasing user protection
- Automatic filter cleaning mechanism for constant working
- Flow control monitoring constant air flow through the suction cup, including an acoustic warning signal
Functions & key features
with hose
0 601 9C3 640
GAS 35 H AFC Professional
Your Selection
with hose
Order number: 0 601 9C3 640

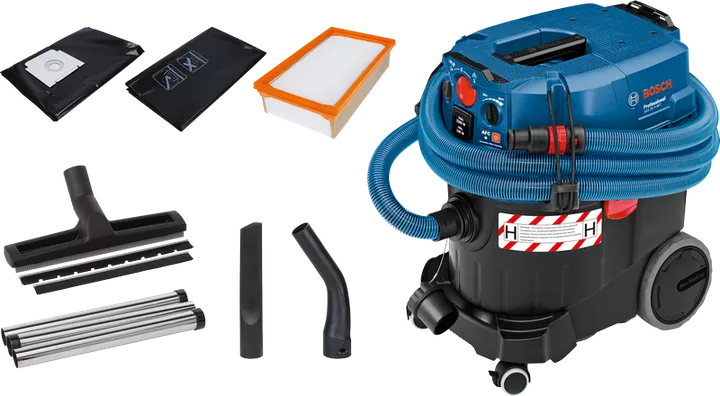

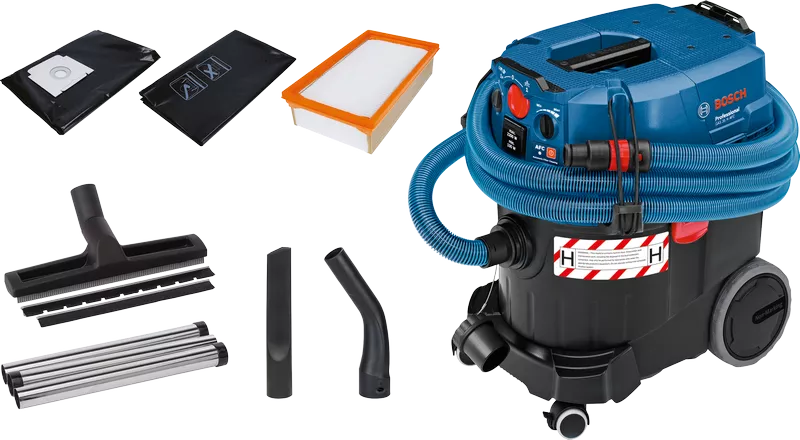

Buy nowIncluded in this variant
-
1 x safety filter bag (available separately as set of 5: 2 607 432 050)
-
1 x flat-pleated filter H-class (HEPA), PTFEOrder number: 2 607 432 052
-

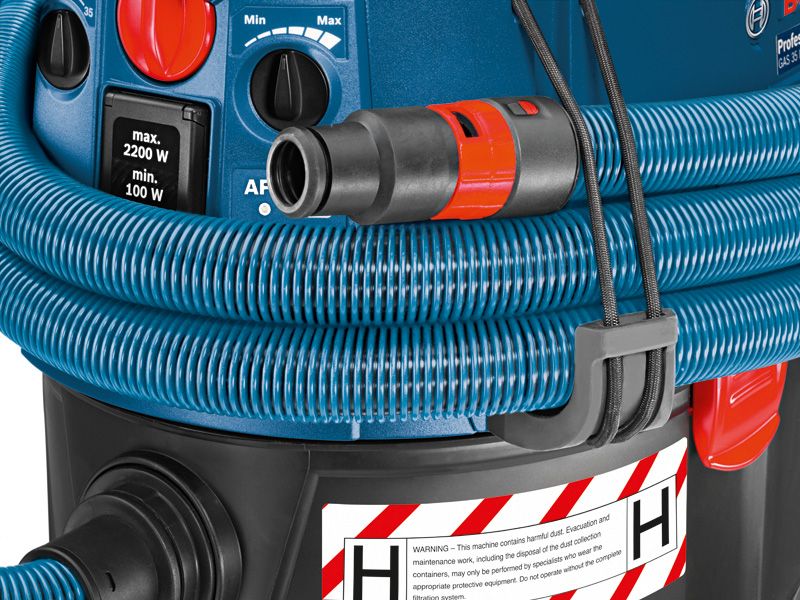

5 m hose, 35 mm diameter, antistatic, with power tool adapterOrder number: 2 608 000 566
-
3 x 0.35 m chrome-plated suction tube, 35 mm diameterOrder number: 2 608 000 575
-

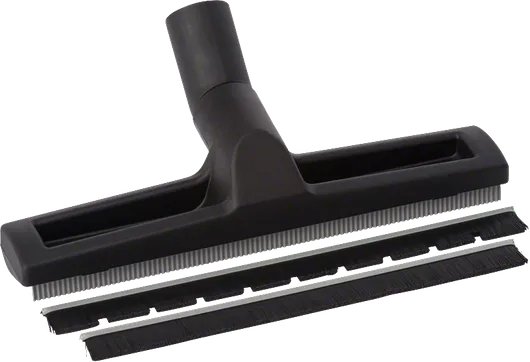

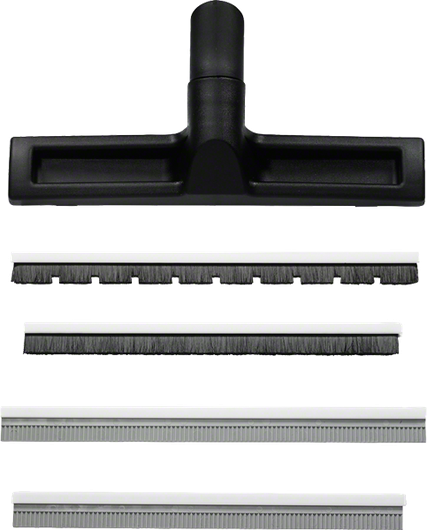

Floor nozzle set, 35 mm diameterOrder number: 1 609 390 478
-

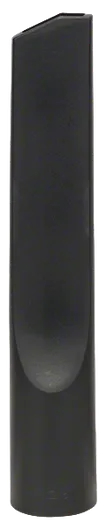

Crevice nozzle, 35 mm diameterOrder number: 2 607 000 165
-
1 x PE disposable bag (available separately as set of 10: 2 607 432 051)
-

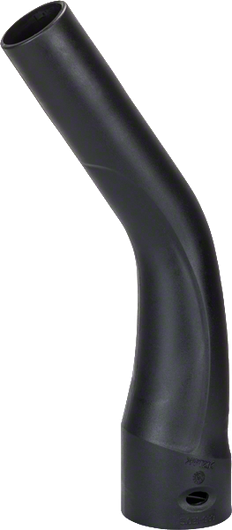

ElbowOrder number: 2 608 000 573
Technical data
The most important data
Rated input power
1,200 W
Weight*
12.4 kg
Container volume, gross
35 l
Container volume, net
23 l
Container volume, net, water
19.2 l
Dust class of wet/dry extractor
H
Dust class
H
Filter surface area
5,000 cm²
Airflow rate (turbine)
74 l/s
Vacuum pressure (turbine)
254 mbar
Wheels, number
4

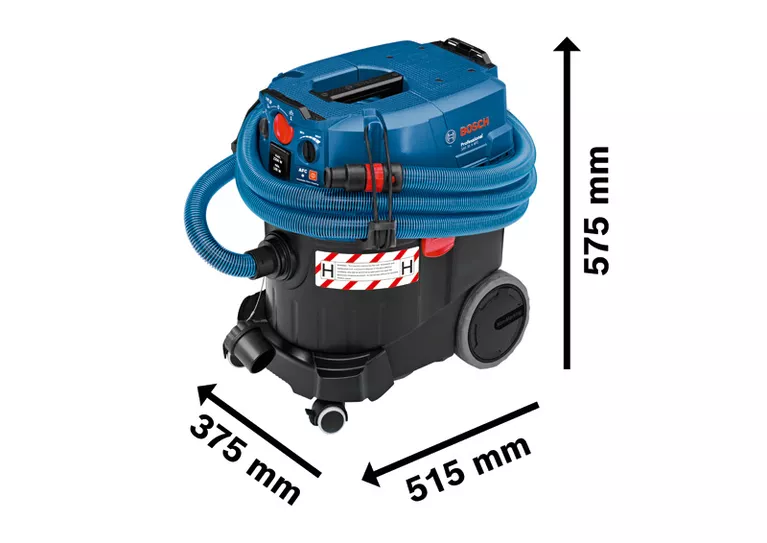

Packaging dimensions (width x length x height)
385 x 590 x 730 mm
Plug Type
Type I
* You can find more information about the deviations in the following link:
GAS 35 H AFC Professional: Further information
Product Highlights
The GAS 35 H AFC Professional is the high-performance wet/dry dust extractor enabling better user protection. Its safety filter traps 99.995% of health-endangering dusts. The certification for H-class dust further increases the level of health protection against carcinogenic and pathogenic dust as well as organic material (e.g., mould) and container construction material (e.g.,glass fibre). Its automatic filter cleaning mechanism prevents interruptions for constant working. A volume flow control monitors the constant air flow through the suction cup and gives an acoustic warning signal if the air flow is too low.
Equipment & Application
The GAS 35 H AFC Professional is certified for H-class dust, such as carcinogenic and pathogenic dusts. The L-BOXX can be clicked onto the wet/dry dust extractor for easy transport. All Bosch Power Tools with the Click & Clean System can be connected directly to the GAS 35 H AFC Professional without an adapter.
Additional Information
The 1,380 W suction turbine with 254 mbars (millibar) vacuum pressure delivers good extraction results. The wet/dry dust extractor is equipped with antistatic features for the reduction of electrostatic charge.
