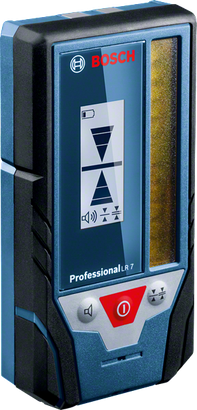

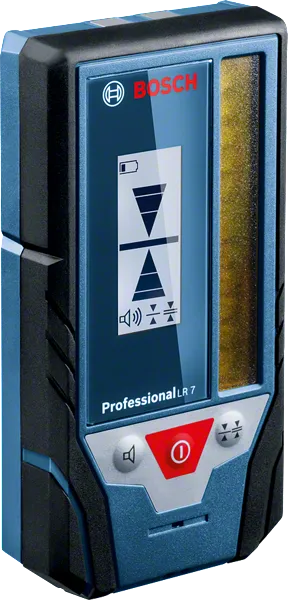

Laser Receiver
LR 7 Professional

with 2 x battery (AA), accessory set

Print

Technical data

The most important data
Remote control -
Receiver +
Range of 5 – 50 m
Power supply 2 x 1.5 V LR6 (AA)
Dust and splash protection IP 54
Weight, approx. 150 g

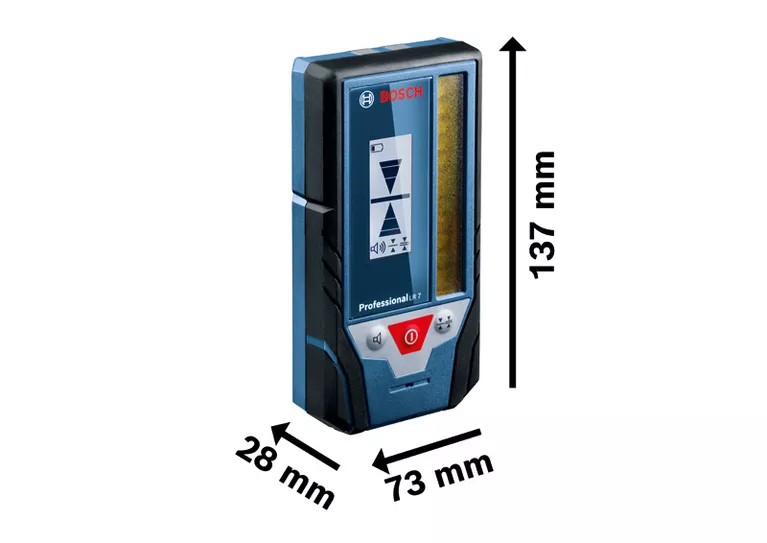

Tool dimensions (width) 28 mm
Tool dimensions (length) 73 mm
Tool dimensions (height) 137 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

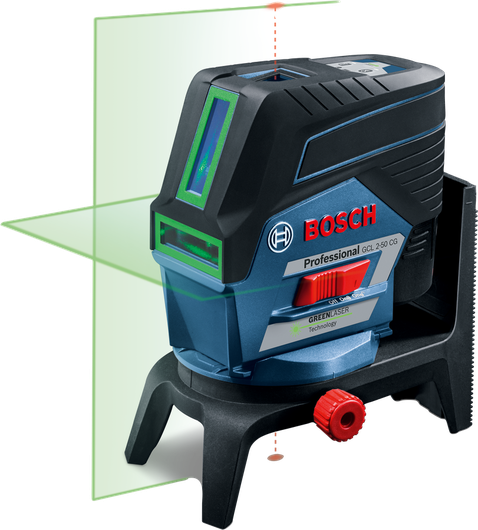

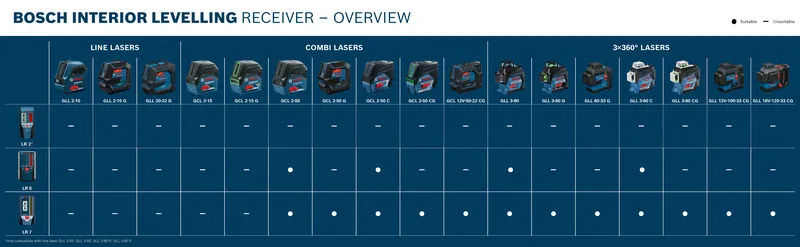

Suitable for GCL 2-50 C, GCL 2-50 CG, GLL 3-80, GLL 3-80 C, GLL 3-80 CG

Advantages

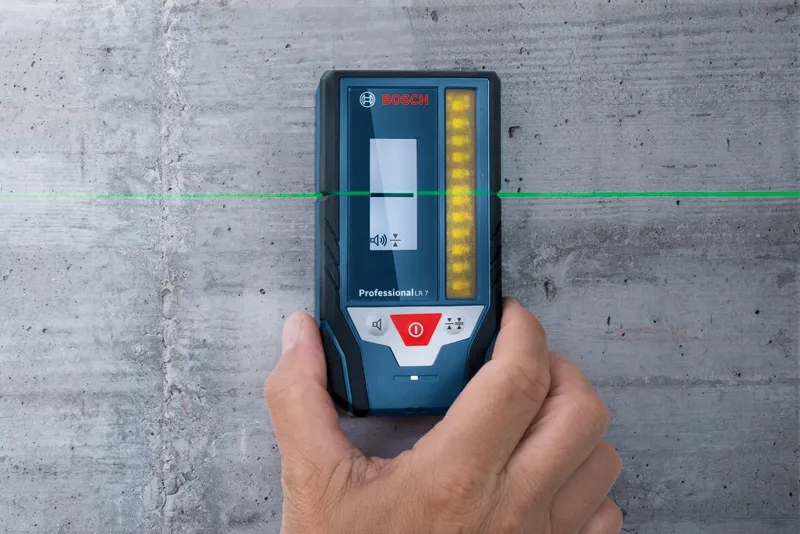

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions

Prices / Package contents


with 2 x battery (AA), accessory set

Order number: 0 601 069 J00

Selected version

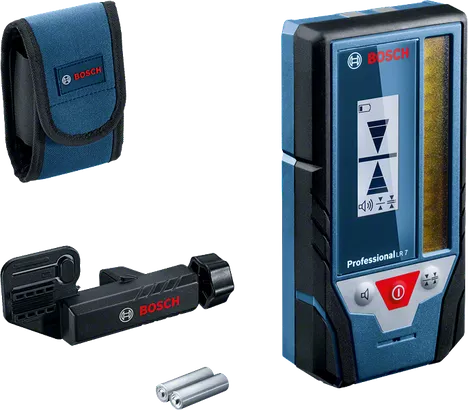

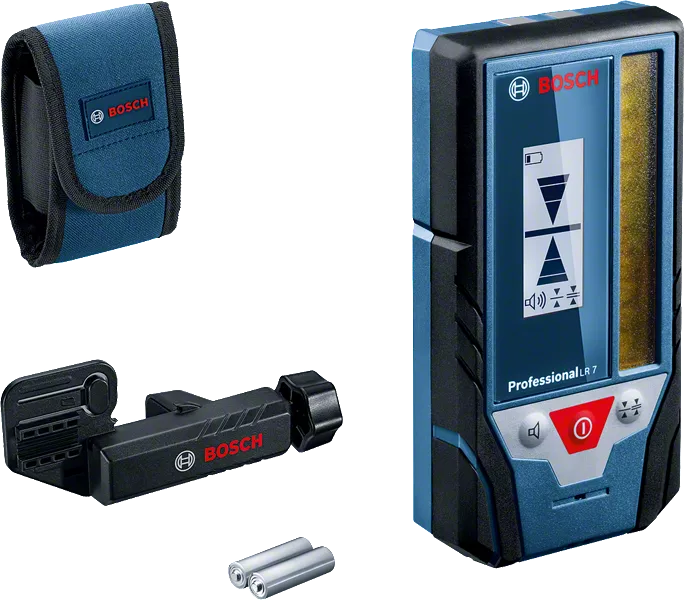

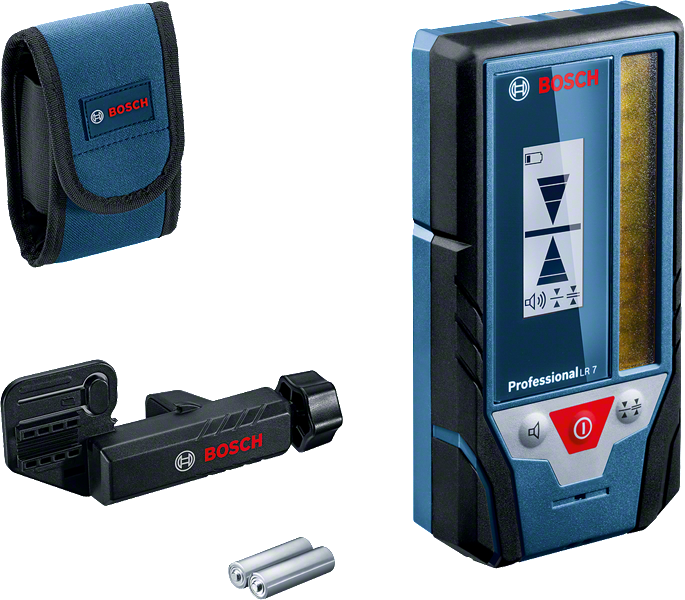

Price includes:

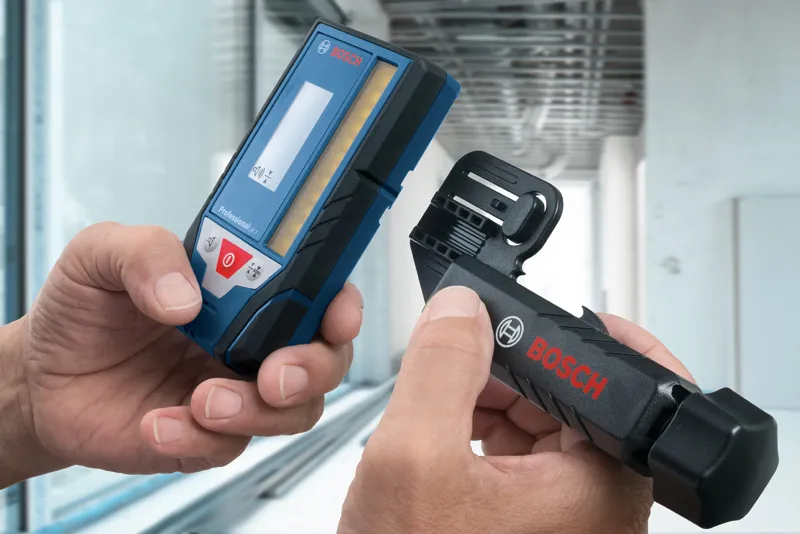

  • Bracket for laser receiver LR 6/7 1 608 M00 C1L
  • Protective Bag
  • 2 x 1.5 V LR6 battery (AA)
Accessories

Bracket

Bracket for LR 6, LR 7

Downloads

Product data sheet

LR 7 Professional
(approx. 1.5 MB)

Download
User Manual

LR 7 (PDF 3.2 MB)

Download
