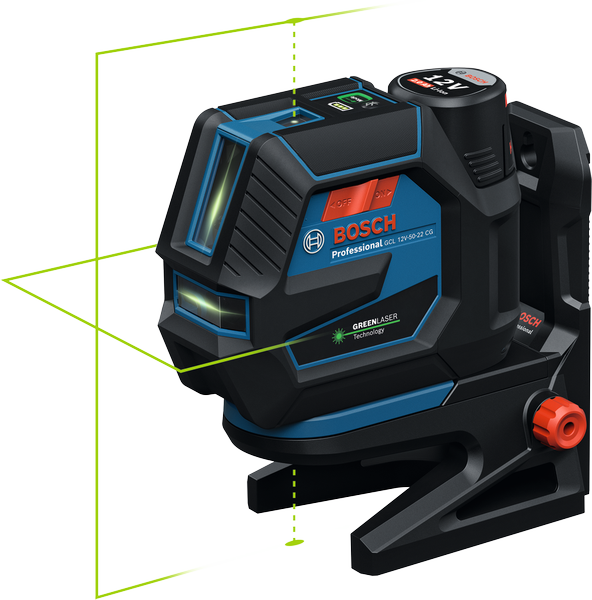

PRO GCL 12V-50-22 CG
Combi Laser
Order number 0.601.066.S00
- Enjoy peace of mind with IP65 dust and water protection and a sturdy rubber housing
- Save time and increase preciseness with the Levelling Remote app for hands-free line control
- No downtime ensured by Dual Power Source, allowing to switch between 12V Li-Ion battery and AA alkaline batteries

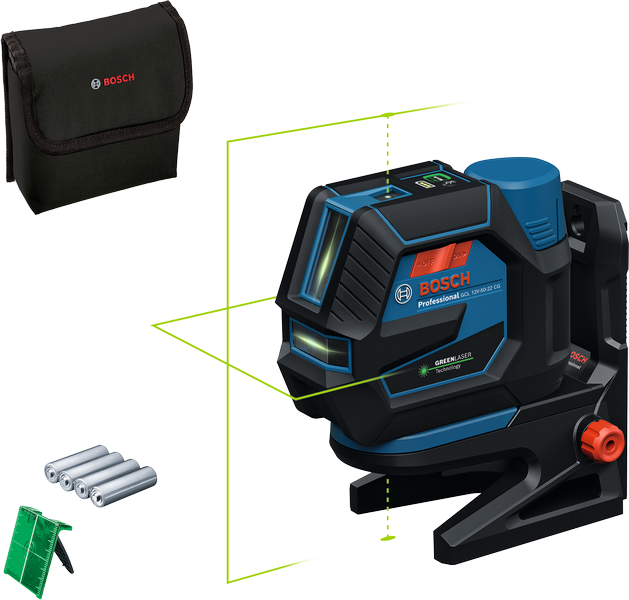

with 4 x battery (AA), adapter
0 601 066 S00
PRO GCL 12V-50-22 CG
Your Selection
New
Coming soon
with 4 x battery (AA), adapter
Order number: 0 601 066 S00
Buy nowIncluded in this variant
-

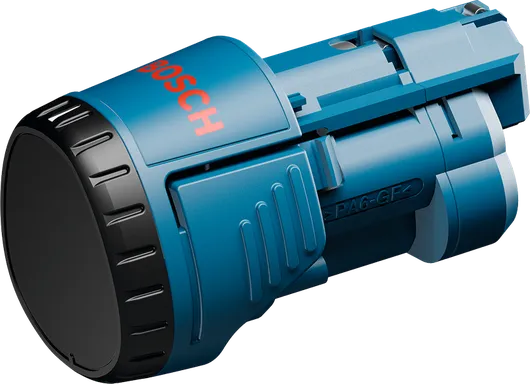

AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
Rotating mount RM 20 ProfessionalOrder number: 1 600 A03 1YN
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
Technical data
The most important data
Battery voltage
12.0 V
Laser diode
500 – 540 nm, < 1 mW
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range, value
25 m
Working range with receiver*
50 m
Accuracy*
± 0.3 mm/m
Working range of laser points, max.*
10 m (bottom), 10 m (top)
Self-levelling range
± 4°
Levelling time
4 s
Dust and splash protection
IP65
Power supply
12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.)
8 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation
Weight, approx.*
0.59 kg
Colour of laser line
Green
Color of plumb points
Green
Projection
2 lines / 2 points
Plumb point accuracy*
± 0.7 mm/m
Compatible laser receivers
LR 7

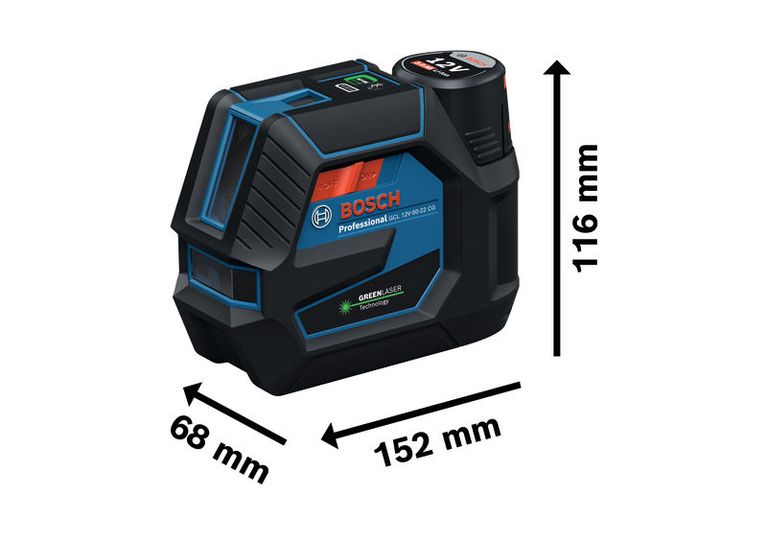

Packaging dimensions (width x length x height)
183 x 205 x 126 mm
* You can find more information about the deviations in the following link:
PRO GCL 12V-50-22 CG: Further information
Product Highlights

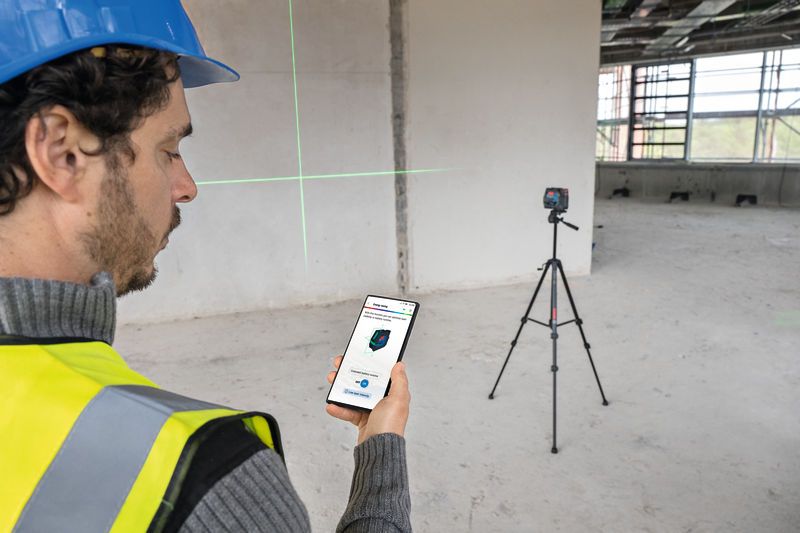

The GCL 12V-50-22 CG Professional is your reliable partner for precision tasks. With a robust rubber-enforced housing and an IP65 rating, it's built to withstand dust and water, so you can focus on the task at hand. The Levelling Remote app for remote control of the laser lines and points ensures less time adjusting and more time working. Plus, with the Dual Power Source, you can switch between the 12V Li-Ion battery and back-up power source AA alkaline batteries, ensuring no downtime due to an empty battery, keeping your work flowing seamlessly.
Equipment & Application

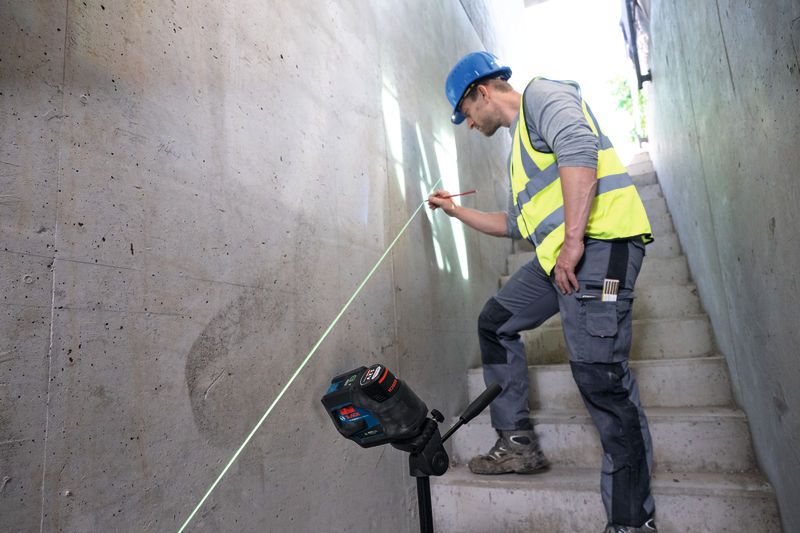

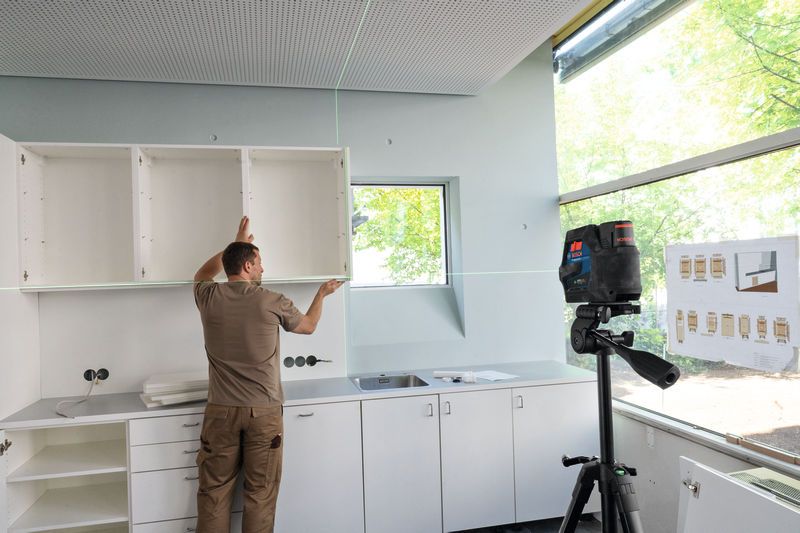

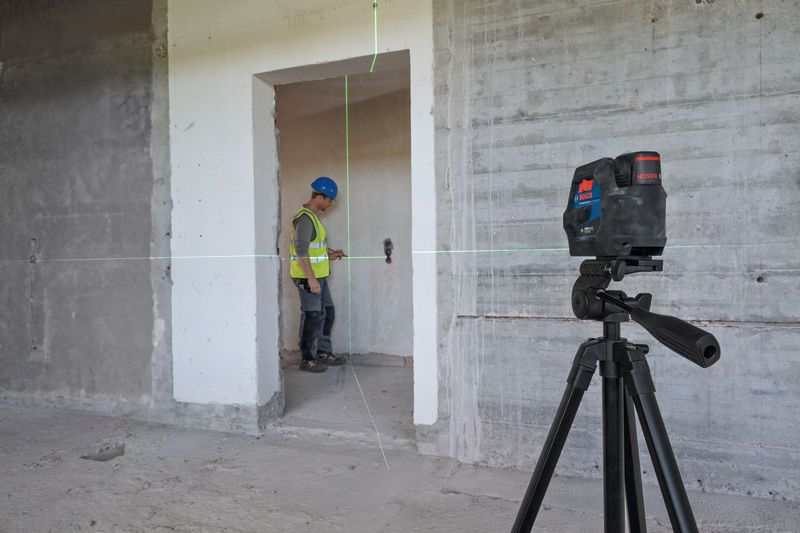

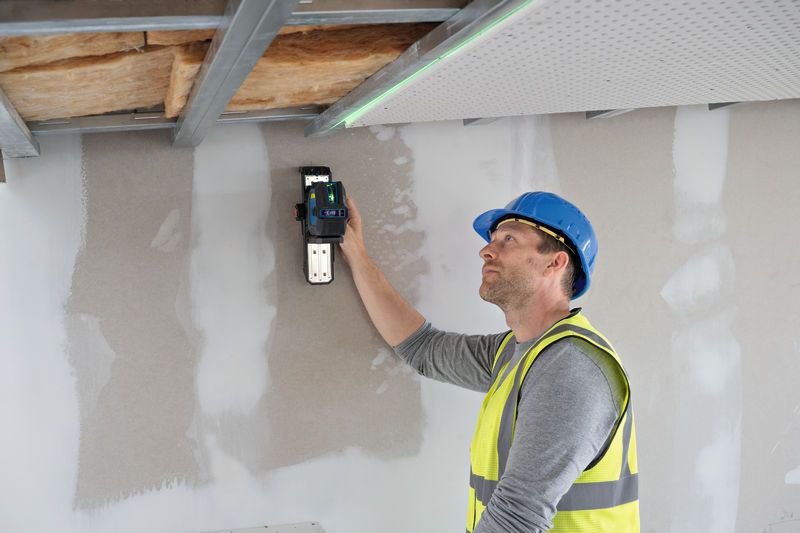

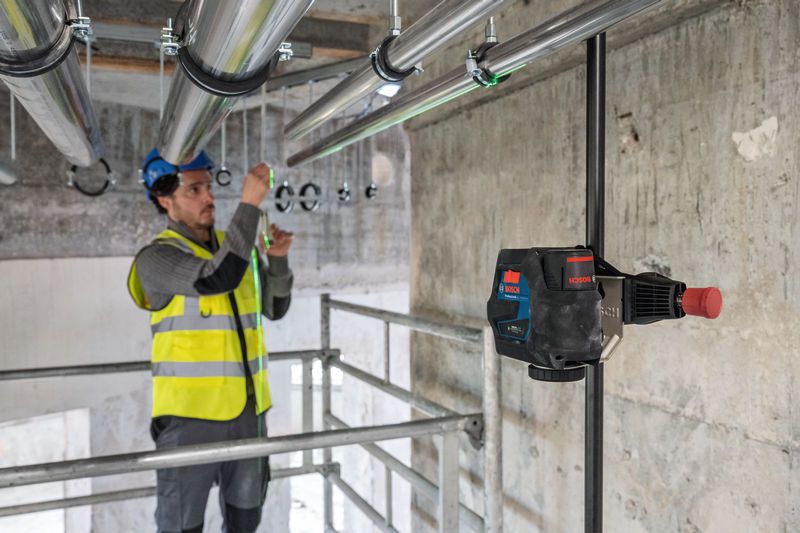

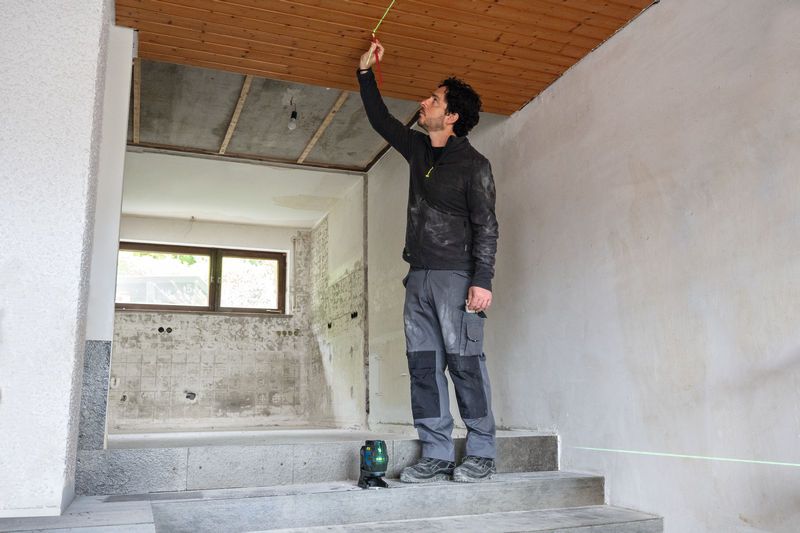

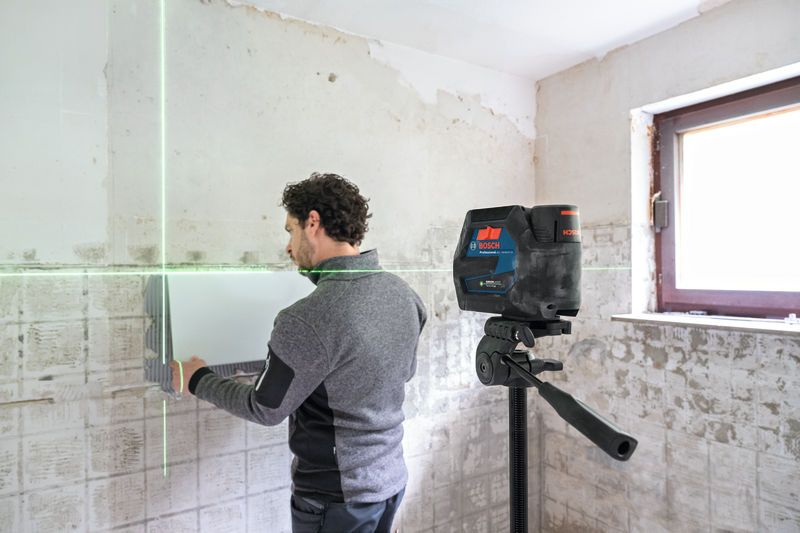

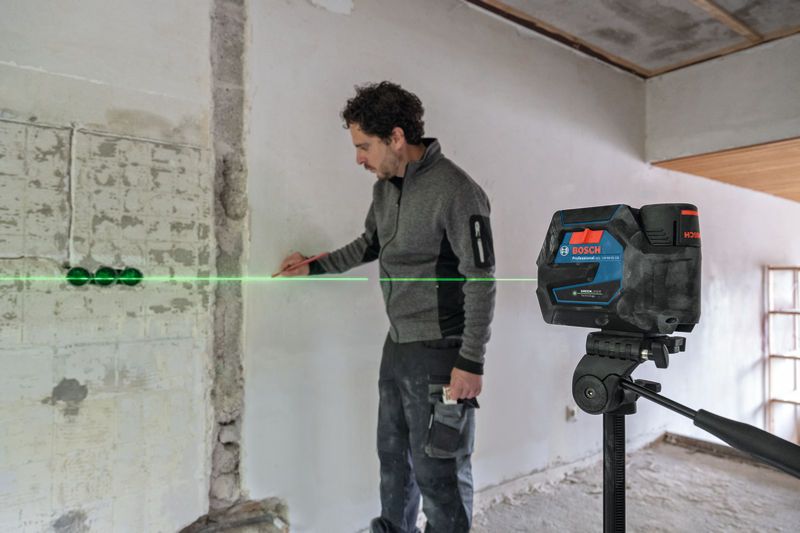

The GCL 12V-50-22 CG is designed for easy and intuitive operation, featuring a one-mode button, battery readout and a U-shaped laser window for a wider fan-angle of the horizontal line. It is perfect for professionals who need precise alignment. Whether you're aligning sockets, installing dry walls, or installing downlights by transferring points from floor to ceiling, the GCL 12V-50-22 CG Professional makes the job easier and more efficient.
Additional Information

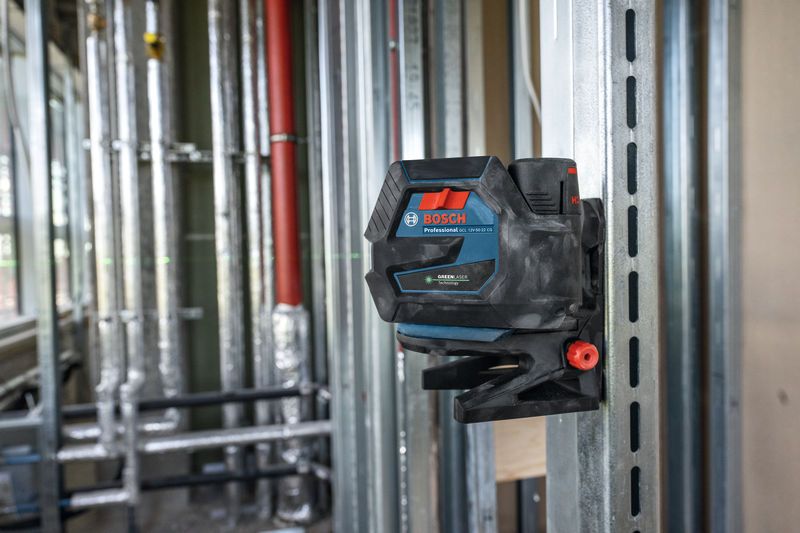

For starting right away, the GCL 12V-50-22 CG laser receiver mode is always activated. With the optional laser receiver LR 7 Professional you can extend the working range up to 50 meters. The green laser lines and points offer up to four times better visibility than red lines, ensuring your work is always spot-on. Precise positioning of laser lines around plumb points can be easily achieved with the mount RM 20 Professional.
Fits to PRO GCL 12V-50-22 CG
