Line lasers

Bosch GLL 3-80 CG laser leveling tool with green beams.

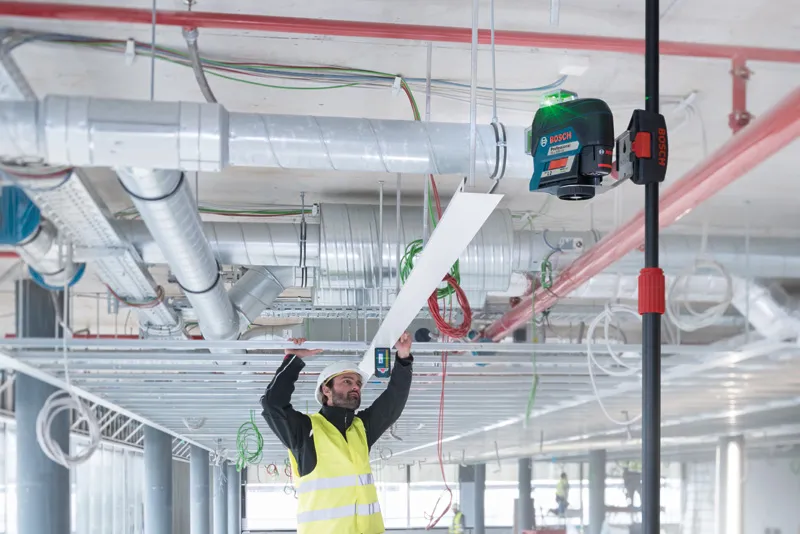

A person wearing safety equipment aligns a ceiling frame using a laser leveling tool.

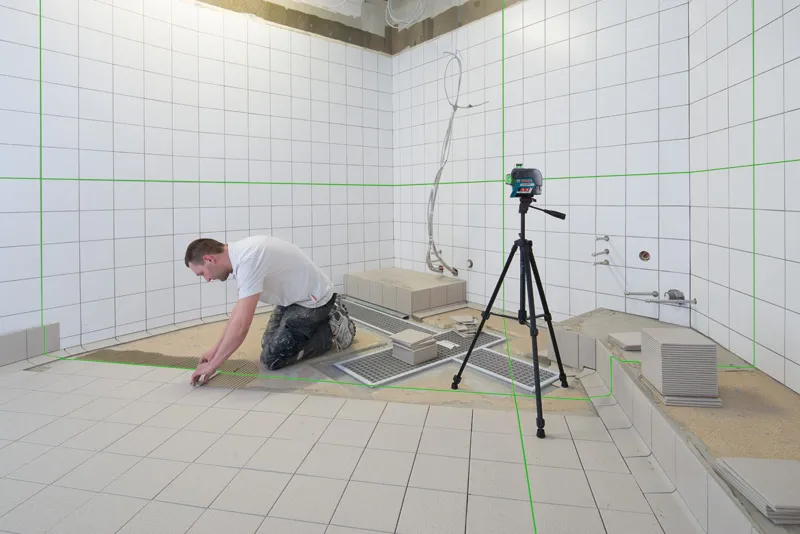

Person installing tiles in a bathroom, using a laser leveling tool on a tripod.

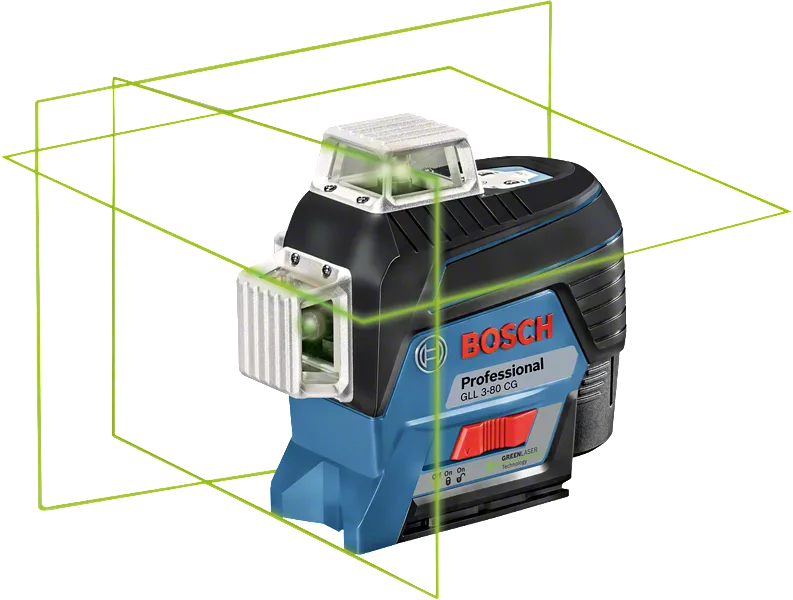

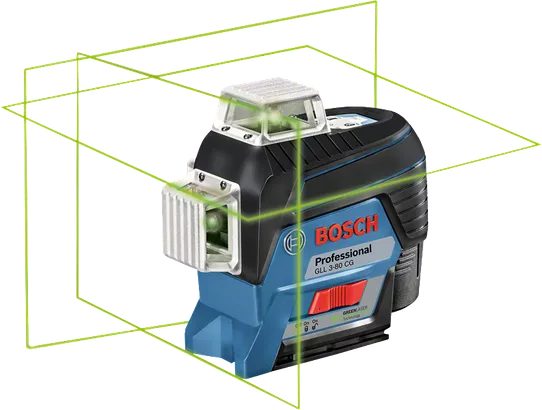

GLL 3-80 CG Professional

Name: GLL 3-80 CG
Brand: Bosch power tools
SKU: 0601063U80

Line Laser

Green supreme visibility in 3 x 360°. Simply connected.

Up to four times better visibility due to the green laser lines
Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool
High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool

Functions & key features

Your Selection

in carrying case with 4 x battery (AA), accessory set

Show variant

Check availability on location

Buy now

Your Selected Variant

in carrying case with 4 x battery (AA), accessory set 0 601 063 U80

Buy now

GLL 3-80 CG Professional

Your Selection

in carrying case with 4 x battery (AA), accessory set

Order number: 0 601 063 U80

Buy now

Included in this variant

AA1 alkaline battery adapter

Order number: 1 608 M00 C1B

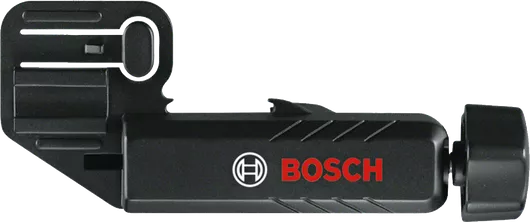

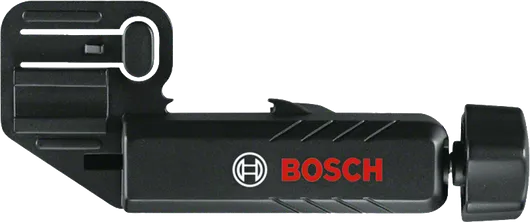

Clamp

Order number: 1 609 B00 839
4 x 1.5 V LR6 battery (AA)
Pouch
Universal Holder BM 1 Professional

Order number: 0 601 015 A00
Laser target plate
Carrying case

Your selection

Our service promise for professionals.

Technical data

The most important data

Laser diode

500 – 540 nm, < 10 mW

Operating temperature

-10 – 40 °C

Storage temperature

-20 – 70 °C

Laser class

Working range*

30 m

Working range with receiver*

120 m

Working range without receiver*

30 m

Accuracy*

± 0.2 mm/m

Self-levelling range

± 4°

Levelling time

4 s

Dust and splash protection

IP 54

Power supply

12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)

Operating time (max.)

6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode

Tripod thread

1/4", 5/8"

Weight, approx.*

0.9 kg

Colour of laser line

green

Projection

3 x 360° line

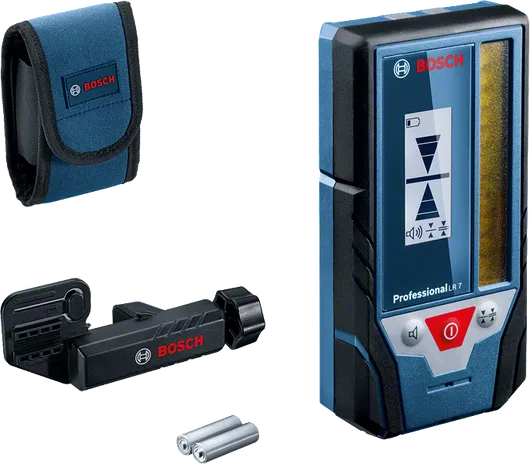

Compatible laser receivers

LR 7

* You can find more information about the deviations in the following link: Technical features of products

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
