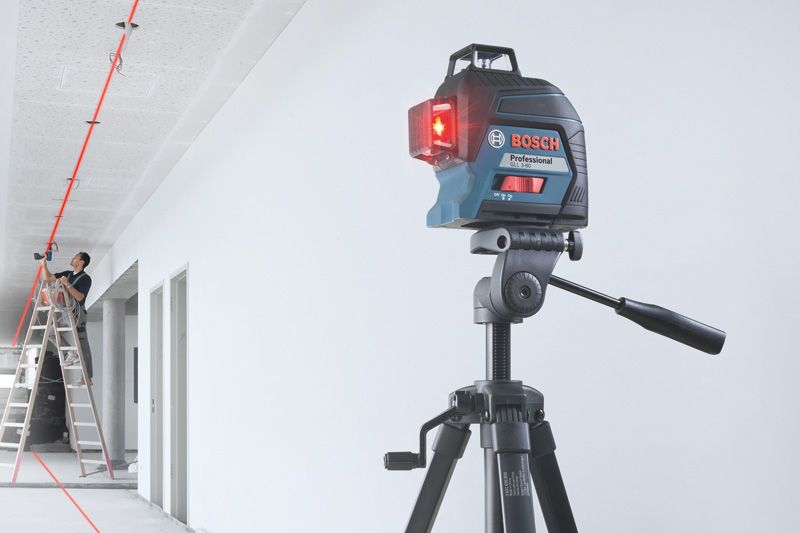

Line Laser
GLL 3-80 Professional

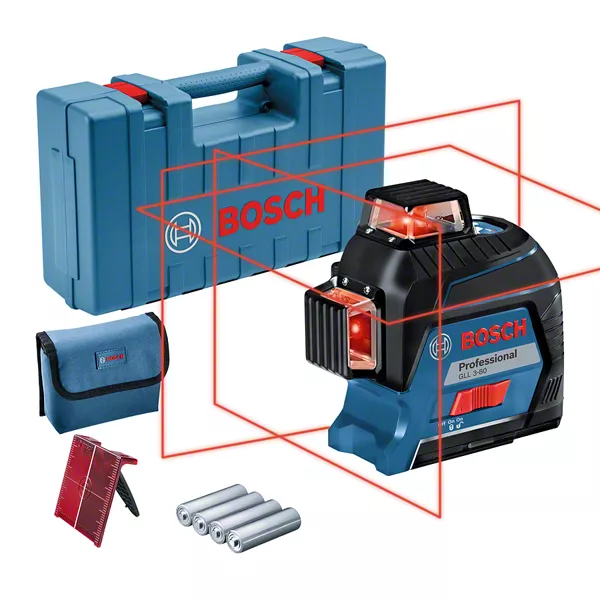

in carrying case with 4 x battery (AA), accessory set

Visibility on a new level in 3 x 360°

Print

Technical data

The most important data
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature -10 – 40°C
Storage temperature -20 – 70°C
Laser class 2
Working range 30 m
Working range with receiver 120 m
Working range without receiver 30 m
Accuracy ± 0.2 mm/m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4", 5/8"

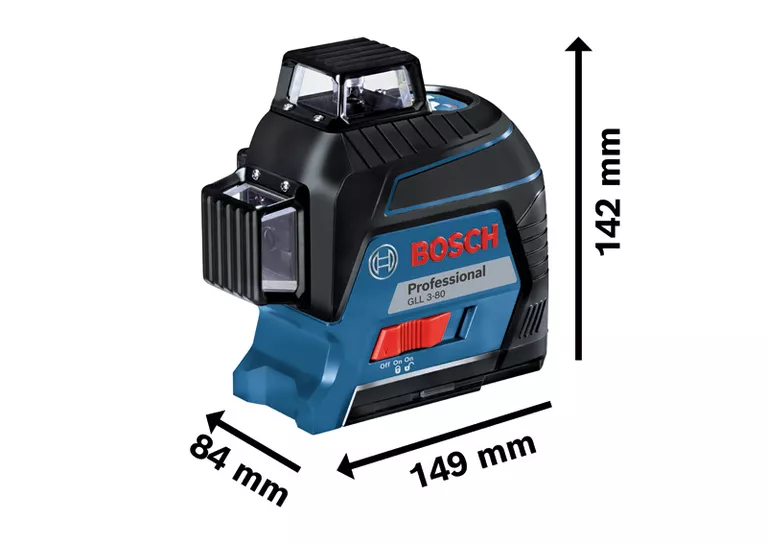

Weight, approx. 0.82 kg
Colour of laser line red

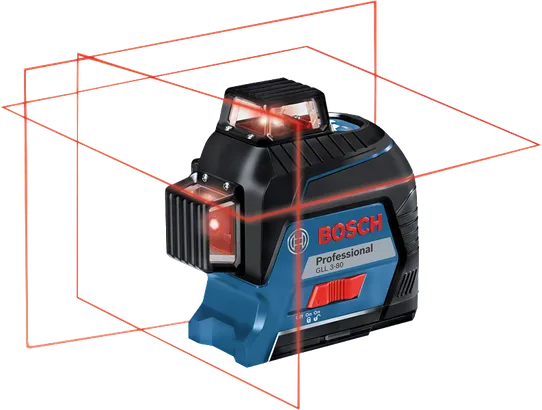

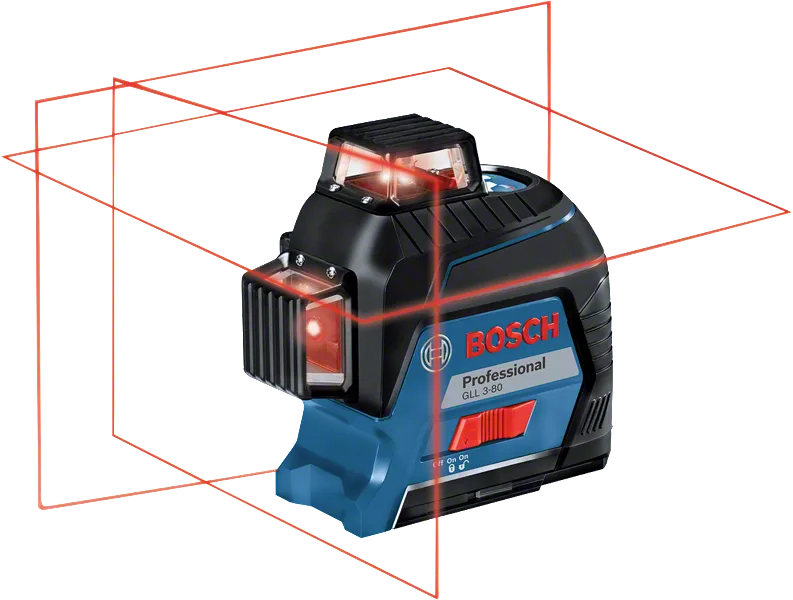

Projection 3 x 360° line
Compatible laser receivers LR 6 + 7

Advantages

Visibility on a new level in 3 x 360°

  • High visibility due to high power diodes

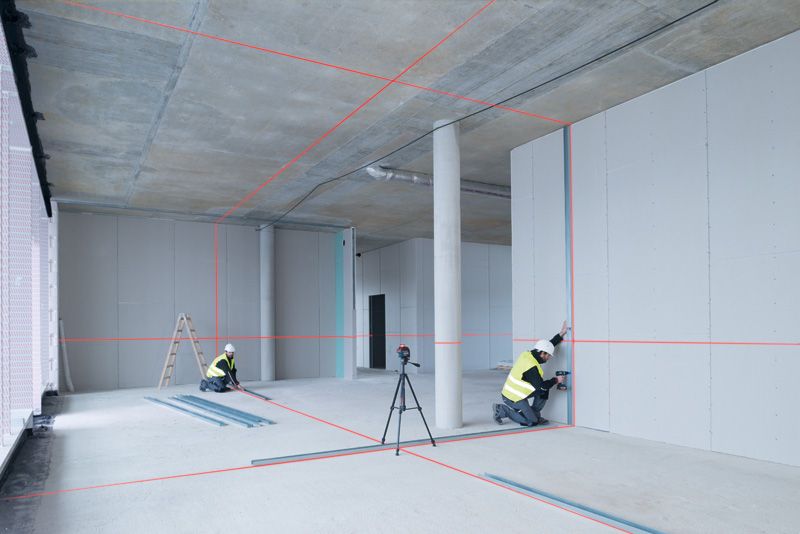

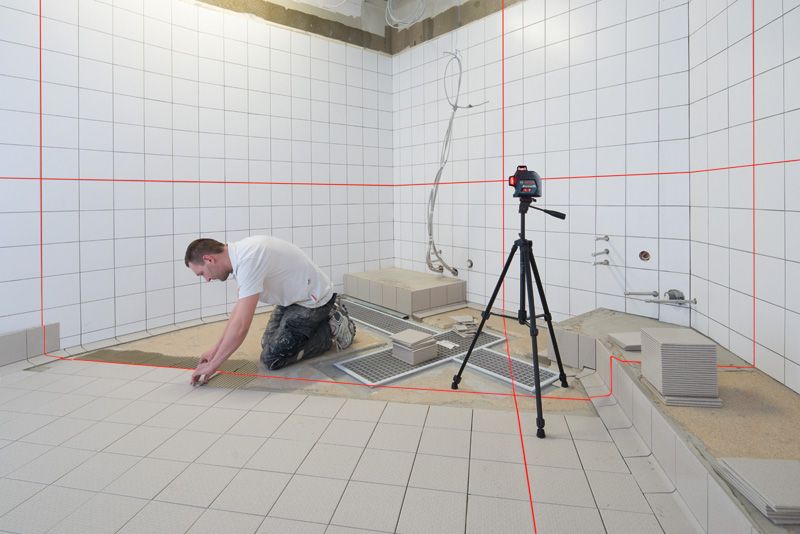

  • High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool
  • Easy to operate using intuitive user interface

Functions

Prices / Package contents


in carrying case with 4 x battery (AA), accessory set

Order number: 0 601 063 S00

Selected version

Price includes:

  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Pouch
  • Carrying case
Accessories

Building Tripod

BT 150

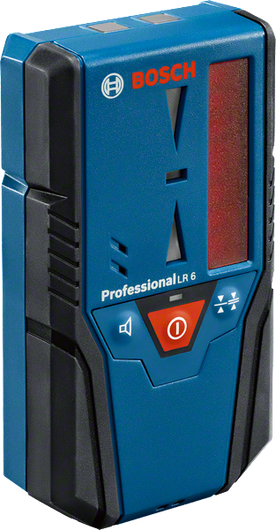

Laser Receiver

LR 6

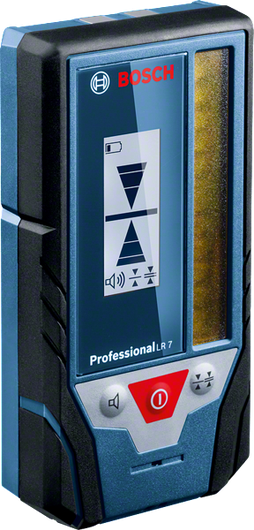

Laser Receiver

LR 7

Universal Mount

BM 1

Downloads

Product data sheet

GLL 3-80 Professional
(approx. 1.5 MB)

Download
User Manual

GLL 3-80 (PDF 26.2 MB)

Download
