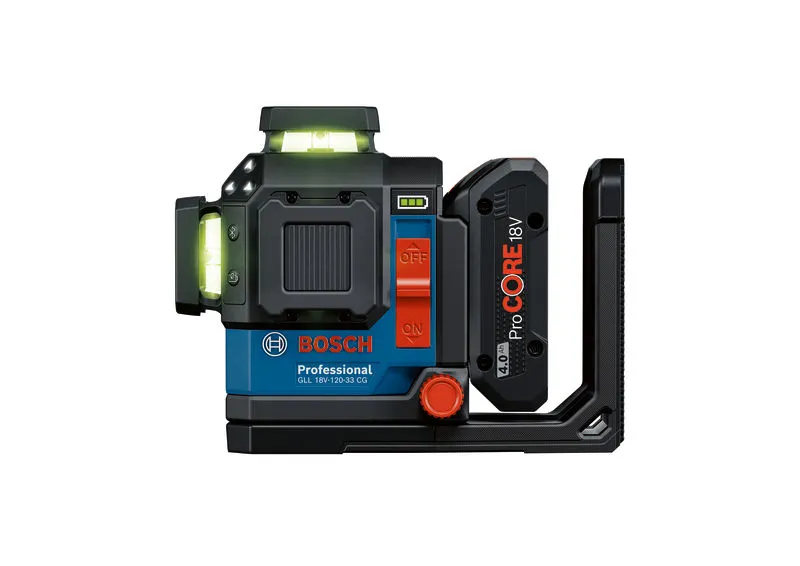

GLL 18V-120-33 CG Professional

Line Laser

GLL 18V-120-33 CG
GLL 18V-120-33 CG
GLL 18V-120-33 CG
GLL 18V-120-33 CG

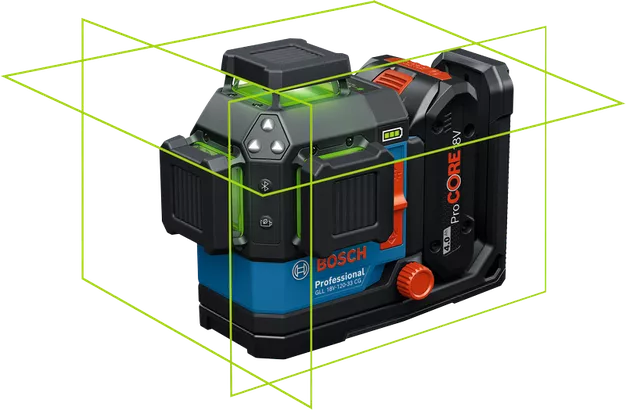

Unstoppable 18V line laser for high precision in tough conditions

  • Easily switch between 18V, 12V, and alkaline C-cell power sources to avoid downtime
  • Rubber-enforced housing and laser windows, and an IP65 rating for peace of mind on the toughest jobsites

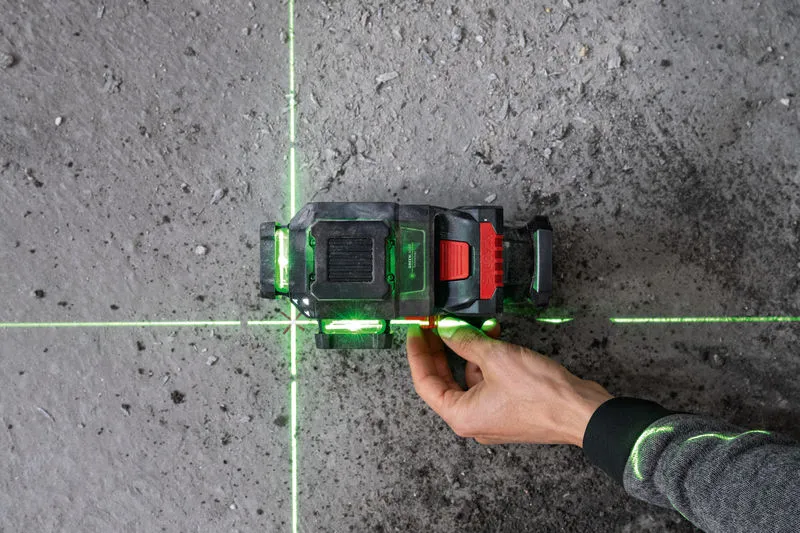

  • Secure mounting and precise work are made easy thanks to the integrated mount with strong magnets and pivot fine adjustment

Functions & key features

3 x 360° Laser lines
Up to 120 m working range (radius) with receiver

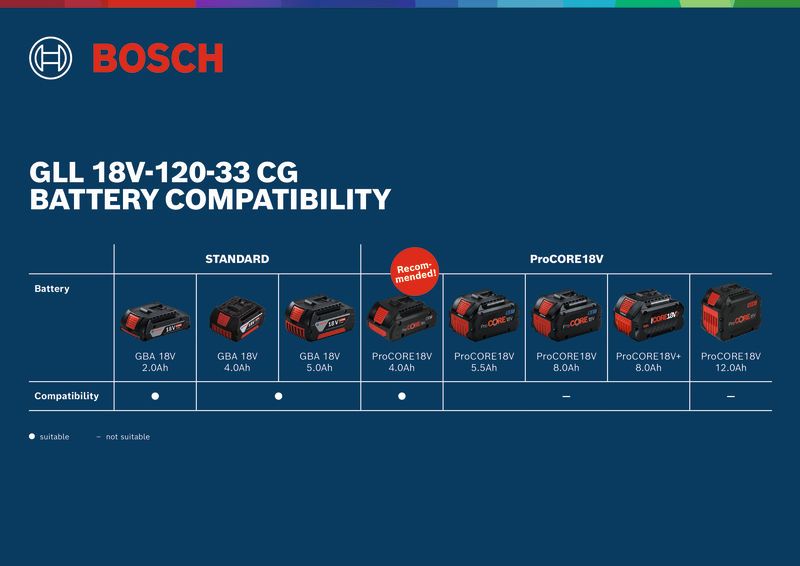

Triple power source
Integrated rotation mount with fine adjustment
IP65 dust tight and water jets protection

Your Selection

  • in L-BOXX 136 with Laser target plate
Show variant

Currently not available online

Find a local dealer

in L-BOXX 136 with Laser target plate 0 601 065 1K0

GLL 18V-120-33 CG Professional

Your Selection

GLL 18V-120-33 CG

New

in L-BOXX 136 with Laser target plate

Order number: 0 601 065 1K0

Find a local dealer

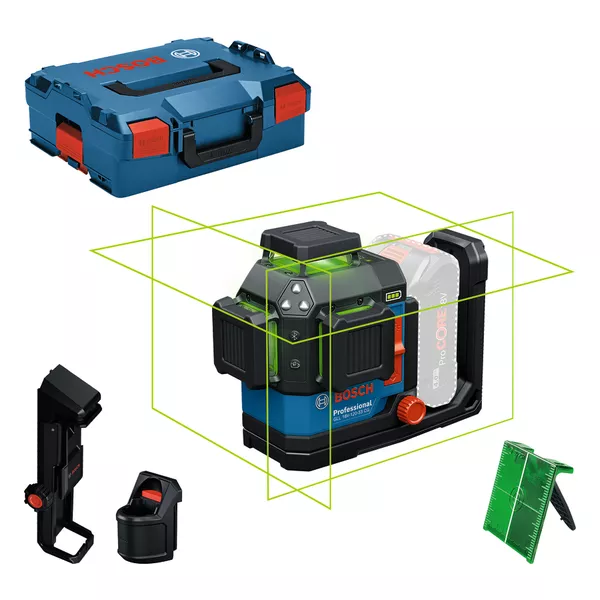

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Ceiling clip DK 20 Professional
    Order number: 1 608 M00 C4C
  • Laser target plate
  • Battery adapter BA 18-12
    Order number: 1 608 M00 C4A
Professional 12V System.
Discover more!

Technical data

The most important data

Battery voltage 18.0 V, 12.0 V
Laser diode 500 – 540 nm, < 10 mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range* up to 35 m
Working range with receiver* up to 120 m
Accuracy* ± 0.3 mm/mᵃ
Self-levelling range ± 4°
Levelling time 3 s
Dust and splash protection IP65 (except for the battery or battery adapter)
Power supply 18 V Li-ion battery, 12 V Li-Ion battery, 4 x 1.5 V LR14 (C)
Operating time (max.) 20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx.** 1.3 kg
Colour of laser line green
Projection 3 x 360° line
Compatible laser receivers LR 7
Weight with 4.0 Ah battery** 1.9 kg
Weight with alkaline batteries** 1.8 kg

GLL 18V-120-33 CG

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵃ Applies for the four horizontal intersection points

GLL 18V-120-33 CG Professional: Further information

Product Highlights

The GLL 18V-120-33 CG Professional provides construction professionals with reliable accuracy in the toughest work conditions. The triple power source concept allows you to switch between 18V and 12V platforms, as well as alkaline C-cells to avoid downtime and stay focused on the job. This robust line laser features rubber-enforced housing and laser windows, as well as an IP65 rating, so you can work without worrying about water, dust, or impact. To make your job easier, the laser features a backlit corner keypad for individually selecting laser lines and an integrated mount with strong magnets for quick and secure mounting. The laser line fine adjustment lets you alter the vertical line without losing the reference point.

Equipment & Application

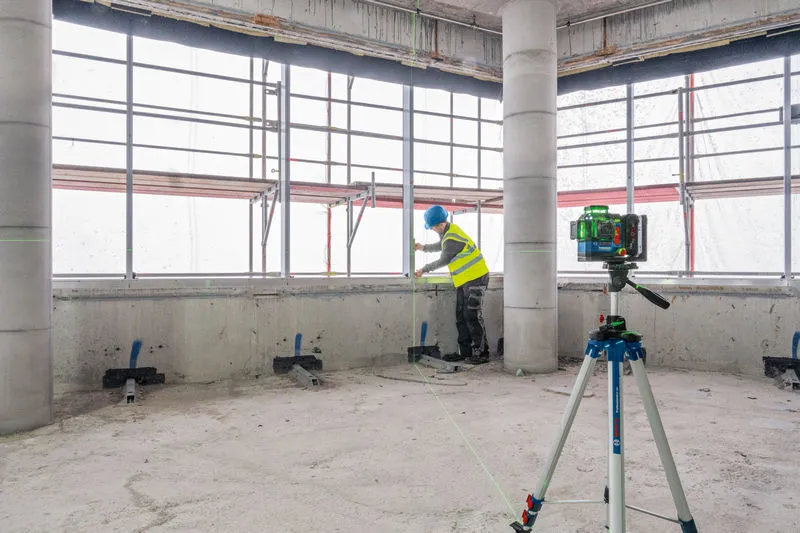

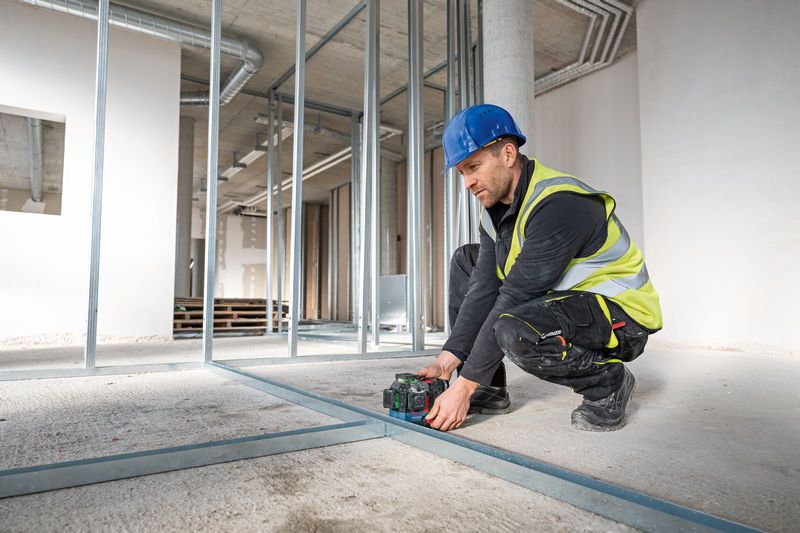

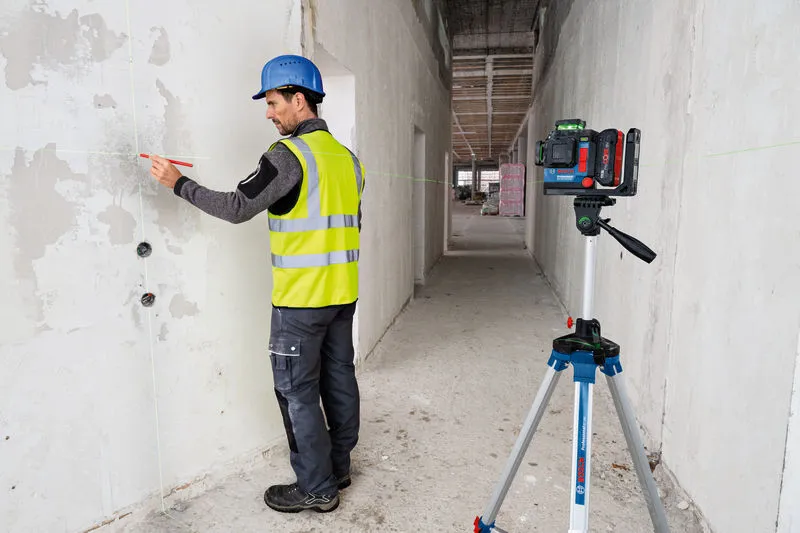

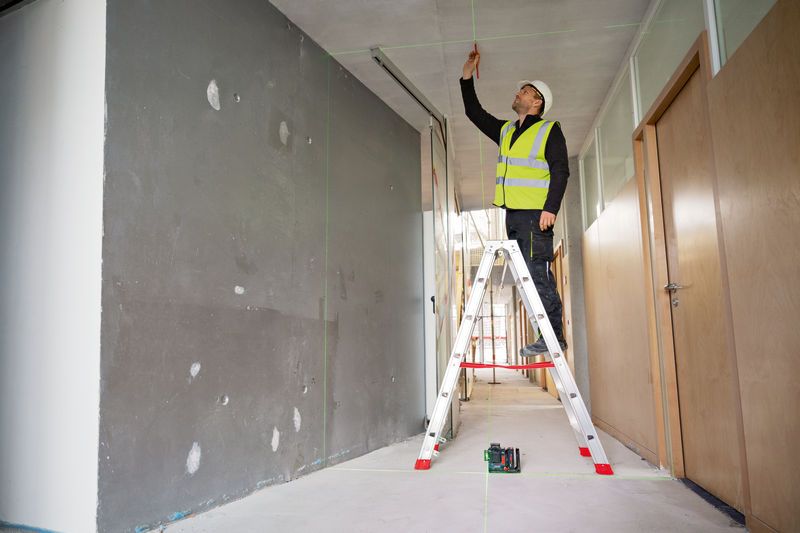

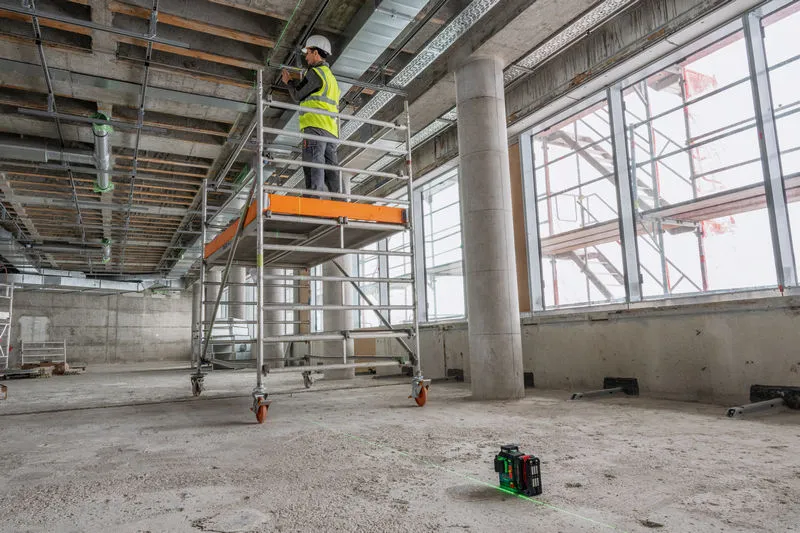

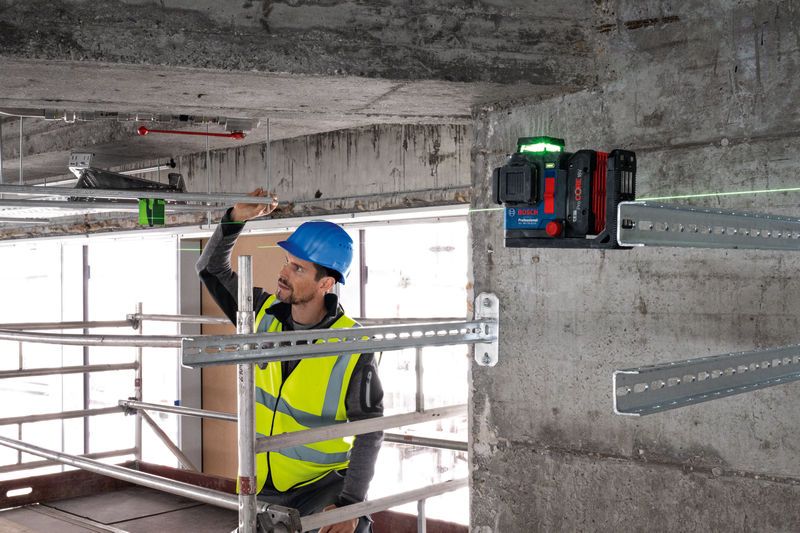

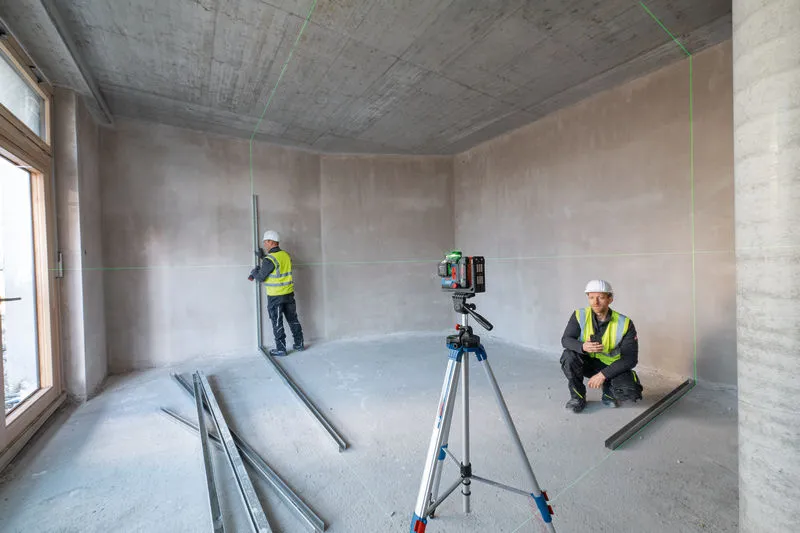

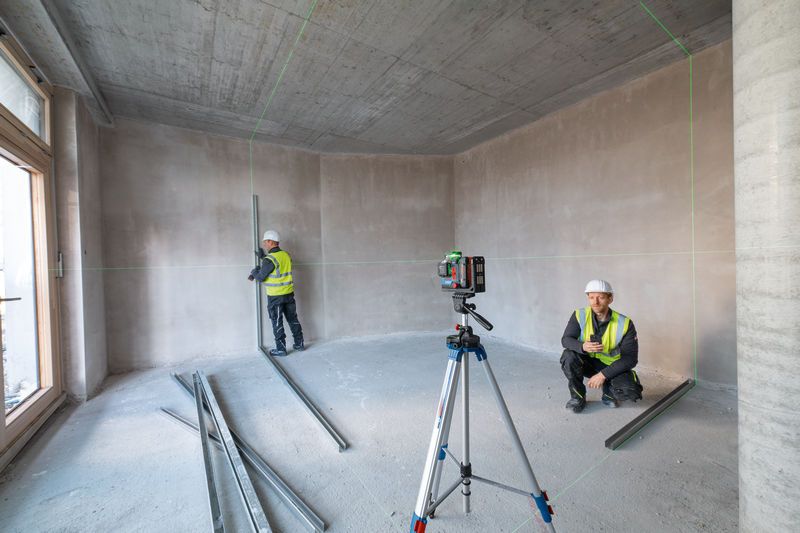

The Levelling Remote app for hands-free line control helps you to save time and to ensure better accuracy. Projecting 3 x 360° laser lines, this tool is ideal for construction workers setting up drywalls, installing studs, or aligning window or door frames – as well as for installing suspended ceilings and piping, and aligning sockets.
