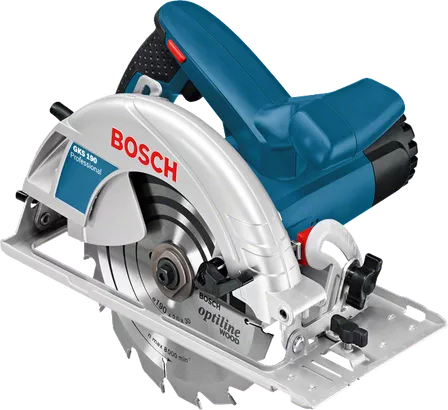

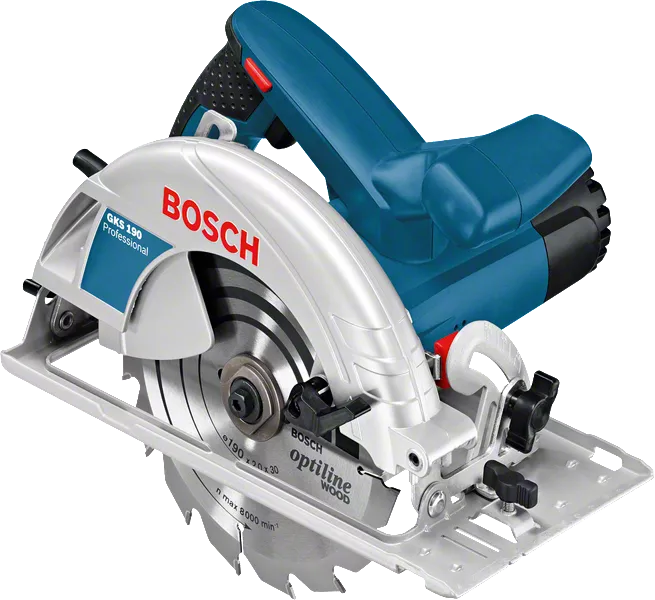

Hand-Held Circular Saw
GKS 190 Professional

The powerful and durable circular saw for cuts up to 70 mm

Print

NEW!
BITURBO BRUSHLESS. REVOLUTIONARY PERFORMANCE.
Discover more!
Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 1,400 W
No-load speed 5,500 rpm
Weight 4.2 kg
Saw blade bore diameter 30 mm
Saw blade diameter 190 mm

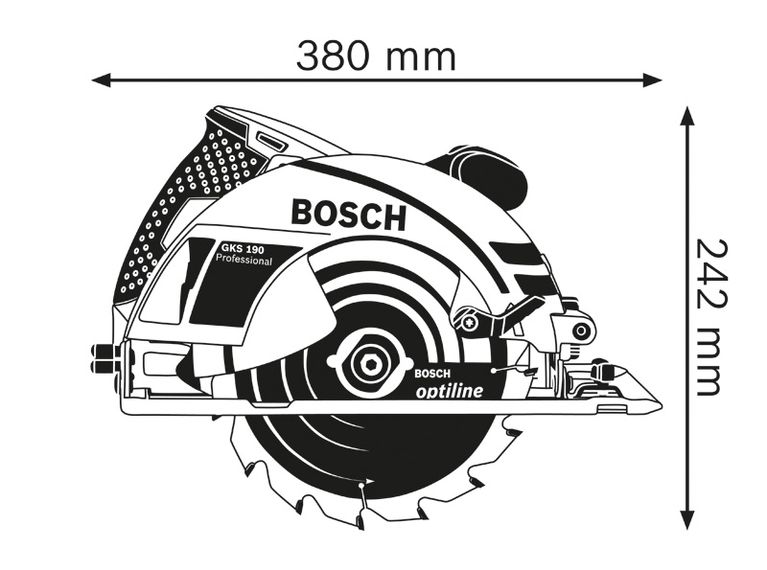

Packaging dimensions (width x length x height) 285 x 385 x 265 mm
Cutting depth
Max. cutting capacity in wood (90°) 70 mm
Max. cutting capacity in wood (45°) 50 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 96 dB(A)
Sound power level 107 dB(A)
Uncertainty K 3 dB
Wood sawing
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The powerful and durable circular saw for cuts up to 70 mm

  • Powerful 1,400 W motor saws wood to a depth of 70 mm
  • Compact design allows easy handling and operation
  • Robust design for tough sawing applications

Functions

Rated power input 1400 W
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Dust-free view of the workpiece and score line thanks to the air blower function
Easy disc / tool change thanks to spindle lock
Woodworking The professional power tools for woodworking from Bosch.

Scope of supply

GKS 190

Order number: 0 601 623 041
