Straight grinders
![GGS 8 SH]( "GGS 8 SH")

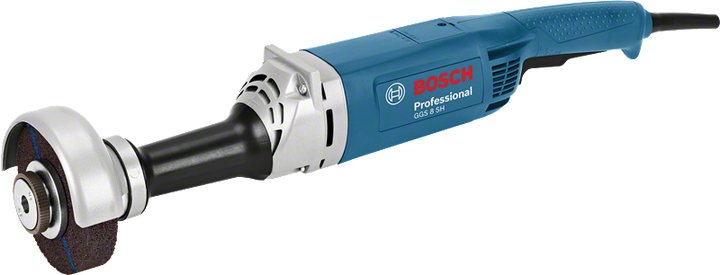

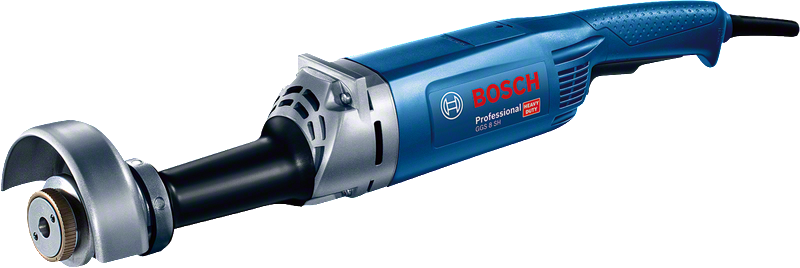

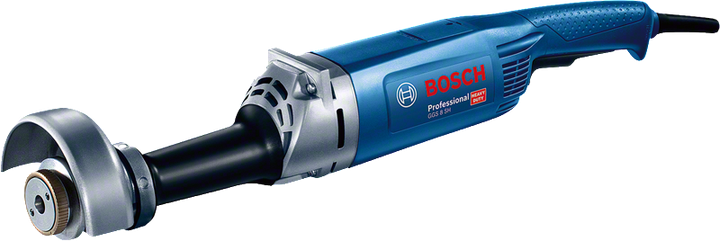

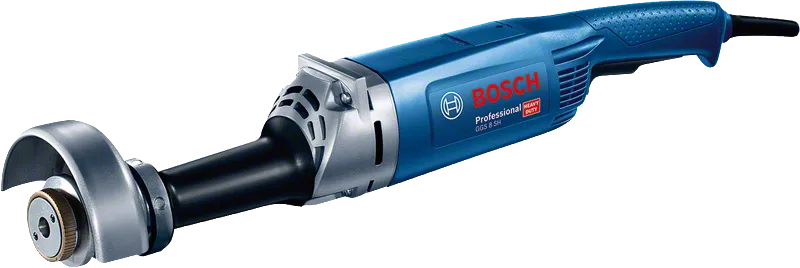

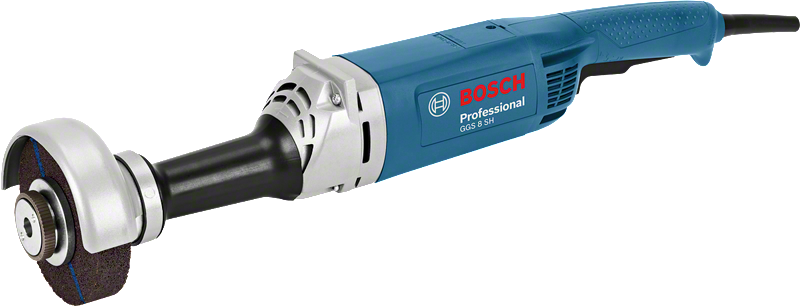

GGS 8 SH Professional
Straight Grinder
Most powerful tool with quick-locking nut in Bosch's straight grinders category
- Strong 1,200 W motor ensures fast work progress with high material removal rate
- Grinder´s SDS quick-locking nut makes rapid tool-free accessory changing possible
- Restart protection functionality increases user protection during operation
Functions & key features
with hex key
0 601 214 340
GGS 8 SH Professional
Your Selection
with hex key
Order number: 0 601 214 340
Buy nowIncluded in this variant
-
Clamping flange, diameter 65 mmOrder number: 1 605 703 065
-
Two-hole spannerOrder number: 1 607 950 061
-
Hex key WAF 6 (spare part number 1 907 950 007)
-
Holding pinOrder number: 1 603 101 017
-
Round nutOrder number: 3 603 345 014
-
SDS quick-locking nut for conical discsOrder number: 3 603 301 011
-
Protective guard (spare part number 3 605 510 014)
Technical data
The most important data |
|
|---|---|
| Tools | Resin-bonded conical grinding discs for min. 45 m/s up to 125 mm diameter x 32/26 knotted round brushes up to 125 mm diameter |
| No-load speed* | 8,000 rpm |
| Tool holder | Spindle |
| Rated input power* | 1,200 W |
| Power output* | 700 W |
| Weight* | 4.4 kg |
| Compatible collet diameter | 20 mm |
| Max. grinding tool diameter | 125 mm |
| Switch | Lockable Switch |
| Packaging dimensions (width x length x height) | 149 x 750 x 118 mm |
| Voltage, electrical | 230 V |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GGS 8 SH Professional: Further information
Product Highlights
The GGS 8 SH Professional corded straight grinder with quick-locking nut offers the most powerful performance in its category. Its strong 1,200 W motor ensures fast work progress with a high material removal rate. The grinder´s SDS quick-locking nut makes rapid tool-free accessory changing possible. Additionally, its restart protection functionality increases user protection during operation. This tool is intended for grinding metal.
Equipment & Application
The GGS 8 SH Professional also includes features such as direct motor cooling.
