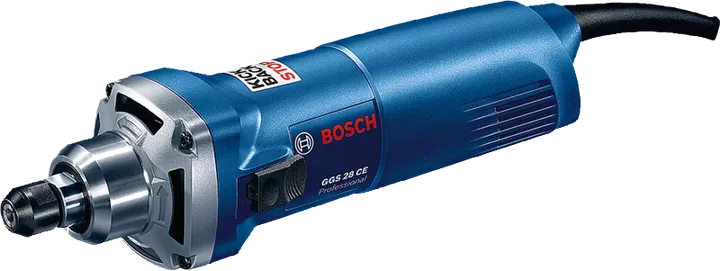

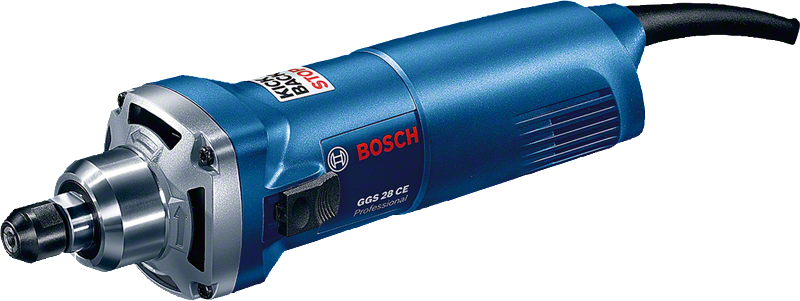

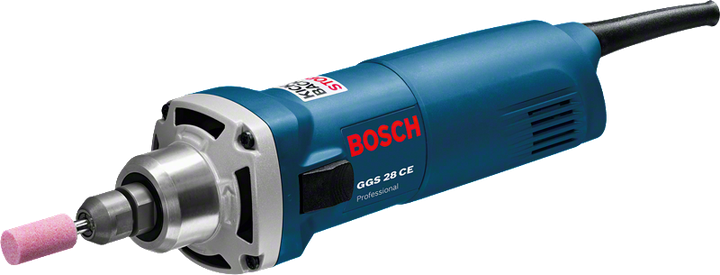

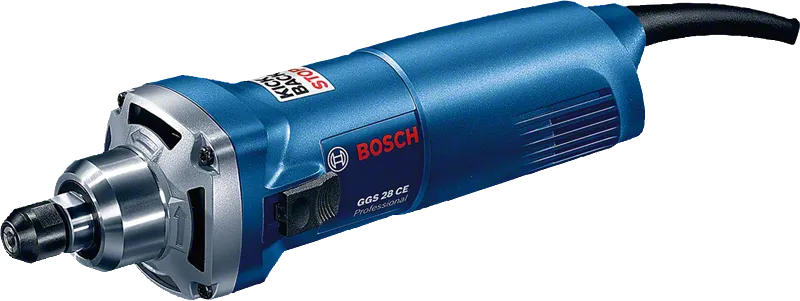

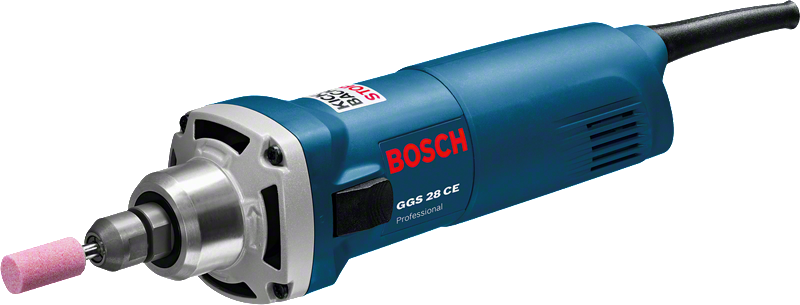

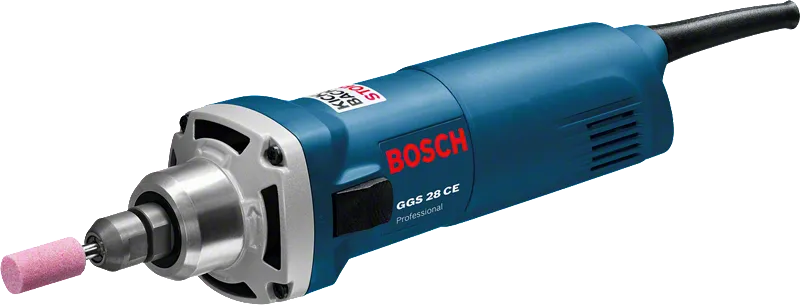

Straight Grinder
GGS 28 CE Professional

with accessory set

The handy tool for universal grinding work

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

No-load speed 10,000 – 30,000 rpm
Tool holder Collets up to 8 mm diameter
Rated input power 650 W
Power output 380 W
Spindle collar diameter 43 mm
Weight 1.4 kg
Max. collet diameter 8 mm
Max. grinding tool diameter 50 mm
Spanner size of locking nut 19 mm²
Spanner size of grinding spindle 19 mm²
Switch 2-way
Packaging dimensions (width x length x height) 160 x 420 x 130 mm
Voltage, electrical 230 V
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 89 dB(A)
Sound power level 100 dB(A)
Uncertainty K 3 dB
Surface grinding up to diameter of 25
Vibration emission value ah 3 m/s²
Uncertainty K 1.5 m/s²
Surface grinding up to diameter of 50
Vibration emission value ah 8 m/s²
Uncertainty K 1.5 m/s²

Advantages

The handy tool for universal grinding work

  • Compact, ergonomic shape for versatile grinding work
  • Powerful 650-watt motor with soft start for fast work progress
  • KickBack Control: detects when the tool is jammed and shuts it down immediately

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Best work results with speed pre-selection for applications requiring material-specific speed
Best work results with constant speed thanks to electronic regulation of speed - even under load
Direct cooling For high overload capability and a long service life.
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Long lifetime of the tool as the tool shuts off in case of an extreme overload situation

Prices / Package contents


with accessory set

Order number: 0 601 220 140

Selected version

Price includes:

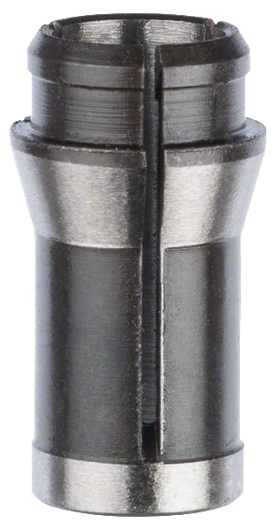

  • Collet with locking nut 6 mm 1 608 570 043
  • 2 x open-ended spanners WAF 19 (spare part number 3 607 950 024)
