Drill

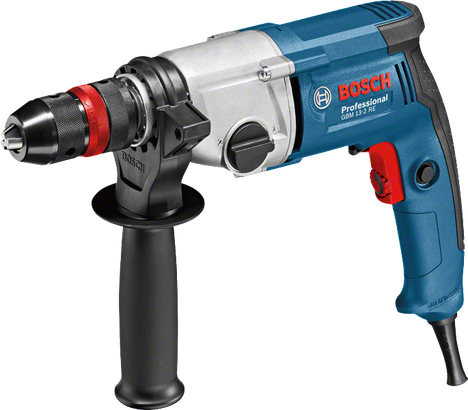

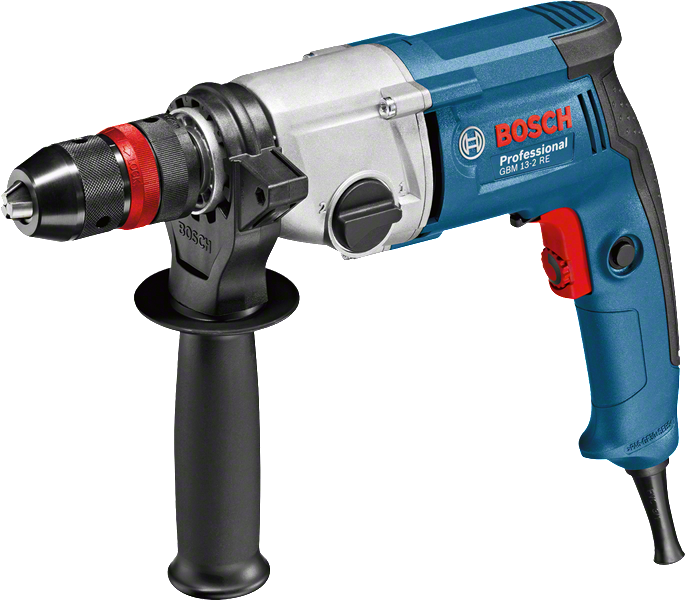

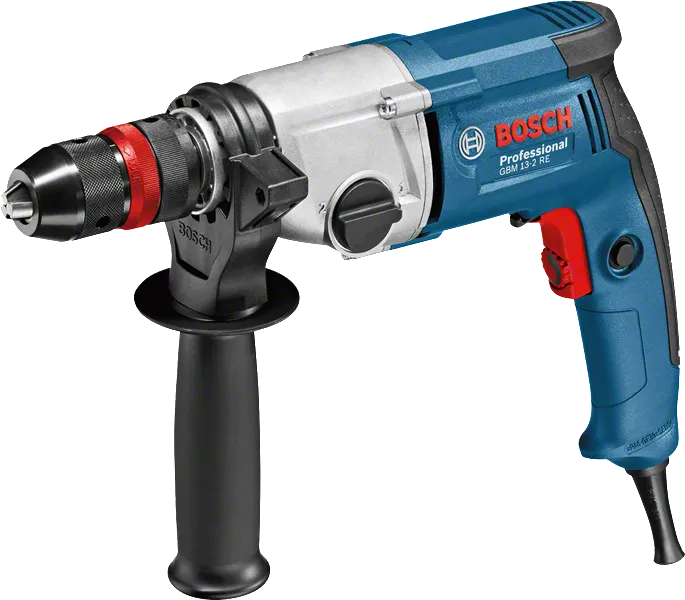

GBM 13-2 RE Professional

Name: GBM 13-2 RE
Brand: Bosch power tools
SKU: 06011B2040

in cardboard box with auxiliary handle

2-geared rotary drill for precision work

Scope of supply Scope of supply

Our service promise for professionals.

Extend the warranty of your power tools.

GBM 13-2 RE Professional

The most important data
Rated input power	750 W
No-load speed, 1st gear	0 – 1,000 rpm
No-load speed, 2nd gear	3,400 rpm
Power output	353 W
Weight	2.4 kg
Rated speed	500 / 1,750 rpm
Rated torque	6.8 / 2.5 Nm
Drill spindle connecting thread	1/2" – 20 UNF
Max. torque	39.5 / 12.5 Nm
Packaging dimensions (width x length x height)	276 x 357 x 83 mm
Drill chuck, version	Precision chuck
Voltage, electrical	240 V
Spindle collar diameter	43 mm
Bit holder	1/2-20 UNF"

Drilling range
Drilling diameter in aluminium	20 / 12 mm
Drilling diameter in wood	32 / 20 mm
Drilling diameter in steel	13 / 8 mm

Noise/vibration information

Total vibration values (vector sum of three directions)


Sound pressure level	82 dB(A)
Sound power level	93 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	7.5 m/s²
Uncertainty K	1.6 m/s²

Screwdriving
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Thread-cutting
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Advantages

2-geared rotary drill for precision work

Powerful 750 W motor and high torque for fast work progress, drilling holes in steel of up to 13 mm in diameter
Compact and ergonomic design providing good tool handling for precise results
2-speed gearbox with speed preselection setting wheel for accurate performance in versatile applications

The GBM 13-2 RE Professional is a corded 2-geared rotary drill designed for precision drilling. Its powerful 750 W motor and high torque deliver fast work progress, enabling the drilling of holes in steel of up to 13 mm in diameter. It features a compact and ergonomic design providing good tool handling for precise work. This rotary drill also features a 2-speed gearbox and a speed preselection setting wheel for accurate performance in versatile applications.

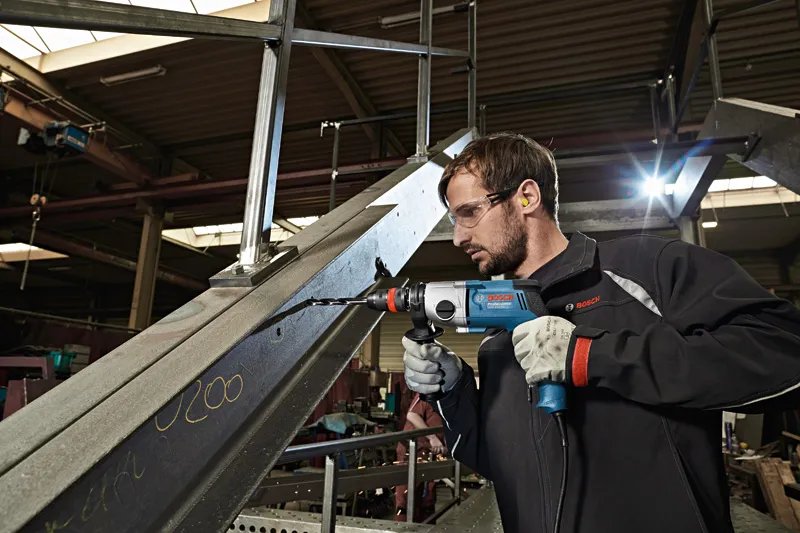

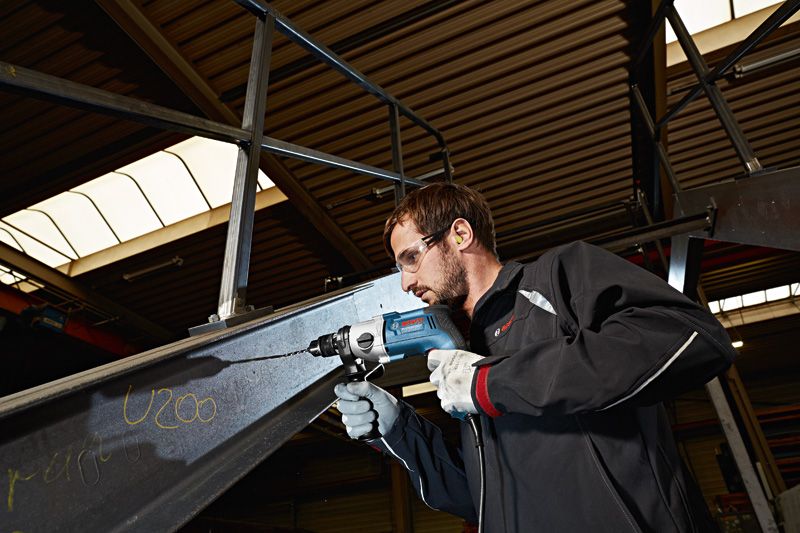

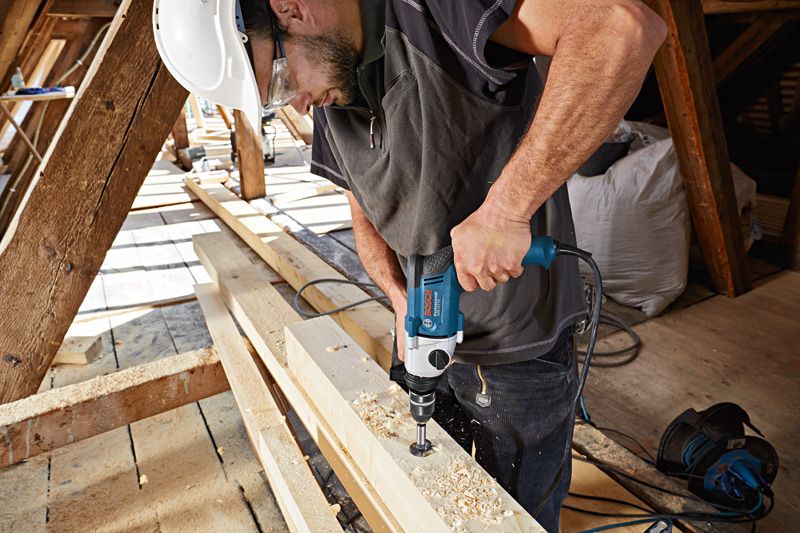

This tool is intended for drilling in metal and wood.

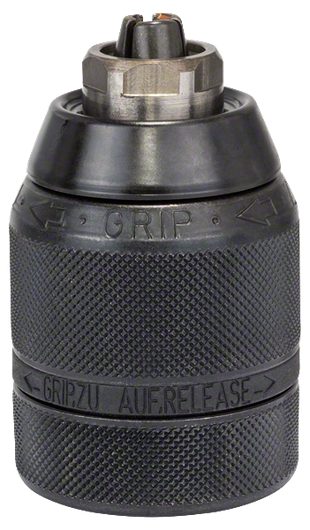

The GBM 13-2 RE Professional includes the option of selecting 1 out of 3 different chucks, and features right-left rotation, rotation control clutch, and speed selection, as well as variable speed.
