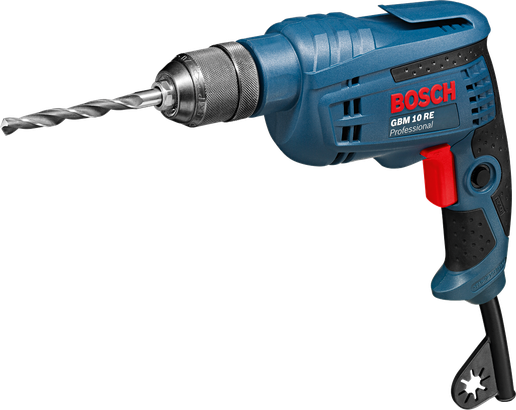

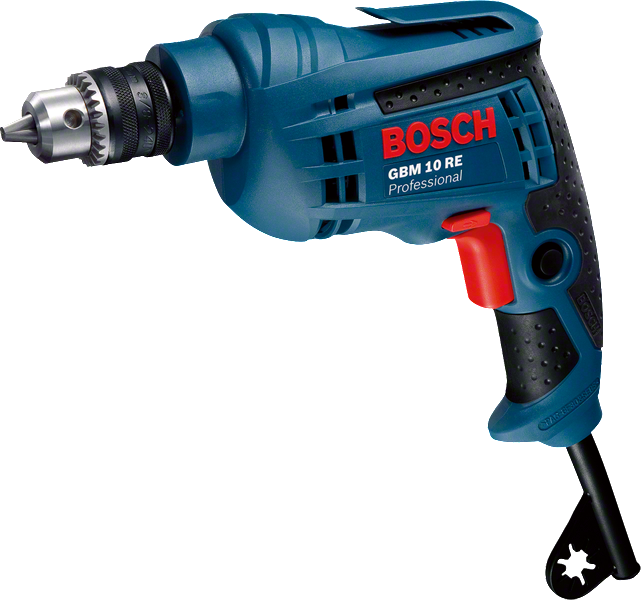

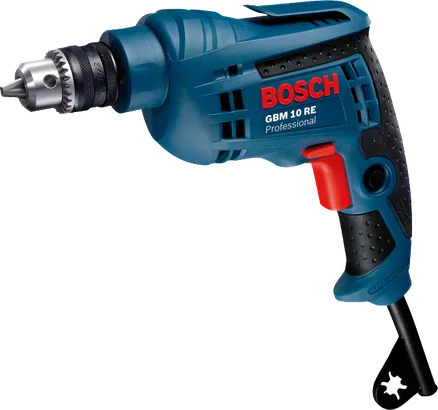

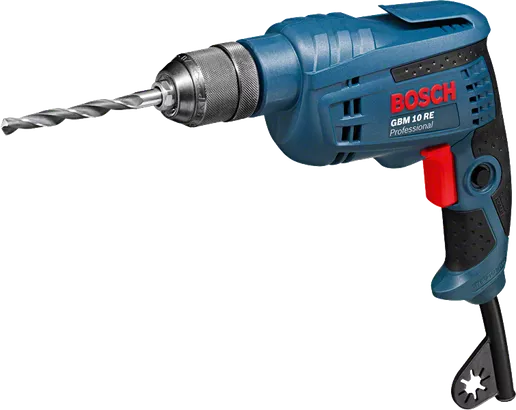

GBM 10 RE Professional
Drill
Compact 1-geared rotary drill
- Reliable 600 W motor easily drills holes of up to 10 mm in metal
- Lightweight and compact body for convenience with perfect handling and manoeuvrability in medium duty applications
- Drill spindle is fixed in bearings, providing stability in operation, enabling high-precision drilling
Functions & key features
GBM 10 RE Professional
0 601 473 540
GBM 10 RE Professional
Your Selection
Order number: 0 601 473 540
Buy nowIncluded in this variant
-
Keyed chuck 10 mmOrder number: 2 608 571 078
Technical data
The most important data |
|
|---|---|
| Rated input power | 600 W |
| No-load speed, 1st gear* | 0 – 2,600 rpm |
| Power output* | 360 W |
| Weight* | 1.7 kg |
| Rated speed | 1,676 rpm |
| Rated torque | 20.0 Nm |
| Drill spindle connecting thread | 1/2" |
| Chuck capacity, min./max. | 1 – 10 mm |
| Packaging dimensions (width x length x height) | 235 x 285 x 70 mm |
| Bit holder | 1/2" |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GBM 10 RE Professional: Further information
Product Highlights

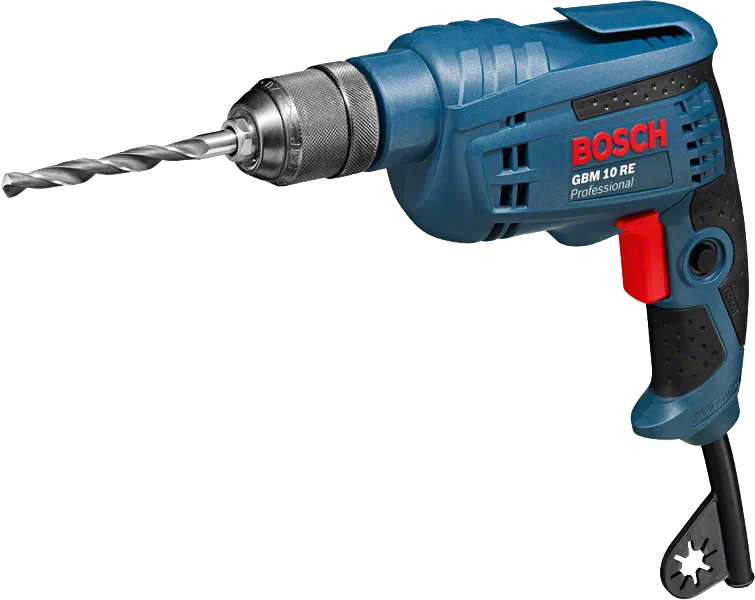

The GBM 10 RE Professional is a compact corded 1-geared rotary drill. Its reliable 600 W motor enables easy drilling of holes of up to 10 mm in metal. This rotary drill’s lightweight and compact tool body design provides convenience with perfect handling and manoeuvrability in medium-duty applications. Additionally, the drill spindle is fixed within the bearings, ensuring stability in operation and thus enabling high-precision drilling.
Equipment & Application

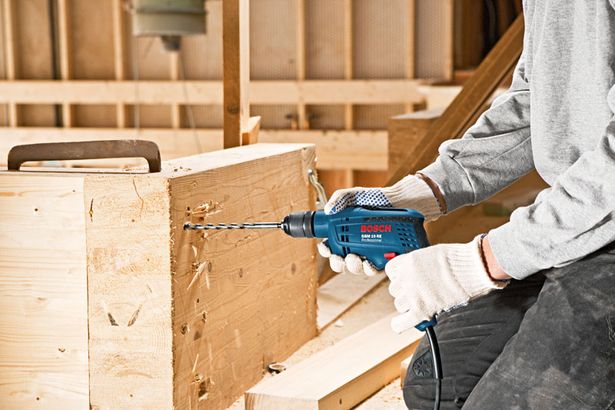

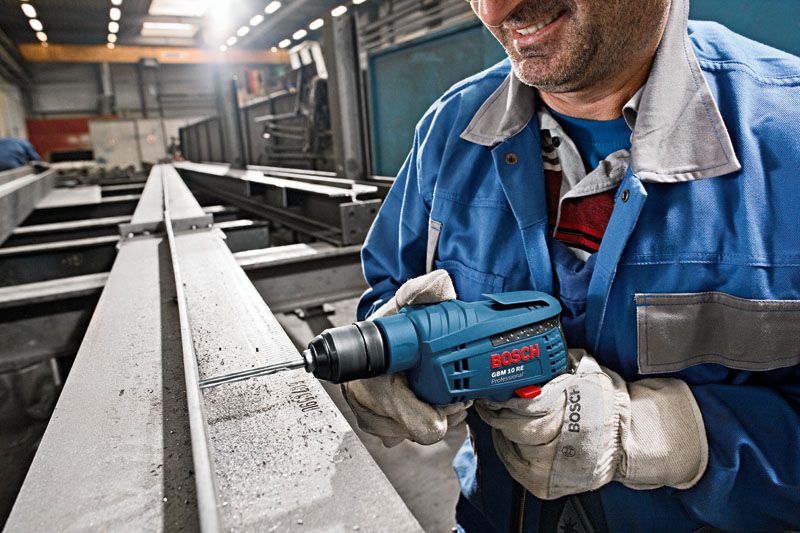

This tool is intended for drilling in metal and wood.
Additional Information
The GBM 10 RE Professional includes features such as right-left rotation and variable speed.
