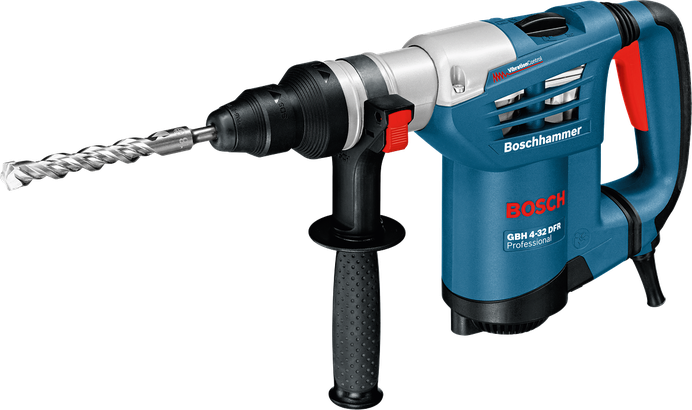

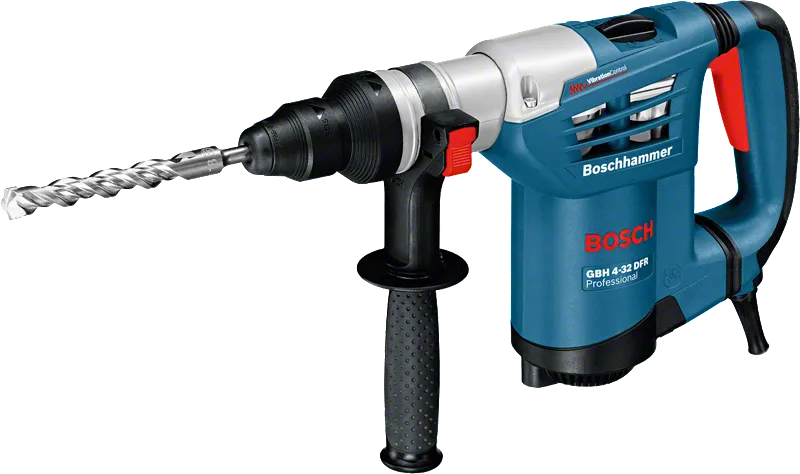

Rotary Hammer with SDS-plus
GBH 4-32 DFR Professional

in carrying case with accessory set

Most powerful rotary hammer performance in the SDS-plus category

Print

More

Technical data

The most important data

Rated input power 900 W
Impact energy 4,2 J
Impact rate at rated speed 0 – 3.600 bpm
Rated speed 0 – 800 rpm
Weight 4.7 kg
Tool holder SDS-plus

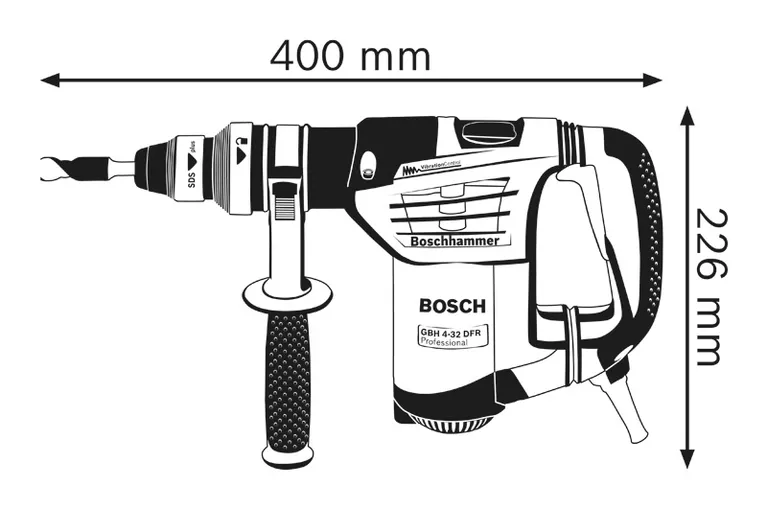

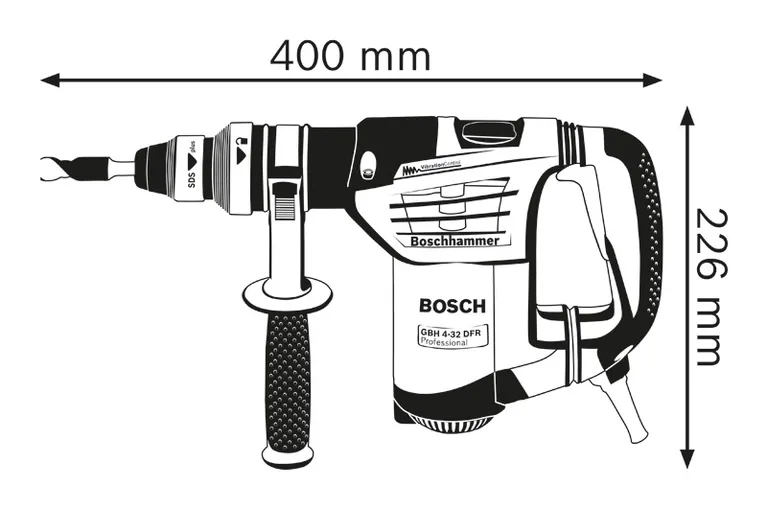

Packaging dimensions (width x length x height) 350 x 475 x 125 mm
Drilling range
Drilling dia. concrete, hammer drill bits 6 – 32 mm
Opt. appl. range concrete, hammer drill bits 14 – 25 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 32 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 12 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 9 m/s²
Uncertainty K 1.5 m/s²

Advantages

Most powerful rotary hammer performance in the SDS-plus category

  • 900 W motor delivers 4.2 J of impact energy for the fastest chisel removal rates in Bosch’s SDS-plus range
  • Durable due to robust metal gearbox housing design
  • Vibration Control for effortless and continuous work in time-intensive applications

Functions

Prices / Package contents

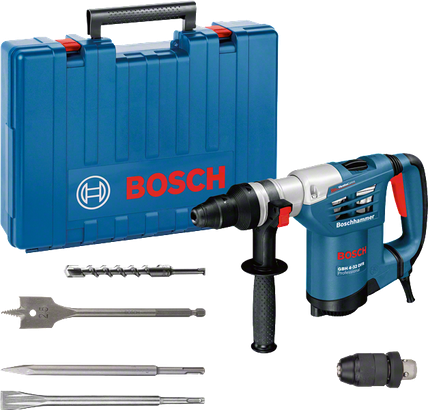

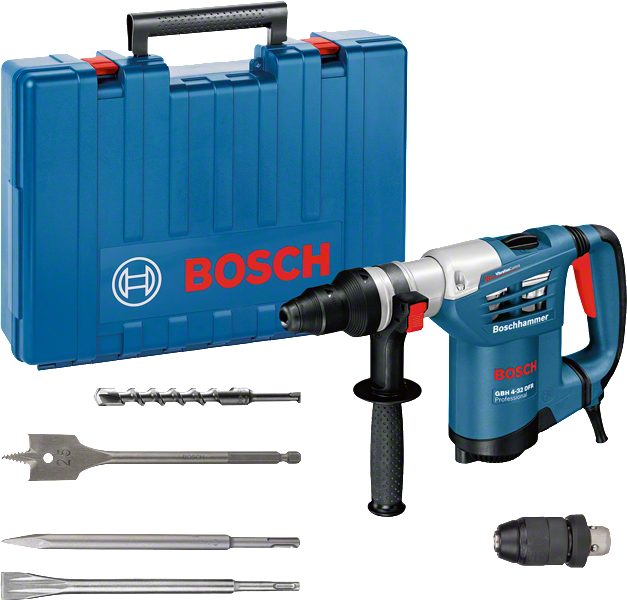

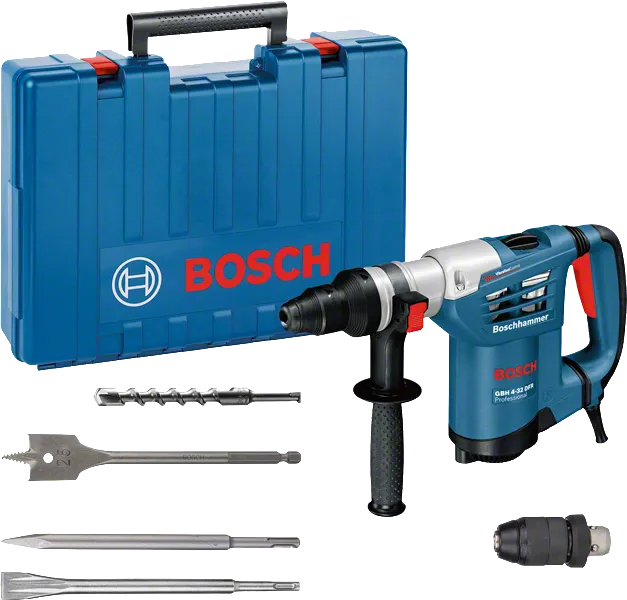

in carrying case with accessory set

Order number: 0 611 332 141

Selected version

Price includes:

  • Auxiliary handle 2 602 025 176
  • Carrying case 2 605 438 651
  • Depth stop 310 mm 1 613 001 003
  • Flat chisel 2 608 590 096
  • Keyless chuck 13 mm 2 608 572 212
  • Pointed chisel (spare part number 2 608 690 095)
  • Pointed chisel 2 608 590 095
  • SDS-plus drill bits (10, 12, 14, 16 mm)
  • SDS-plus quick-change chuck 2 608 572 213
