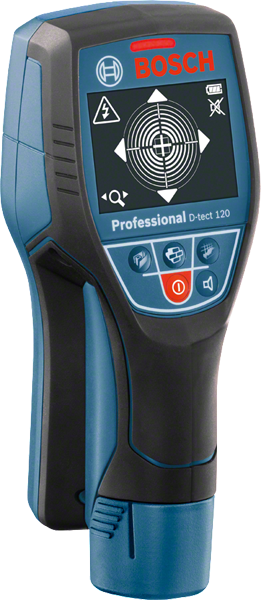

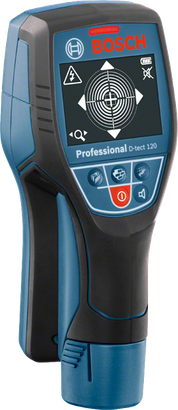

D-tect 120 Professional

Detector

D-tect 120

Intuitive radar scanner for almost all materials

  • Spot measurement provides accurate detection on narrow surfaces
  • Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

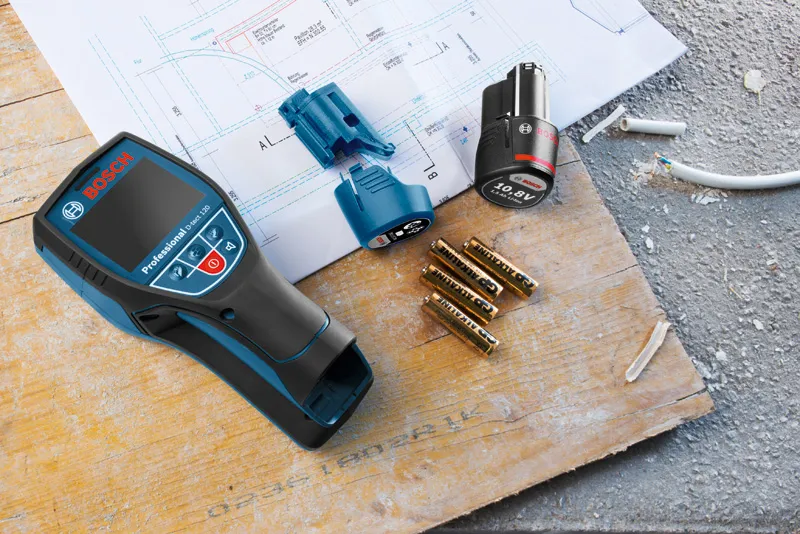

  • Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Functions & key features

 Detection of live cables
 Detection of metal
 Detection of wood
 Detection of water-filled plastic pipes
Dual power source
Show variant Buy now

D-tect 120 Professional 0 601 081 3K0

D-tect 120 Professional

Your Selection

D-tect 120

Order number: 0 601 081 3K0

Buy now
Professional 12V System.
Discover more!

Technical data

The most important data

Battery voltage 12.0 V
Bosch Radar Technology yes

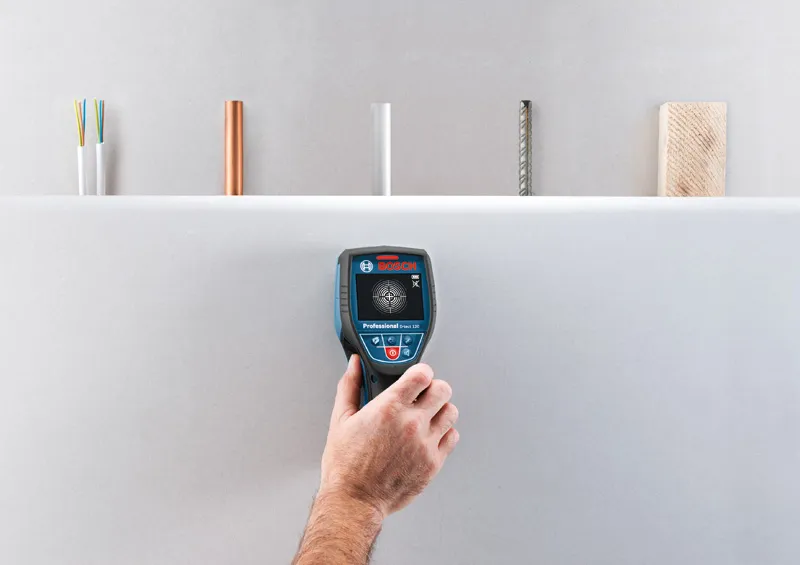

Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures
Max. detection depth 120 mm
Detection depth, magnetic metal, max. 120 mm
Detection depth, non-magnetic metal, max. 120 mm
Detection depth, live cables, max. 60 mm
Detection depth, wooden substructures, max. 38 mm
Accuracy* ± 10 mm* (*plus use-dependent deviation)
Views Spot view
Wall types Concrete, Drywall, Universal
Material identification Live cable
Power supply 12 V Li-ion or 4 x 1.5 V LR6 (AA)
Automatic deactivation, approx. 5 minutes
Weight, approx.** 0.5 kg
Additional function Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

D-tect 120

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

D-tect 120 Professional: Further information

Product Highlights

The detector D-tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.

Equipment & Application

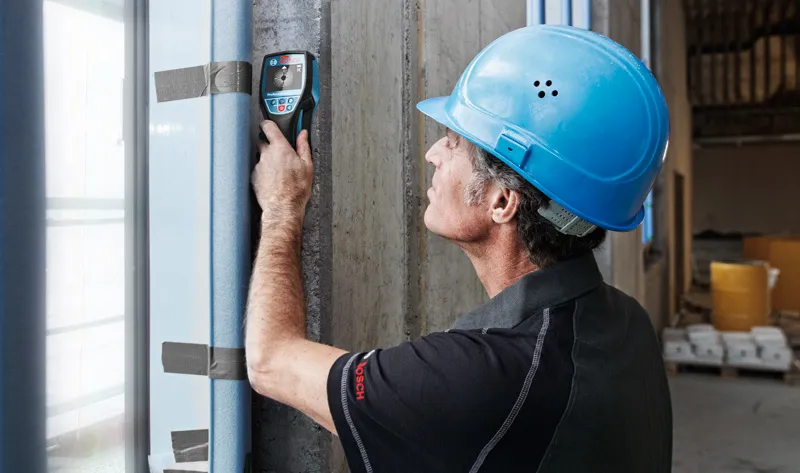

It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.

Additional Information

The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.
