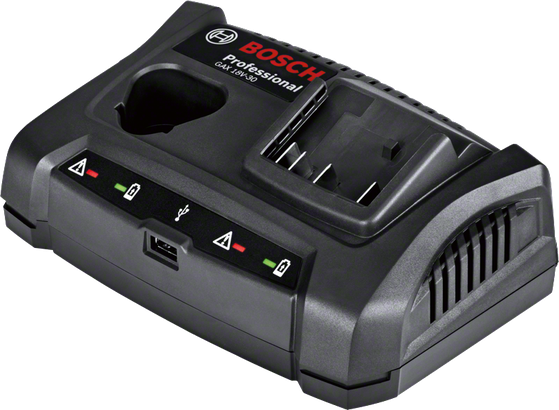

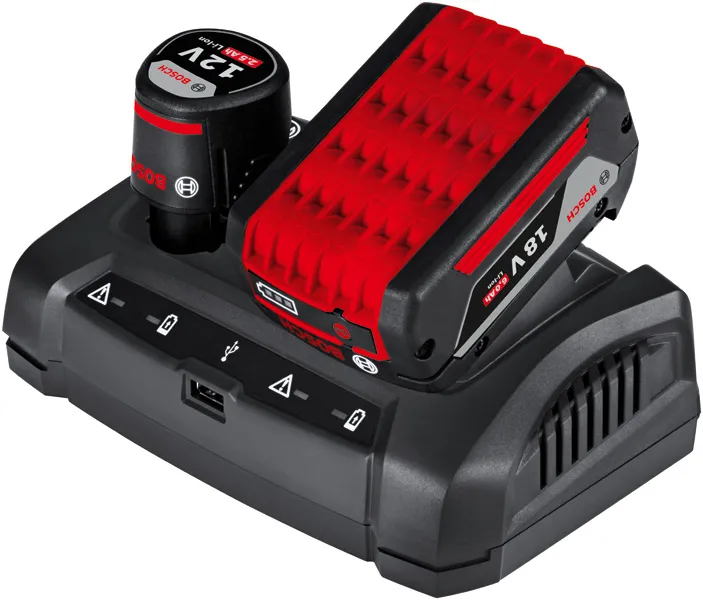

Charger
GAX 18V-30 Professional

in cardboard box with Wall mount

Truly a multi talent: Dual bay, multi-voltage and USB all in one fast charger

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data
Interfaces USB port: 5 V, max. 2.1 A
Battery charging voltage 10.8 – 18 V
Charge current 3 A

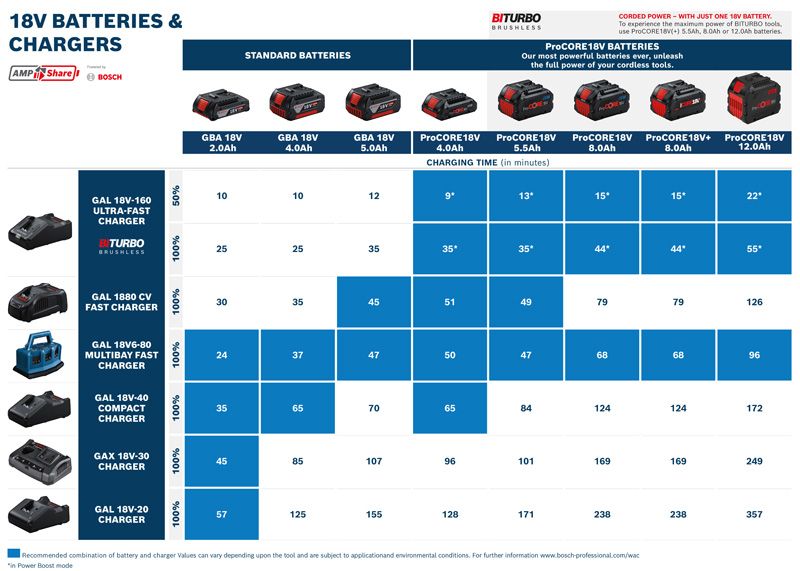

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx. 35/45 min
Charg. time at bat. cap. 2.5 Ah (80%/100%) approx. 40/65 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx. 53/68 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx. 65/85 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx. 82/107 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx. 100/130 min

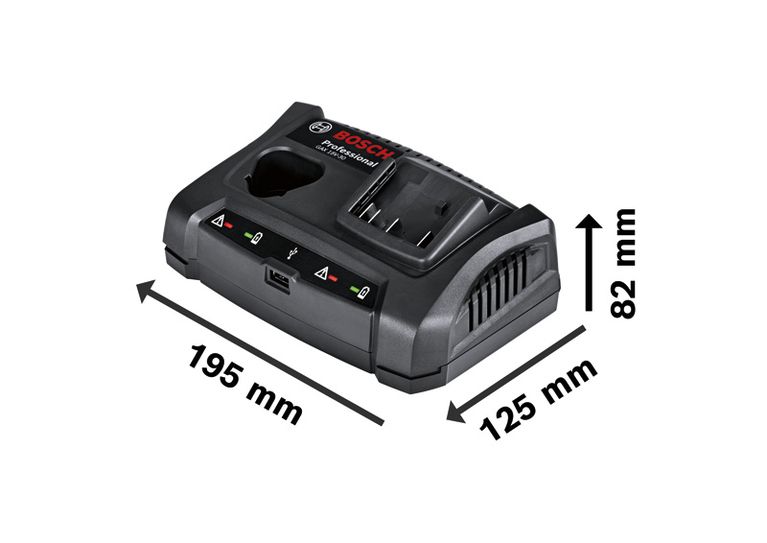

Weight 800 g
Packaging dimensions (width x length x height) 800 x 1200 x 960 mm
Battery voltage 18 V

Advantages

Truly a multi talent: Dual bay, multi-voltage and USB all in one fast charger

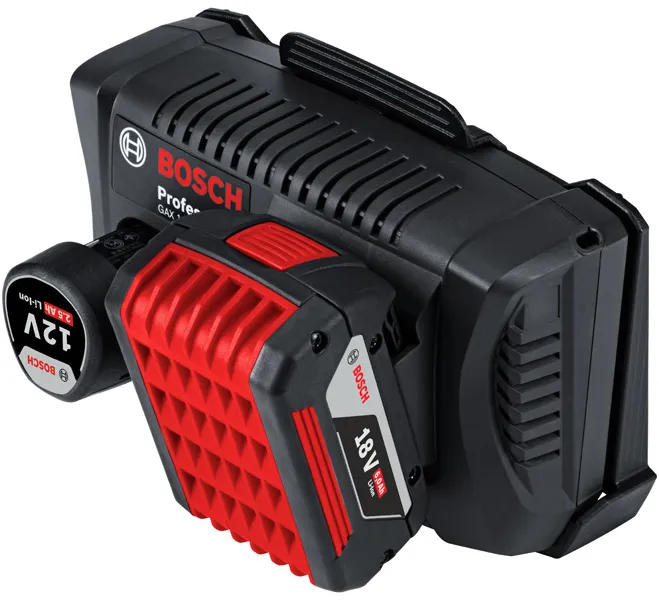

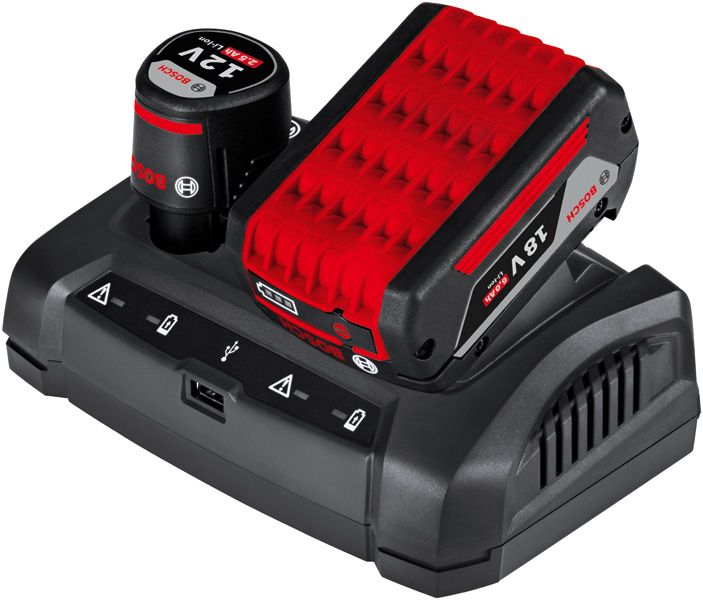

  • Dual bay: Two charging bays: One for 10.8/12 volt and another one 14.4/18 volt

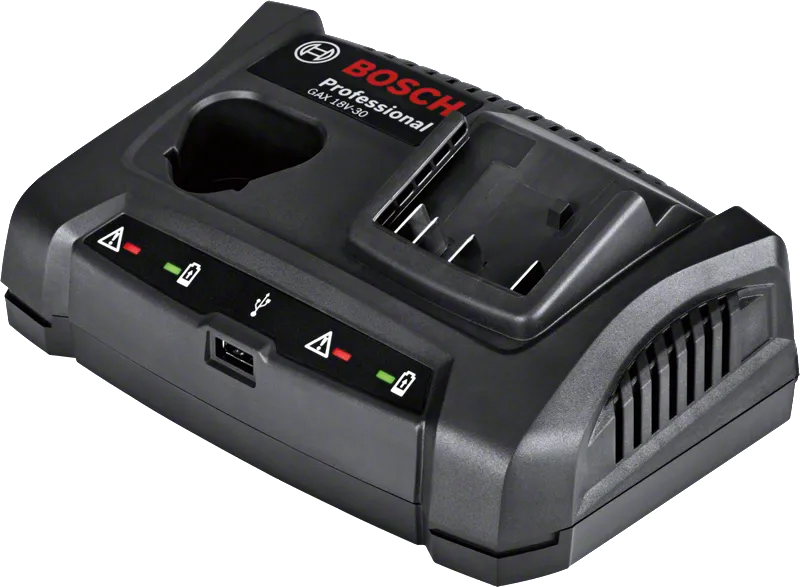

  • Additional USB charger integrated: Fast charges your smart phone or tablet with 2.1 A charging current
  • Fast charger: Charges one battery after the other (sequential) with 3 A charging current

Functions

USB charger

Prices / Package contents


in cardboard box with Wall mount

Order number: 1 600 A01 1AB

Selected version

Price includes:

  • Cardboard box
  • Charger GAX 18V-30 Professional 1 600 A01 1AB
  • Wall mount

Downloads

Product data sheet

GAX 18V-30 Professional
(approx. 1.5 MB)

Download
User Manual

GAX 18V-30 (PDF 15.7 MB)

Download
