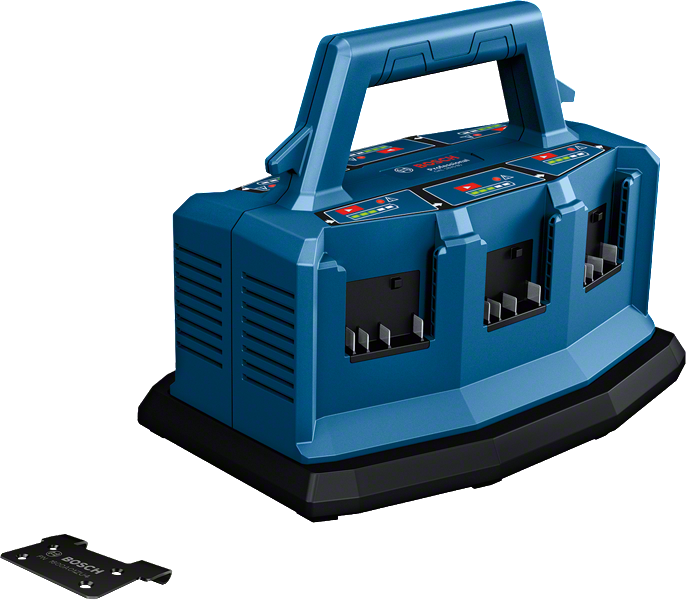

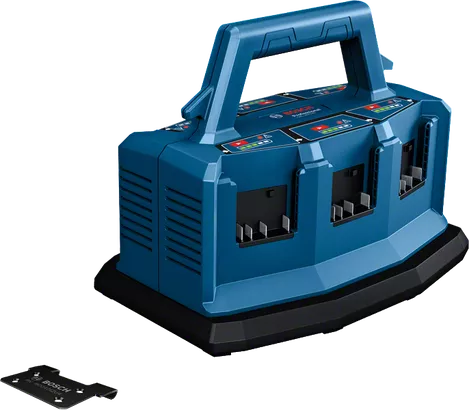

![Bosch GAL 18V6-80 charger with mounting plate.]( "GAL 18V6-80")
![Bosch GAL 18V6-80 charger with six battery slots.]( "GAL 18V6-80")

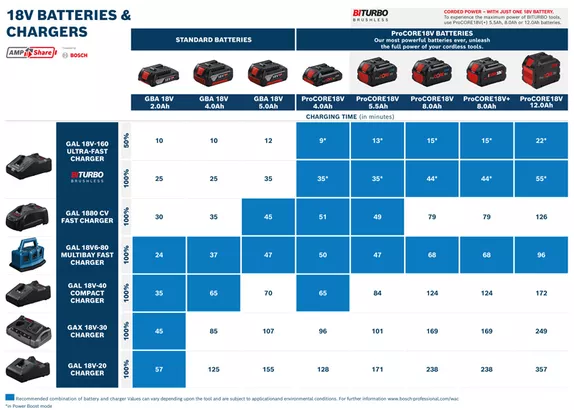

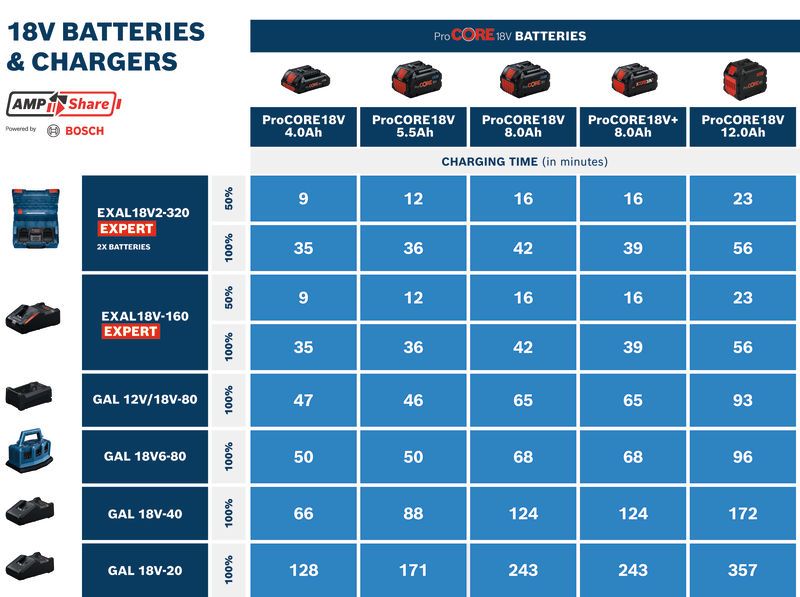

![18V batteries and chargers chart]( "GAL 18V6-80")
![AMPShare battery]( "GAL 18V6-80")

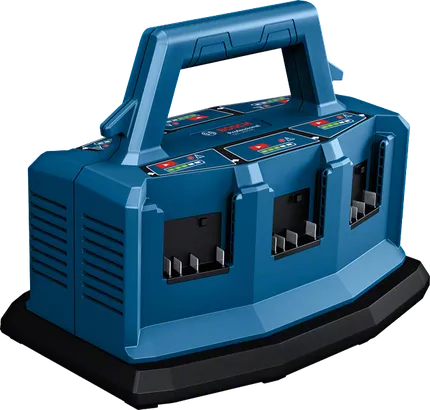

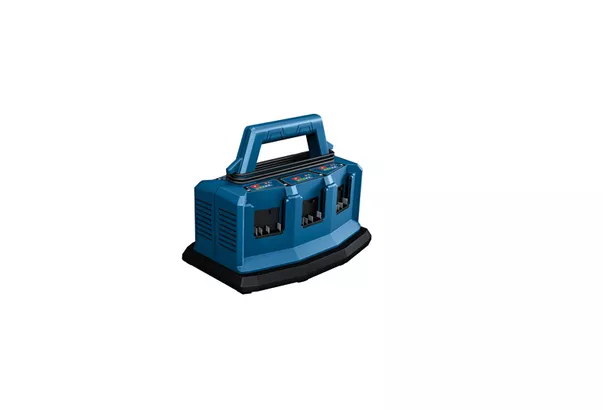

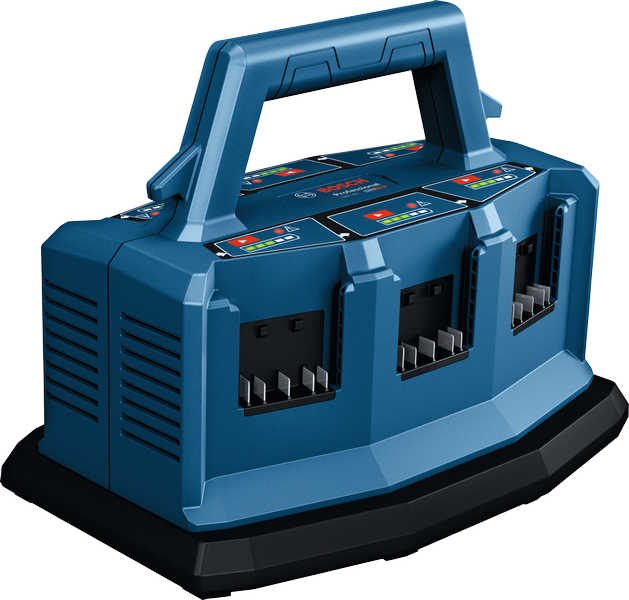

GAL 18V6-80 Professional
Charger
Continuous charging for non-stop work – multi-bay charger with 6 battery interfaces
- Fast charging speed with 8A current – ProCORE18V 8.0Ah charges to 80% in 42 min
- Efficient charge – 2 charging cycles ensure continuous work
- Priority Start Button – easy prioritisation of a selected battery
Functions & key features
in cardboard box
1 600 A01 U9P
GAL 18V6-80 Professional
Your Selection
in cardboard box
Order number: 1 600 A01 U9P
Buy nowIncluded in this variant
-
Cardboard box
-
L-BOXX adapter for GAL 18V6-80
Technical data
The most important data
Battery charging voltage
14.4 – 18 V
Charge current*
8 A
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.*
16/24 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.*
23/37 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.*
28/47 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.*
32/57 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.*
32/50 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.*
42/68 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.*
65/96 min
Weight*
1.8 kg

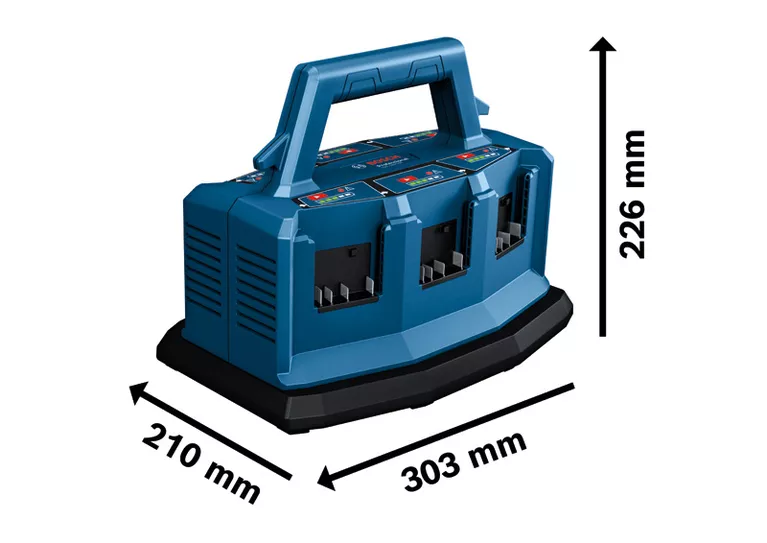

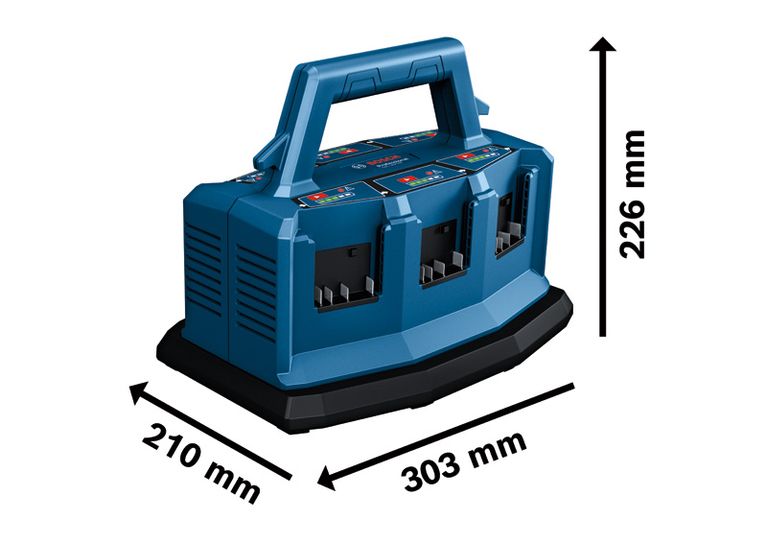

Packaging dimensions (width x length x height)
210 x 303 x 226 mm
Battery voltage
18.0 V
* You can find more information about the deviations in the following link:
GAL 18V6-80 Professional: Further information
Product Highlights

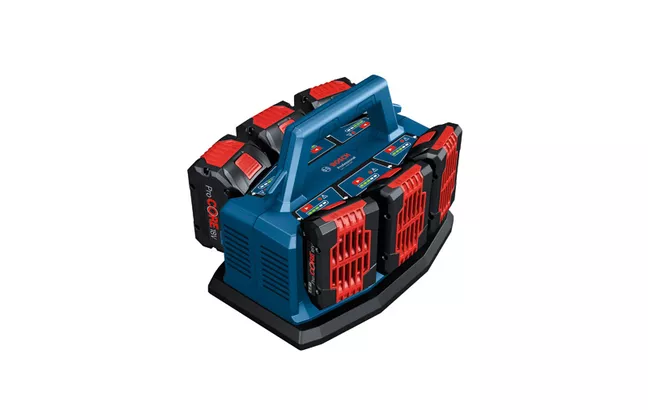

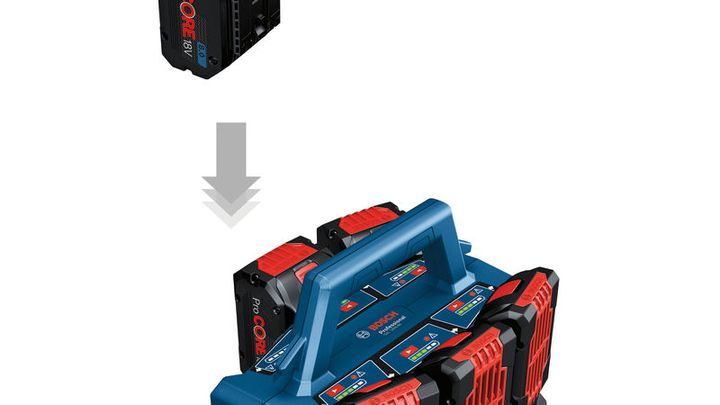

The GAL 18V6-80 offers continuous charging on the job or overnight in two cycles. The first cycle charges up to six batteries sequentially up to 80%. Cycle two then completes the process, charging all batteries to 100%. Thanks to an 8A charging current, ProCORE18V 8.0Ah batteries load up to 80% in just 42 minutes. Charge-level indicators with 5 LEDs on each charging interface display precise charging progress. With a Priority Start Button for each interface, the cycle can be interrupted to start charging the selected battery immediately. It is compatible with all Bosch Professional 18 V batteries (Professional 18V System).
Equipment & Application

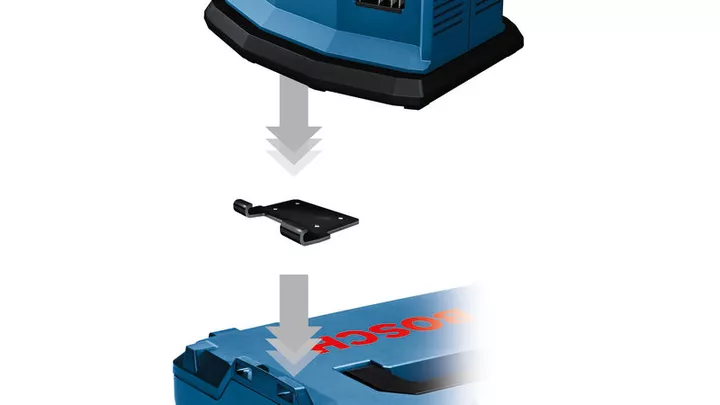

Fixing the multi-bay charger to an L-BOXX avoids potentially harmful movements when transporting. The charger's handle features pegs that allow its cable to be wound neatly in place for storage and safe transportation.
