Batteries & chargers

GAL 1880 CV Professional

Charger

GAL 1880 CV
GAL 1880 CV

The fast 18 V charger

  • Fast charger with 8 A charging current, ProCore18V 5.5 Ah is charged up to 80% in only 35 minutes
  • Longer lifetime of 18 V batteries thanks to the active air cooling, which is optimized for standard GBA batteries
  • Compatible with all batteries of the Bosch Professional 18V System and the AMPShare Alliance

Functions & key features

Charging current 8.0 A
Faster charging thanks to active air cooling
User-friendly thanks to cable winding function
 ProCORE18V 5.5Ah battery fully charged after 49 minutes with GAL1880 CV

Your Selection

  • in cardboard box
Change variant

Available in 4 onlineshop(s)

Buy now

in cardboard box 1 600 A00 N5M

Select a variant

Your Selection

GAL 1880 CV
in cardboard box

Order number: 1 600 A00 N5M

Buy now

Included in this variant

  • Cardboard box
  • Quick charger GAL 1880 CV
    Order number: 1 600 A00 N5M

Your Selection

Object #200419185: 0615990M70

Promotion

Order number: 0 615 990 M70

Buy now
Professional 18V System.
Discover more!

Technical data

The most important data

Battery charging voltage 14.4 – 18 V
Charge current* 8 A

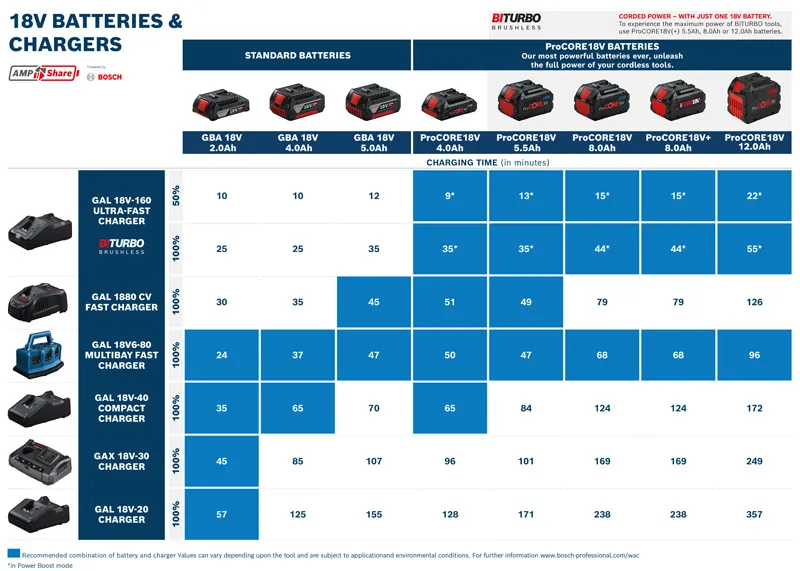

Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.* 10/25 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.* 15/30 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.* 20/35 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.* 25/35 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.* 35/45 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.* 35/55 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.* 41/55 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.* 32/51 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.* 68/79 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.* 113/126 min
Weight* 0.7 kg

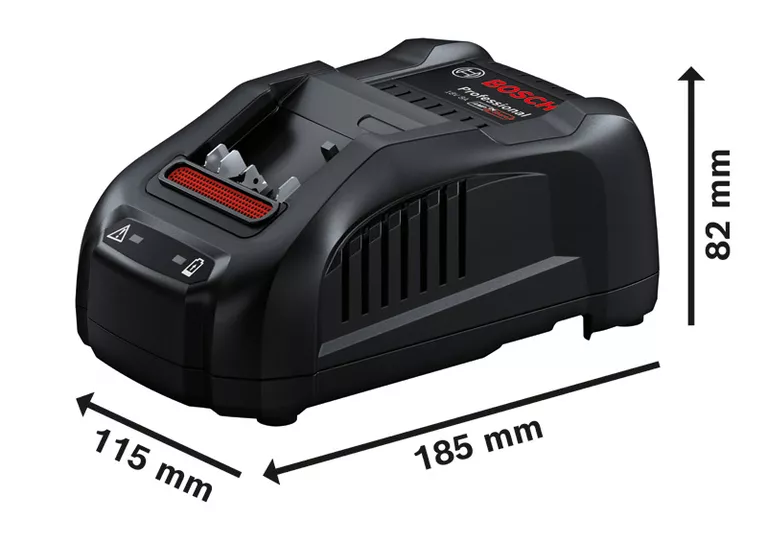

Packaging dimensions (width x length x height) 145 x 257 x 95 mm
Battery voltage 18.0 V

GAL 1880 CV

* You can find more information about the deviations in the following link: Technical features of products

GAL 1880 CV Professional: Further information

Product Highlights

The GAL 1880 CV is Bosch´s fast charger. Thanks to its 8 A charging current a ProCORE18V 5.5 Ah battery is charged up to 80% in only 35 minutes. The integrated active air-cooling of the GAL 1880 CV, which is optimized for our standard GBA 18 V batteries, leads to a longer lifetime. This fast charger is part of the Bosch Professional 18V System and is 100% compatible with all Bosch Professional 18 V batteries. Also compatible with AMPShare, the multi-brand battery alliance.

videos and images may depict overseas models. For local executions please see scope of supply
