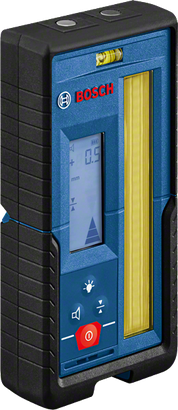

LR 45 Professional

Laser Receiver

Meet the perfect companion for quick and easy levelling

  • Quick and easy laser detection due to long reception area and dual-sided backlit LCD display with mm offset feature
  • Robust design thanks to ergonomic soft grip and IP66 protection
  • Adjustable sensitivity and volume settings ensure flexibility for any jobsite
See technical details

Functions

Long reception area 110 mm
Relative height indicator shows the offset between laser and centre of the receiver
Two sided display for convenient laser detection
Show variant Buy from a Bosch partner Find a local dealer

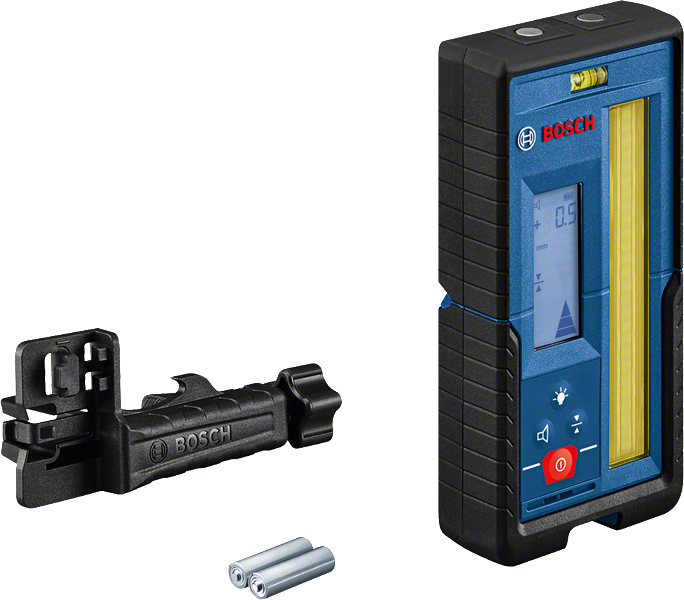

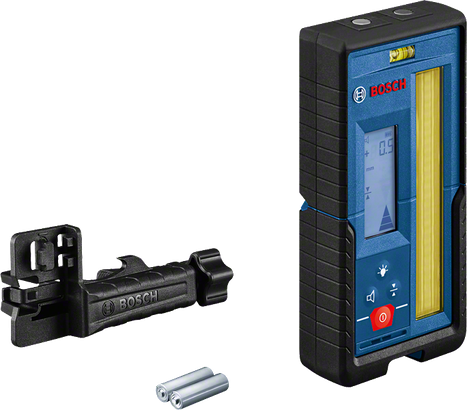

LR 45 Professional 0 601 069 L00

LR 45 Professional

Your Selection

Order number: 0 601 069 L00

Buy from a Bosch partner Find a local dealer
Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

Remote control
Receiver
Range of 300 m
Power supply 2 x 1.5 V LR6 (AA)
Dust and splash protection IP 66

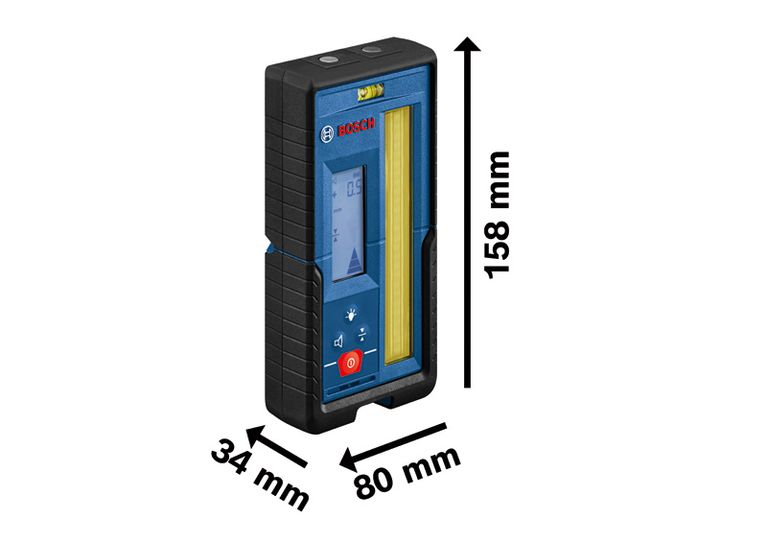

Tool dimensions (width) 80
Tool dimensions (length) 158
Tool dimensions (height) 34
Measuring accuracy (fine/rough) ±0.5 mm/± 10 mm
Suitable for GRL 300 HV, GRL 300 HVG, GRL 400 H Professional
Type of receiver Rotation lasers
LR 45

LR 45 Professional: Further information

Product Highlights

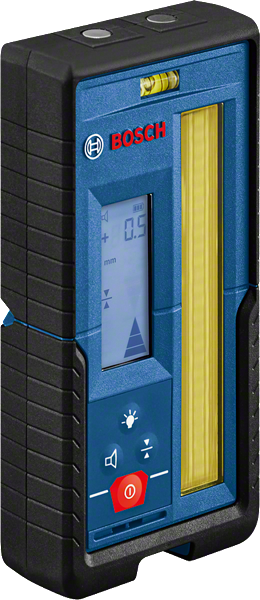

The robust laser receiver LR 45 Professional enables straightforward detection of green and red laser beams. The device’s long reception area and dual-sided backlit display with an mm offset feature ensure hassle-free laser detection. It is always ready for use on tough jobsites: an ergonomic soft grip and IP66 protection against dust and water are ideal to withstand rough conditions. Six different sensitivity settings and three volume settings (incl. off) offer the flexibility to easily adjust to any jobsite environment.

Equipment & Application

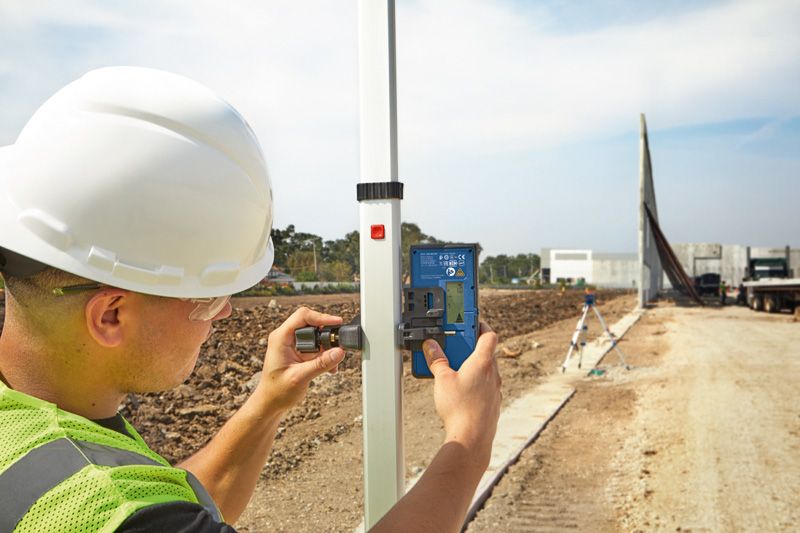

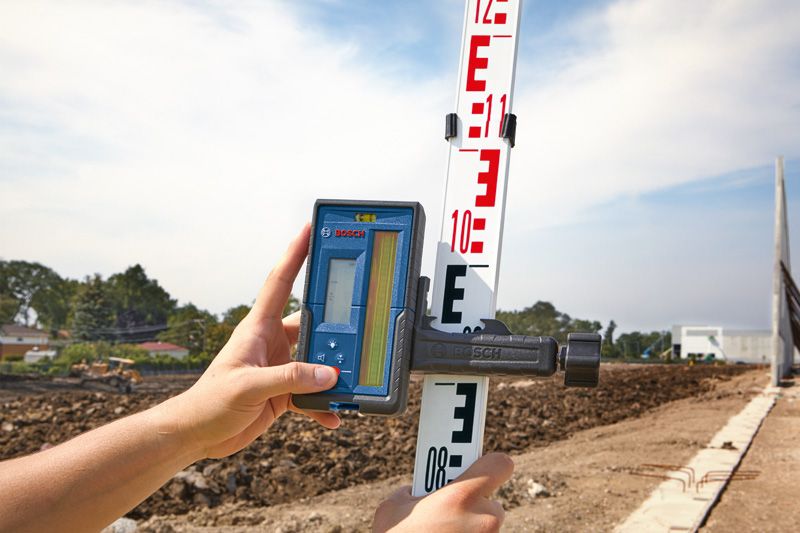

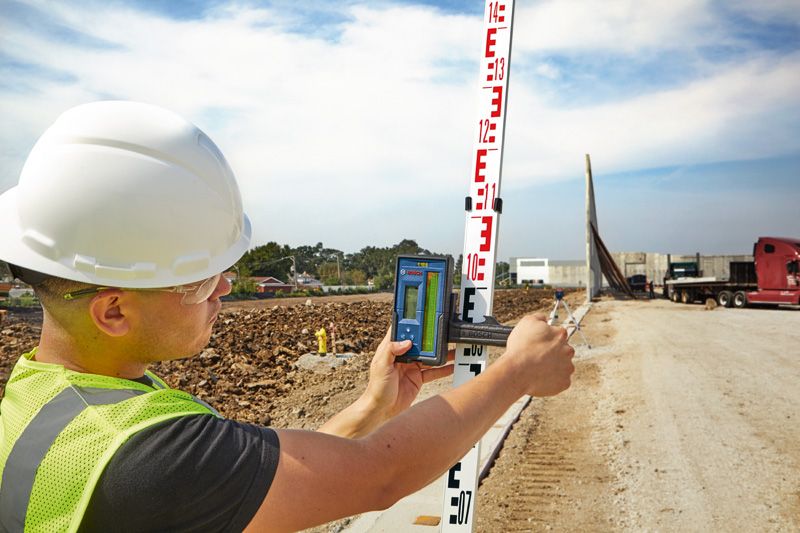

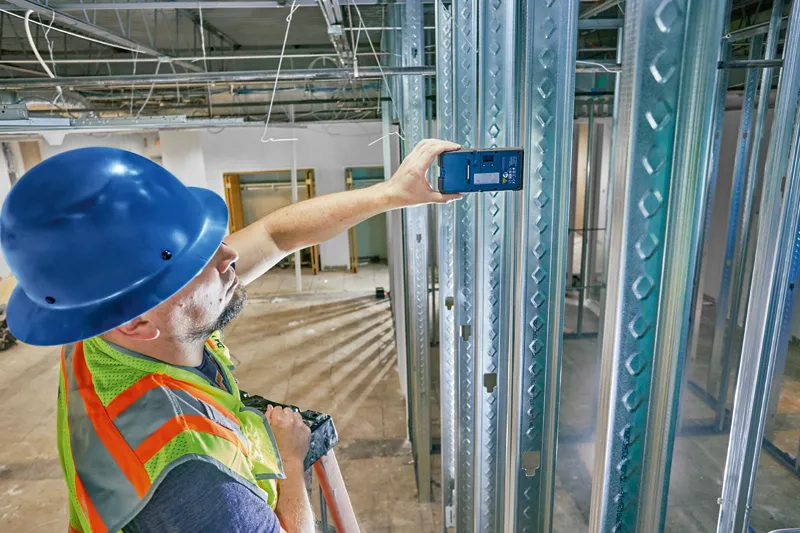

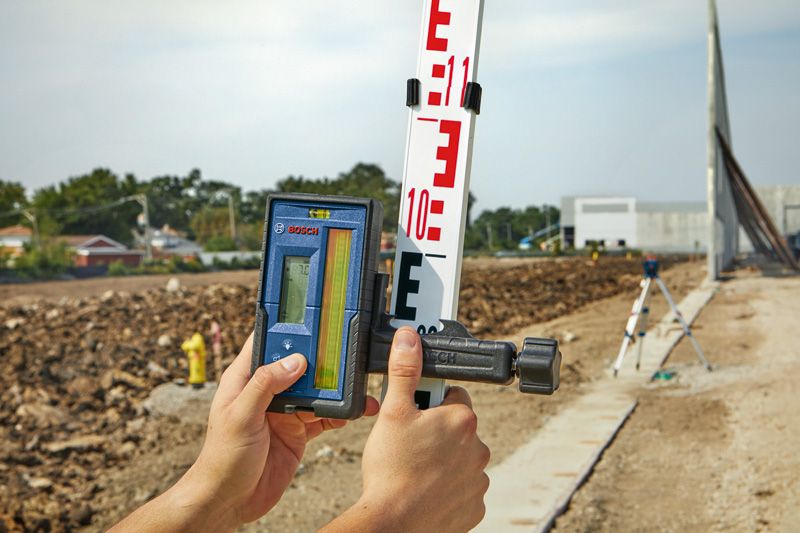

Suitable for both indoor and outdoor use, the LR 45 Professional is the ideal helper for tasks as varied as excavation, landscaping, façade work, concrete pouring, HVAC installation, and many more.

Additional Information

The LR 45 Professional has a long working range of up to 300 m. The integrated spirit level further simplifies any levelling job.
