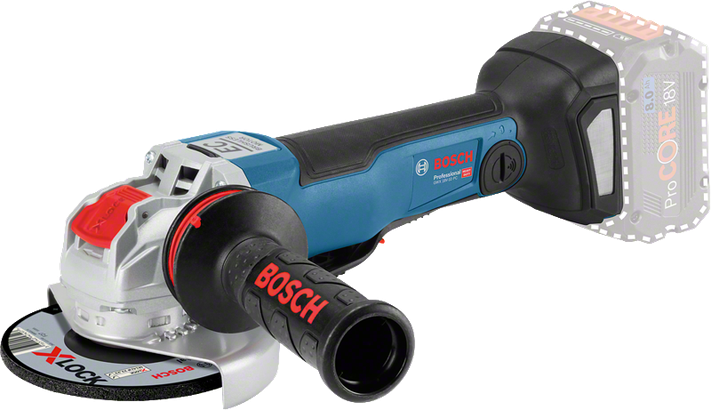

Cordless Angle Grinder with X-LOCK
GWX 18V-10 PC Professional

  • New

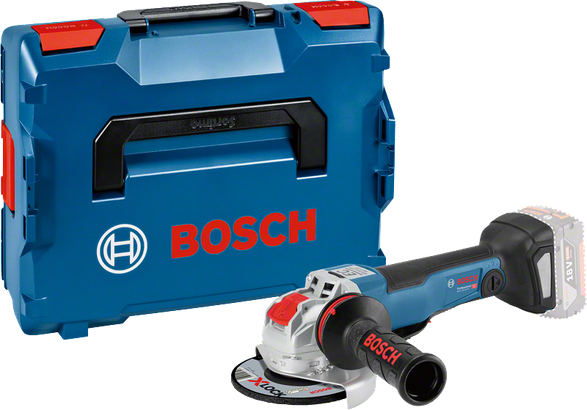

in L-BOXX with protective guard

Improved power level and tool control in the 18 V category - with X-LOCK


The Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!

Technical data

The most important data

No-load speed 9,000 rpm
Battery voltage 18 V
Weight excl. battery 2 kg
Packaging dimensions (width x length x height) 360 x 445 x 155 mm
Grinding/cutting disc, diameter 125 mm
Rubber backing pad, diameter 125 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 79 dB(A)
Sound power level 90 dB(A)
Uncertainty K 3 dB
Surface grinding (roughing)
Vibration emission value ah 5 m/s²
Uncertainty K 1.5 m/s²
Sanding with sanding sheet
Vibration emission value ah 3.5 m/s²
Uncertainty K 1.5 m/s²


Improved power level and tool control in the 18 V category - with X-LOCK

  • Delivers power equal to a 1,000 W corded grinder due to brushless motor and ProCORE18V battery technology
  • Changing accessories is fast and convenient thanks to keyless X-LOCK click system
  • PROtection switch, KickBack Control, and X-Brake provide maximum user protection and convenience


 Revolutionary quick change disc system for angle grinder
Longer motor life - more runtime - more power thanks to brushless motor
Disc diameter 125 mm
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Battery 100 percent compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information
Outstanding user protection The protection switch instantly switches the machine off when it is released
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Enhanced user protection thanks to the Drop Control function the tool switches off when dropped accidentally
Efficient working with comprehensive protection for the user Is also effective in case of power loss and guarantees an even faster stand still of the tool than with the normal brake system
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Outstanding user protection thanks to the anti-rotation protective guard - stands firm, even if the disc breaks

Prices / Package contents

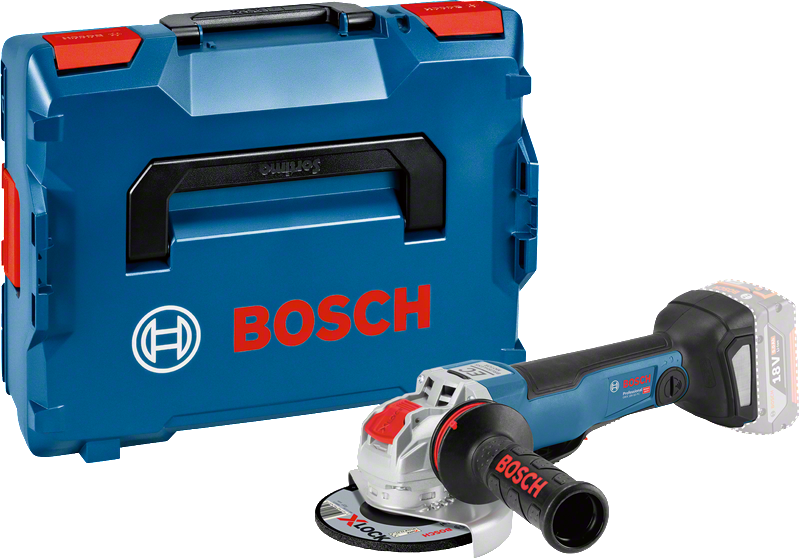

in L-BOXX with protective guard

Order number: 0 601 7B0 700

Selected version

Price includes:

  • Protective guard 1 605 510 365
  • Vibration Control auxiliary handle 2 602 025 171
  • 1/1 L-BOXX inlay for tool and charger 1 600 A01 166
  • L-BOXX 136 1 600 A00 1RR

* Battery and charger not included
