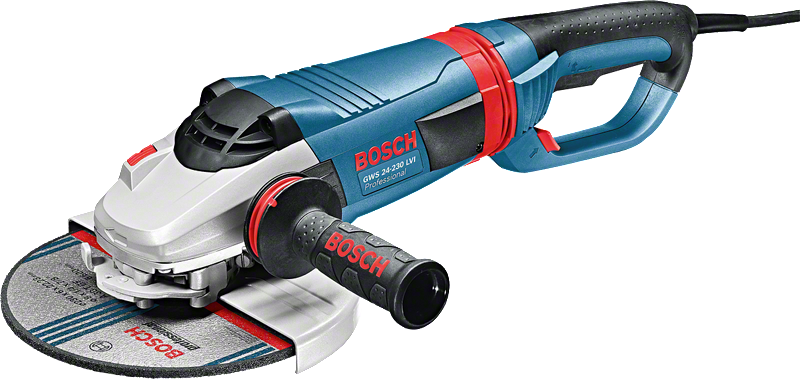

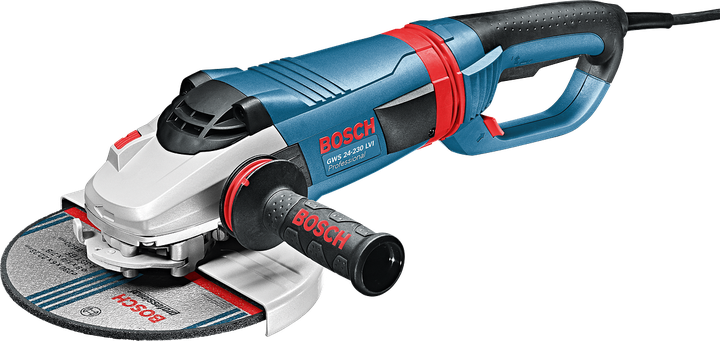

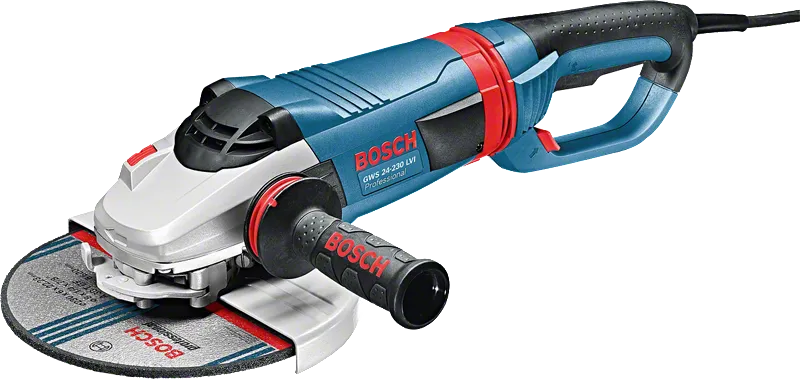

Angle Grinder
GWS 24-230 LVI Professional

with accessory set

The powerful tool with the lowest weight

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data
Rated input power 2,400 W
No-load speed 6,500 rpm
Grinding spindle thread M 14
Main handle Bow (rotating)
Disc diameter 230 mm
Weight 5.5 kg
Switch PROtection
Packaging dimensions (width x length x height) 197 x 597 x 135 mm
Noise/vibration information

Total vibration values (vector sum of three directions)
Sound pressure level 92 dB(A)
Sound power level 103 dB(A)
Uncertainty K 3 dB
Surface grinding (roughing)
Vibration emission value ah 5.5 m/s²
Uncertainty K 1.5 m/s²
Sanding with sanding sheet
Vibration emission value ah 3.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The powerful tool with the lowest weight

  • Powerful 2400 W Champion motor and rotating bow handle
  • Lowest weight in its class
  • Vibration reduced by up to 50% thanks to Vibration Control main handle and auxiliary handle, for low-fatigue working (EN 60745)

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Outstanding user protection thanks to the anti-rotation protective guard - stands firm, even if the disc breaks
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Soft start as the load and torque of the motor are temporarily reduced during start-up.
Outstanding user protection The protection switch instantly switches the machine off when it is released

Prices / Package contents


with accessory set

Order number: 0 601 893 H40

Selected version

Price includes:

  • Vibration Control auxiliary handle 2 602 025 181
  • Locking nut 1 603 340 040
  • Backing flange 1 605 703 099
  • Quick adjustment protective guard 2 605 510 281
  • Two-hole spanner 1 607 950 048
Accessories

System Accessories

GDE 230 FC-T

Protective guard with cover for cut-off grinding

230 mm, with coding

Grinding and Sanding, With Cover for Cut-Off Grinding With a Screw-Type Clamp

Protective Guards without Cover

230 mm

Grinding and Sanding, Without Cover

Downloads

Product data sheet

GWS 24-230 LVI Professional
(approx. 1.5 MB)

Download
User Manual

GWS 24-230 LVI (PDF 28.4 MB)

Download
