Small angle grinders
![GWS 17-125 SB]( "GWS 17-125 SB")
![GWS 17-125 SB]( "GWS 17-125 SB")
![GWS 17-125 SB]( "GWS 17-125 SB")
![GWS 17-125 SB]( "GWS 17-125 SB")
![GWS 17-125 SB]( "GWS 17-125 SB")

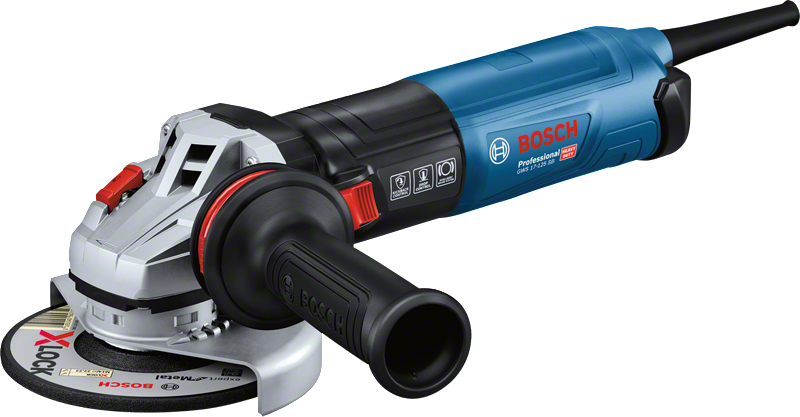

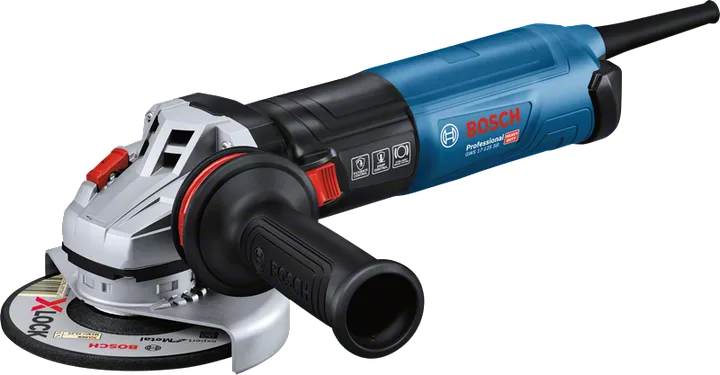

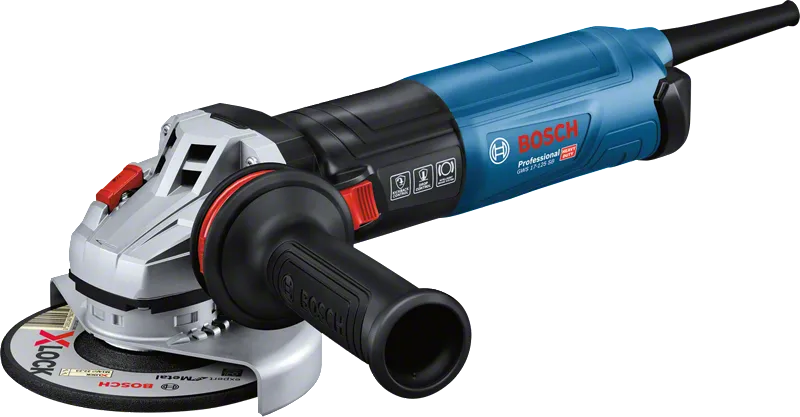

GWS 17-125 SB Professional
Angle Grinder
New level of power-to-grip-size ratio with Speed Selection and Intelligent Brake System
- Intelligent Brake System for fast disc standstill when tool is switched off and Drop Control
- KickBack Control, Restart Protection, and Vibration Control side handle for high user protection
- High power, significantly small grip size, and improved dust protection thanks to removable dust filter
Functions & key features
Your Selection
- in cardboard box with auxiliary handle
Available in 3 onlineshop(s)
Buy now
in cardboard box with auxiliary handle
0 601 7D0 740
GWS 17-125 SB Professional
Your Selection
in cardboard box with auxiliary handle
Order number: 0 601 7D0 740
Buy nowIncluded in this variant
-
Vibration Control auxiliary handleOrder number: 2 608 900 000
-
Backing flangeOrder number: 1 605 703 099
-
Cardboard box
-
Protective guardOrder number: 1 605 510 365
-
Protective clip-on cutting guard metalOrder number: 2 608 000 756
-
Locking nutOrder number: 1 603 340 040
-
Dust filterOrder number: 2 607 432 053
-
Two-hole spannerOrder number: 1 607 950 043
Technical data
The most important data |
|
|---|---|
| Rated input power | 1,700 W |
| No-load speed* | 2,800 – 11,500 rpm |
| Grinding spindle thread | M14 |
| Main handle | Barrel |
| Disc diameter | 125 mm |
| Bore size, diameter | 22.23 mm |
| Weight* | 2.3 kg |
| Switch | Lockable Switch |
| Packaging dimensions (width x length x height) | 130 x 390 x 160 mm |
| Voltage, electrical | 230 V |
| Voltage range | 220 – 240 V |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 103 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GWS 17-125 SB Professional: Further information
Product Highlights
The GWS 17-125 SB Professional with Speed Selection and Intelligent Brake System that enables fast accessory standstill when the tool is switched off. Improved dust protection by air inlets at the backside of the tool and a significantly small grip size result in high performance and maximum productivity. Drop Control, KickBack Control, Restart Protection, and Vibration Control side handle provide a high level of user protection.
Equipment & Application
The GWS 17-125 SB Professional is perfect for grinding metal or welding seams and cutting metal, concrete, bricks, and tiles. It is compatible with Bosch’s dust extraction systems GDE 125 EA-T Professional and GDE 115 / 125 FC-T Professional.
Additional Information
Additional features are Speed Selection, Constant Speed, Soft Start, and Overload Protection.
