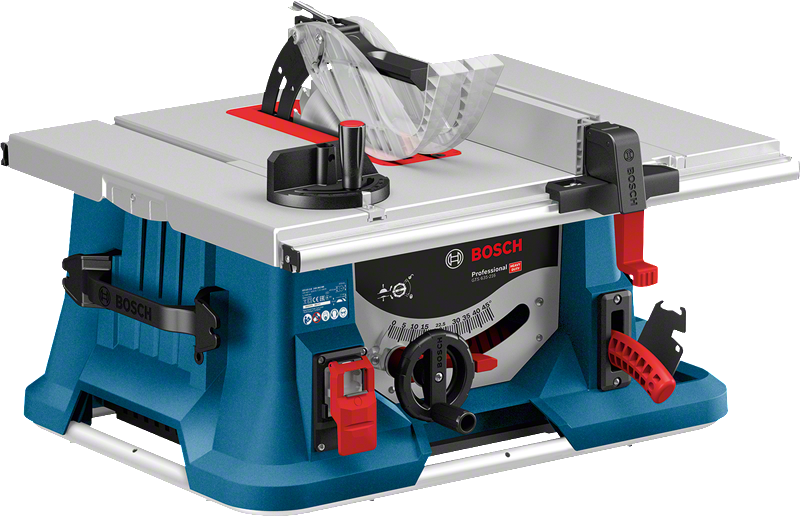

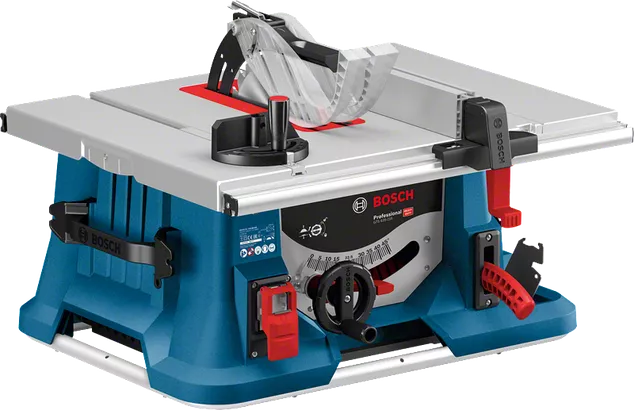

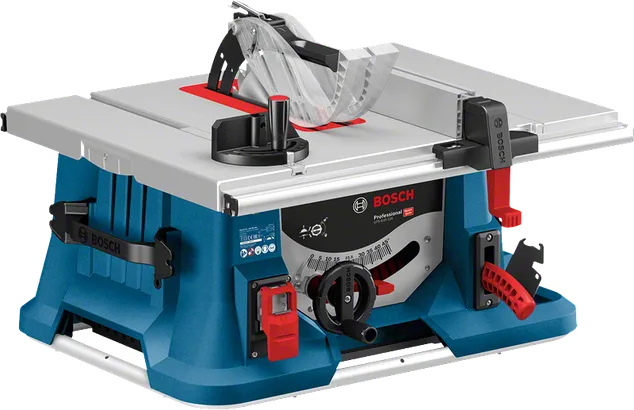

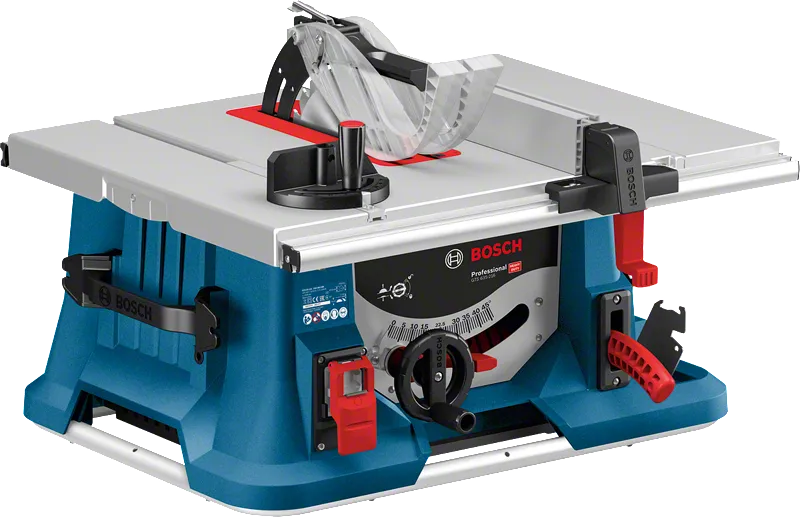

Table Saw
GTS 635-216 Professional

in cardboard box

Powerful and portable: the compact table saw for versatile applications

Choose product variation:

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 1,600 W
Table size 500 x 658 mm
Tool dimensions (width x length x height) 658 x 500 x 332 mm
No-load speed 5,500 rpm
Saw blade diameter 216 mm
Cutting height 90° 70 mm
Cutting height 45° 50 mm
Saw blade bore diameter 30 mm
Incline setting 45 ° L / 0 ° R
Weight 22 kg
Max. cutting capacity on the right 635 mm
Voltage 240 V
Packaging dimensions (width x length x height) 814 x 650 x 402 mm
Noise/vibration information
Sound pressure level 93.5 dB(A)
Sound power level 103 dB(A)
Uncertainty K 3 dB

Advantages

Powerful and portable: the compact table saw for versatile applications

  • 1,600 W motor power for a cutting height up to 70 mm and for a rip capacity up to 635 mm
  • Safe and easy transport due to low weight (22 kg), ergonomic handles, and protective onboard storage
  • Works extremely precisely and is exceptionally versatile due to integrated slide carriage, table-widener, and table extension

Scope of supply

in cardboard box

Order number: 0 601 B42 040

Selected version

Price includes:

  • 1 x circular saw blade, General Purpose Wood, 216 x 30 x 1.6 mm, 24 2 608 644 569
  • Cardboard box
in cardboard box

Order number: 0 601 B42 041

Price includes:

  • 1 x circular saw blade, General Purpose Wood, 216 x 30 x 1.6 mm, 24 2 608 644 569
  • Cardboard box

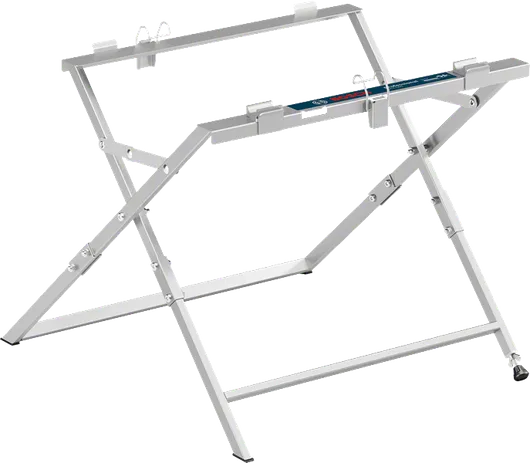

  • Saw stand GTA 560 Professional 0 601 B22 700
