PRO GTC 450-13
Thermo Camera
Order number 0.601.083.9K0
- Visualise temperature differences in high image quality with just one click
- Quick startup, integrated laser, worklight and visual camera to ensure easy use
- Robust, compact design with IP54 rating and impact resistance from falls up to 2m
with 4 x battery (AA), AA1 alkaline battery adapter (1 608 M00 C1B)
0 601 083 9K0
PRO GTC 450-13
Your Selection
New
Coming soon

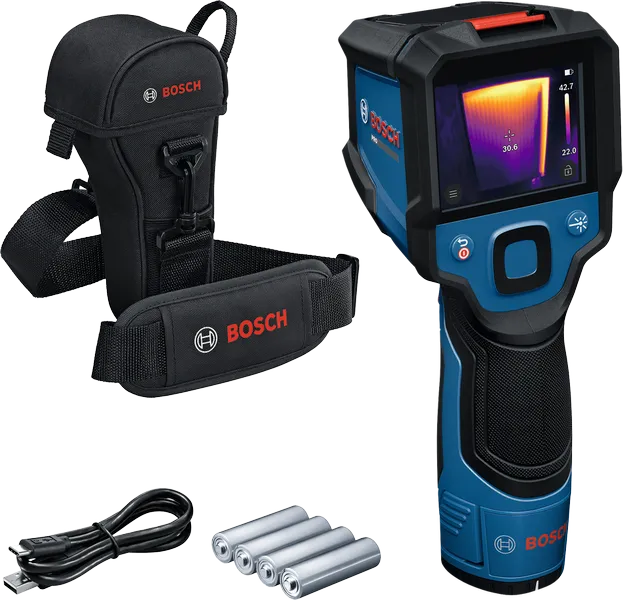

with 4 x battery (AA), AA1 alkaline battery adapter (1 608 M00 C1B)
Order number: 0 601 083 9K0
Find a local dealerIncluded in this variant
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)
-
1 x tool bag
-
USB-C® Cable
Technical data
The most important data
Battery voltage
12.0 V
Measurement range*
-20 °C to +450 °C
Measuring accuracy of IR*
± 2.0 °C
Resolution
0.1 °C
Laser diode
645 – 660 nm
Thermal sensitivity (NETD)
<=50 mK
Size of IR sensor
256 Pixel x 192 Pixel
Number of measuring points
49,152
Field of view (FOV)
56° x 42°
Power supply and runtime
4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours
Frame buffer (number of images)
500
Memory type
internal memory
File format of image
.jpg
Data transfer
USB-C®
Shock protection
2 m
Dust and splash protection*
IP54
Weight*
0.35 kg
Size of display
2.8"
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 50 °C
Focus distance, minimum
0.5 m
Thermal image refresh rate
9 Hz
Packaging dimensions (width x length x height)
90 x 79 x 209 mm

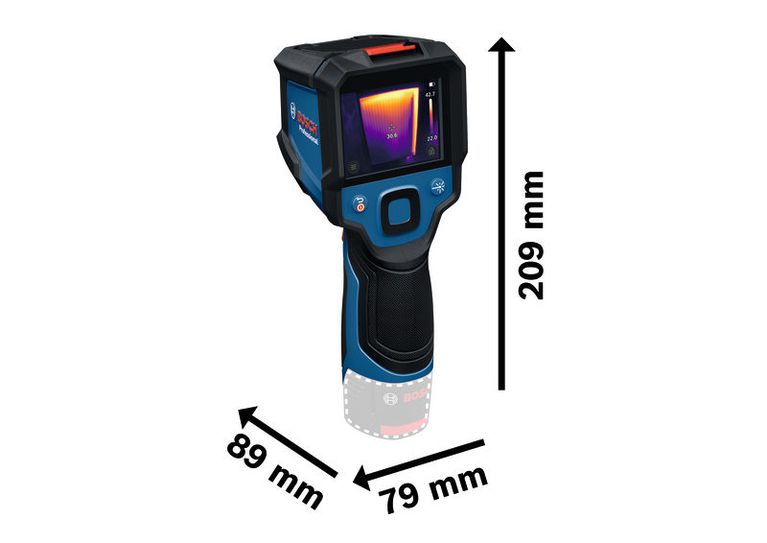

Tool dimensions (L x W x H)
79 x 89 x 209
Net weight
0.356 kg
Gross weight
1.089 kg
* You can find more information about the deviations in the following link:
PRO GTC 450-13: Further information
Product Highlights

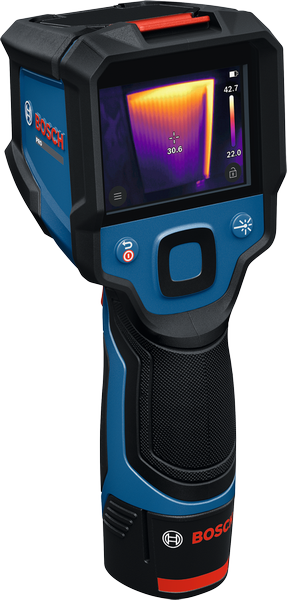

The GTC 12V-450-13 Professional thermal camera is your go-to entry-level tool for visualising temperature differences with ease. With a 256 x 192 px resolution and a clear 2.8" display with full focus on the thermal image, you can quickly analyse temperature variations in a wide range of scenarios. Its compact design ensures a seamless fit in any toolbag, making it perfect for professionals. And with an IP54 rating, 2m drop resistance and a protective flap for the IR sensor, the camera is built to withstand tough jobsite conditions.
Equipment & Application

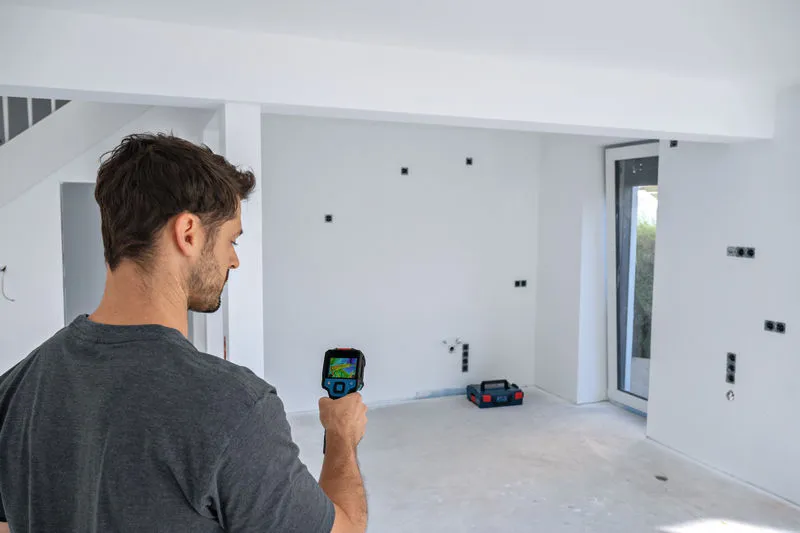

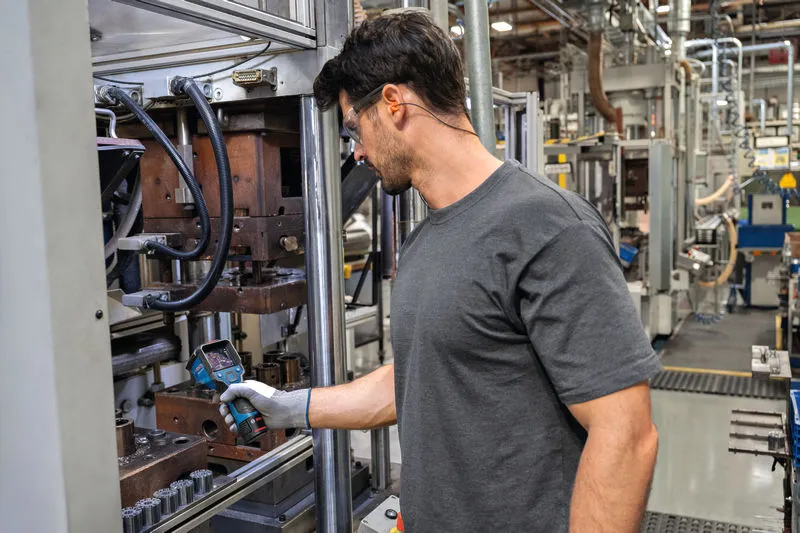

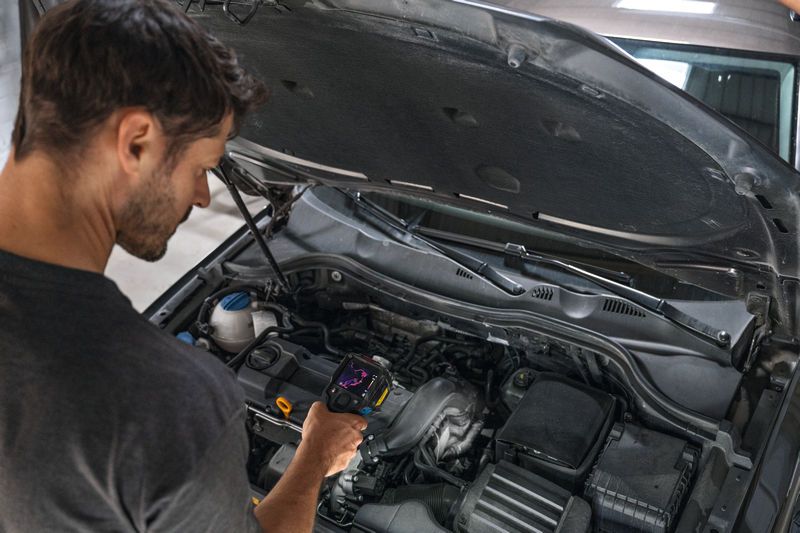

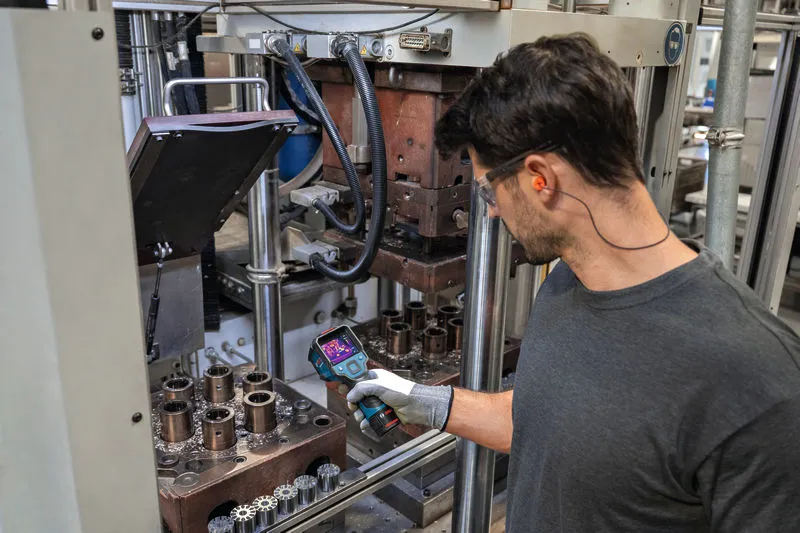

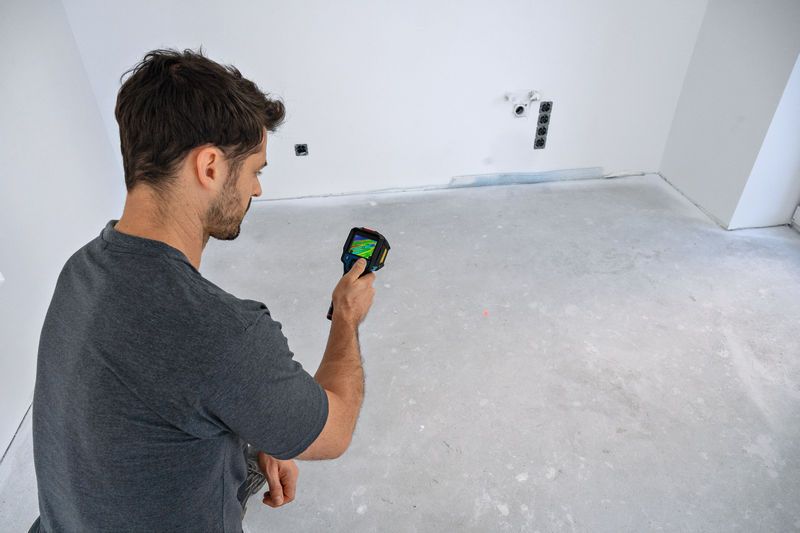

Designed for quick and efficient temperature analysis, this thermal camera starts up in just 3 seconds. The wide field of view helps you locate heating pipes, check heating and AC systems, and find issues in electrical components - especially indoors. With a user-friendly interface, worklight for dark environments, laser for marking the measuring point, and visual camera for transparency and pic-in-pic functionality, this thermal camera is ideal for HVAC, industrial, automotive, and renovation tasks.
Additional Information

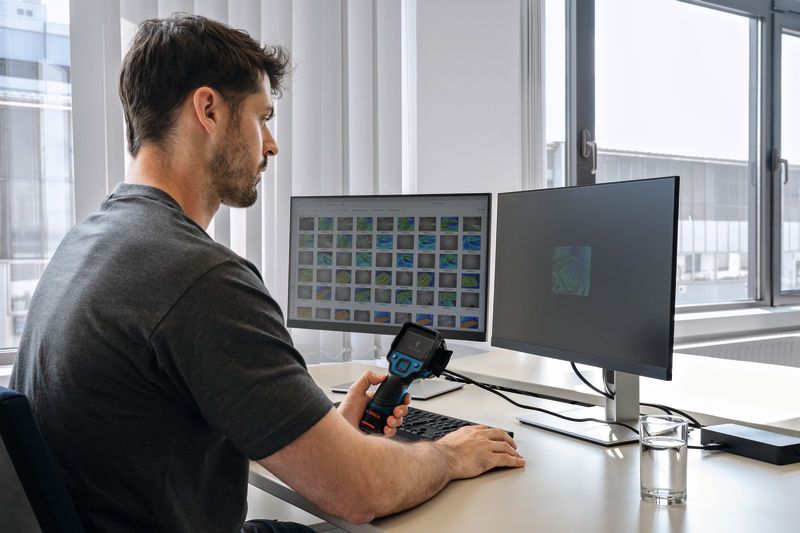

The GTC 12V-450-13 Professional offers dual power source flexibility, so you can switch between 12V Li-ion batteries and AA alkaline batteries to minimise downtime. The USB interface lets you seamlessly capture and transfer up to 500 images to help ensure efficiency on the job. Also compatible with accessories like the AA1 battery adapter, this thermal camera keeps you ready to tackle any job.
This may also interest you
GIC 12V-5-27 C
GIC 12V-5-27 C

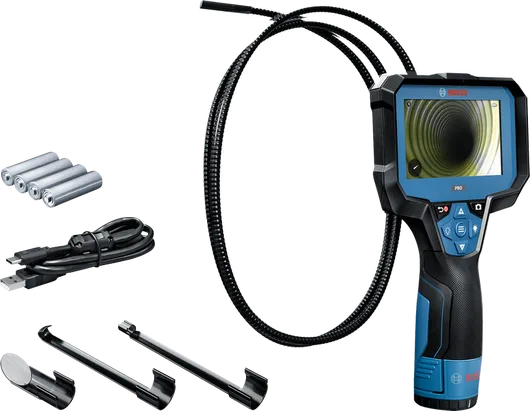

GIC 12V-4-23 C
