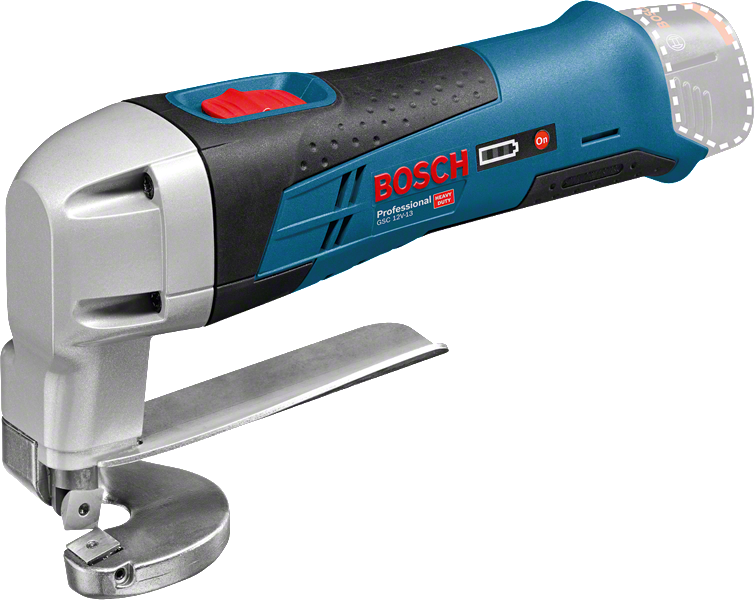

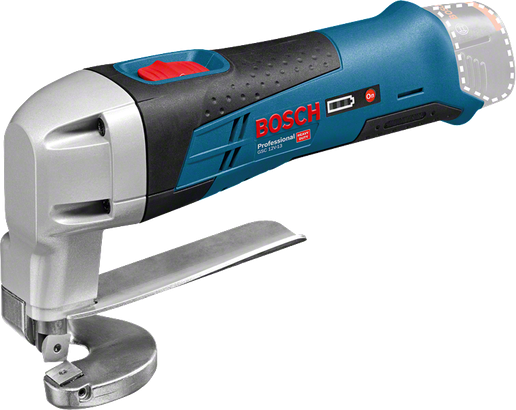

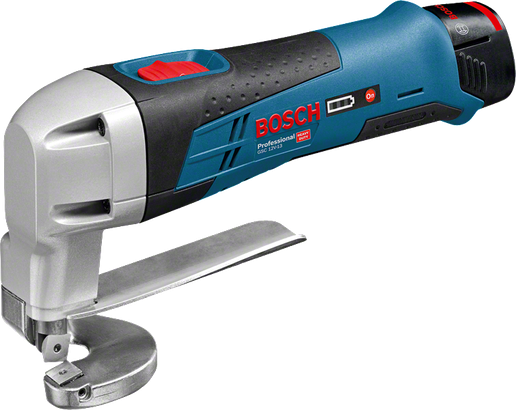

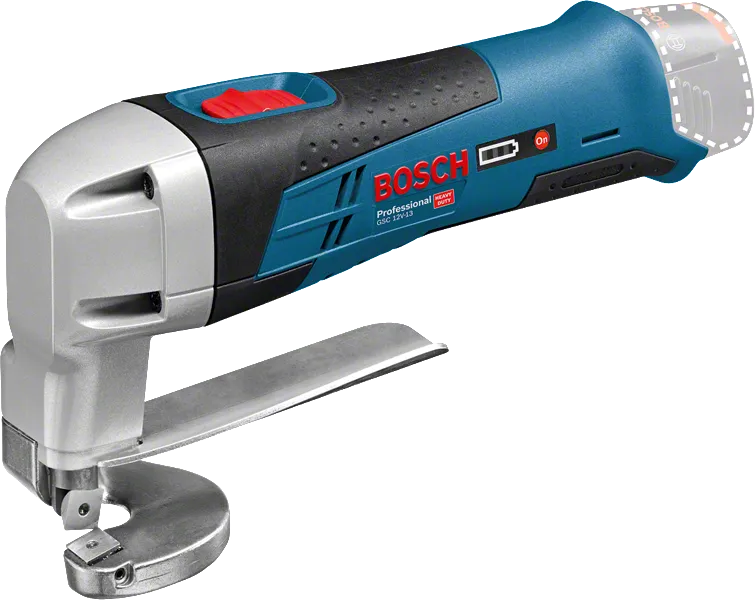

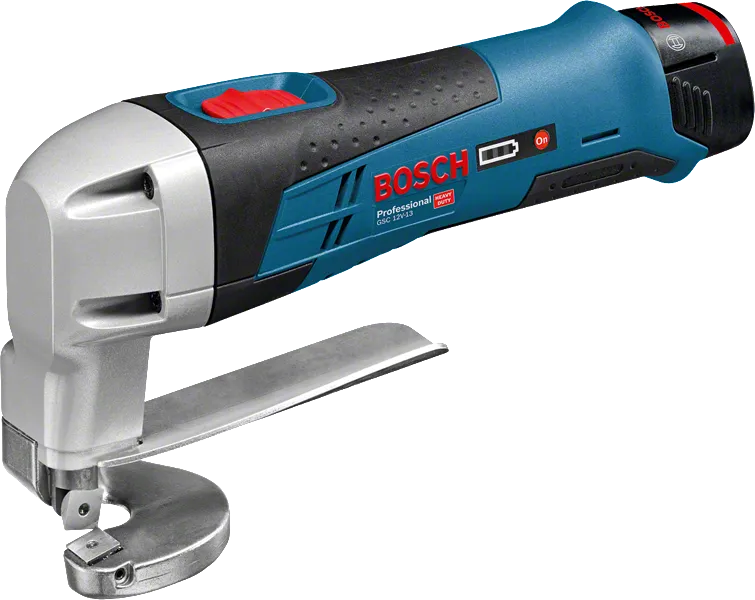

Cordless Metal Shear
GSC 12V-13 Professional

in cardboard box with Hex key

Bosch´s most compact and handy metal shear in the 12 V category

Print

The Professional 12V System.
Compact performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

Cutting capacity in steel (800 N/mm²), max. 0.6 mm
Cutting capacity in steel (600 N/mm²), max. 0.8 mm
Cutting capacity in steel (400 N/mm²), max. 1.3 mm
Cutting capacity in aluminium (250 N/mm²), max. 2 mm

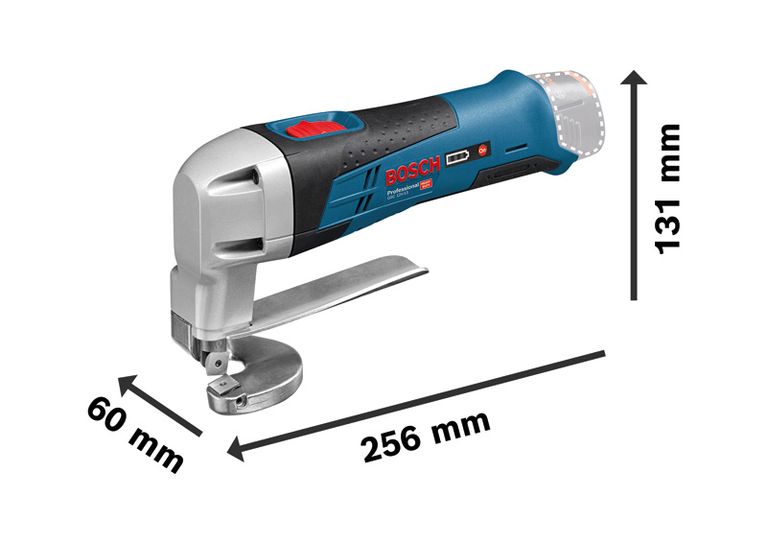

Packaging dimensions (width x length x height) 215 x 330 x 90 mm
Specifications
No-load stroke rate 3,600 spm
Battery voltage 12 V
Minimum curve radius 15 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Cutting sheet metal
Vibration emission value ah 3.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Bosch´s most compact and handy metal shear in the 12 V category

  • Extremely compact and ergonomic design makes it perfect for fast cuts
  • Shear head designed for excellent manoeuvrability in curves
  • Suitable for cutting a wide variety of metal materials of up to 1.3 mm

Functions

No load speed 3600 min-1/rpm
High productivity due to reversible blade with 4 cutting edges for excellent cutting results and longer lifetime
Optimum adjustment thanks to settable cutting clearance to suit the thickness of the material
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Cutting in metal up to 1.3 mm
Voltage 12 Volt
10.8 & 12 Volt 100% compatible All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Battery 100 percent compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling
Metalworking The professional power tools for metalworking from Bosch.
Construction The professional power tools for construction from Bosch.
Woodworking The professional power tools for woodworking from Bosch.

Prices / Package contents


in cardboard box with Hex key

Order number: 0 601 926 105

Selected version

Price includes:

  • 1/2 L-BOXX inlay for tool 1 600 A00 2VD
  • Cardboard box
  • Hex key

* Battery and charger not included
