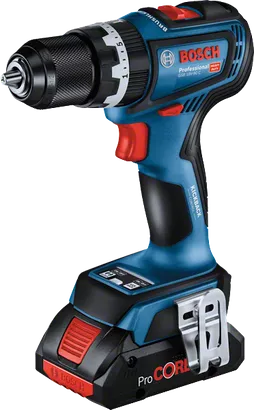

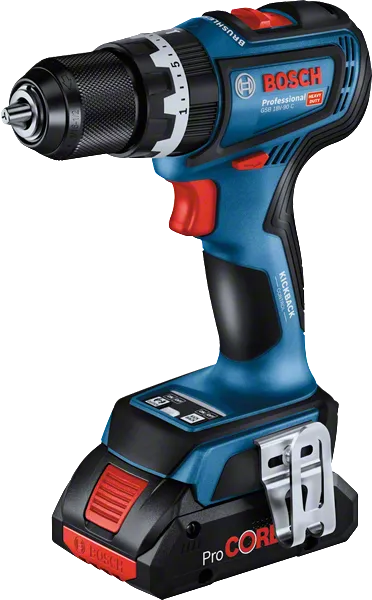

GSB 18V-90 C Professional

Cordless Combi

GSB 18V-90 C
GSB 18V-90 C

Powerful cordless impact drill with compact head length and perfect tool control

  • Powerful brushless motor delivers high power with 64 Nm and 2,100 rpm maximising your efficiency on the job site
  • 13-mm metal chuck ensures increased robustness and great torque transfer for every job
  • Switchable Kickback Control and switchable Precision Clutch ensure perfect control and high protection for user and tool

Functions & key features

 Torque 64/36 Nm
 A metal chuck makes your tool more robust thereby increasing its lifetime and stability
Longer motor life - more runtime - more power thanks to brushless motor
 Reduces the risk of sudden tool reactions in bind-up scenario thanks to automatic tool shutdown. Function can be switched off
 Stops overriding if set torque level is reached, reduces wear and tear of clutch and resulting noise. Function can be switched off
Show variant Buy now

GSB 18V-90 C Professional 0 601 9K6 140

GSB 18V-90 C Professional

Your Selection

GSB 18V-90 C

Order number: 0 601 9K6 140

Buy now
Professional 18V System.
Discover more!

Technical data

The most important data

Torque (soft/hard/max.)*
36/64/- Nm
No-load speed (1st gear / 2nd gear)*
0 – 630 / 0 – 2,100 rpm
Max. impact rate*
29,500 bpm
Chuck capacity, min./max.
1.5 mm
Battery voltage
18.0 V
Weight excl. battery*
1.2 kg
Torque settings
21
Packaging dimensions (width x length x height)
224 x 234 x 94 mm
Show more
GSB 18V-90 C

* You can find more information about the deviations in the following link: Technical features of products

GSB 18V-90 C Professional: Further information

Product Highlights

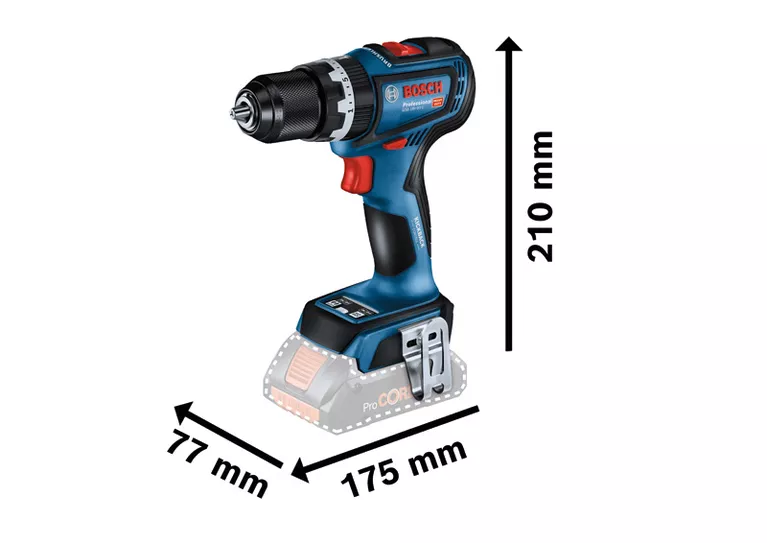

The GSB 18V-90 C Professional is a powerful cordless impact drill with a brushless motor that delivers top performance with 64 Nm and 2,100 rpm. Its compact head length of 175 mm provides perfect tool handiness. The robust 13-mm metal chuck ensures great torque transfer for every job. The impact drill holds a very high level of tool control for both, increased user health and tool protection: The HMI offers switchable Kickback Control to reduce the risk of sudden rotational torque reaction in a bind-up scenario. A switchable Precision Clutch stops the overriding once a preset torque level is reached and, thus, reduces the wear and tear of the clutch and the resulting noise.

Equipment & Application

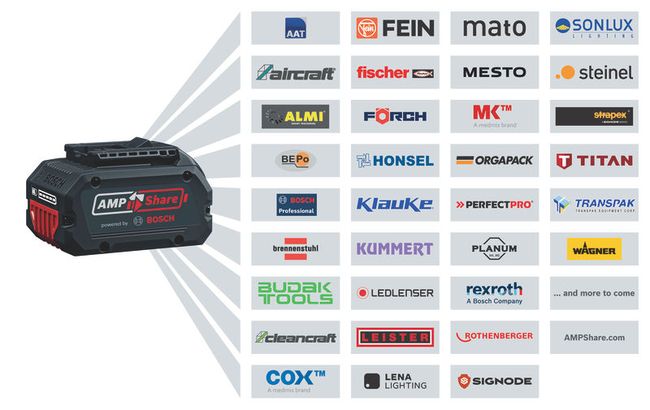

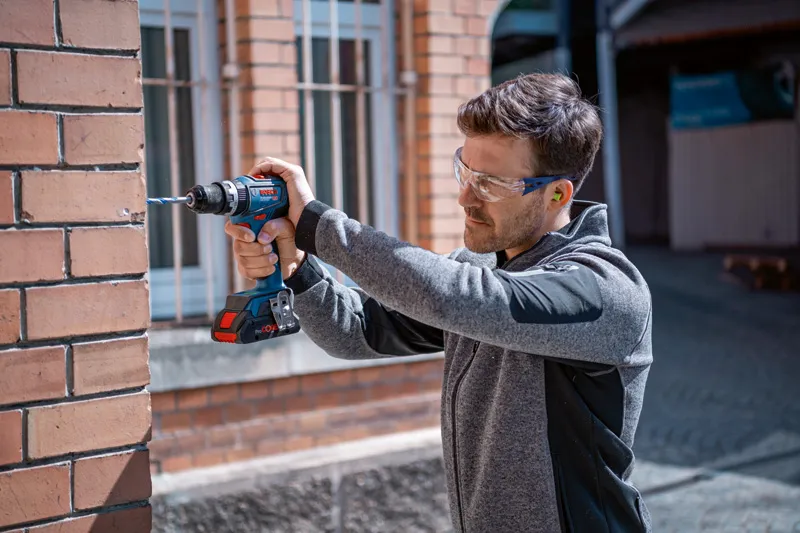

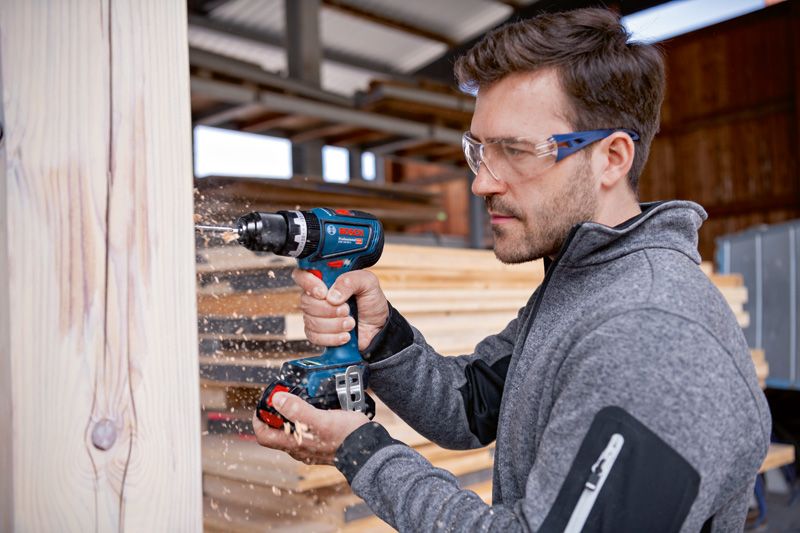

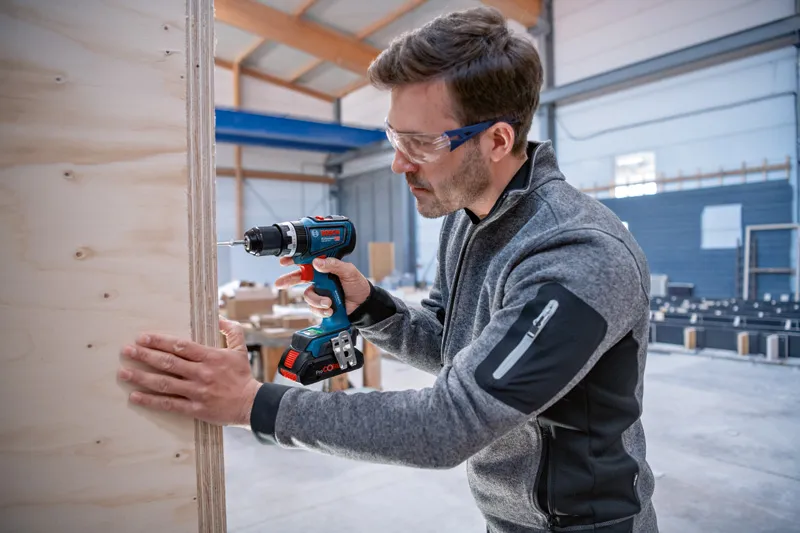

The tool is intended for drilling in wood with a maximum diameter of 68 mm and in steel and masonry with up to 13 mm each. The GSB 18V-90 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.

videos and images may depict overseas models. For local executions please see scope of supply
