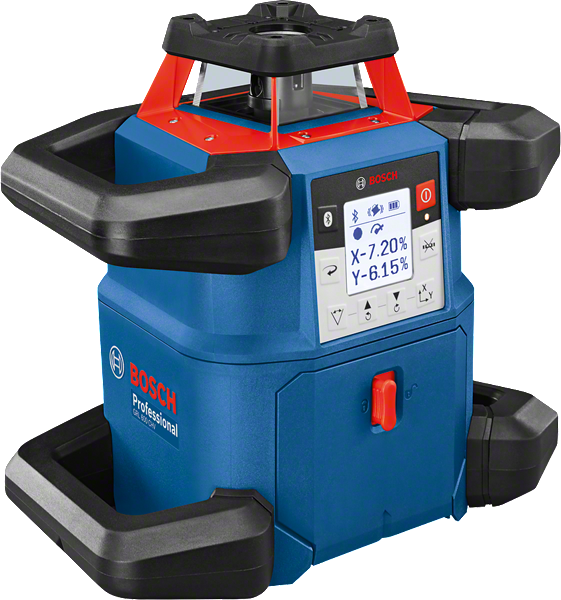

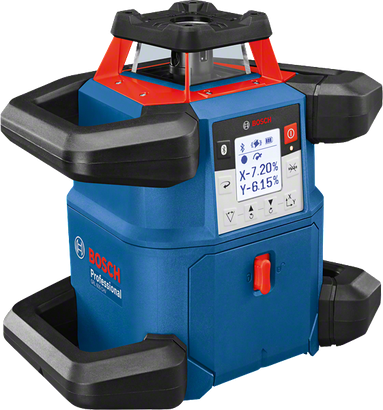

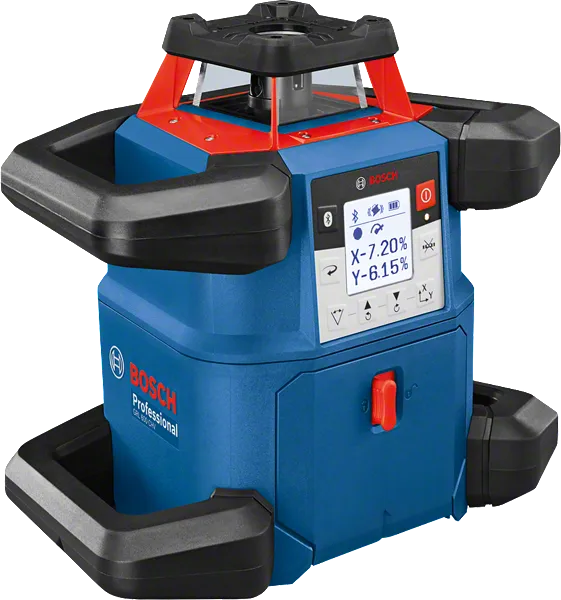

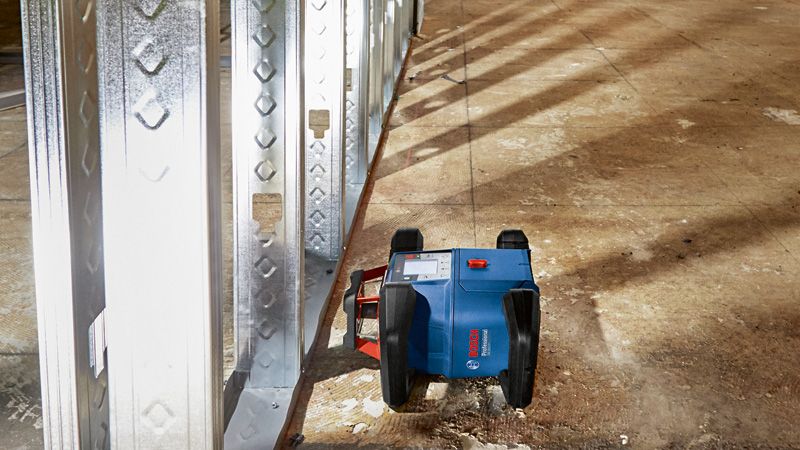

GRL 600 CHV Professional

Rotation Laser

GRL 600 CHV
GRL 600 CHV
GRL 600 CHV

Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs

  • Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water

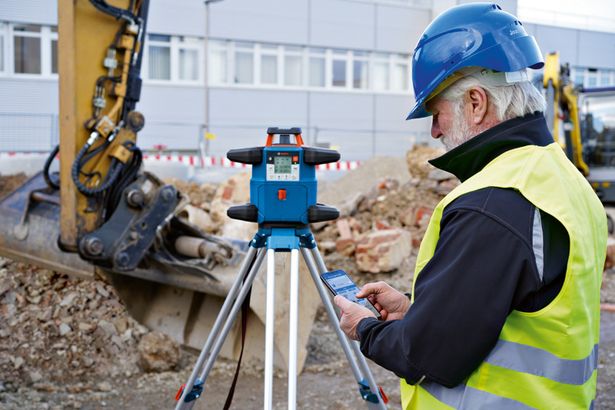

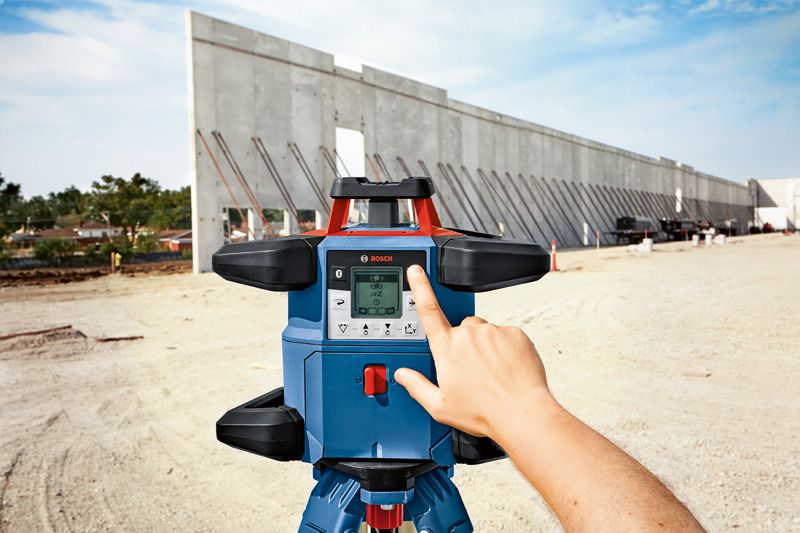

  • Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time

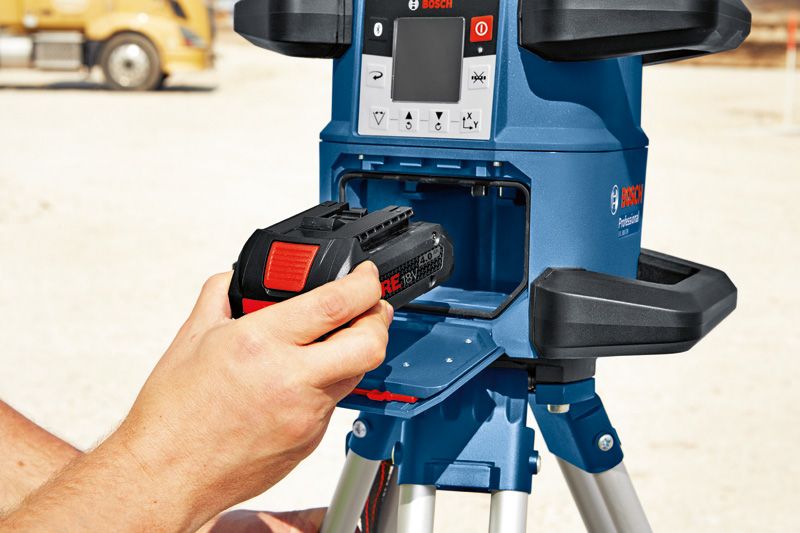

  • Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)

Functions & key features

2 m* tripod-tip over for higher durability (*the measuring tool, mounted in a horizontal position on a tripod, tips on flat concrete floor)
Dual slope for creating inclined surfaces in two axes
Long reception area 125 mm
IP68 dust and water tight
User calibration for fast and easy calibration and precise work

Your Selection

  • in carrying case with 4 x battery (LR20), remote control
Show variant

Available in 4 onlineshop(s)

Buy now

in carrying case with 4 x battery (LR20), remote control 0 601 061 F40

GRL 600 CHV Professional

Your Selection

GRL 600 CHV
in carrying case with 4 x battery (LR20), remote control

Order number: 0 601 061 F40

Buy now

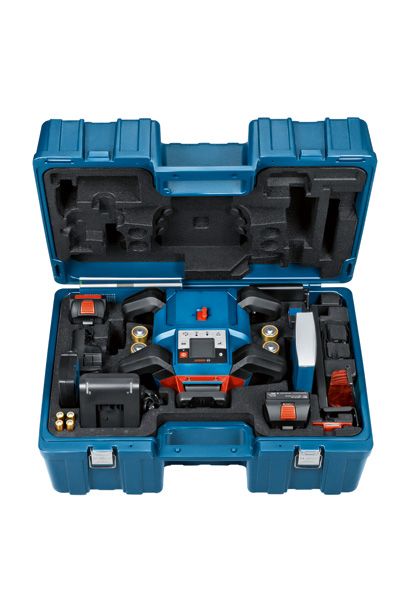

Included in this variant

  • Remote control RC 6 Professional
  • Laser receiver LR 60 Professional
    Order number: 3 601 K69 P40
  • Receiver bracket RB 60 Professional
  • Battery adapter BA 1 Professional
  • 4 x 1.5 V LR6 battery (AA)

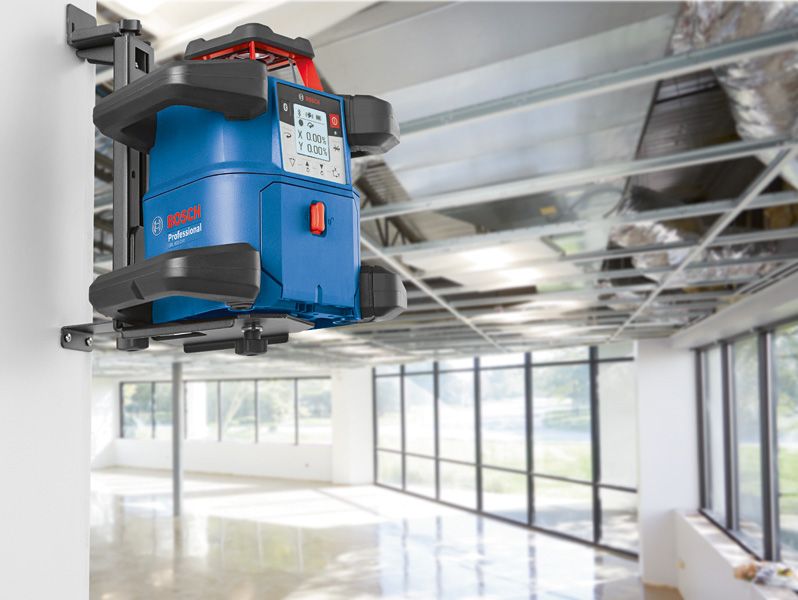

  • Wall mount WM 6 Professional
  • Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
  • 4 x 1.5 V LR20 battery (D)
  • Laser target plate
  • Carrying case
Professional 18V System.
Discover more!

Technical data

The most important data

Battery voltage 18.0 V
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 50 °C
Laser class 2
Working range with receiver* up to 600 m (Diameter)
Working range without receiver* up to 60 m (Diameter)
Accuracy* ± 1.5 mm at 30 m* horizontal (*plus use-dependent deviation), ± 3.0 mm at 30 m* vertical (*plus use-dependent deviation)
Self-levelling range ±8.5% (±5°)
Dust and splash protection IP 68
Rotation speed 150/300/600 min−1
Power supply 18 V Li-ion battery, 4 x D cell batteries
Operating time (max.) 60 h, 70 h
Tripod thread 2 x 5/8"
Projection 1 x 360° line
Compatible laser receivers LR 60
Weight with 4.0 Ah battery** 4.3 kg
Weight with alkaline batteries** 4.6 kg

GRL 600 CHV

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

GRL 600 CHV Professional: Further information

Product Highlights

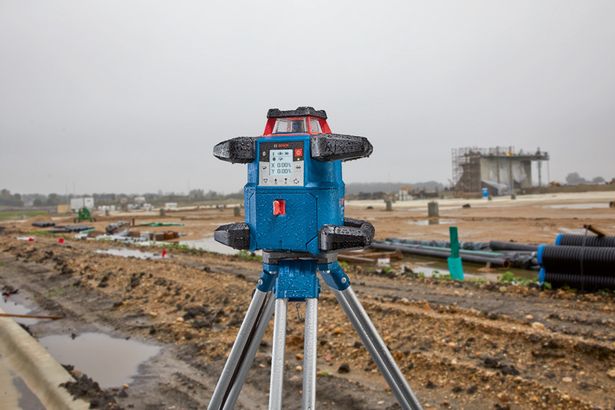

Heavy duty, jobsite-proof – the robust GRL 600 CHV Professional endures even the harshest environments. Its sturdy design offers impact protection and has an IP68 rating against dust and water – including the battery compartment for highly flexible work in bad weather conditions. It provides convenient connectivity, enabling more focused work with less wasted time. Operating the tool is intuitive thanks to its screen and access to the levelling remote app that visualises all functions, including a dual slope setting, to save valuable time. This highly accurate laser has a long runtime, both with the 18V battery system and alkaline batteries included for continuous working.

Equipment & Application

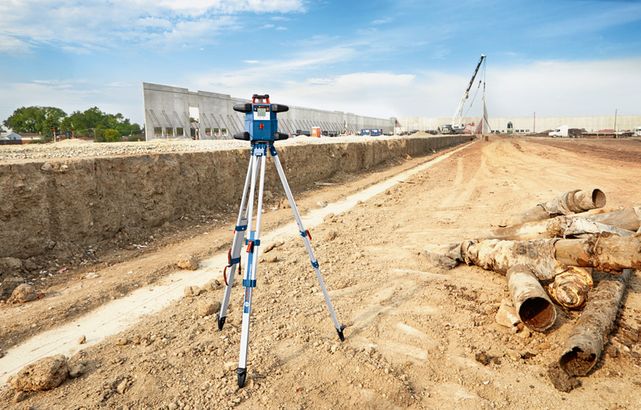

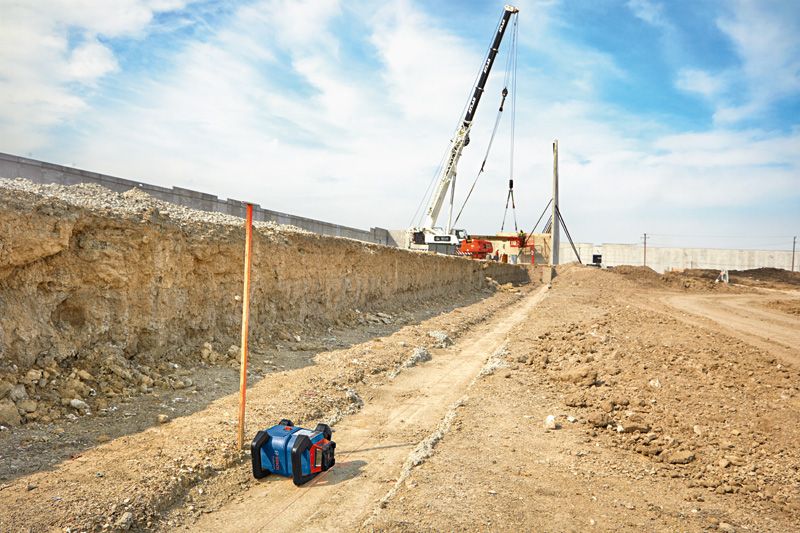

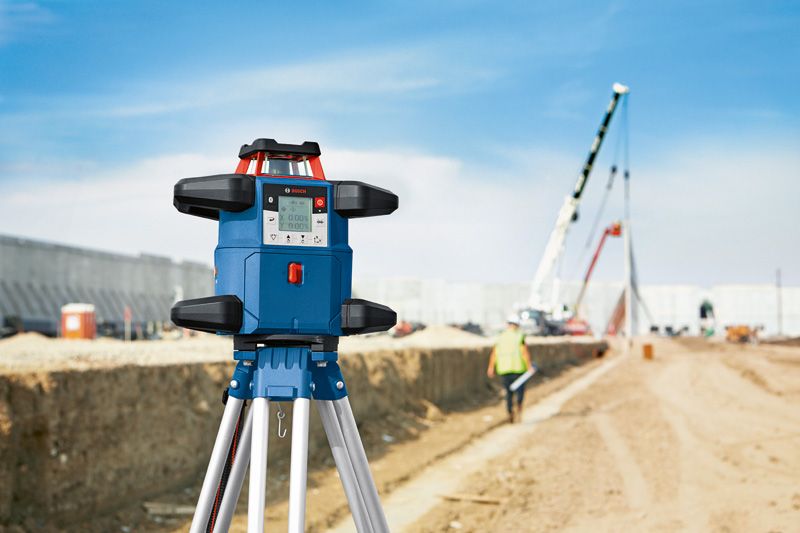

Use this tool for exterior applications when determining cut-and-fill excavation work, concrete forms, landscaping, and façade work.

Additional Information

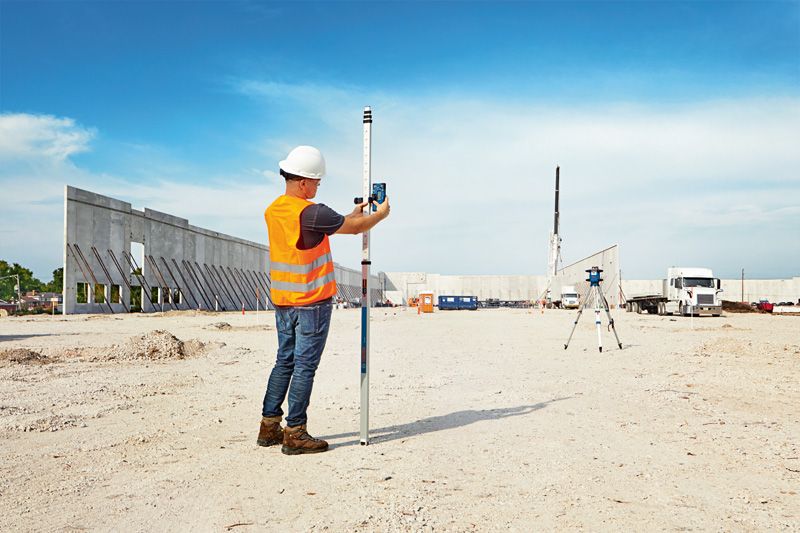

The GRL 600 CHV also features a high-quality receiver with a 125-mm reception area, a dual-sided display, and an offset feature in millimetres. Calibrating the tool is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and ensure accurate results on every job. Use the handy 'mask mode' available in the app to avoid reflection and interference with other devices on the jobsite.
