Point lasers

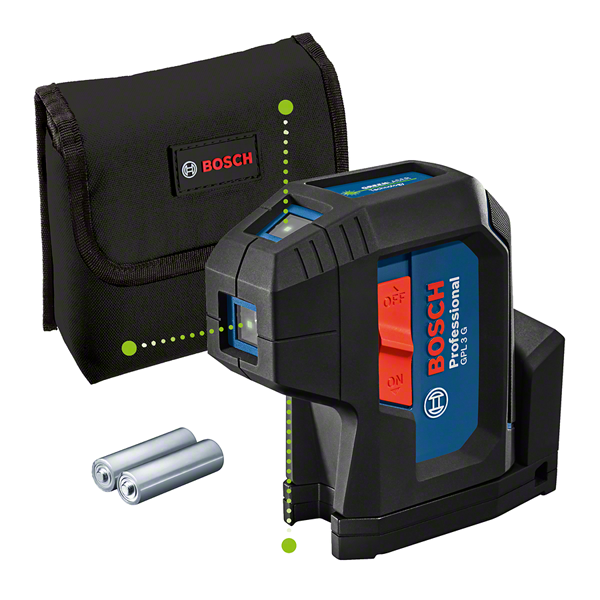

Bosch GPL 3G laser leveling tool with case and batteries.

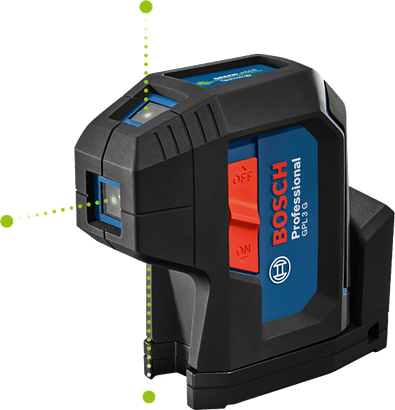

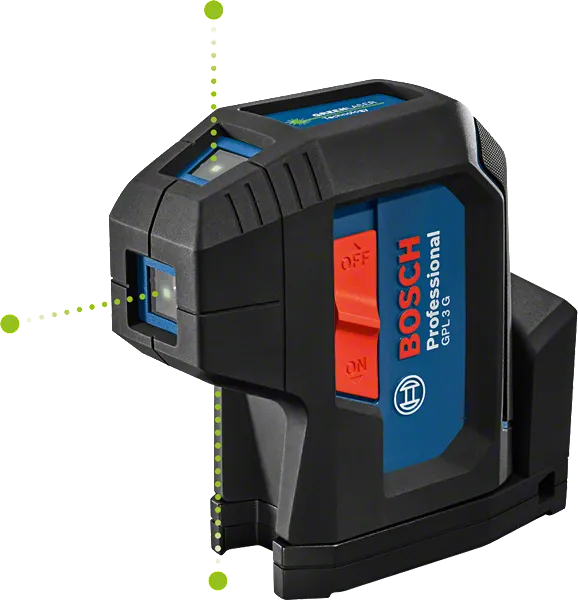

Bosch GPL 3 G point laser leveling tool, self-levelling.
GPL 3 G
GPL 3 G

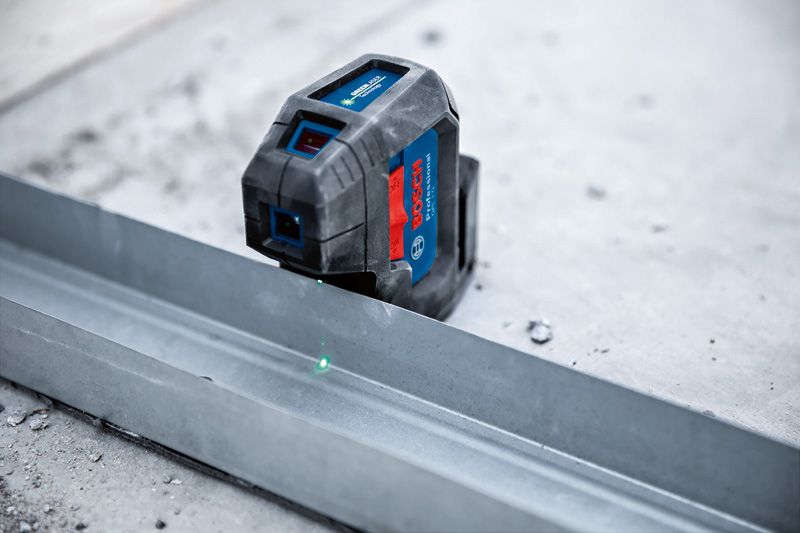

Laser leveling tool projecting green lines onto a metal track on a concrete floor.

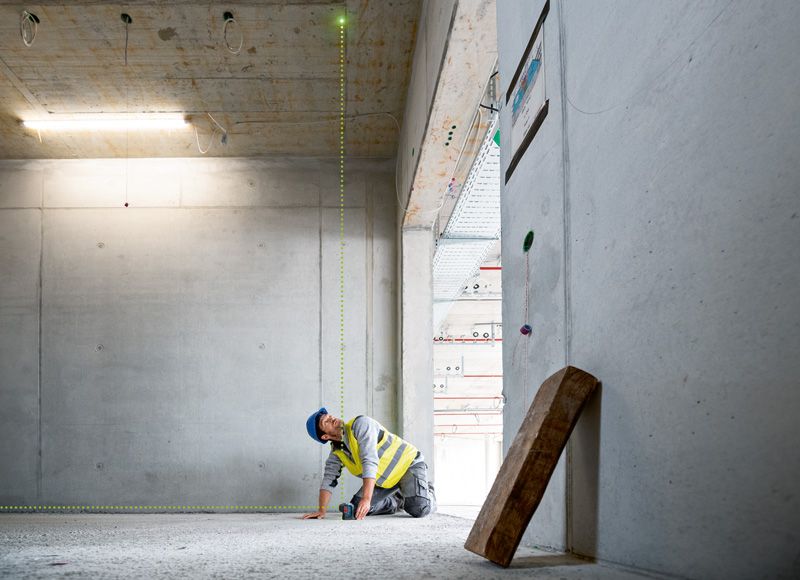

A person wearing safety equipment aligns a laser leveling tool on a concrete floor.

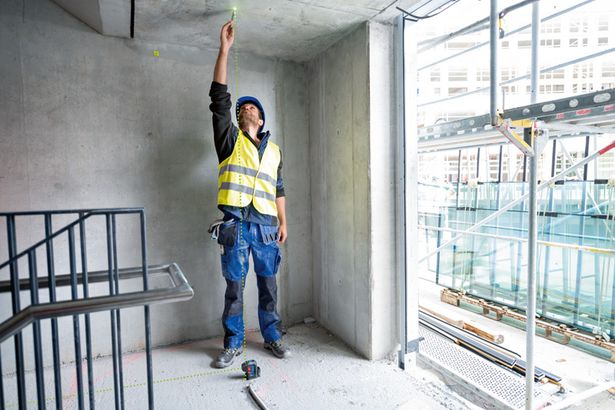

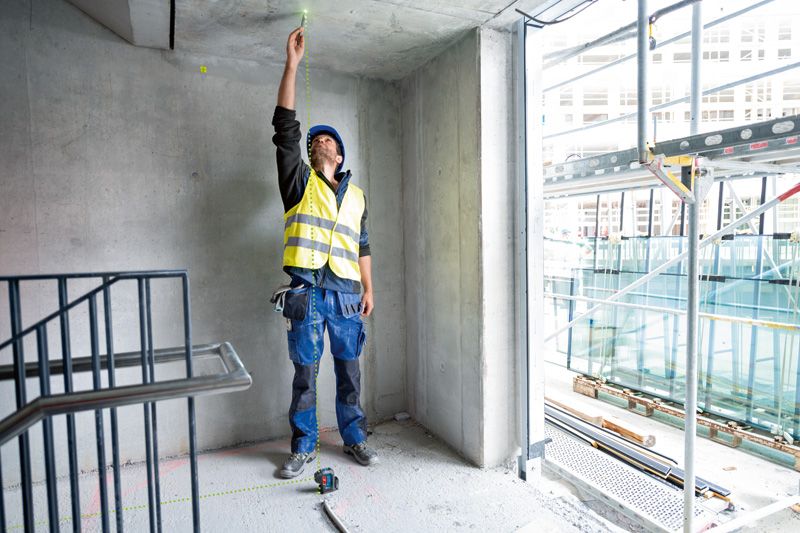

A person wearing safety equipment uses a point laser to mark the ceiling in a concrete room.

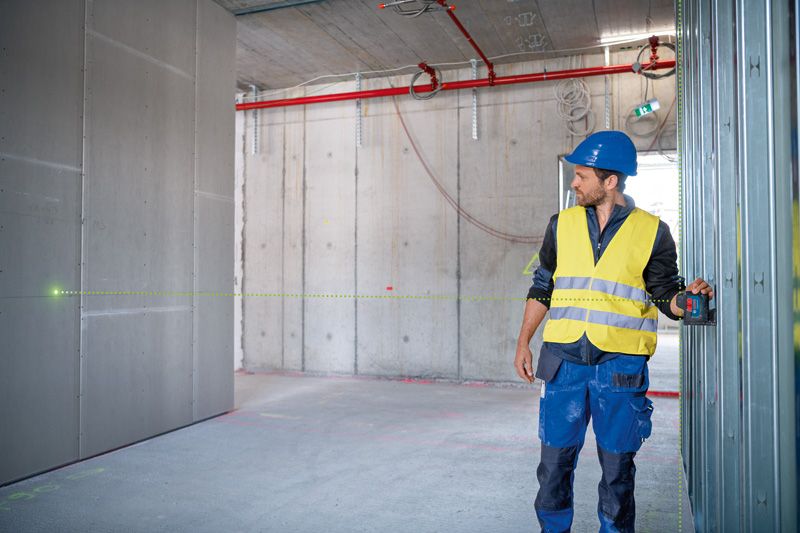

A person wearing safety equipment uses a laser leveling tool on a construction site.

GPL 3 G Professional

Point Laser

Green laser technology
Protected tools

The robust and compact 3-point laser with highly visible green laser points

  • Green laser points provide up to four times better visibility than red points
  • Durable design for tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
  • Integrated rotation mount with strong magnets for fast and secure mounting

Functions & key features

Three-point laser
IP65
Integrated rotation mount
Magnetic
Laser class 2

Your Selection

  • with 2 x battery (AA), Pouch
Show variant Buy now

with 2 x battery (AA), Pouch 0 601 066 N00

GPL 3 G Professional

Your Selection

Bosch GPL 3G laser leveling tool with case and batteries.
with 2 x battery (AA), Pouch

Order number: 0 601 066 N00

Buy now

Included in this variant

  • Pouch
  • 2 x 1.5 V LR6 battery (AA)
Our service promise for professionals.
Register now!

Technical data

The most important data

Laser diode
< 1 mW, 500 – 540 nm
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range*
up to 30 m
Accuracy*
± 0.35 mm/m (except bottom laser point) ; ± 0.7 mm/m (bottom laser point)
Self-levelling range
± 4°
Levelling time
4 s
Dust and splash protection
IP 65
Power supply
2 x 1.5 V LR6 (AA)
Operating time (max.)
8 h
Weight, approx.*
0.35 kg
Projection
3 points

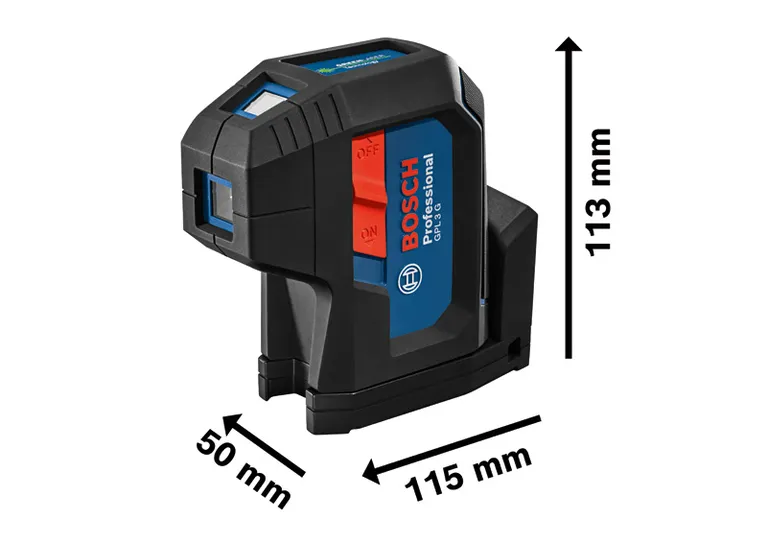

Bosch GPL 3 G laser leveling tool, compact and self-levelling.

* You can find more information about the deviations in the following link: Technical features of products

GPL 3 G Professional: Further information

Product Highlights

The 3-point laser GPL 3 G Professional is resilient and small in design, making it ideal for drywalling. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 3 G Professional also resists tough jobsite conditions. This 3-point laser is equipped with an integrated rotation mount that features strong magnets for fast and secure tool mounting while also enabling convenient transportation.

Equipment & Application

The GPL 3 G Professional is the ideal helper for transferring points from floor to ceiling, e.g., when installing interior lighting. It is perfectly shaped for stud alignment for drywall framework.

Additional Information

This 3-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.
