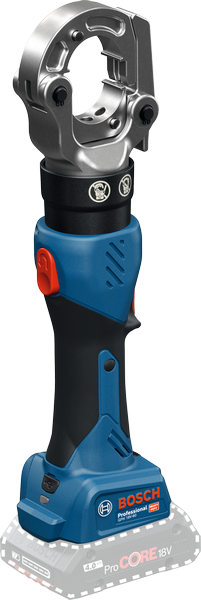

![Bosch GPH 18V-60 cordless hydraulic crimping tool.]( "GPH 18V-60")

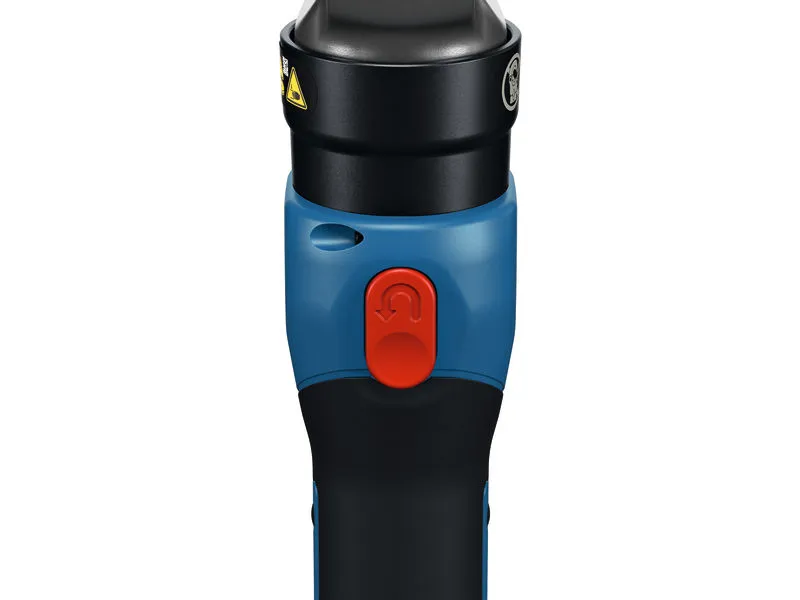

![Bosch GPH 18V-60 cordless hydraulic crimping tool handle.]( "GPH 18V-60")

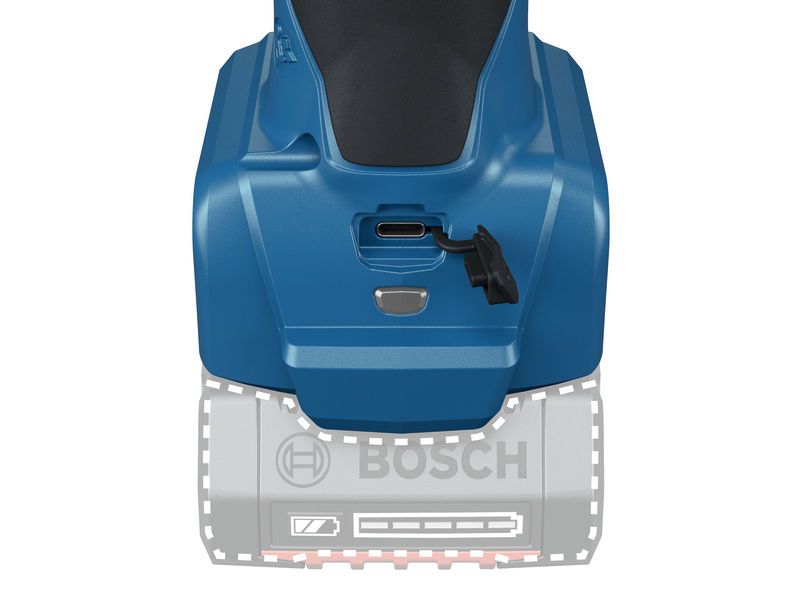

![Bosch GPH 18V-60 cordless hydraulic crimping tool USB-C port.]( "GPH 18V-60")

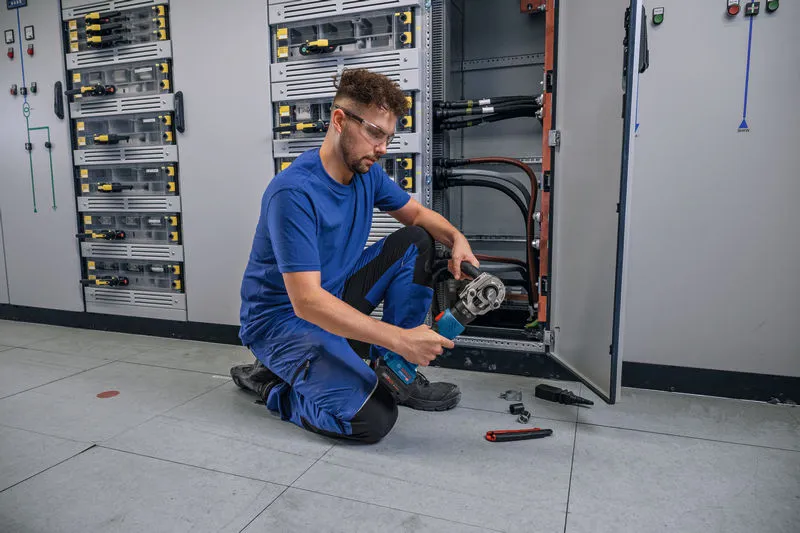

![A person wearing safety equipment crimps a cable using a cordless hydraulic tool.]( "GPH 18V-60")

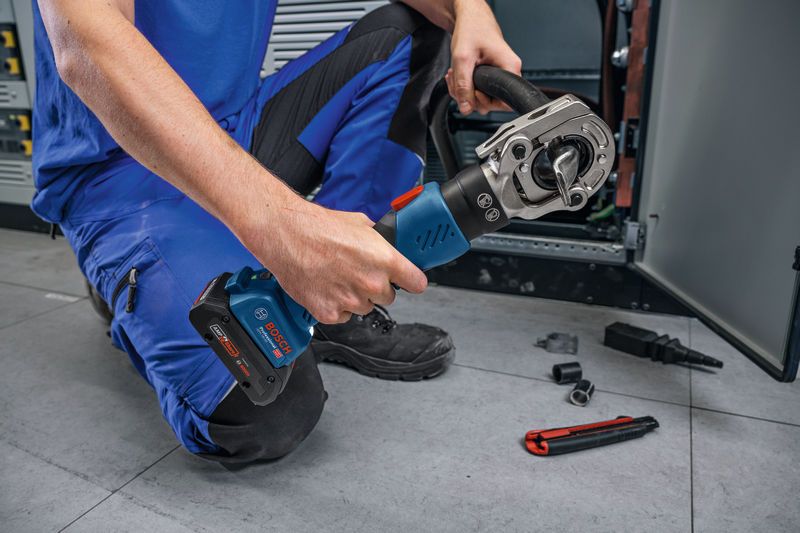

![A person wearing safety equipment uses a cordless hydraulic crimping tool near electrical cabinets.]( "GPH 18V-60")

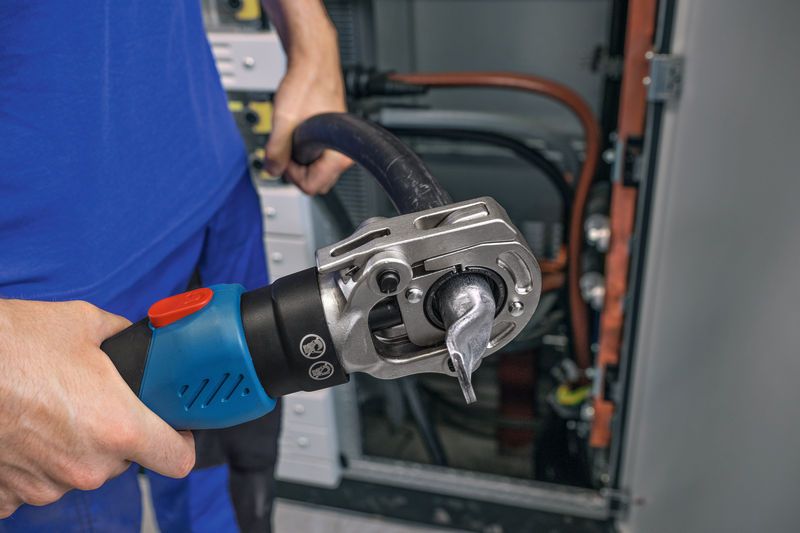

![A person uses a cordless hydraulic crimping tool on a thick cable near electrical panels.]( "GPH 18V-60")

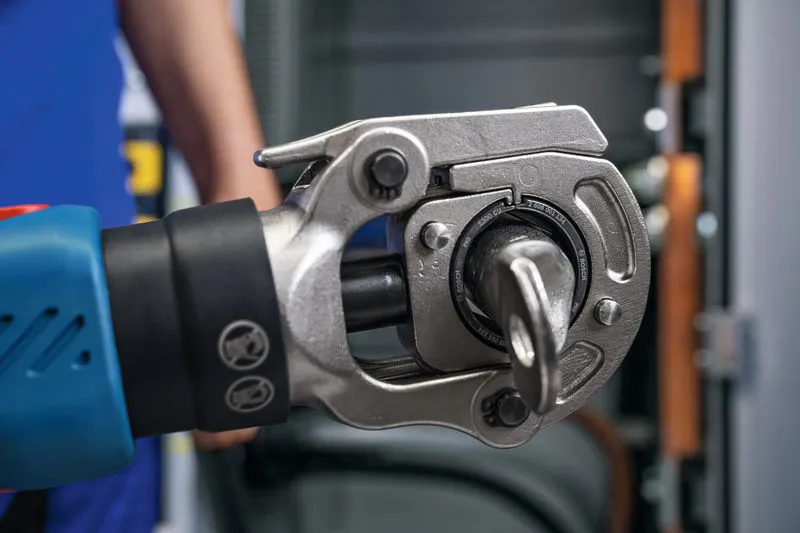

![Person wearing safety equipment operates a cordless hydraulic crimping tool in front of a panel.]( "GPH 18V-60")

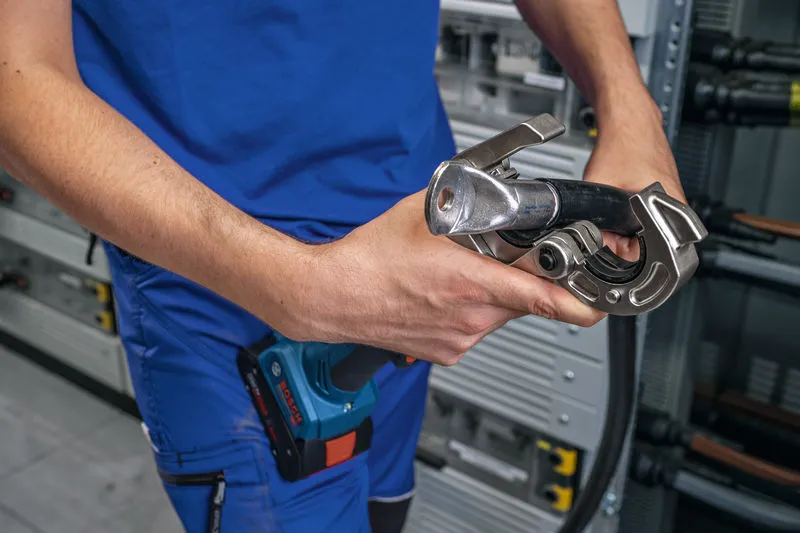

![A person wearing safety equipment uses a cordless hydraulic crimping tool on a cable.]( "GPH 18V-60")

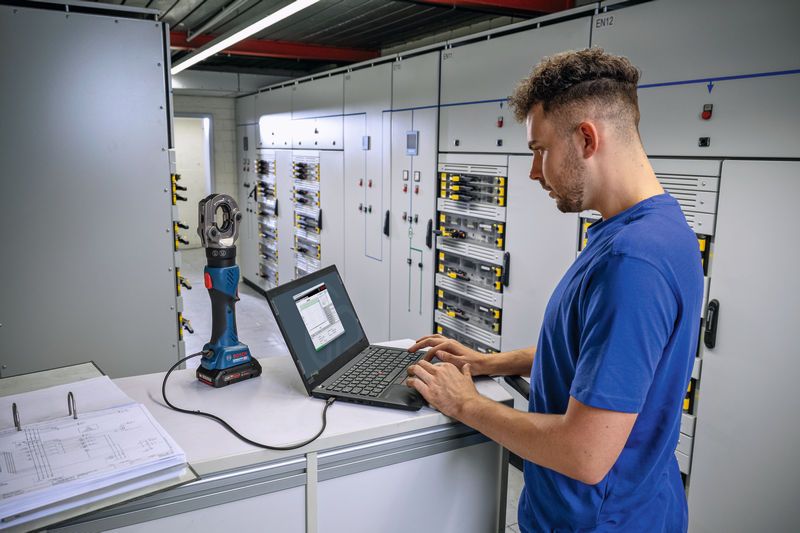

![Person operates a laptop connected to a cordless hydraulic crimping tool in an electrical control room.]( "GPH 18V-60")

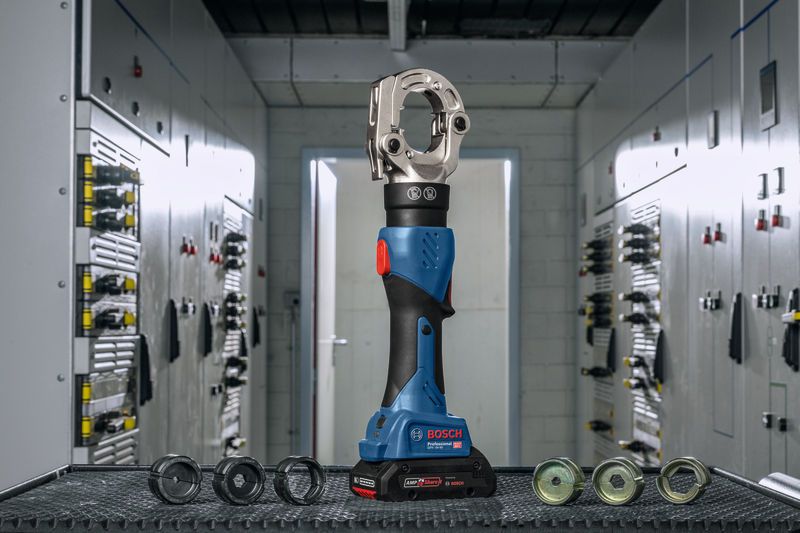

![Cordless hydraulic crimping tool with interchangeable dies on a workbench in an electrical room.]( "GPH 18V-60")
Coming Soon
GPH 18V-60 Professional
Cordless Hydraulic Crimping Tool
Order number 0.601.9P0.140
- Reliable hydraulic crimping with quality control through visual feedback on status LED
- Precise monitoring of pressure through electronic pressure sensor
- Long lifetime with outstanding maintenance interval of 20,000 crimps
- Comfortable to use thanks to ergonomic design with 340-degree rotatable crimping head and optimized center-of-gravity
- Convenient overview of tool’s crimping history, important parameters, and maintenance intervals through USB connection and read-out software
GPH 18V-60 Professional
0 601 9P0 140
GPH 18V-60 Professional
Your Selection
New
Order number: 0 601 9P0 140
Find a local dealerIncluded in this variant
-

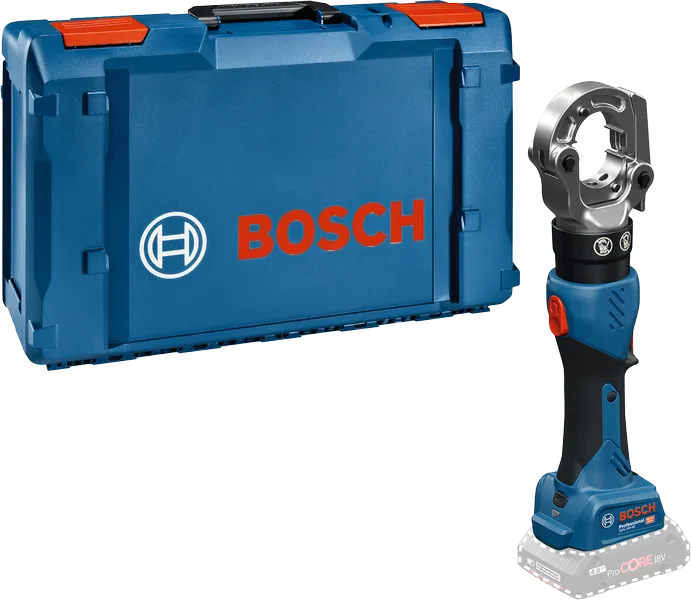

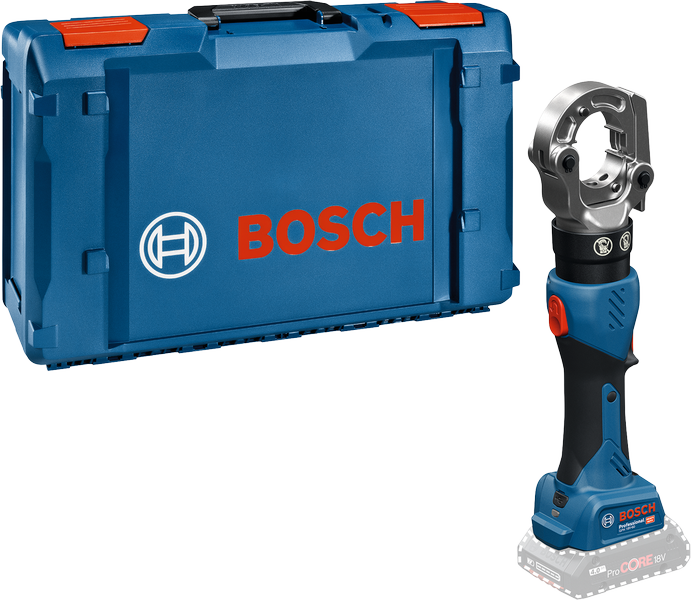

XL-BOXXOrder number: 1 605 438 1JG
Technical data
The most important data
Crimping force max
60 kN
Crimping range max
300 mm²
Crimping range min
6 mm²
Head rotation
340 °
Stroke length max
17 mm
Automatic retraction
Yes
Connecting material Cu and Al
Yes
Maintenance interval
20.000 cycles
Manual pressure release
Yes
Manual retraction stop
Yes
USB connector
Yes
Read-Out Functionality
Yes
Work light
Yes
Automatic pressure limitation and monitoring
Yes
USB mode
USB 2.0
Crimping time
2 s to 5 s (depending on cable cross-section)
GPH 18V-60 Professional: Further information
Product Highlights
If you are looking to crimp cable lugs onto copper or aluminium cables, the GPH 18V-60 crimping tool is an ideal choice with its consistent pressure and instant feedback. The tool provides reliable and constant 60kN output force thanks to an electronic pressure sensor that monitors pressure levels. The status LED conveniently indicates reached target pressures, tool status, and maintenance. Additionally, with the manual pressure release function, you can always retract.
Equipment & Application
The GPH 18V-60 is suitable for crimping cable lugs onto copper and aluminum cables up to 300 mm². The USB connection and read-out software (free and available to download below) offer an overview of the tool’s crimp history, error messages and maintenance needs.
Additional Information
Each tool comes with a certificate that guarantees 100% end-of-line quality control.
