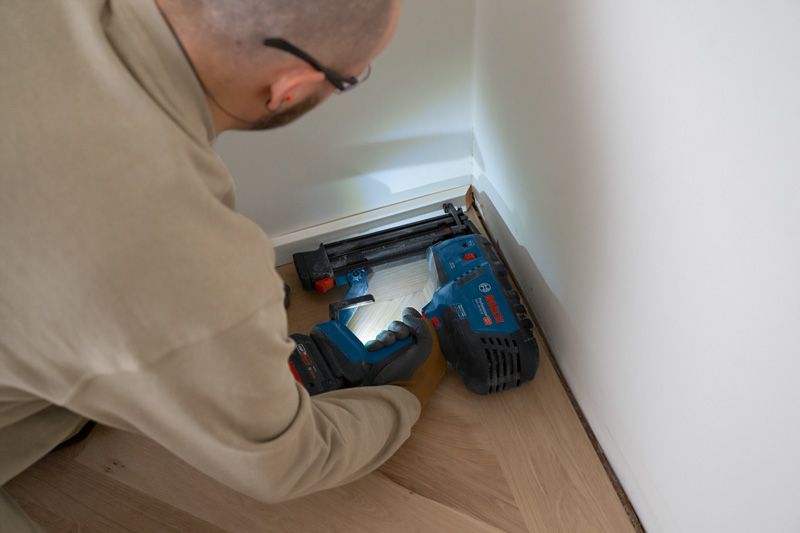

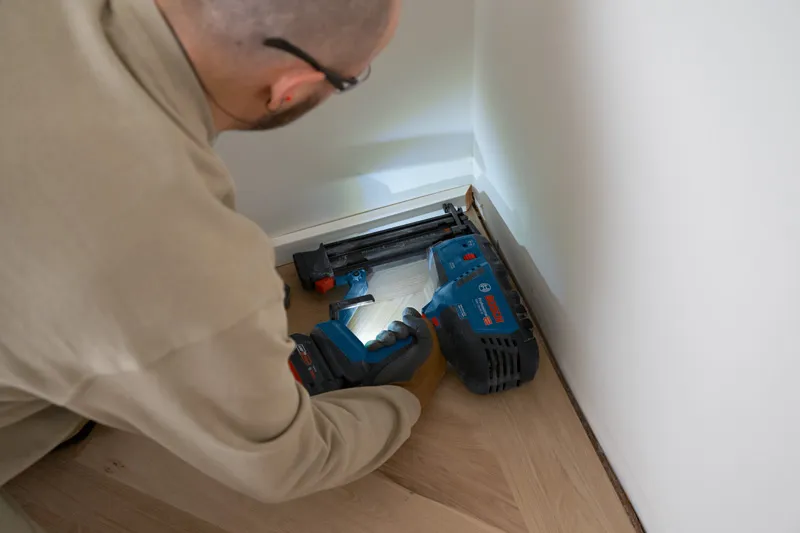

![A person wearing safety equipment uses a cordless wood nailer to fasten floorboards.]( "GNH 18V-50 M")

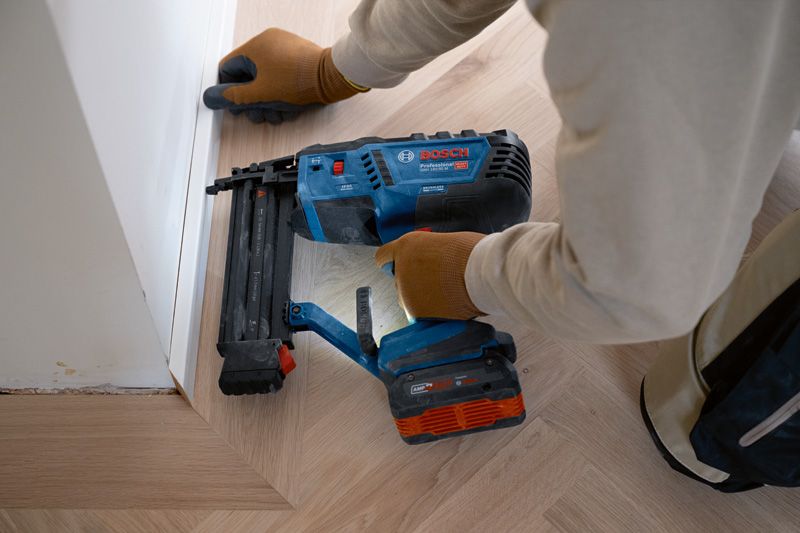

![A person wearing safety equipment uses a cordless wood nailer to fasten trim to the floor.]( "GNH 18V-50 M")

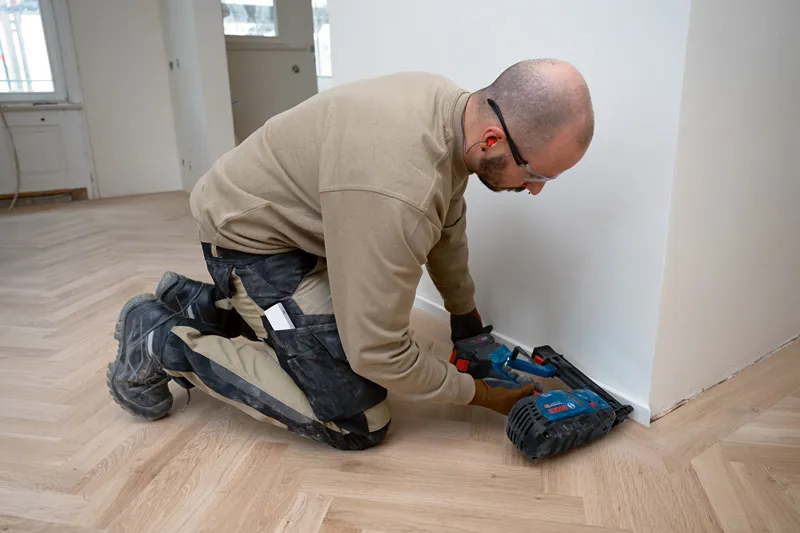

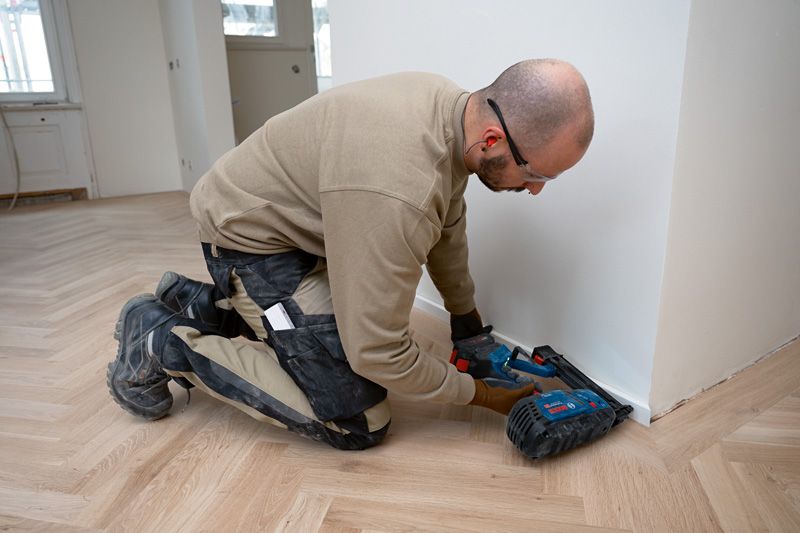

![A person wearing safety equipment uses a cordless wood nailer to install floor trim.]( "GNH 18V-50 M")

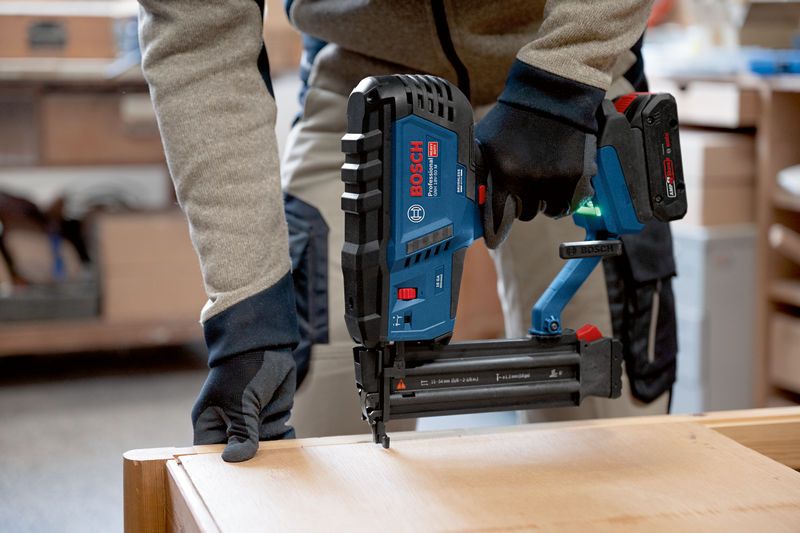

![A person wearing safety equipment uses a cordless wood nailer on a wooden board.]( "GNH 18V-50 M")
![A person wearing safety equipment uses a cordless wood nailer on a wooden surface.]( "GNH 18V-50 M")

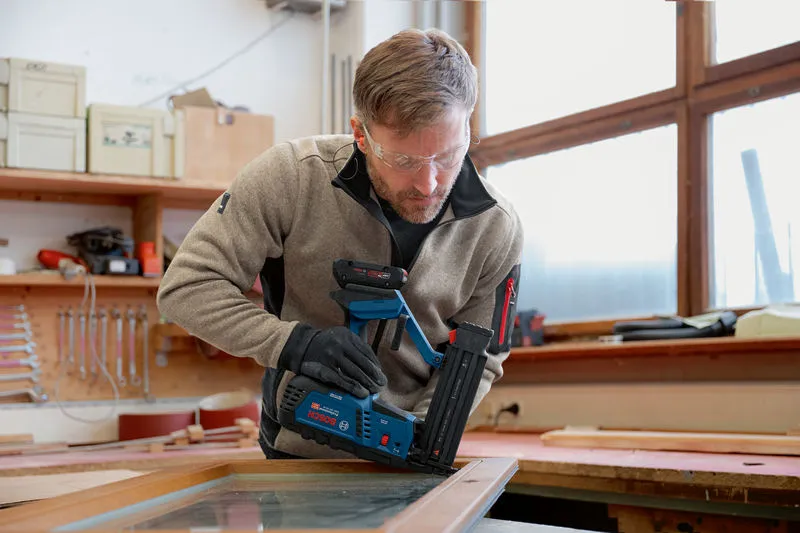

![A person wearing safety equipment uses a cordless wood nailer on a window frame.]( "GNH 18V-50 M")

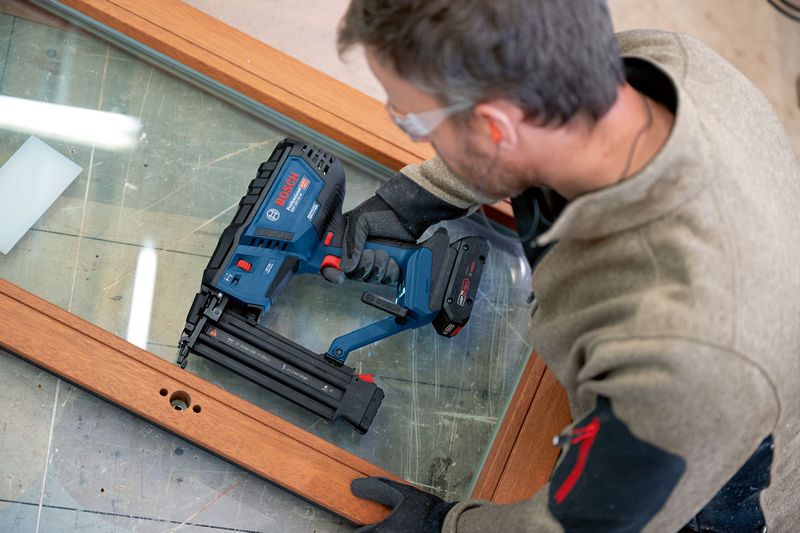

![A person wearing safety equipment uses a cordless wood nailer on a wooden frame.]( "GNH 18V-50 M")
![A person wearing safety equipment operates a cordless wood nailer.]( "GNH 18V-50 M")

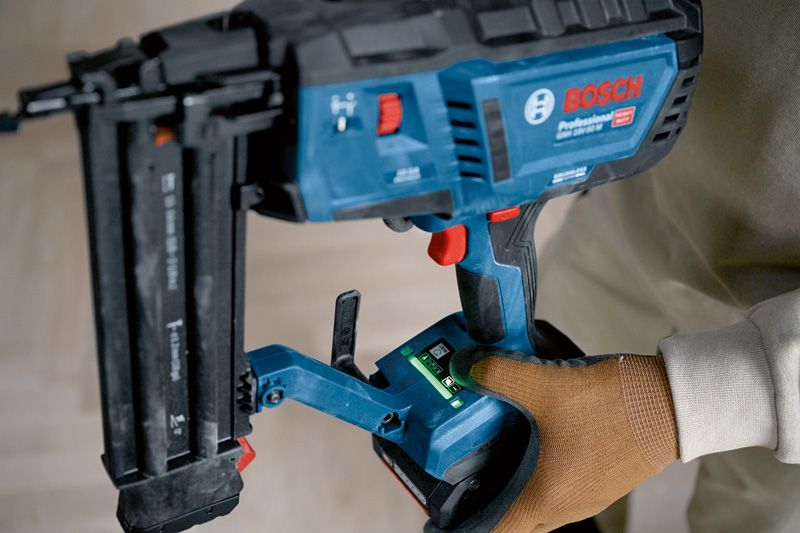

![A person wearing safety equipment operates a cordless wood nailer on a light surface.]( "GNH 18V-50 M")

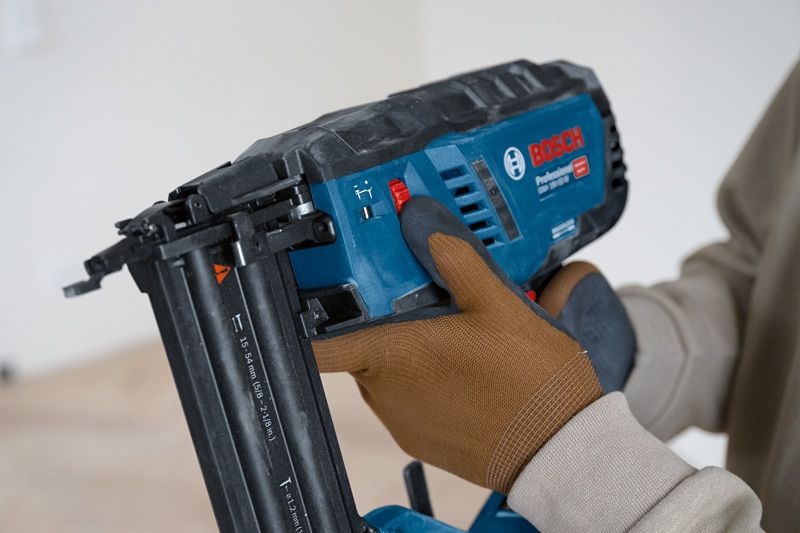

![A person wearing safety equipment adjusts a cordless wood nailer.]( "GNH 18V-50 M")
![AMPShare battery]( "GNH 18V-50 M")

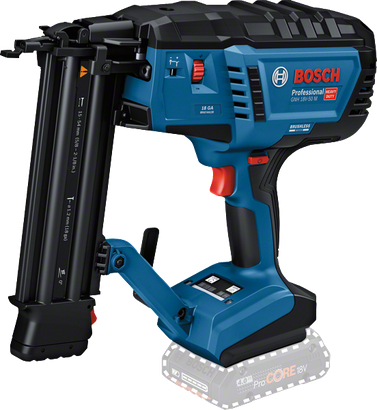

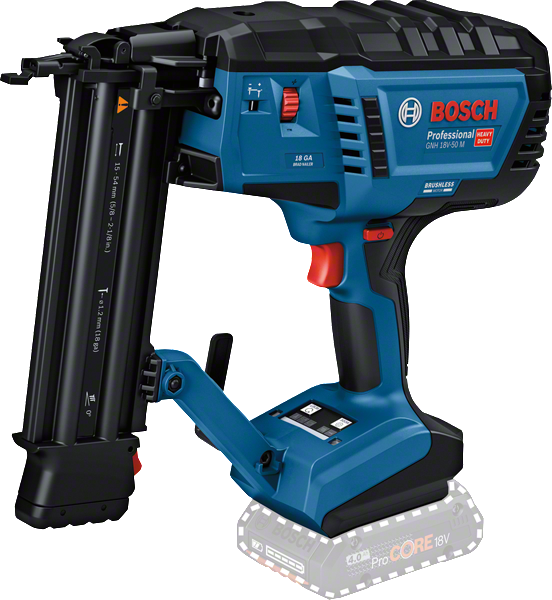

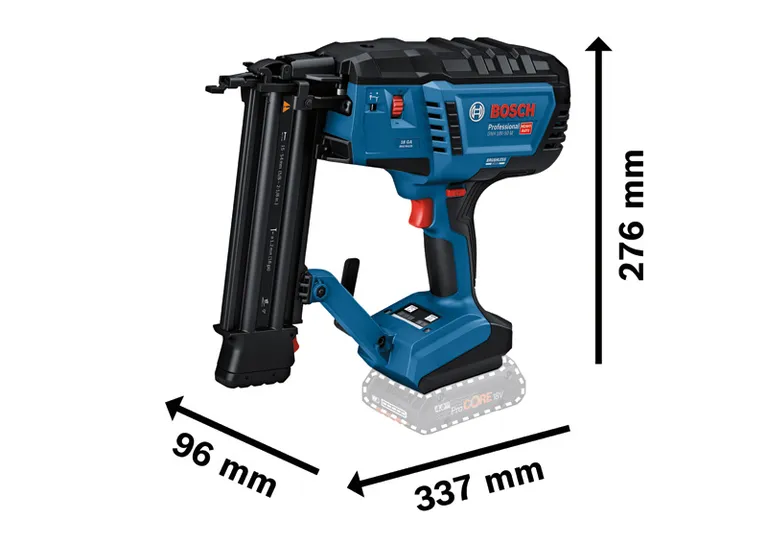

GNH 18V-50 M Professional
Cordless Wood Nailer
Gasless, cordless 18 ga (1.2 mm) brad nail gun with pneumatic performance and bump fire mode
- Cordless freedom with the power of a pneumatic tool – without compressors, gas cartridges, or cords

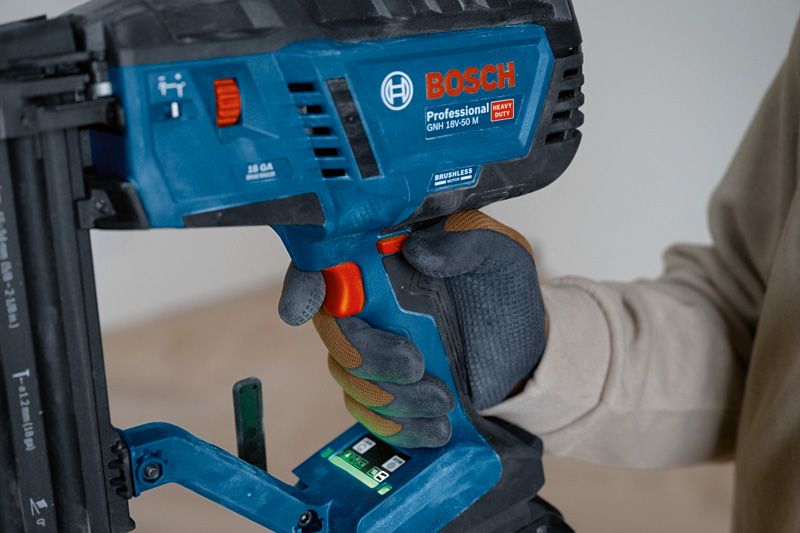

- Activate and operate the tool with just one hand thanks to the thumb-actuated power switch
- Gentle on your wrist and lungs thanks to very low recoil and gasless operation
Functions & key features
GNH 18V-50 M Professional
0 601 482 400
GNH 18V-50 M Professional
Your Selection
Technical data
The most important data
Collation angle
0 °

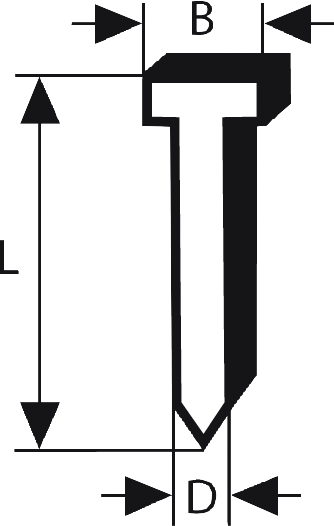

Nail diameter
1.2 mm
Nail length
16 – 50 mm
Nail/Staple type
Brad nail
Triggering system
Full sequential actuation + contact actuation with automatic reversion
Weight excl. battery*
2.95 kg
Battery voltage
18.0 V
Magazine capacity
105 Pcs
Packaging dimensions (width x length x height)
295 x 380 x 110 mm
Compatible nails/staples
Bosch nails, Other
BITURBO
No
* You can find more information about the deviations in the following link:
GNH 18V-50 M Professional: Further information
Product Highlights
As a professional tradesperson, you want to drive your nails efficiently and without too much strain on your hand and arm. We designed the powerful, brushless GNH 18V-50 M Professional with very low recoil, so it is gentle on your wrist. We also made sure that you can switch on and operate the tool with just one hand. With this tool, you get the full power of a pneumatic nail gun while being free of compressors, gas cartridges, or cords.
Equipment & Application

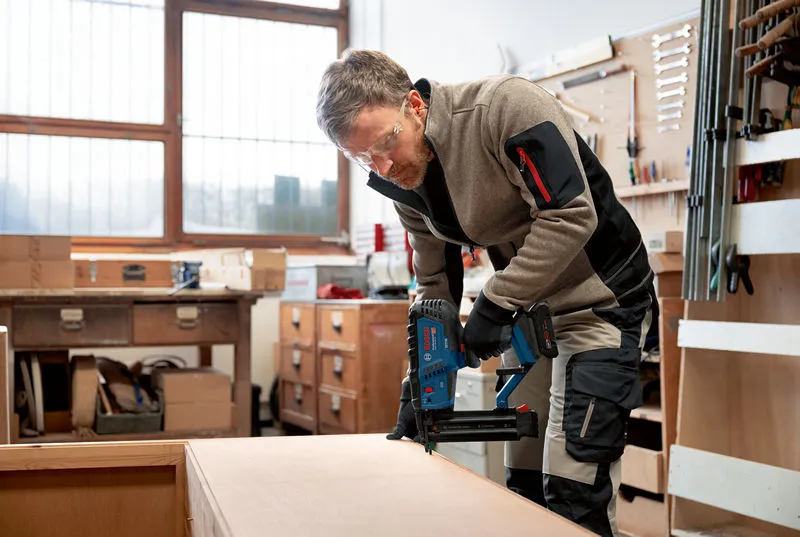

Ideal for attaching window and door casings, attaching decorative mouldings or trims, fixing of glazing beads, attaching skirting boards, for furniture building and cabinet assembly, and for installing tongue-and-groove ceiling and floor panels (secret nailing). Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
Additional Information
Comes with one-handed power switch, HMI with service alert, single- and contact-activation mode, easy-to-use stepless depth adjustment, dry fire lockout, double LED, wide view contact tip, toolless jam clearing. Use the following nails: 16-54 mm, 18 ga (1.2 mm), and 0° collation angle.
