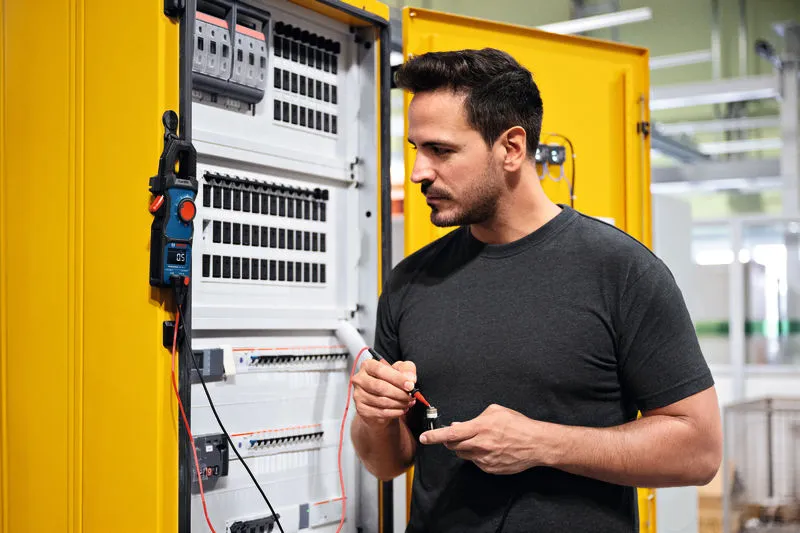

![A person tests a component at an open electrical panel with a digital multimeter.]( "GMC 600-15")
![Person testing an industrial motor with a clamp meter in a warehouse.]( "GMC 600-15")

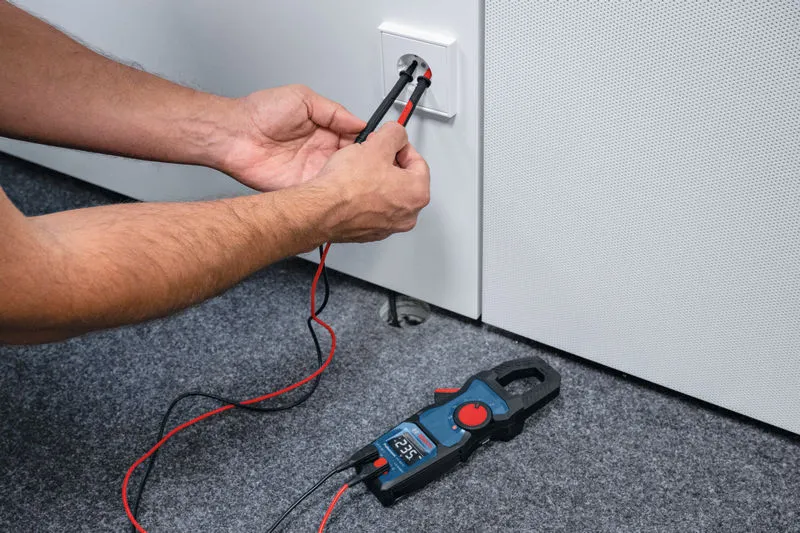

![Person testing a wall socket voltage with a digital clamp meter on a carpeted floor.]( "GMC 600-15")
![Person opens a blue battery compartment next to a tool on a dusty concrete floor.]( "GMC 600-15")
Coming Soon

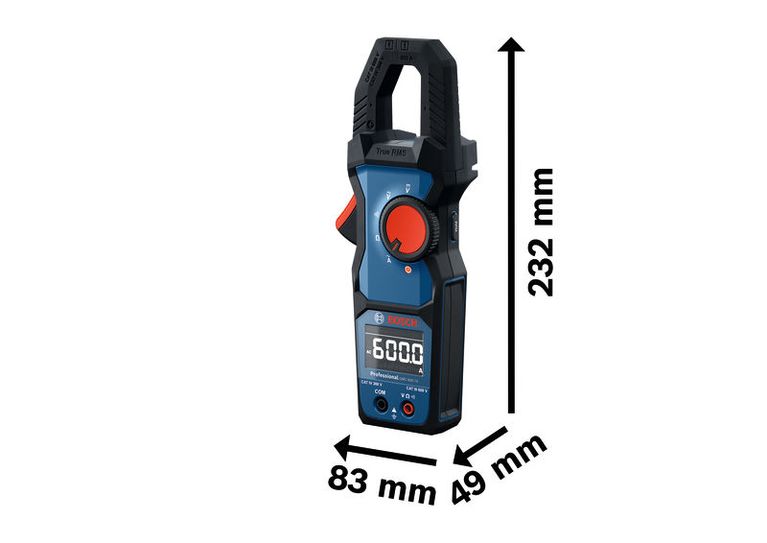

GMC 600-15 Professional
Clamp meter
Order number 0.601.077.600
- Built for tough jobsites with IP54 rating and impact resistance
- Measures AC current up to 600 A and voltage up to 600 V AC/DC
- Compact design provides easy one-handed operation and hands-free convenience with a compatible magnet hanging solution

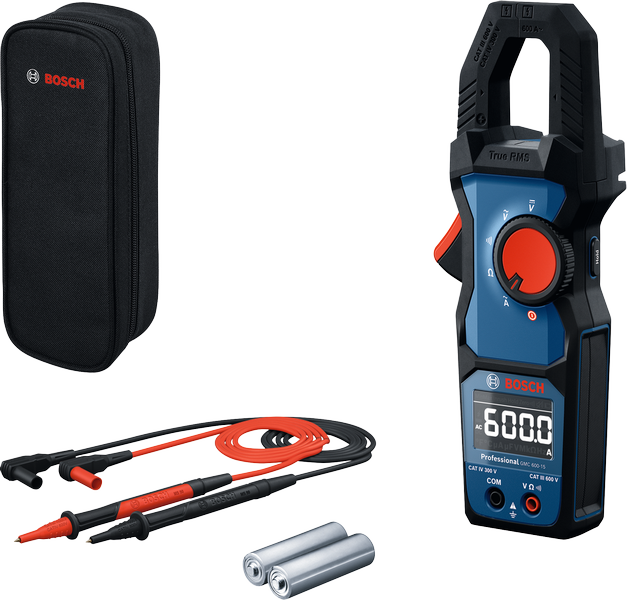

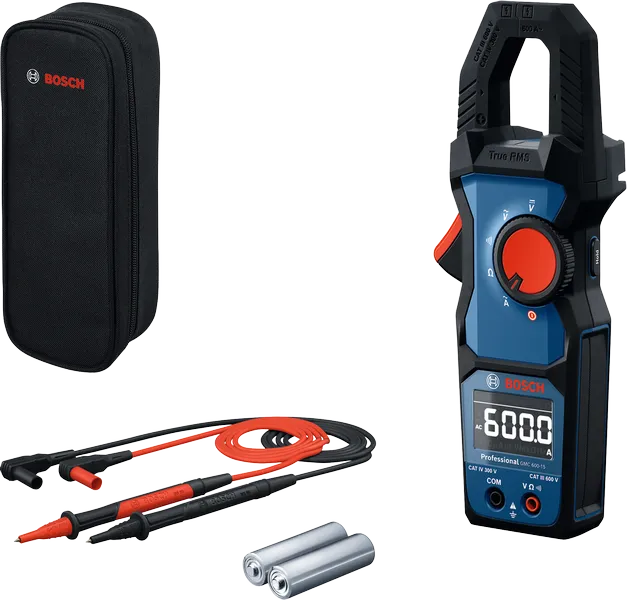

with 2 x battery (AA), Pouch
0 601 077 600
GMC 600-15 Professional
Your Selection
New
with 2 x battery (AA), Pouch
Order number: 0 601 077 600
Find a local dealerIncluded in this variant
-
Pouch
-

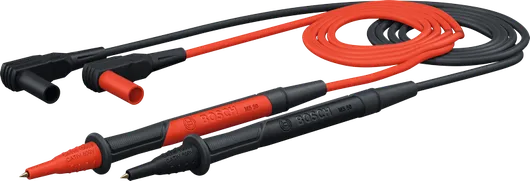

MS 90 ProfessionalOrder number: 1 600 A03 8D2
-
2 x 1.5 V LR6 battery (AA)
Technical data
The most important data
AC voltage
600 V
AC voltage resolution
0.1 V
AC voltage accuracy
± 1.2 % + 5
AC current
600 A
AC current resolution
0.1 A
AC current accuracy
± 1.8% + 5
DC voltage
600 V
DC voltage resolution
0.1 V
DC voltage accuracy
± 1.0 % + 3
Resistance
40 MΩ
Resistance resolution
0.01 MOhm
Resistance accuracy
± 2.0 % + 5
Continuity
yes
Continuity resolution
0.1 Ohm
Continuity accuracy
± 1.0 % + 5
IP-Protection
IP54
True RMS
yes
Safety class
CAT III 600 V / CAT IV 300 V
Display type
LCD Inverted
Acoustic feedback
yes
Continuity range
600 Ω
Cable Break Detection
no
Packaging dimensions (width x length x height)
121 x 264 x 84 mm
GMC 600-15 Professional: Further information
Product Highlights
The GMC 600-15 Professional is designed to enhance your efficiency with precise readings across diverse applications. It offers versatile measurement capabilities, including AC current up to 600 A and both DC and AC voltage up to 600 V. The large inverted LCD display provides clear visibility, while True RMS measurement ensures precision. With its robust IP54-rated design, this Clamp meter can withstand accidental drops from up to 2m and harsh conditions, making it a reliable companion on demanding jobsites.
Equipment & Application

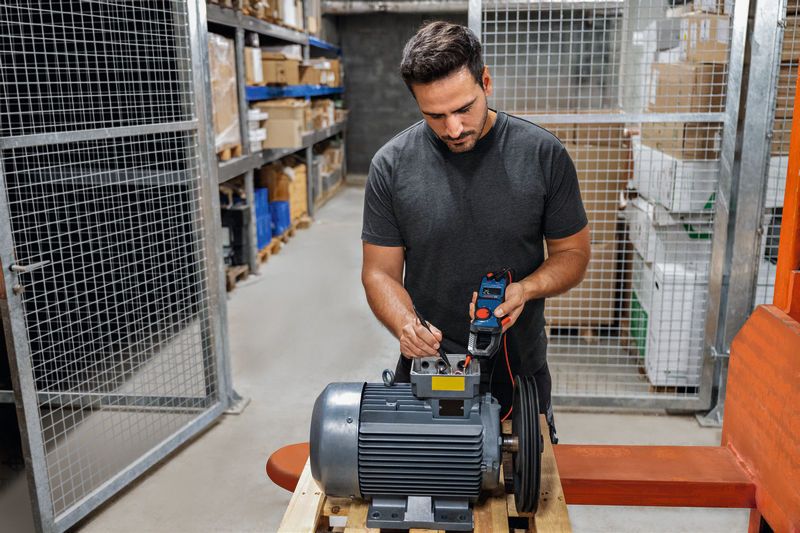

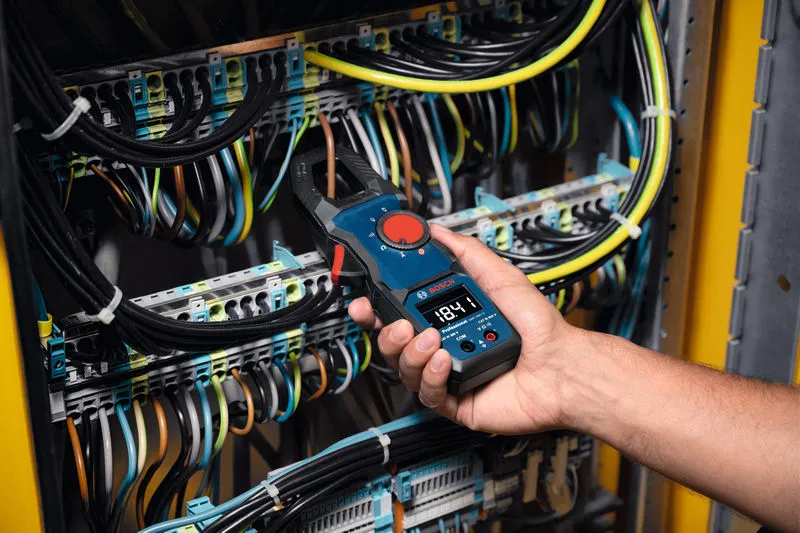

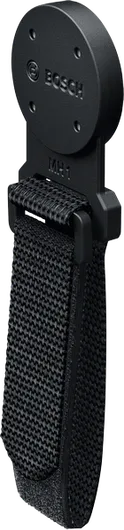

Ideal for electricians and HVAC technicians, the GMC 600-15 Professional is perfect for electrical installations, maintenance and repairs. Its compact and ergonomic design allows for easy one-handed operation, while the separate magnet hanging solution (MH 1 Professional) provides hands-free convenience. And with CAT IV 300 V and CAT III 600 V tested ratings for a high level of safety, this Clamp meter is particularly suited for measuring high current in insulated cable.
Additional Information

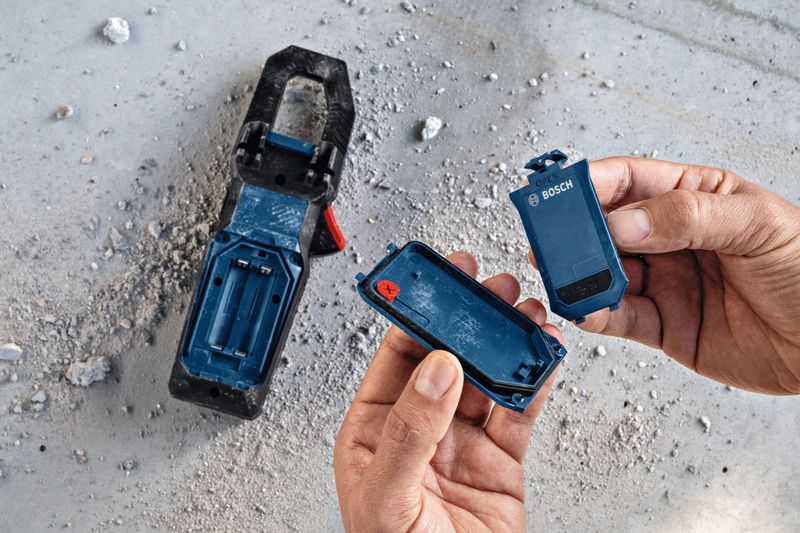

The GMC 600-15 Professional is compatible with a Li-ion battery pack, allowing for seamless integration into your toolkit and long-lasting power. It includes high-quality measuring strips made of flexible and durable silicone. The hold function captures readings, while the comfortable grip reduces fatigue during prolonged use - making it an essential tool for professionals seeking precision and reliability.
