Back

Line Laser

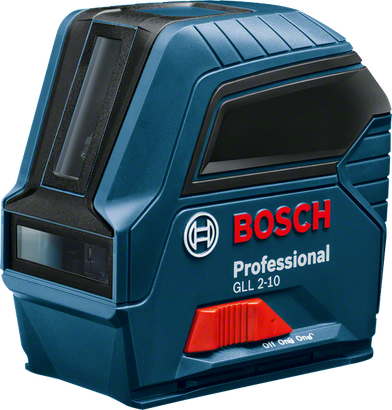

GLL 2-10 Professional

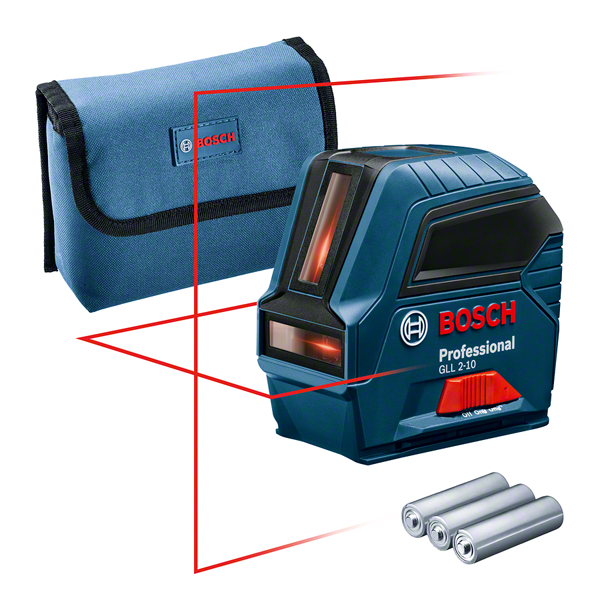

with 3 x battery (AA), Protective bag

Easy to use, robust cross-line laser

Print

Technical data

The most important data
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50°C
Storage temperature -20 – 70°C
Laser class 2
Working range 10 m
Accuracy ± 0.3 mm/m
Working range of laser crosses 10 m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 9 h in cross line mode, 17 h in line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.49 kg
Colour of laser line red
Projection 2 lines

Advantages

Easy to use, robust cross-line laser

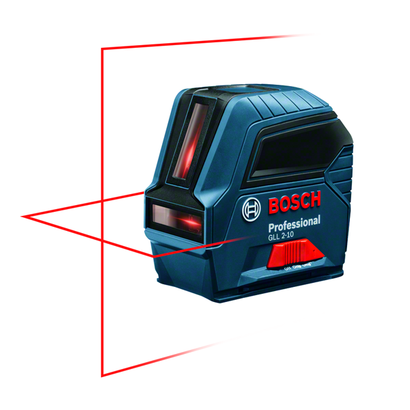

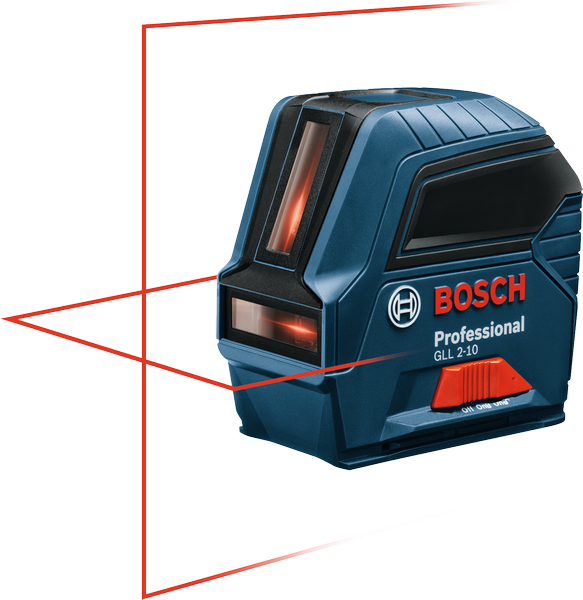

  • Horizontal and vertical laser lines

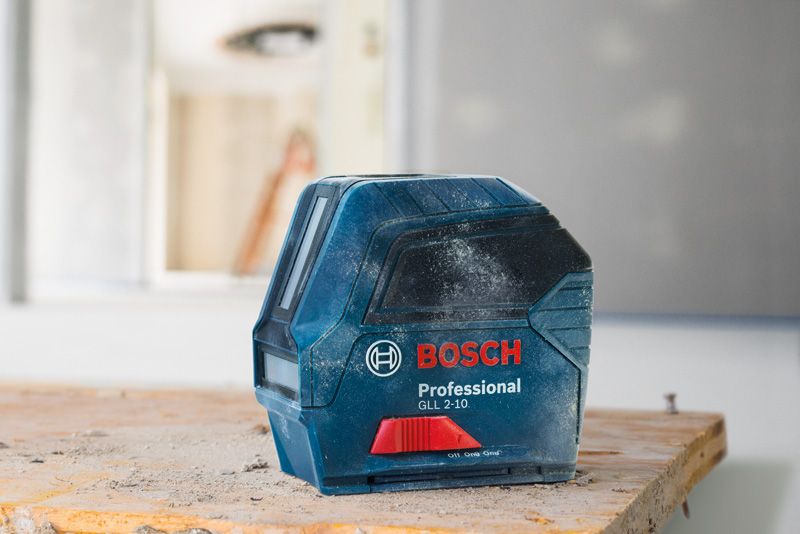

  • Robust with IP 54
  • Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool

Functions

Prices / Package contents


with 3 x battery (AA), Protective bag

Order number: 0 601 063 L00

Selected version

Price includes:

  • Protective bag
  • 3 x 1.5 V LR6 battery (AA)
Accessories

Building Tripod

BT 150

Telescopic Pole

BT 350

Downloads

Product data sheet

GLL 2-10 Professional
(approx. 1.5 MB)

Download
User Manual

GLL 2-10 (PDF 29.5 MB)

Download
