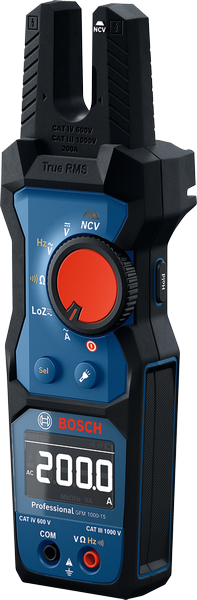

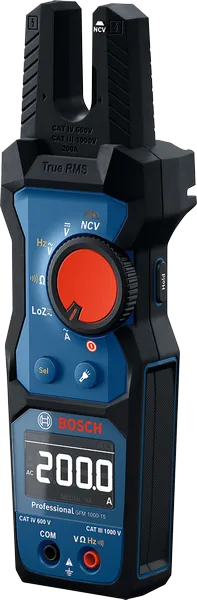

![Bosch GFM 1000-15 fork meter for electrical measurement.]( "GFM 1000-15")

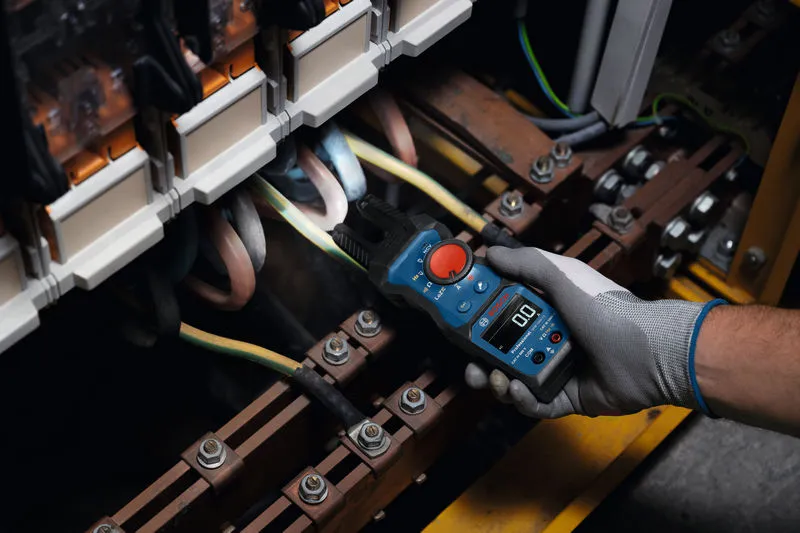

![A person wearing safety equipment uses a fork meter to test electrical wires in a panel.]( "GFM 1000-15")

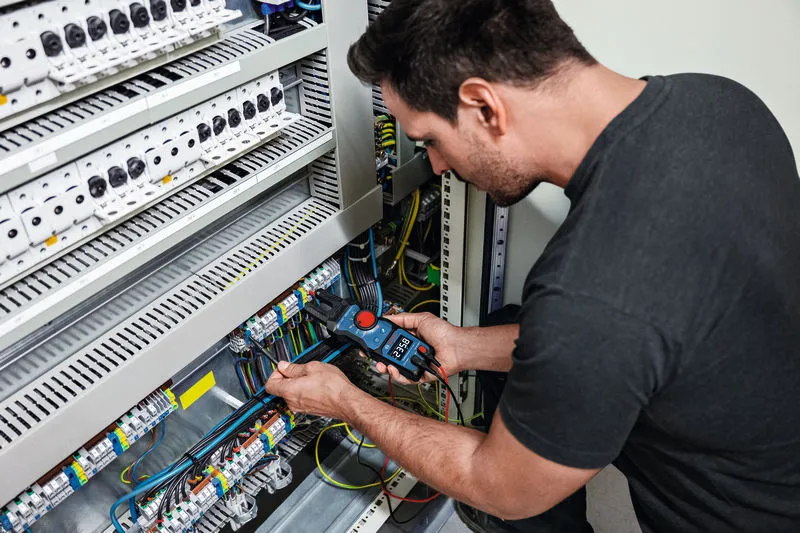

![A person tests electrical wires in a control panel using a fork meter.]( "GFM 1000-15")

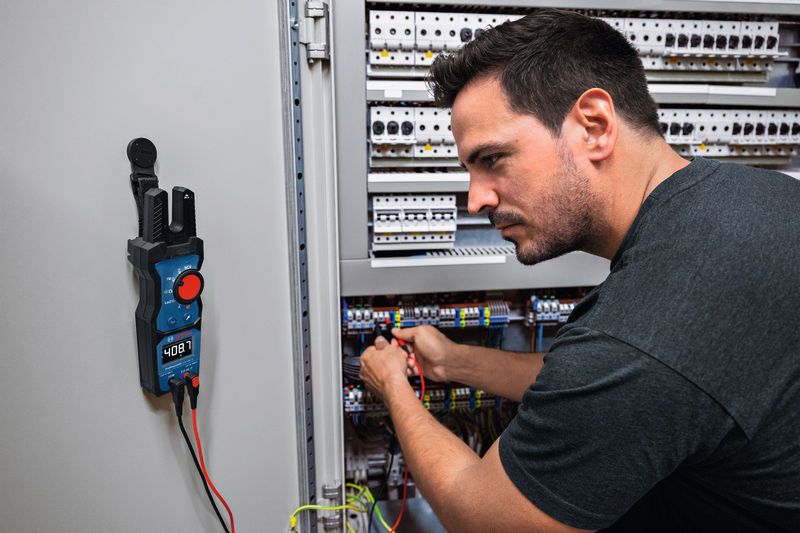

![A person checks electrical wires in a control panel using a digital multimeter.]( "GFM 1000-15")

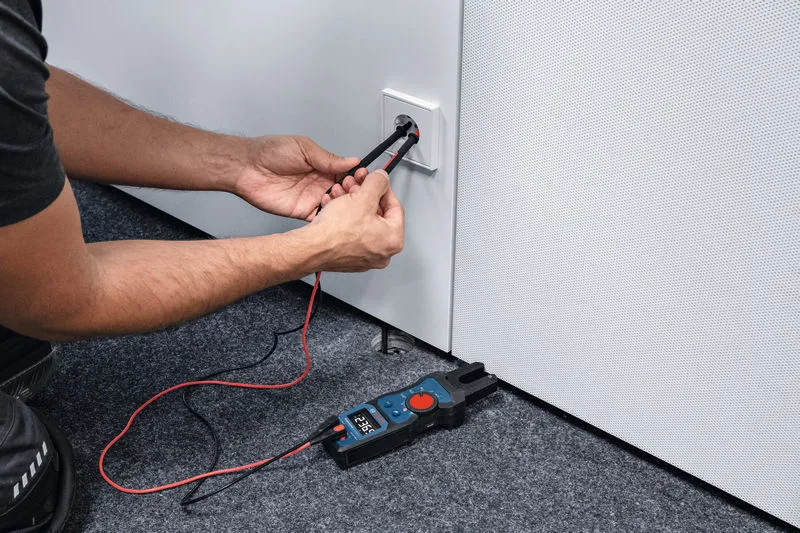

![Person uses a fork meter to measure voltage at an electrical outlet.]( "GFM 1000-15")

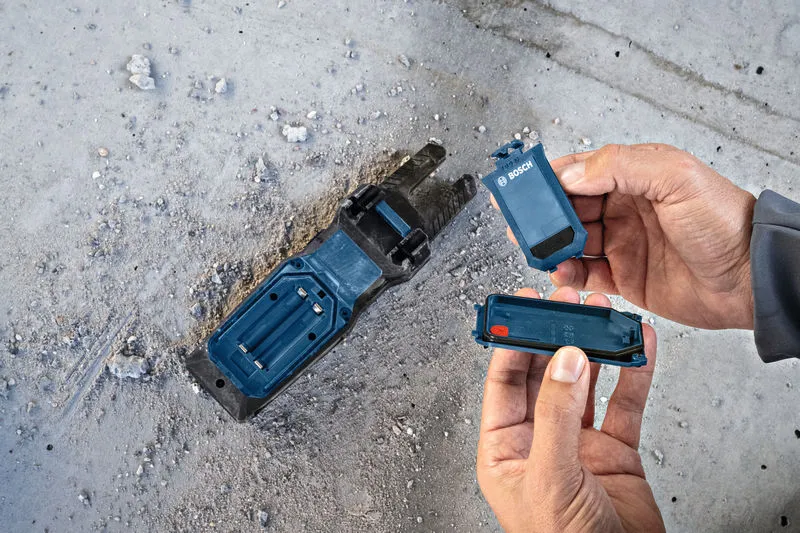

![Person replacing a battery in a power tool base on a dusty concrete floor.]( "GFM 1000-15")
Coming Soon
GFM 1000-15 Professional
Fork meter
Order number 0.601.077.400
- Enhanced durability with IP54 protection and a comfortable grip for tough jobsites
- Measures up to 200 A AC with an open jaw design for faster work
- Compact design with a compatible magnet hanger solution (MH 1 Professional) for work in tight spaces
with 2 x battery (AA), Pouch
0 601 077 400
GFM 1000-15 Professional
Your Selection
New

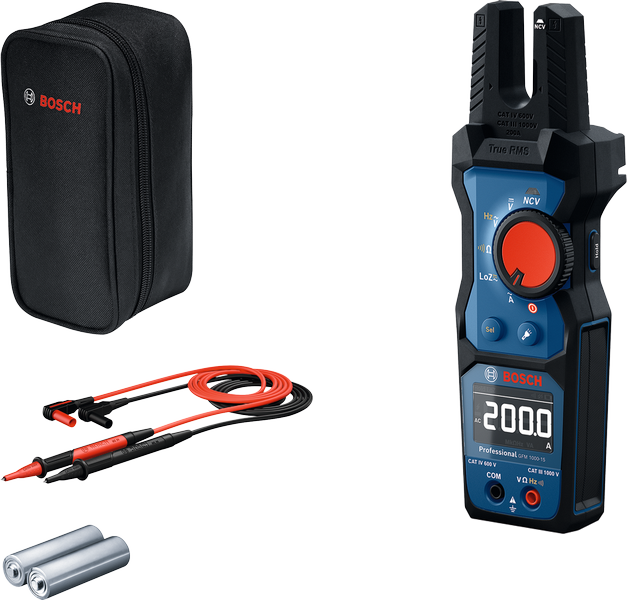

with 2 x battery (AA), Pouch
Order number: 0 601 077 400
Find a local dealerIncluded in this variant
-
Pouch
-
MS 90 ProfessionalOrder number: 1 600 A03 8D2
-
2 x 1.5 V LR6 battery (AA)
Technical data
The most important data
AC voltage
1,000 V
AC voltage resolution
1 V
AC voltage accuracy
± 1.5 % + 5
AC current
200 A
AC current resolution
0.1 A
AC current accuracy
± 3.0% + 3
DC voltage
1,000 V
DC voltage resolution
1 V
DC voltage accuracy
± 1.0 % + 2
Resistance
60 MΩ
Resistance resolution
0.01 MOhm
Resistance accuracy
± 2.0 % + 5
Continuity
yes
Continuity resolution
0.1 Ohm
Continuity accuracy
± 1.0 % + 5
Frequency resolution
0.01 kHz
Frequency accuracy
± 0.1 % + 2
Low input impedance (LoZ)
1,000 V
IP-Protection
IP54
True RMS
yes
Safety class
CAT IV 600 V / CAT III 1000 V
Display type
LCD Inverted
Non-Contact-Voltage (NCV)
yes
Torch light
yes
Acoustic feedback
yes
Measuring range for frequency
10 Hz to 50 kHz
Continuity range
0 Ω
Cable Break Detection
no

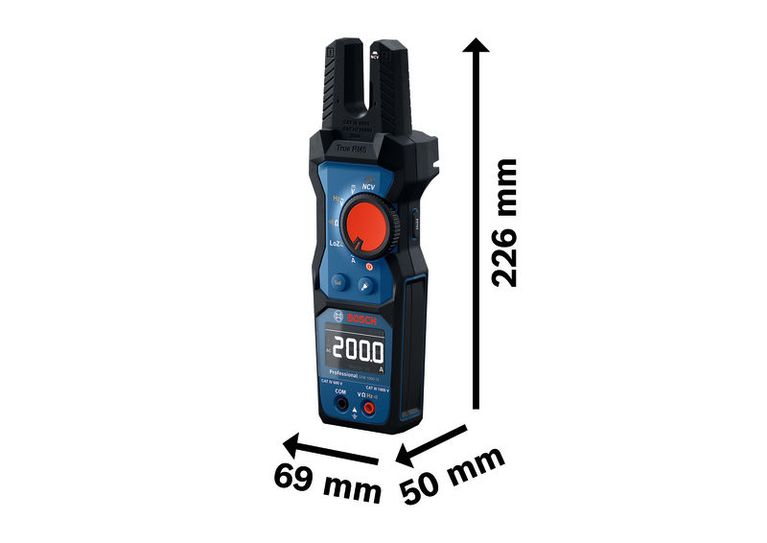

Packaging dimensions (width x length x height)
103 x 264 x 82 mm
GFM 1000-15 Professional: Further information
Product Highlights
The GFM 1000-15 Professional Fork meter is designed for professionals who need quick and efficient AC current and AC/DC voltage checks. With its open clamp design, you can measure current up to 200 A AC without test leads to save time and effort. This all-in-one tool measures current AC, voltage AC/DC up to 1000 V, continuity, resistance, and has LoZ V AC/DC integrated. With IP54 protection, its robust build ensures resistance to accidental drops from up to 2m and harsh conditions. Also, a comfortable grip reduces fatigue during extended use - making it a must have for electricians and HVAC technicians.
Equipment & Application
Ideal for electricians and HVAC technicians, the GFM 1000-15 Professional offers non-invasive AC current measurement, allowing you to work faster without breaking circuits. Its compact design makes it easy to use in tight spaces, such as cramped electrical panels, as well as other challenging environments. The integrated non-contact voltage detector (NCV) and flashlight enhance safety and convenience, making it a reliable choice for electrical installations, maintenance, and repairs.
Additional Information
Compatible with the Li-ion battery pack for long-lasting power, the GFM 1000-15 Professional features an inverted LCD display, True RMS for accurate readings and a hold function to easily capture readings. Compatibility with the versatile magnet hanging solution, MH 1 Professional, allows for hands-free operation, while the tool's outstanding user protection is backed by CAT IV 600 V and CAT III 1000 V ratings. High-quality measuring strips made of flexible, long-lasting silicone provide durability you can rely on, while convenient storage for measuring tips and a compact design make it easy to carry and use on any jobsite.
