Impact wrenches

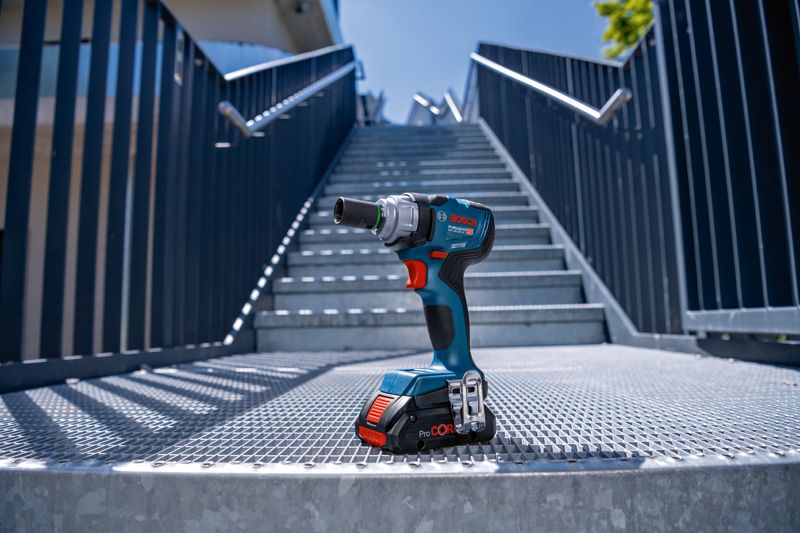

![Cordless power drill placed on a metal grate at the bottom of outdoor stairs.]( "GDS 18V-330 HC")

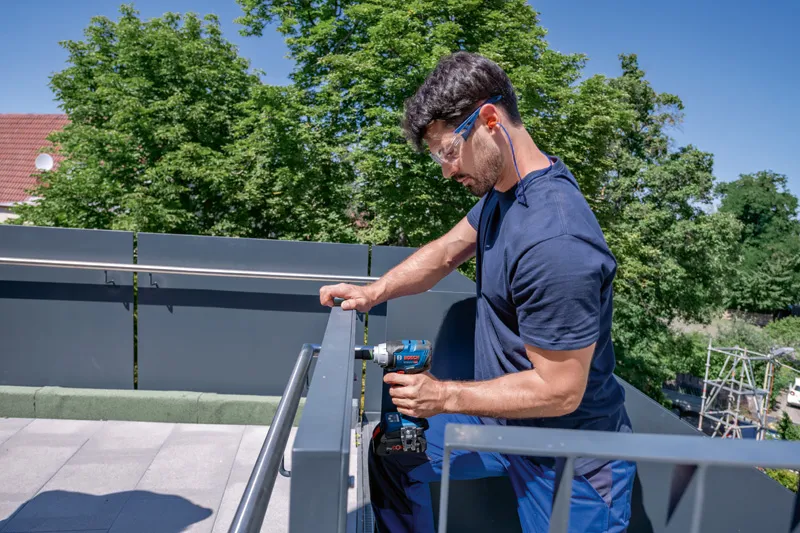

![A person wearing safety equipment tightens a screw on a metal railing with a power drill.]( "GDS 18V-330 HC")
![A person wearing safety equipment drills into a metal railing outdoors.]( "GDS 18V-330 HC")
![A person wearing safety equipment uses a cordless impact wrench on a metal structure.]( "GDS 18V-330 HC")

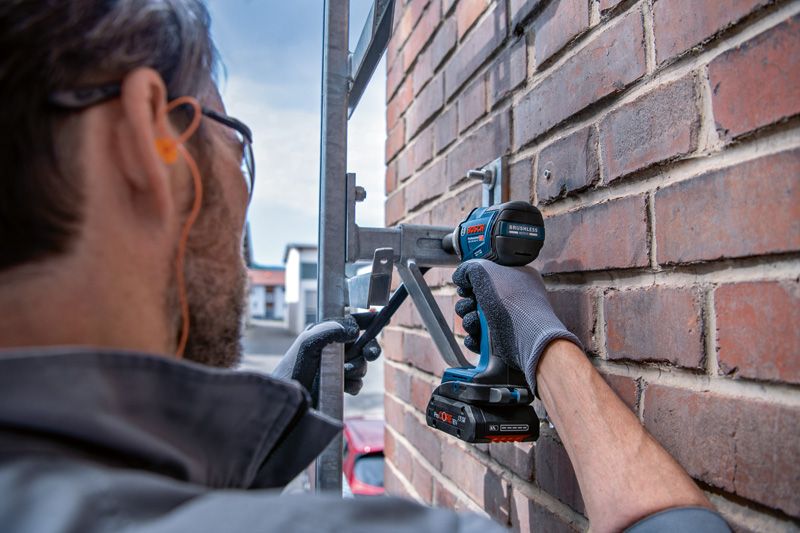

![Person wearing safety equipment uses a power drill to fasten a metal bracket to a brick wall.]( "GDS 18V-330 HC")

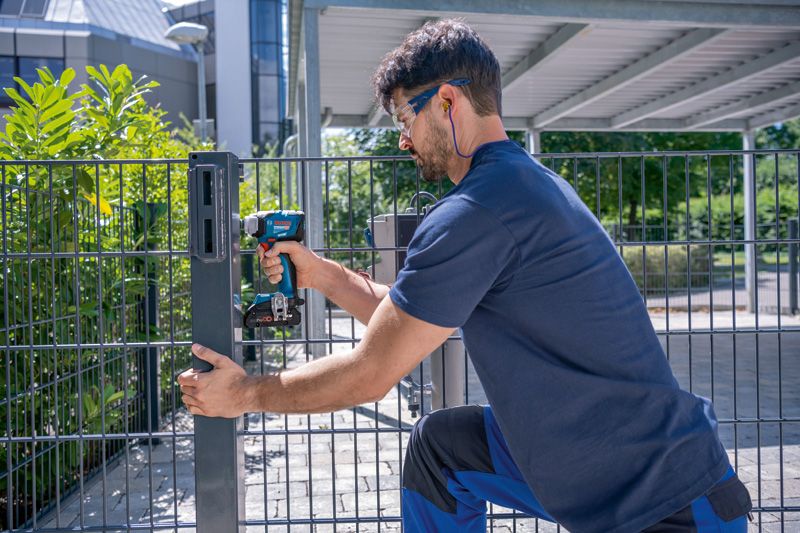

![A person wearing safety equipment uses a cordless drill to fasten a metal fence post.]( "GDS 18V-330 HC")

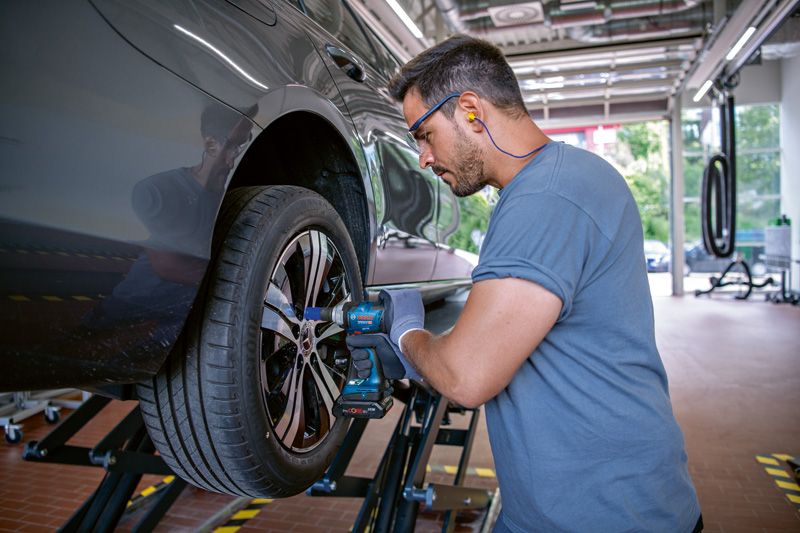

![A person wearing safety equipment uses an impact wrench to tighten bolts on a car wheel.]( "GDS 18V-330 HC")

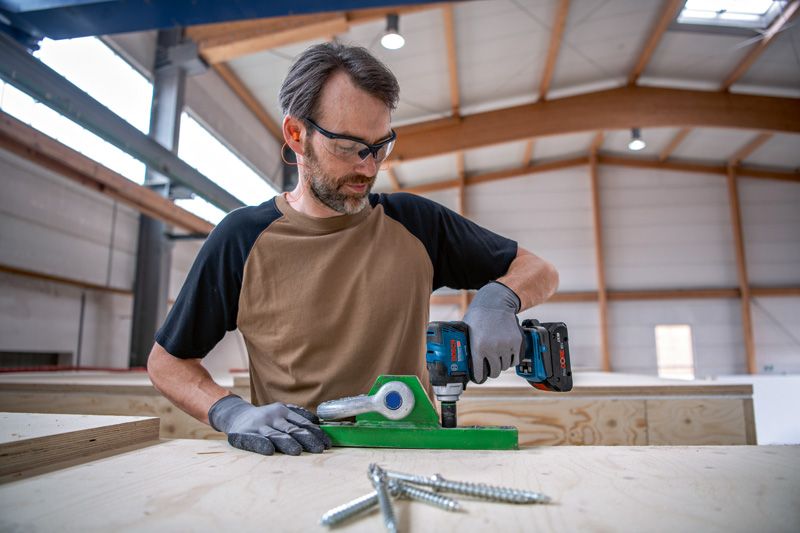

![A person wearing safety equipment uses a cordless drill on a wooden workbench.]( "GDS 18V-330 HC")
![A person wearing safety equipment uses a cordless drill to drive a screw into plywood.]( "GDS 18V-330 HC")
![AMPShare battery]( "GDS 18V-330 HC")

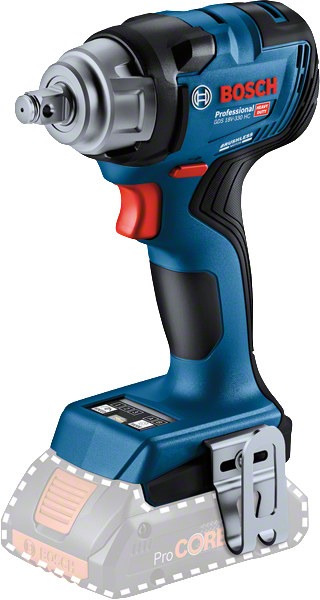

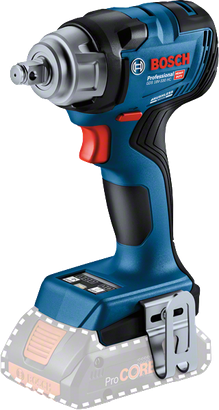

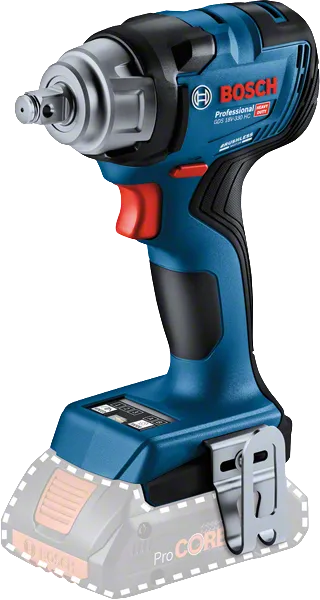

GDS 18V-330 HC Professional
Cordless Impact Wrench
Compact and lightweight impact wrench with adjustable modes for multi-purpose use
- Two default screw modes for multi-purpose use. Each mode can be adjusted and individualised via the Bosch Toolbox App
- Powerful 330 Nm tightening and 560 Nm breakaway torque performance
- Versatile three-speed/torque settings for more flexibility and control
Functions & key features
in cardboard box
0 601 9L5 000
Select a variant
Your Selection
Your Selection

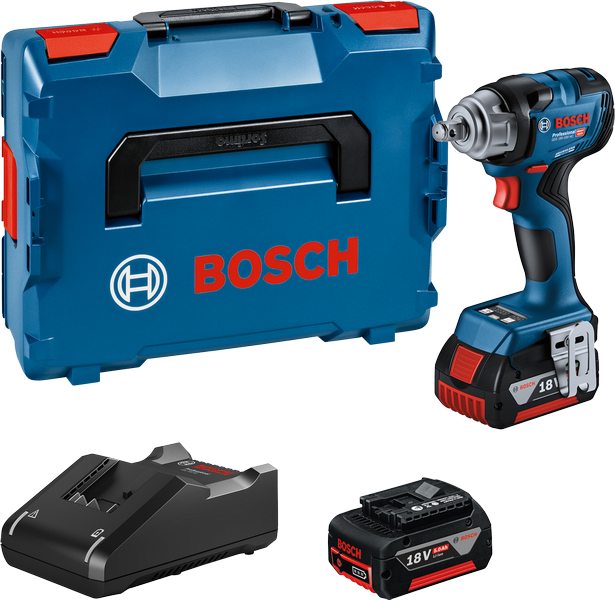

in L-BOXX 136 with 2 x battery GBA 18V 5.0Ah, quick charger
Order number: 0 601 9L5 041
Buy nowIncluded in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
2 x battery GBA 18V 5.0AhOrder number: 1 600 A00 1Z9
-
Quick charger GAL 18V-40 ProfessionalOrder number: 1 600 A01 9RN
Technical data
The most important data
Torque adjustment range, min./max., 1st level
0/200 Nm
Torque adjustment range, min./max., 2nd level
0/260 Nm
Torque adjustment range, min./max., 3rd level
0/330 Nm
No-load speed*
0-2,800 rpm
No-load speed (1st level)*
0-1,200 rpm
No-load speed (2nd level)*
0-1,900 rpm
No-load speed (3rd level)*
0-2,800 rpm
Weight excl. battery*
1.2 kg
Torque, max.*
330 Nm
Impact rate
2,800 bpm
Impact rate (1st level)*
0-2,400 bpm
Impact rate (2nd level)*
0-3,100 bpm
Impact rate (3rd level)*
0-3,800 bpm
Battery voltage
18.0 V
Tool holder
1/2" square friction ring and thru hole
Breakaway torque, max.
560 Nm

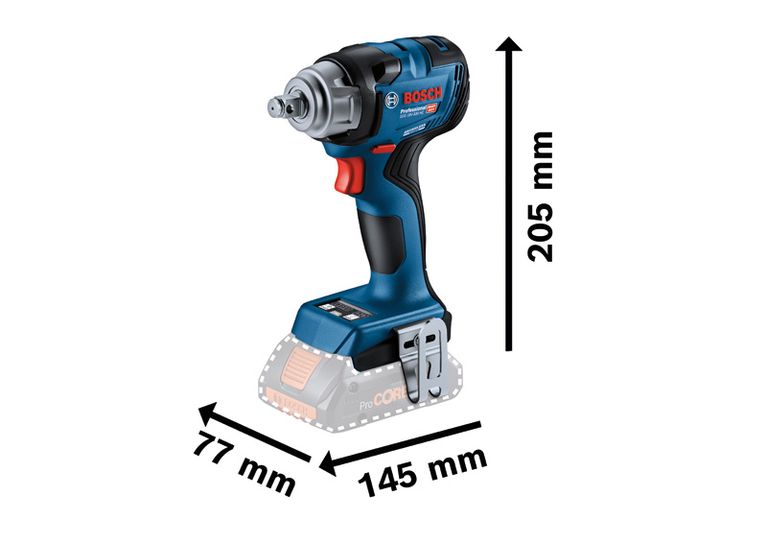

Packaging dimensions (width x length x height)
224 x 234 x 94 mm
* You can find more information about the deviations in the following link:
GDS 18V-330 HC Professional: Further information
Product Highlights
The compact and lightweight GDS 18V-330 HC Professional cordless impact wrench makes work easier. Its two default modes on the user interface, metal bolt/nut (A) and wood screw (B), ensure controlled application to prevent broken screwheads and the loss of metal bolts or nuts by slowing down or shutting off the impact wrench. Each mode can be adjusted conveniently to a specific application via the Bosch Toolbox App. 330 Nm tightening and 560 Nm breakaway torque deliver top performance. Greater flexibility and control are provided thanks to three different speed/torque settings.
Equipment & Application
The impact wrench is ideal for metal workshops/locksmiths, industrial assembly, framing, and vehicle maintenance using metal bolts/nuts from M8-M18. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GDS 18V-330 HC Professional comes with tool status indicator, LED light, and belt clip for added convenience.
