Impact wrenches

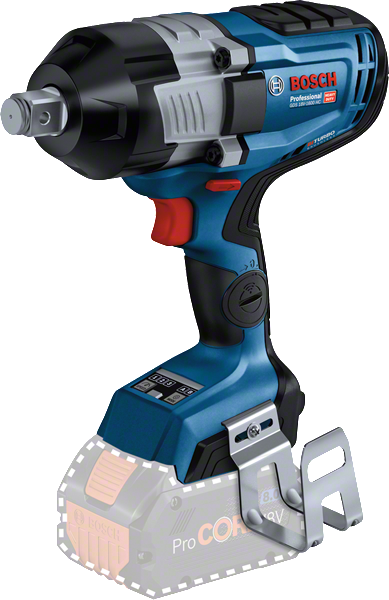

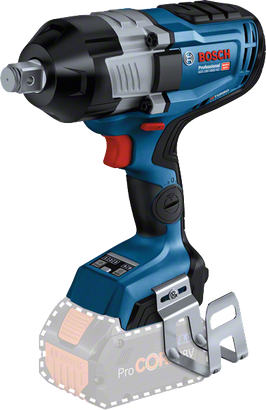

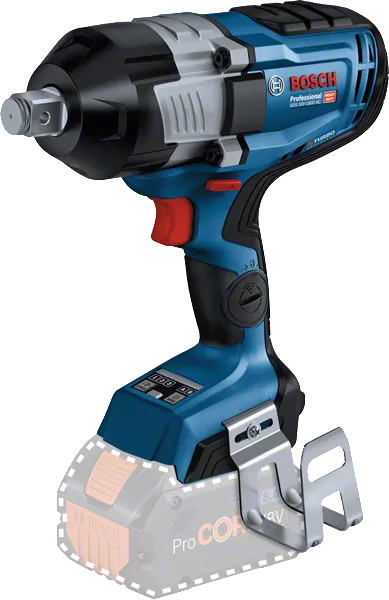

GDS 18V-1600 HC Professional

Cordless Impact Wrench

GDS 18V-1600 HC
GDS 18V-1600 HC
GDS 18V-1600 HC

Exceptional cordless power: 3/4" high-torque impact wrench with BITURBO Brushless technology

  • Maximised power with cordless freedom thanks to BITURBO Brushless technology and ProCORE18V batteries
  • Exceptionally powerful impact wrench with a 1,600 Nm tightening and 2,200 Nm breakaway torque
  • Auto Bolt Release (ABR) mode ensures comfortable handling by avoiding the loss or drop-down of metal bolts or nuts

Functions & key features

 Tightening torque 1600Nm
 Breakaway torque 2200Nm
 Bit insertion square, bit holder, external square
 Higher work efficiency through adjustable modes
Change variant Buy now

GDS 18V-1600 HC Professional 0 601 9M1 000

Select a variant

Your Selection

GDS 18V-1600 HC

Order number: 0 601 9M1 000

Buy now

Included in this variant

  • Ladder clip (1600 A02 3G7)
  • Carton box

Your Selection

GDS 18V-1600 HC

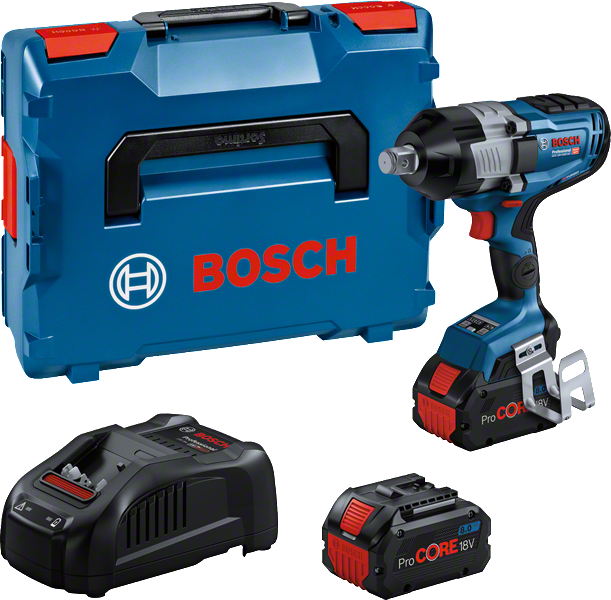

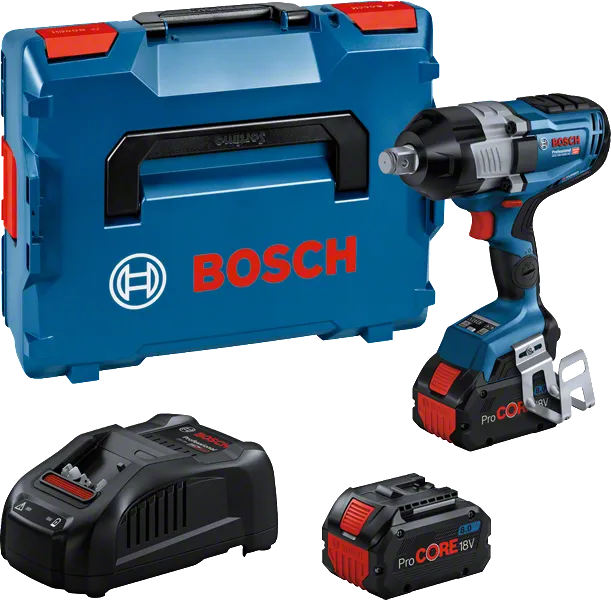

in L-BOXX 136 with 2 x 8.0 Ah ProCORE18V Li-ion battery, Bluetooth module

Order number: 0 601 9M1 041

Buy now

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • 2 x battery ProCORE18V 8.0Ah
    Order number: 1 600 A01 6GK
  • 1 x Bluetooth Low Energy module GCY 42 Professional
    Order number: 1 600 A01 3WF
  • 1/1 L-BOXX inlay for tool and charger
    Order number: 1 600 A02 58Y
  • Quick charger GAL 1880 CV
    Order number: 1 600 A00 N5M
Professional 18V System.
Discover more!

Technical data

The most important data

Torque adjustment range, min./max., 1st level 0/600 Nm
Torque adjustment range, min./max., 2nd level 0/1100 Nm
Torque adjustment range, min./max., 3rd level 0/1600 Nm
No-load speed* 0-800 rpm
No-load speed (1st level)* 0-800 rpm
No-load speed (2nd level)* 0-1,300 rpm
No-load speed (3rd level)* 0-1,750 rpm
Torque settings 3
Weight excl. battery* 3.2 kg
Torque, max.* 1,600 Nm
Impact rate (1st level)* 0-1,550 bpm
Impact rate (2nd level)* 0-2,200 bpm
Impact rate (3rd level)* 0-2,350 bpm
Battery voltage 18.0 V
Tool holder 3/4'' Square
Breakaway torque, max. 2,200 Nm
Packaging dimensions (width x length x height) 270 x 288 x 109 mm
Show more
GDS 18V-1600 HC

* You can find more information about the deviations in the following link: Technical features of products

GDS 18V-1600 HC Professional: Further information

Product Highlights

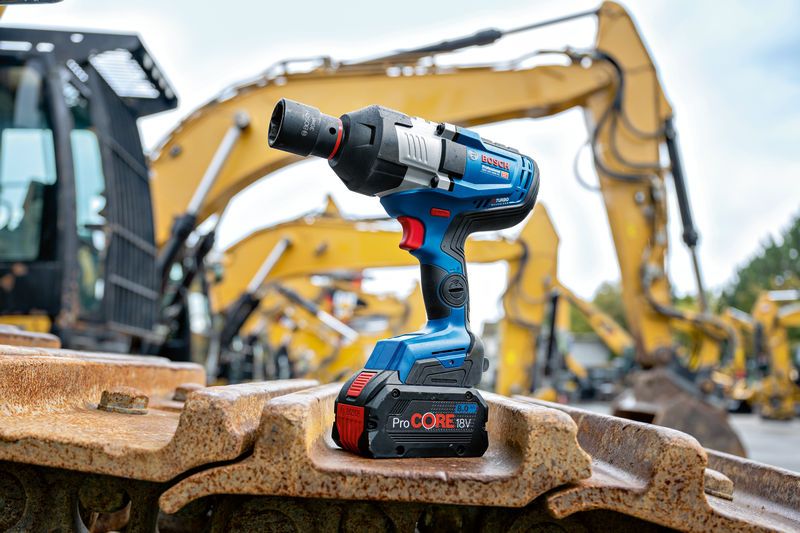

The GDS 18V-1600 HC Professional is the exceptionally powerful 3/4" impact wrench with BITURBO Brushless technology for the toughest, heavy-duty applications. The built-in brushless motor combines corded power with cordless freedom and is fully optimised for ProCORE18V batteries, delivering a strong 1,600 Nm tightening and 2,200 Nm breakaway torque. Thanks to the adjustable Auto Bolt Release (ABR) mode, you can avoid the loss or drop-down of metal bolts or nuts when loosening them, ensuring comfortable handling. High versatility in power control is provided by the 3-speed/torque settings that allow adjustments to the respective work requirements. All tool settings can be conveniently adjusted and customised via the Bosch Toolbox App.

Equipment & Application

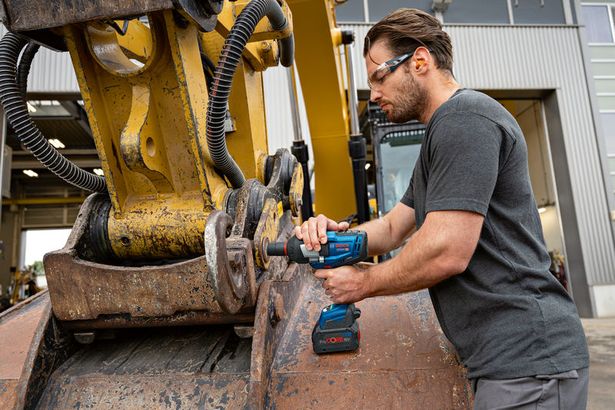

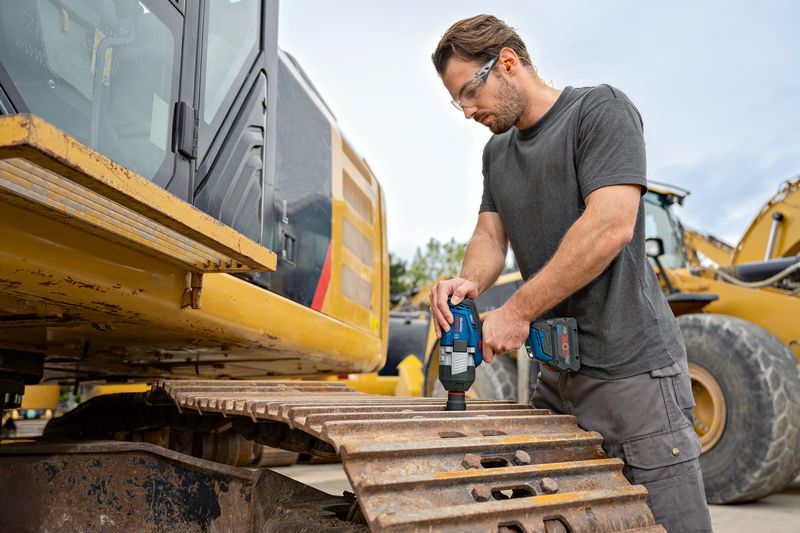

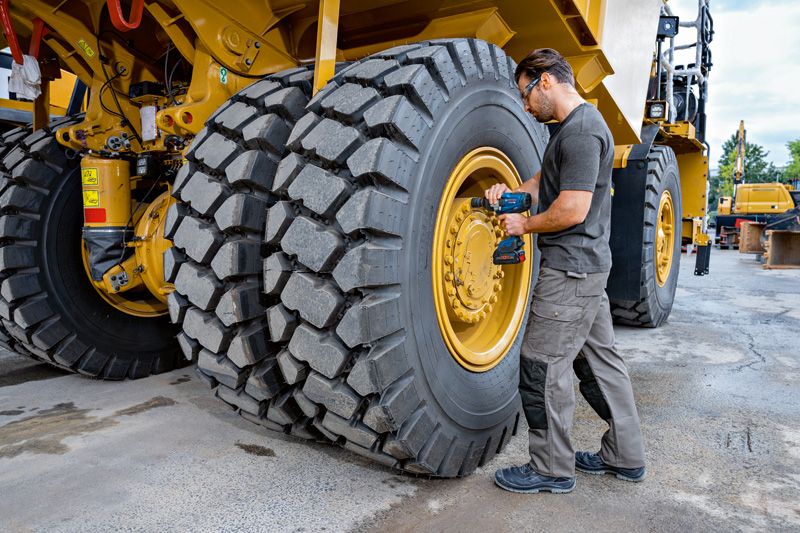

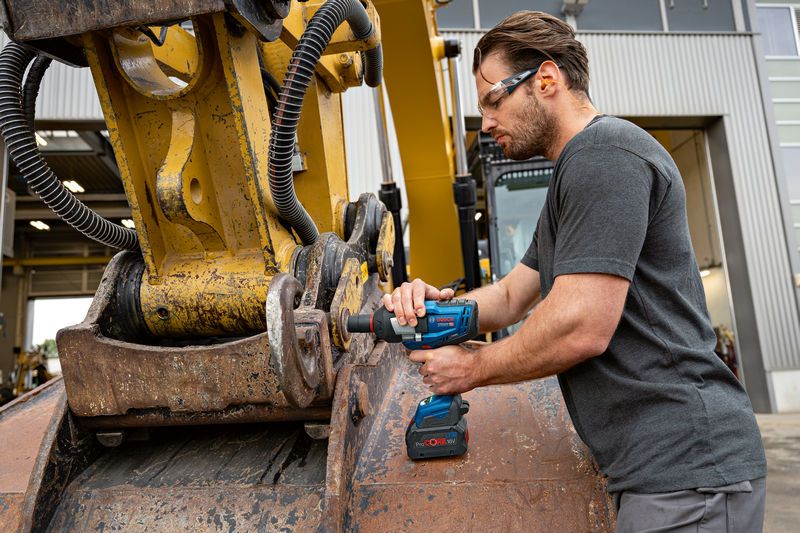

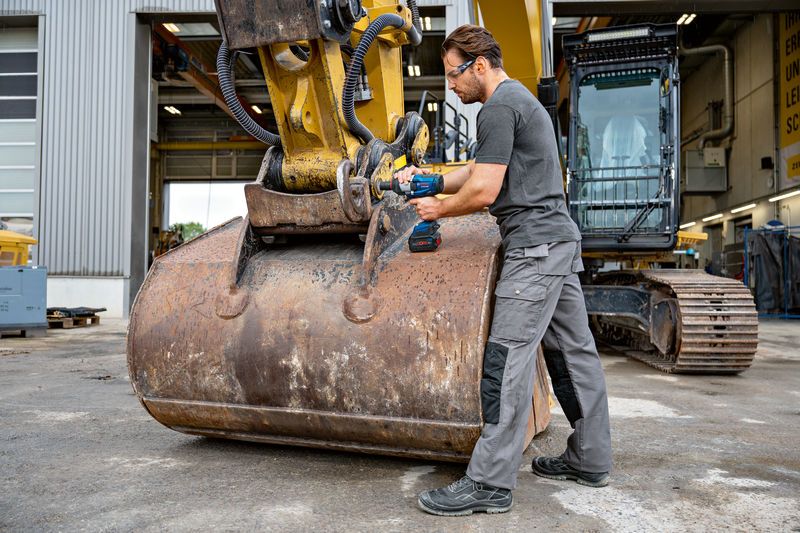

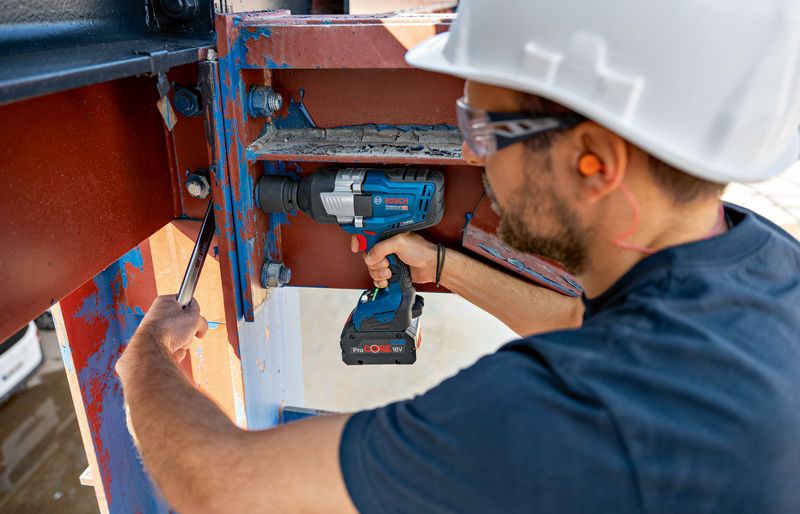

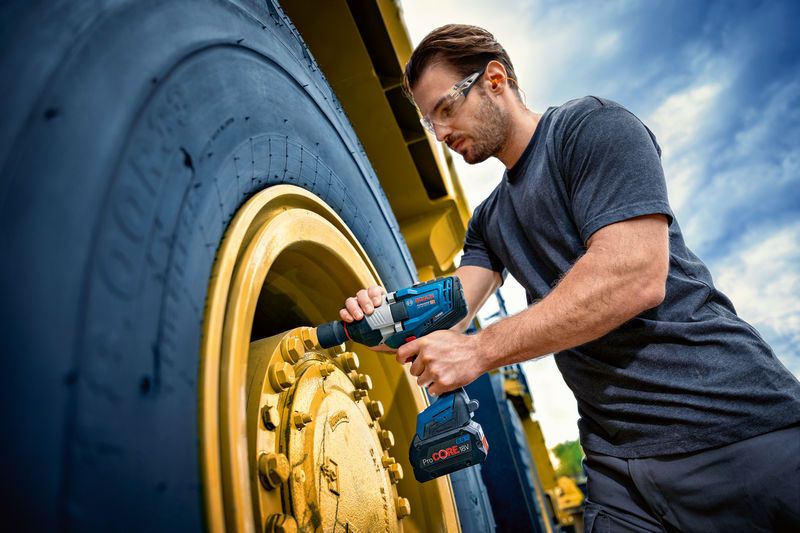

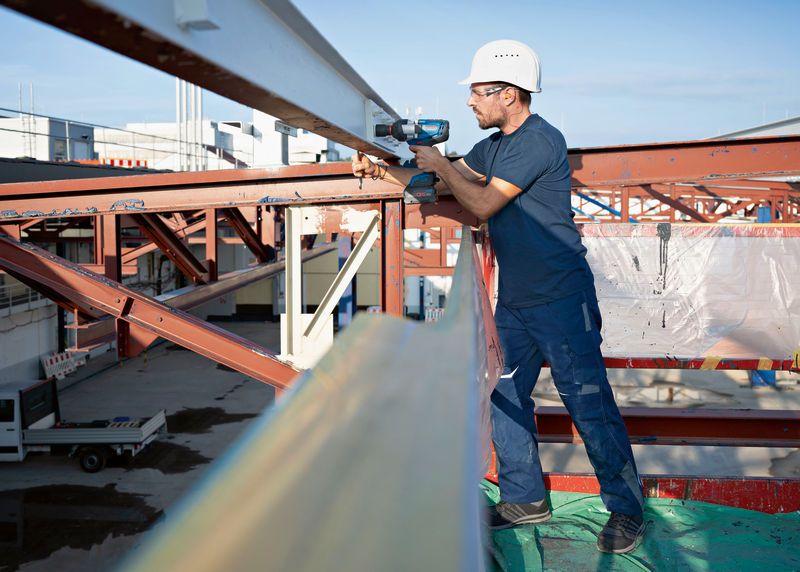

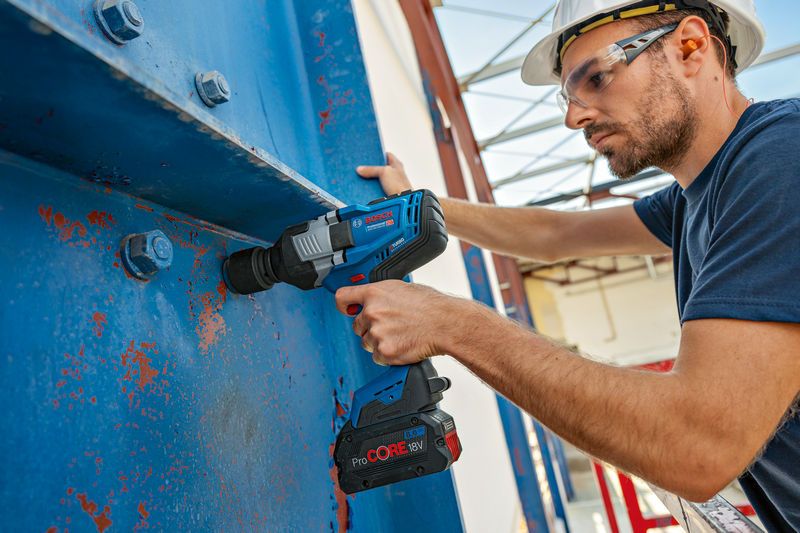

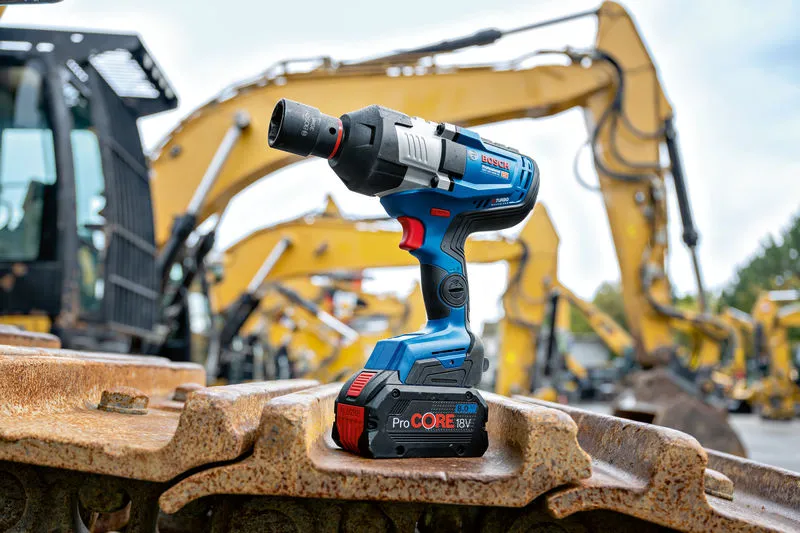

The exceptionally strong GDS 18V-1600 HC Professional is suitable for all metal applications from M16 to M33 such as structural steel construction, pipe fitting, and maintenance of industrial machinery and construction vehicles. This impact wrench is ideal, whenever utmost power is required to remove rusted and painted bolts and nuts. The tool is compatible with all batteries and chargers in the AMPShare Battery Alliance including all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah.

Additional Information

The impact wrench is equipped with Electronic Cell Protection (ECP), Electronic Motor Protection (EMP), a tool status indicator with LED light, a 3/4" tool holder with a friction ring and through hole, and a ladder clip.

videos and images may depict overseas models. For local executions please see scope of supply
