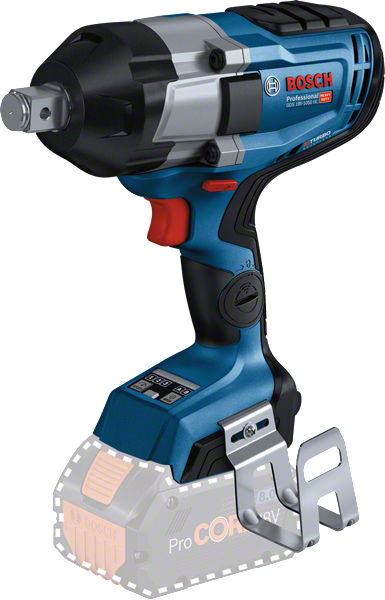

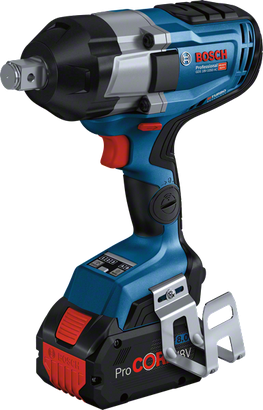

Cordless Impact Wrench
The most important data |
|
---|---|
Torque adjustment range, min./max., 1st level | 0/350 Nm |
Torque adjustment range, min./max., 2nd level | 0/650 Nm |
Torque adjustment range, min./max., 3rd level | 0/1050 Nm |
No-load speed* | 0-1,700 rpm |
No-load speed (1st level)* | 0-800 rpm |
No-load speed (2nd level)* | 0-1,300 rpm |
No-load speed (3rd level)* | 0-1,750 rpm |
Torque settings | 3 |
Weight excl. battery* | 2.9 kg |
Torque, max.* | 1,050 Nm |
Impact rate | 0-2,600 bpm |
Impact rate (1st level)* | 0-1,600 bpm |
Impact rate (2nd level)* | 0-2,300 bpm |
Impact rate (3rd level)* | 0-2,600 bpm |
Battery voltage | 18.0 V |
Tool holder | 3/4'' Square |
Breakaway torque, max. | 1,700 Nm |

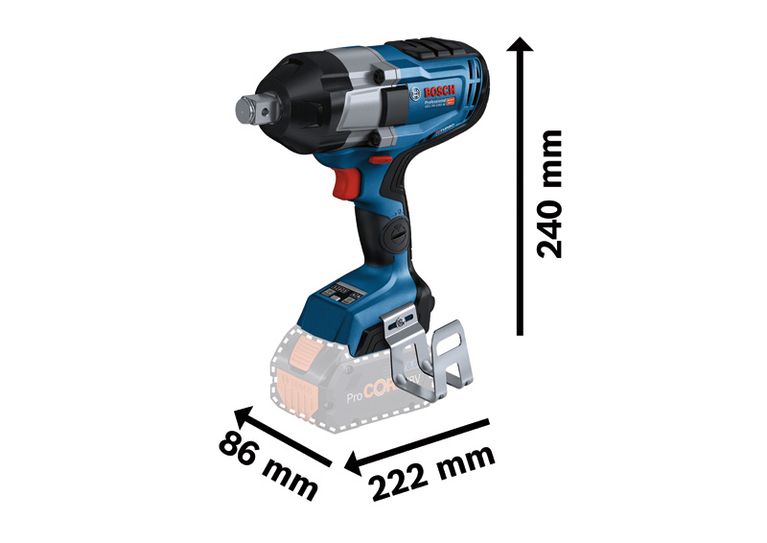

Packaging dimensions (width x length x height) | 269 x 291 x 109 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:

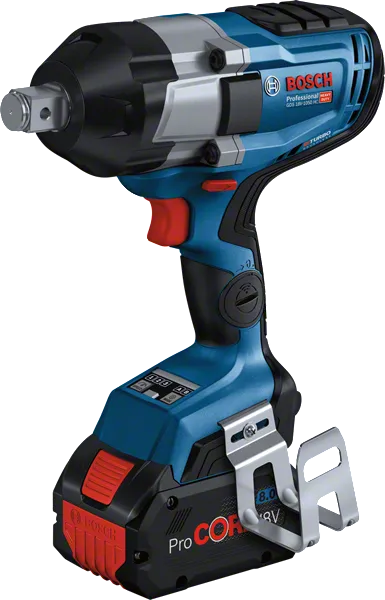

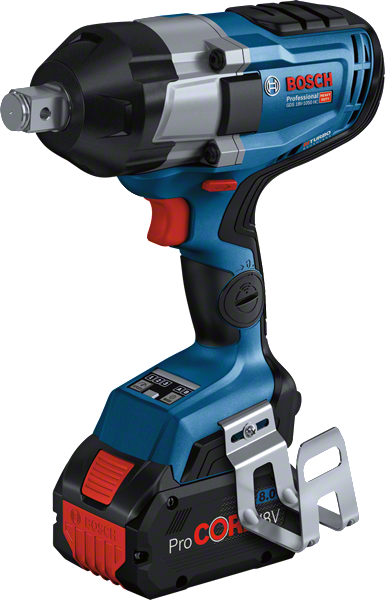

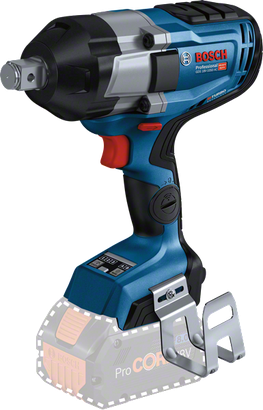

For tough, full-power application, the GDS 18V-1050 HC Professional impact wrench with BITURBO Brushless technology delivers a high-level performance and adjustable mode control. Built-in BITURBO Brushless technology is fully optimised for ProCORE18V batteries, providing a strong 1,050 Nm tightening and 1,700 Nm breakaway torque. High versatility is provided by two default modes on the user interface, metal mode (A) and wood mode (B), preventing broken screwheads and the loss of metal bolts or nuts, by slowing down or shutting off the impact wrench. All modes are quickly customised via the Bosch Toolbox App. Three different speed/torque settings ensure higher flexibility and control.

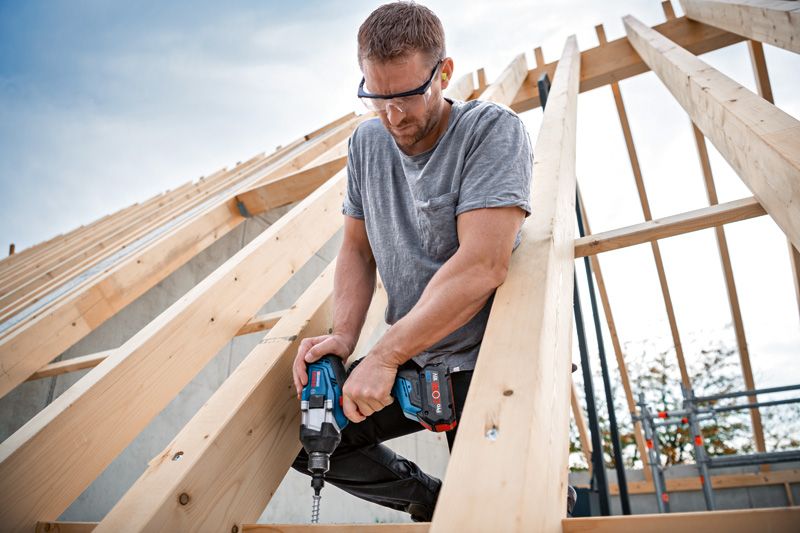

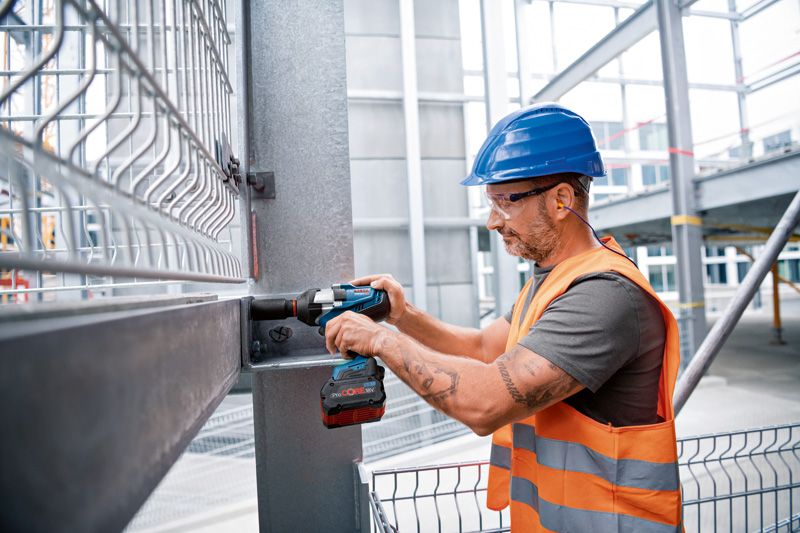

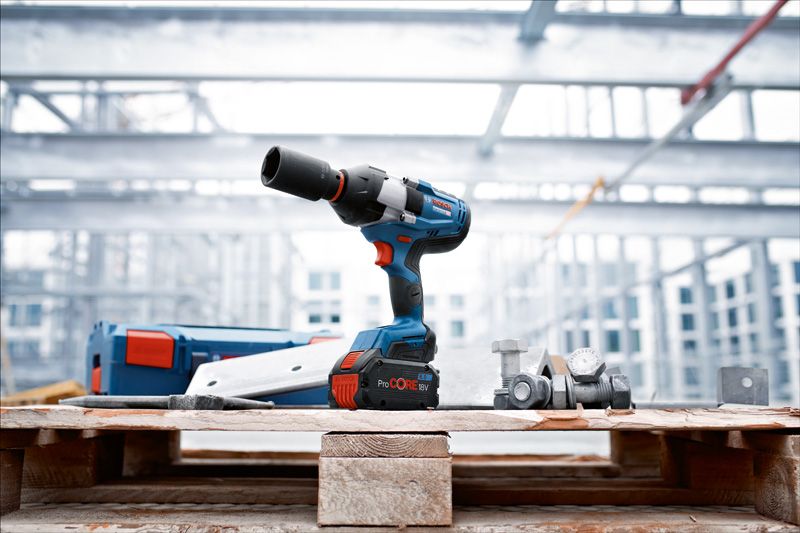

The GDS 18V-1050 HC Professional is the full-power impact wrench for tightening and removing metal bolts and nuts up to M 24 on a variety of jobs like structural steel construction, pipe fitting, vehicle maintenance, or when using screws/lag bolts in wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System) for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
The GDS 18V-1050 HC Professional is equipped with Electronic Cell Protection (ECP), Electronic Motor Protection (EMP), tool status indicator with LED light, ladder clip, and 3/4” tool holder with friction ring and through hole.
