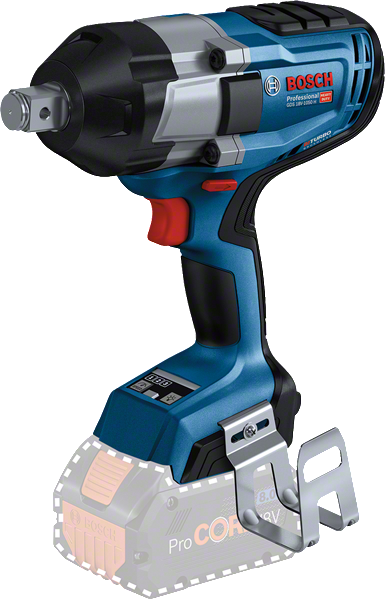

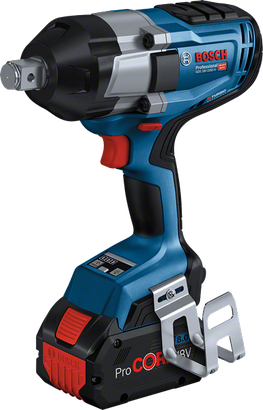

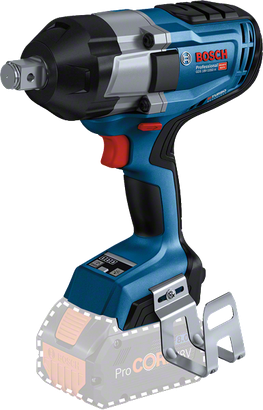

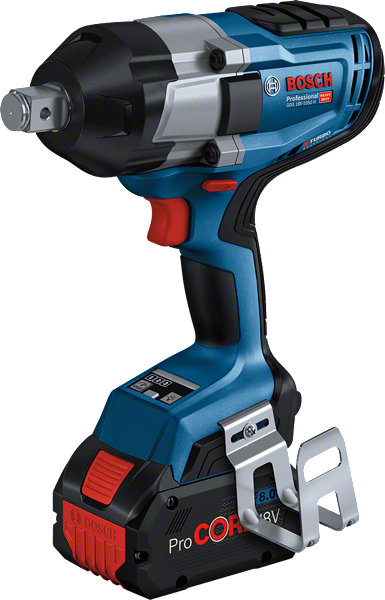

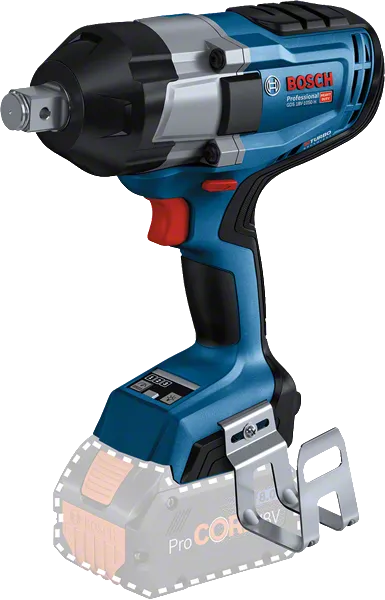

GDS 18V-1050 H Professional
Cordless Impact Wrench
Order number 0.601.9J8.500
- Impressive power with cordless freedom thanks to ProCORE18V batteries and brushless motor
- High performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
- Ideal versatility and controlled power due to 3-speed/torque settings
in cardboard box
0 601 9J8 500
Select a variant
Your Selection
in cardboard box
Order number: 0 601 9J8 500
Buy nowIncluded in all variants
-
Ladder clip (1600 A02 3G7)
Additional in this variant
-
Cardboard box
Your Selection

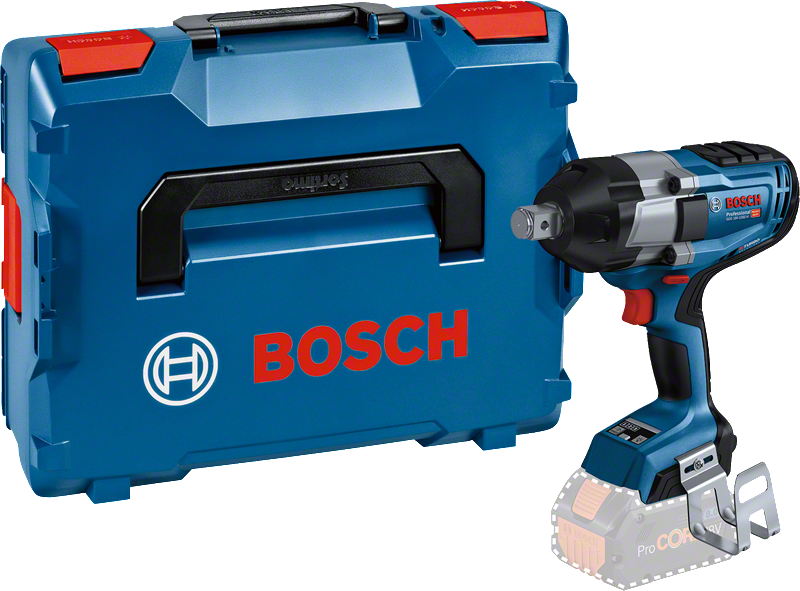

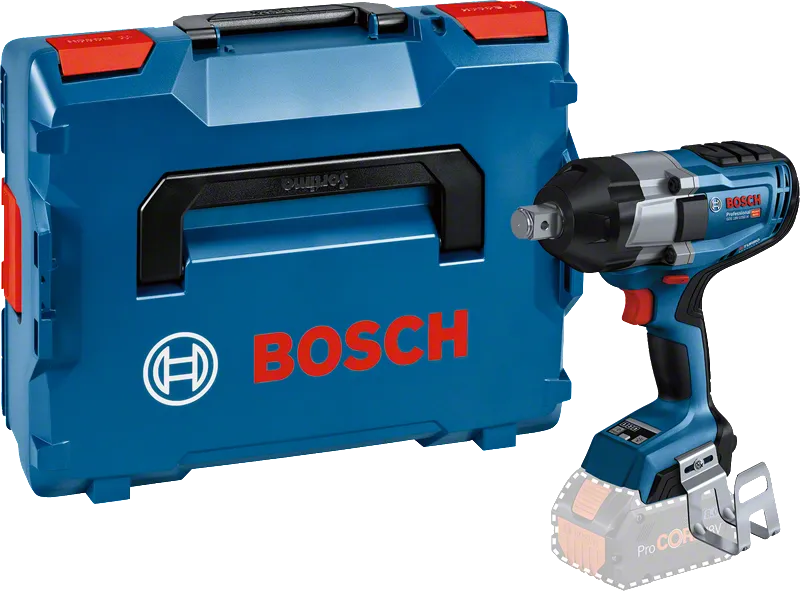

in L-BOXX 136
Order number: 0 601 9J8 501
Buy nowIncluded in all variants
-
Ladder clip (1600 A02 3G7)
Additional in this variant
-
L-BOXX 136Order number: 1 600 A01 2G0
-
1/1 L-BOXX inlay for tool and chargerOrder number: 1 600 A02 58Y
Technical data
The most important data
Torque adjustment range, min./max., 1st level
0/350 Nm
Torque adjustment range, min./max., 2nd level
0/750 Nm
Torque adjustment range, min./max., 3rd level
0/1050 Nm
No-load speed*
0-800 rpm
No-load speed (1st level)*
0-800 rpm
No-load speed (2nd level)*
0-1,200 rpm
No-load speed (3rd level)*
0-1,750 rpm
Torque settings
3
Weight excl. battery*
2.9 kg
Torque, max.*
1,050 Nm
Impact rate
0-2,600 bpm
Impact rate (1st level)*
0-1,600 bpm
Impact rate (2nd level)*
0-2,400 bpm
Impact rate (3rd level)*
0-2,600 bpm
Battery voltage
18.0 V
Tool holder
3/4'' Square
Breakaway torque, max.
1,700 Nm

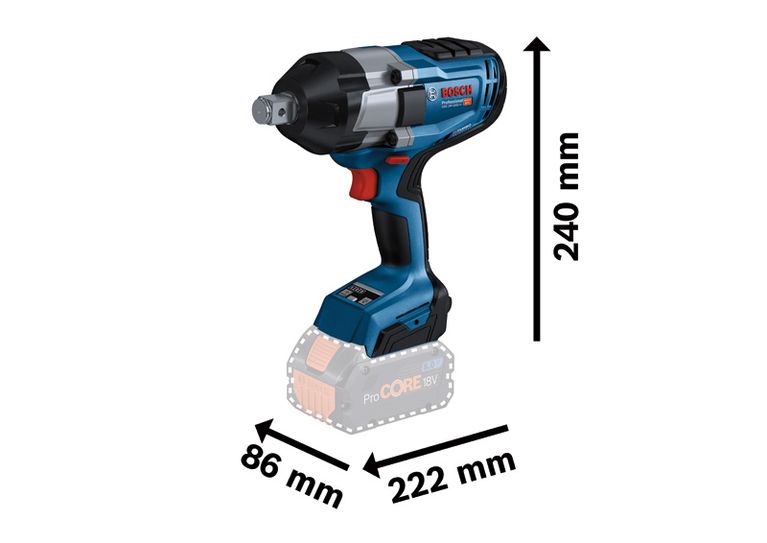

Packaging dimensions (width x length x height)
266 x 287 x 97 mm
* You can find more information about the deviations in the following link:
GDS 18V-1050 H Professional: Further information
Product Highlights
The GDS 18V-1050 H Professional is the outstanding 3/4" impact wrench with brushless motor for the most diverse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximised for ProCORE18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 Nm for particularly challenging working environments. The high versatility in power controlling is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements.
Equipment & Application

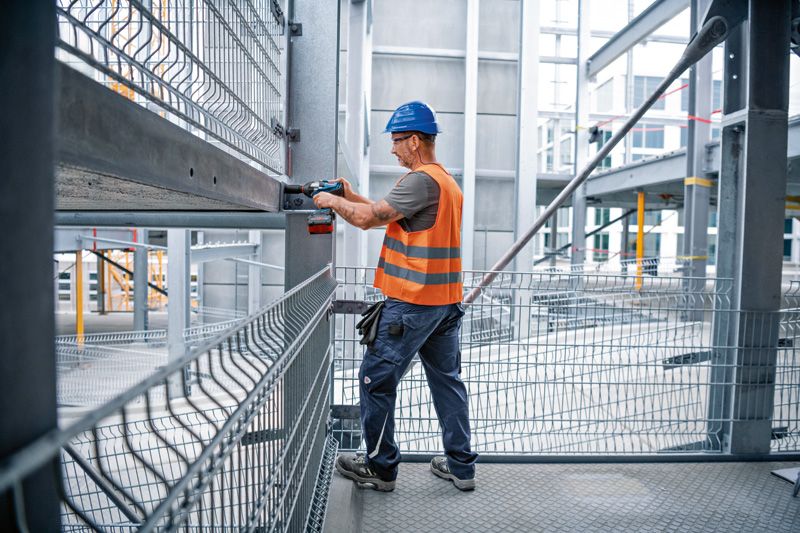

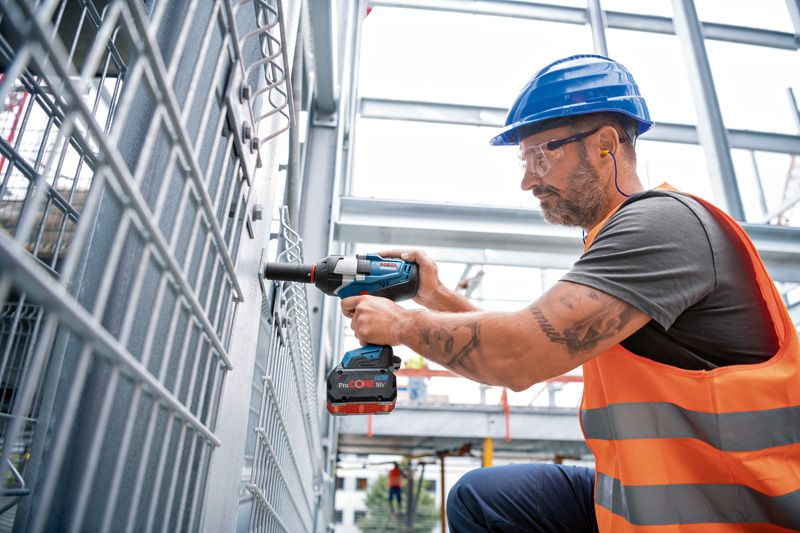

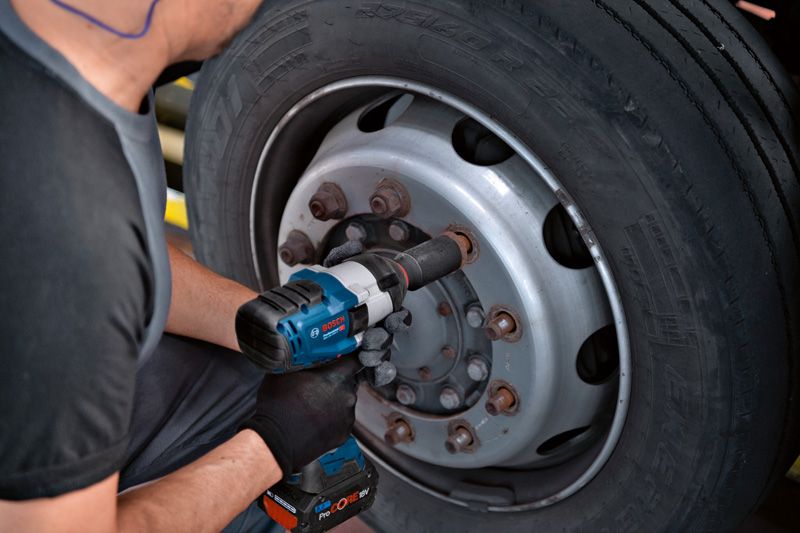

The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GDS 18V-1050 H Professional comes with additional figures like ECP, EMP, a tool status indicator, LED light, a 3/4" tool holder with friction ring plus through hole, and a ladder clip.
