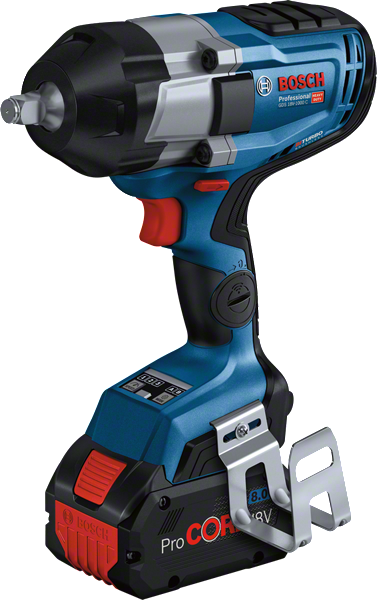

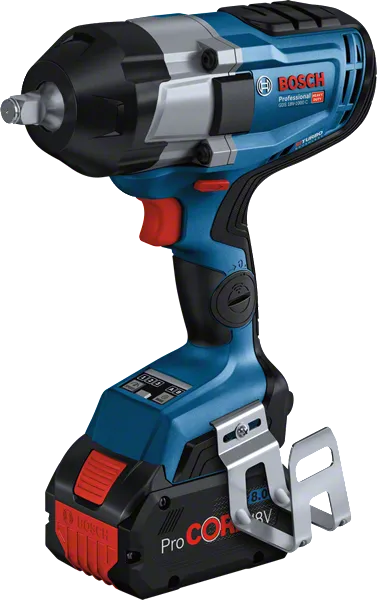

![Bosch GDS 18V-1000 C cordless impact wrench, max 1000 Nm torque.]( "GDS 18V-1000 C")

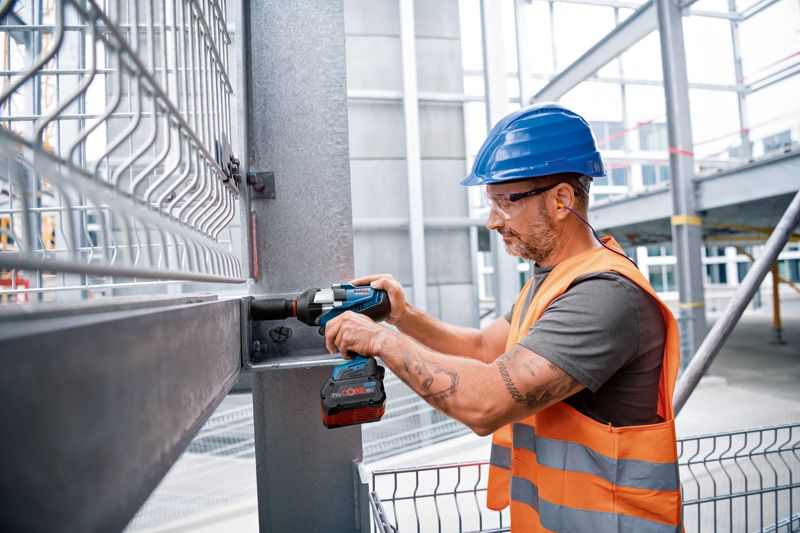

![A person wearing safety equipment uses a cordless impact wrench on a steel beam.]( "GDS 18V-1000 C")

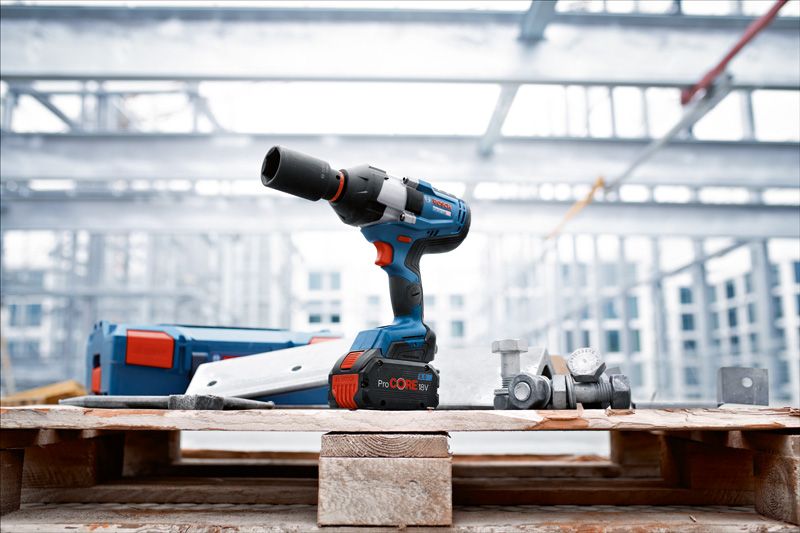

![Cordless impact wrench on a wooden pallet beside bolts and a blue carrying case at construction site.]( "GDS 18V-1000 C")

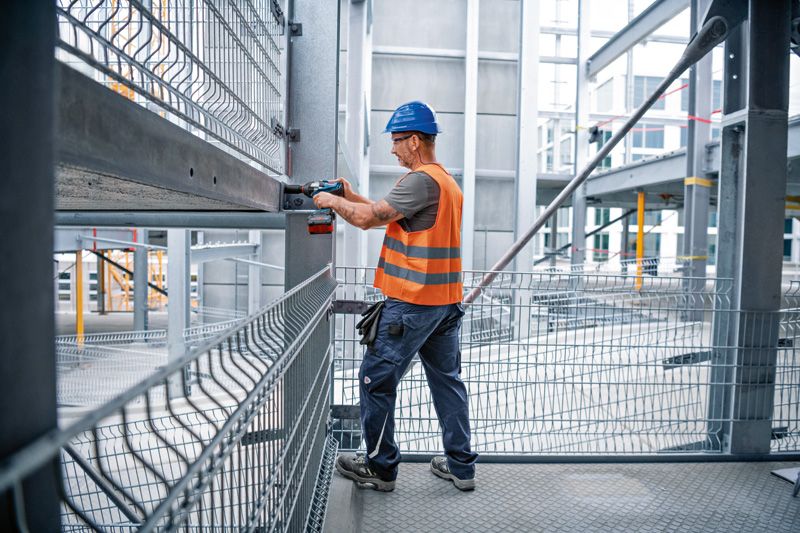

![A person wearing safety equipment uses a cordless impact wrench on a steel beam.]( "GDS 18V-1000 C")
![A person wearing safety equipment uses an impact wrench to remove bolts from a truck wheel.]( "GDS 18V-1000 C")
![A person wearing safety equipment uses an impact wrench on a truck wheel.]( "GDS 18V-1000 C")

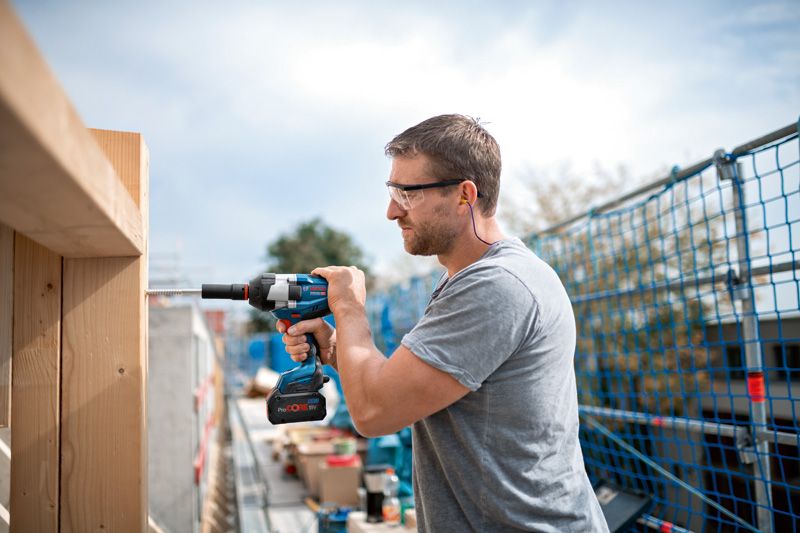

![A person wearing safety equipment uses a cordless impact wrench to fasten a wood beam.]( "GDS 18V-1000 C")
![A person wearing safety equipment uses a cordless impact wrench on a steel beam.]( "GDS 18V-1000 C")

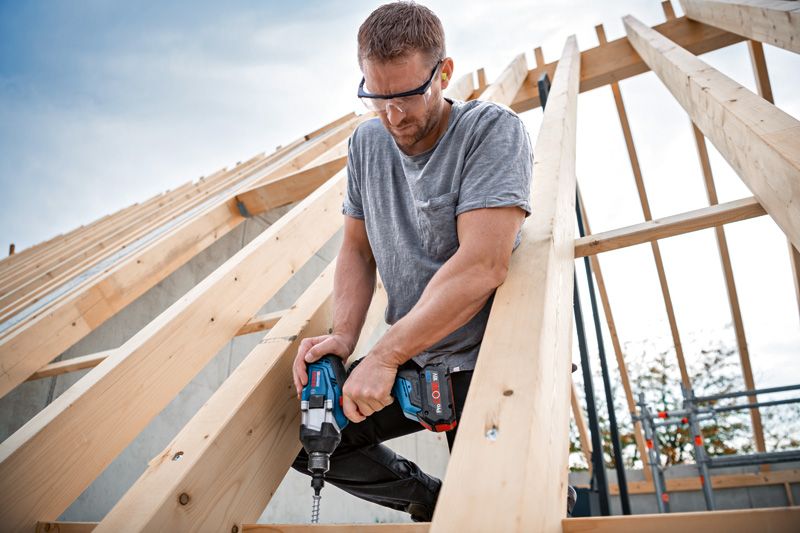

![A person wearing safety equipment fastens a screw into a wooden frame using an impact wrench.]( "GDS 18V-1000 C")
![AMPShare battery]( "GDS 18V-1000 C")

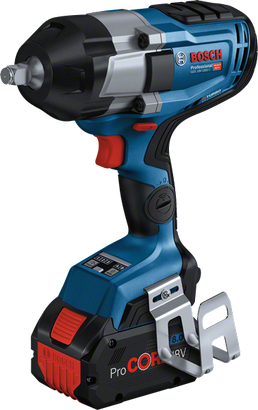

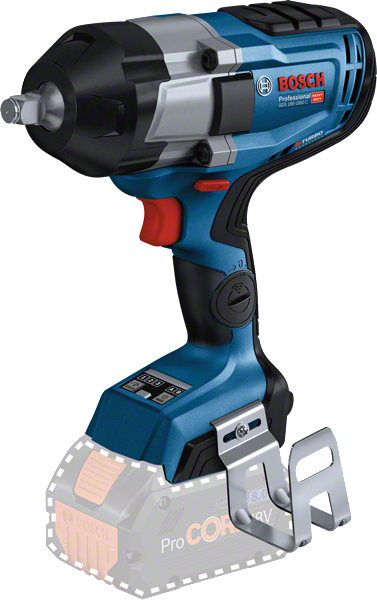

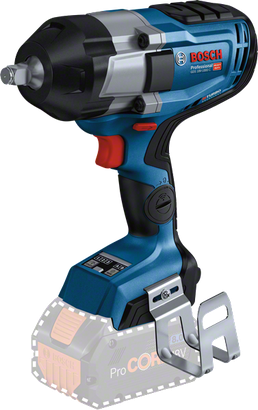

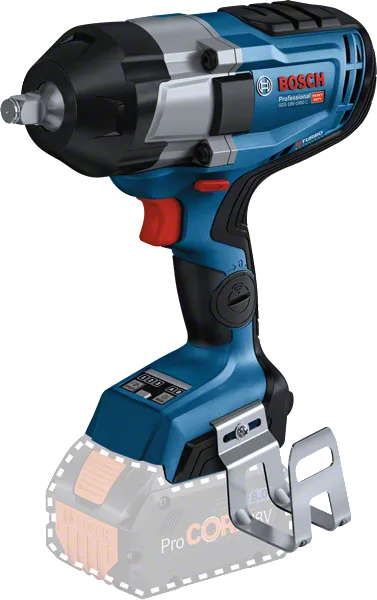

GDS 18V-1000 C Professional
Cordless Impact Wrench
Powerful 1/2" cordless impact wrench with adjustable modes and BITURBO Brushless technology
- BITURBO Brushless technology providing 1,000 Nm tightening torque and 1,600 breakaway torque
- User interface with two default modes, metal (A) and wood (B). Additional modes can be adjusted and individualised via the Toolbox App
- More flexibility and control via three speed/torque settings
Functions & key features
in cardboard box
0 601 9J8 000
GDS 18V-1000 C Professional
Your Selection
Technical data
The most important data
Torque adjustment range, min./max., 1st level
0/350 Nm
Torque adjustment range, min./max., 2nd level
0/650 Nm
Torque adjustment range, min./max., 3rd level
0/1000 Nm
No-load speed*
0-1,750 rpm
No-load speed (1st level)*
0-800 rpm
No-load speed (2nd level)*
0-1,300 rpm
No-load speed (3rd level)*
0-1,750 rpm
Torque settings
3
Weight excl. battery*
2.9 kg
Torque, max.*
1,000 Nm
Impact rate
0-2,600 bpm
Impact rate (1st level)*
0-1,600 bpm
Impact rate (2nd level)*
0-2,300 bpm
Impact rate (3rd level)*
0-2,600 bpm
Battery voltage
18.0 V
Tool holder
1/2'' Square
Breakaway torque, max.
1,600 Nm
Packaging dimensions (width x length x height)
270 x 288 x 109 mm
* You can find more information about the deviations in the following link:
GDS 18V-1000 C Professional: Further information
Product Highlights
The GDS 18V-1000 C Professional 1/2’’ impact wrench with BITURBO Brushless technology and adjustable modes goes full power on tough jobs. Its BITURBO Brushless technology combines a strong 1,000 Nm tightening and 1,600 Nm breakaway torque performance, fully optimised for ProCORE18V batteries. Two default modes on the user interface, metal mode (A) and wood mode (B), to avoid broken screwheads and the loss of metal bolts or nuts, by slowing down or shutting off the impact wrench. Each mode is customisable via the Bosch Toolbox App. For added flexibility and control, this cordless impact wrench is equipped with three different speed/torque settings.
Equipment & Application

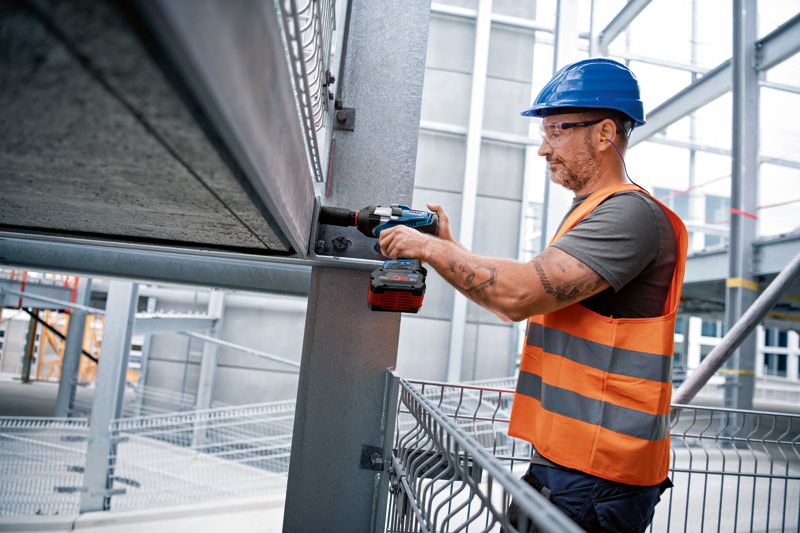

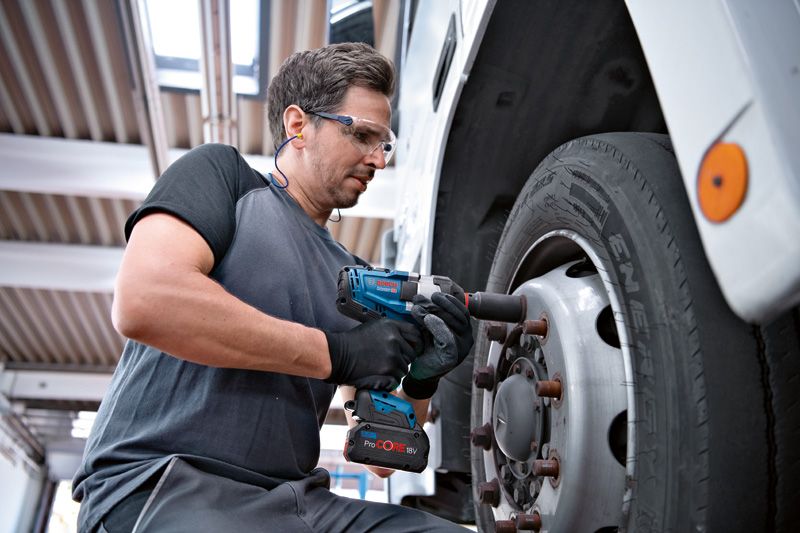

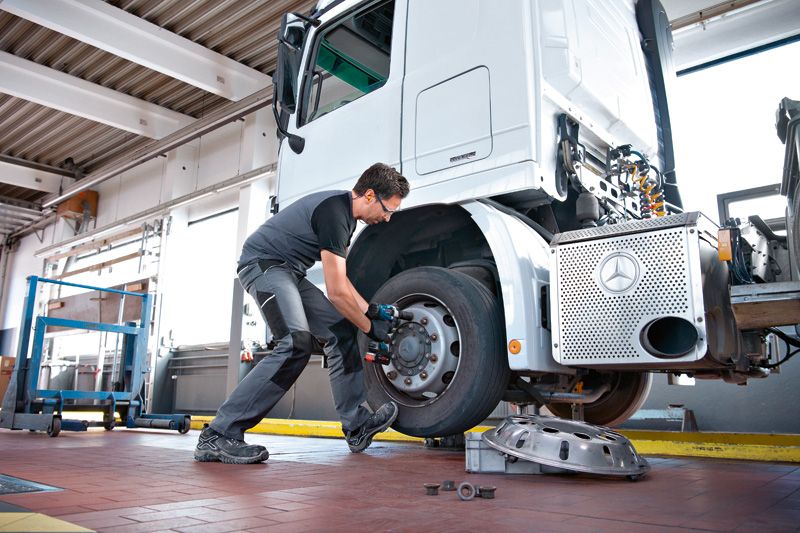

Tough on the job, the GDS 18V-1000 C Professional is the right choice for tightening and removing metal bolts and nuts up to M 24 in different working areas, from structural steel construction to pipe fitting, vehicle maintenance, or when using screws/lag bolts in wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GDS 18V-1000 C Professional comes with Electronic Cell Protection (ECP), Electronic Motor Protection (EMP), LED tool status indicator, ladder clip, and 1/2” tool holder with friction ring.
