Cordless Impact Wrench
GDS 12V-115 Professional

in cardboard box

Bosch´s most compact 12 V impact wrench - with brushless motor and 3/8" square drive

Print

Professional 12V System.
Compact performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

No-load speed 0-2,600 rpm
No-load speed (1st level) 0-1,200 rpm
No-load speed (2nd level) 0-2,600 rpm
Torque settings 2
Torque, max. 115 Nm
Impact rate 0-3,100 bpm
Impact rate (1st level) 0-2,700 bpm
Impact rate (2nd level) 0-3,100 bpm
Battery voltage 12 V
Tool holder 3/8'' Square

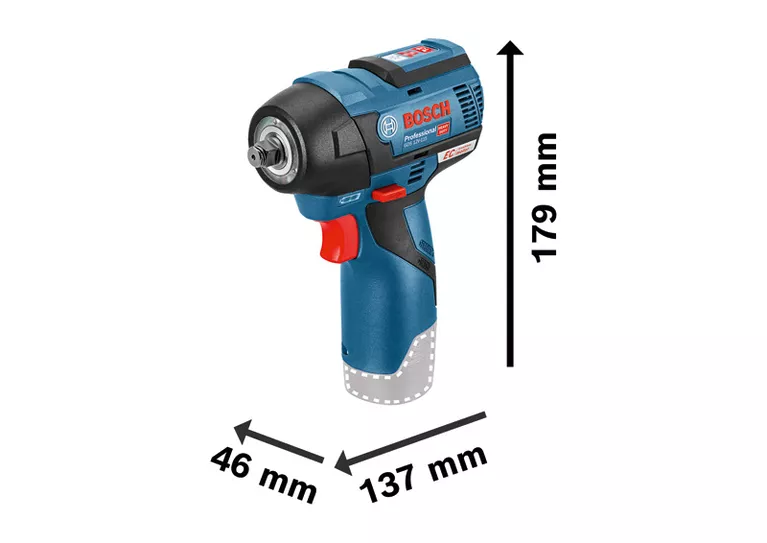

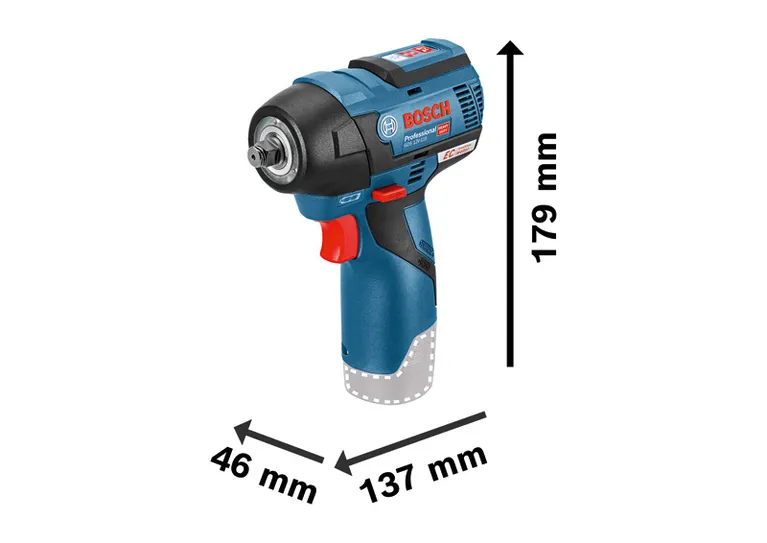

Tool dimensions (width) 54 mm
Tool dimensions (length) 137 mm
Tool dimensions (height) 177 mm
Packaging dimensions (width x length x height) 215 x 330 x 77 mm
Weight incl. battery 0.9 kg
Screw diameter
Screw diameter M 4 – M 12
Noise/vibration information

Total vibration values (vector sum of three directions)

Tightening screws and nuts of maximum permitted size
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²

Advantages

Bosch´s most compact 12 V impact wrench - with brushless motor and 3/8" square drive

  • Perfect handling, even in the tightest spaces and overhead, is supported by its compact design
  • For greater accuracy while screwdriving, 2-stage Power Control prevents the overtightening of small screws
  • 115 Nm of powerful torque makes it appropriate for conventional cordless impact driver applications

Functions

 Compatible since 2005: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
10.8 & 12 Volt 100% compatible All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers
Icon
No load speed 2600 min-1/rpm
Icon
 Bit insertion square, bit holder, 3/8“, external square
Longer motor life - more runtime - more power thanks to brushless motor
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Easy and precise control of the RPM thanks to variable speed
Head length 137 mm
Battery charge level indicator shows the level of remaining battery charge
Convenient hanging of the tool
 Illuminating of the work area
Comfortable handling of the tool thanks to softgrip
Metalworking The professional power tools for metalworking from Bosch.
Construction The professional power tools for construction from Bosch.
Woodworking The professional power tools for woodworking from Bosch.

Scope of supply

in cardboard box

Order number: 0 601 9E0 101

Selected version

Price includes:

  • Cardboard box
  • L-BOXX inlay for tool

* Battery and charger not included
