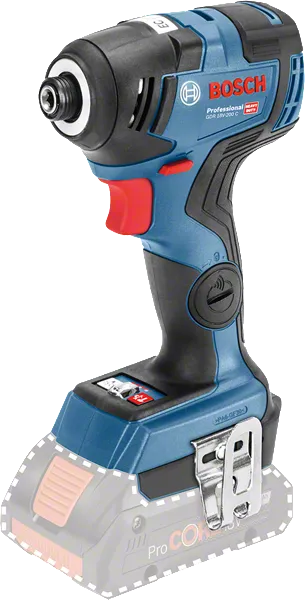

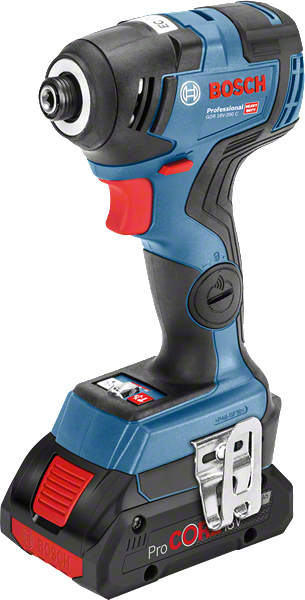

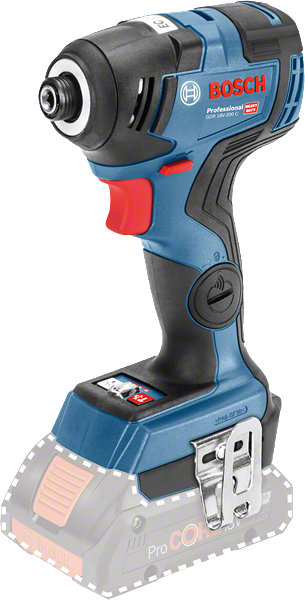

Cordless Impact Driver
GDR 18V-200 C Professional

Best combination of power and size in Bosch´s 18 V category – with brushless motor

Print

Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

No-load speed 0-3,400 rpm
No-load speed (1st level) 0-1,100 rpm
No-load speed (2nd level) 0-2,300 rpm
No-load speed (3rd level) 0-3,400 rpm
Torque settings 3
Weight excl. battery 1.1 kg
Torque, max. 200 Nm
Impact rate 0-4,000 bpm
Impact rate (1st level) 0-2,300 bpm
Impact rate (2nd level) 0-3,400 bpm
Impact rate (3rd level) 0-4,000 bpm
Battery voltage 18 V
Tool holder 1/4'' Hex Uni
Screw diameter
Screw diameter M 6 – M 16
Noise/vibration information

Total vibration values (vector sum of three directions)

Tightening screws and nuts of maximum permitted size
Vibration emission value ah 9 m/s²
Uncertainty K 1.5 m/s²

Advantages

Best combination of power and size in Bosch´s 18 V category – with brushless motor

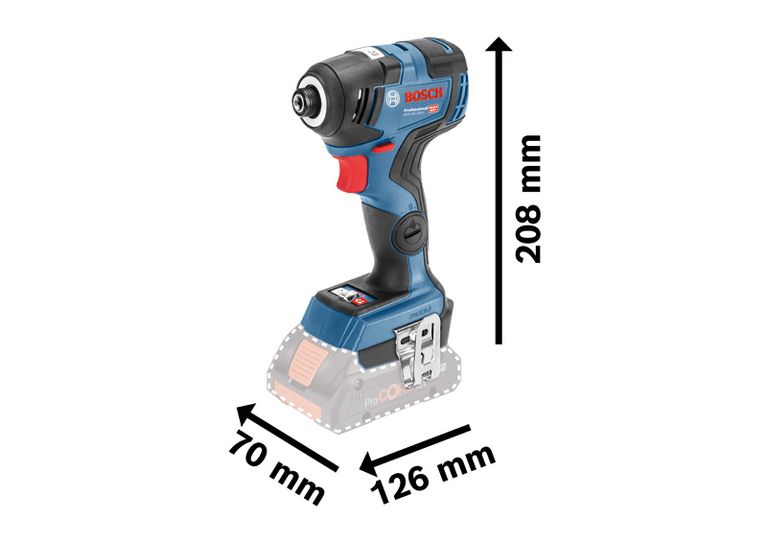

  • Excellent power-to-size ratio due to 200 Nm of torque and a head length of 126 mm
  • Bluetooth Connectivity option for active tool feedback, service information, and additional control
  • Equipped with a brushless motor with Electronic Motor Protection for high endurance and longer runtime

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Torque 200 Nm
No load speed 3400 min-1/rpm
Icon
1/4" internal hexagon tool holder
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Easy and precise control of the RPM thanks to variable speed
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information
Icon
Longer motor life - more runtime - more power thanks to brushless motor
Comfortable handling of the tool thanks to softgrip
 Illuminating of the work area

Scope of supply

GDR 18V-200 C

Order number: 0 615 990 L13

Selected version

* Battery and charger not included
