Electrical testers

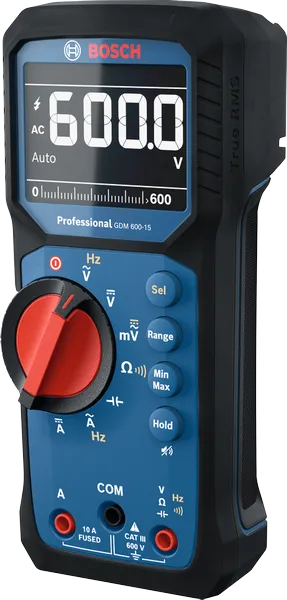

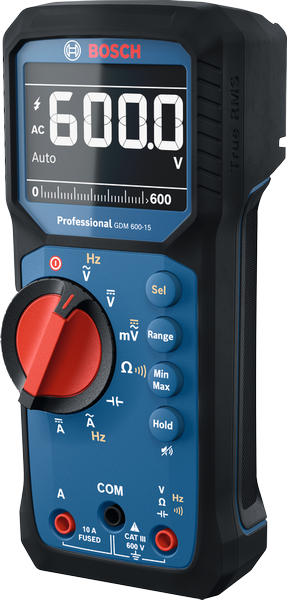

![Bosch GDM 600-15 digital multimeter with large LCD display.]( "GDM 600-15")

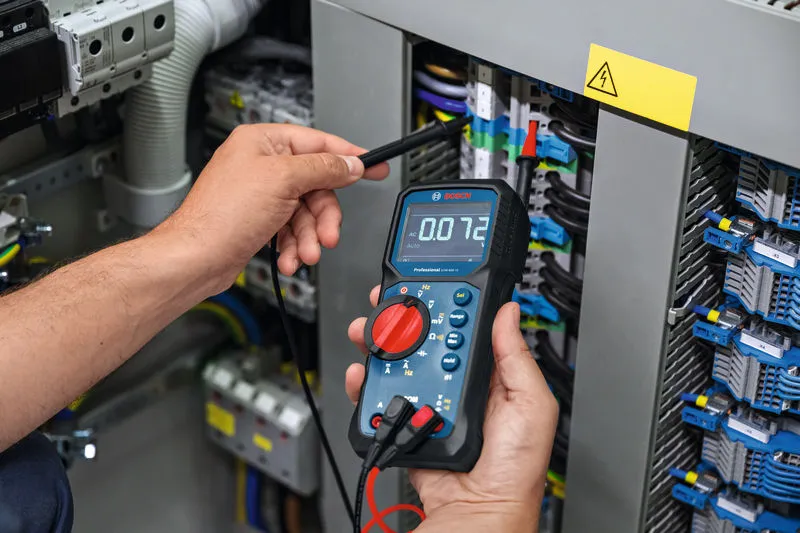

![Person measures voltage on electrical panel using a digital multimeter.]( "GDM 600-15")

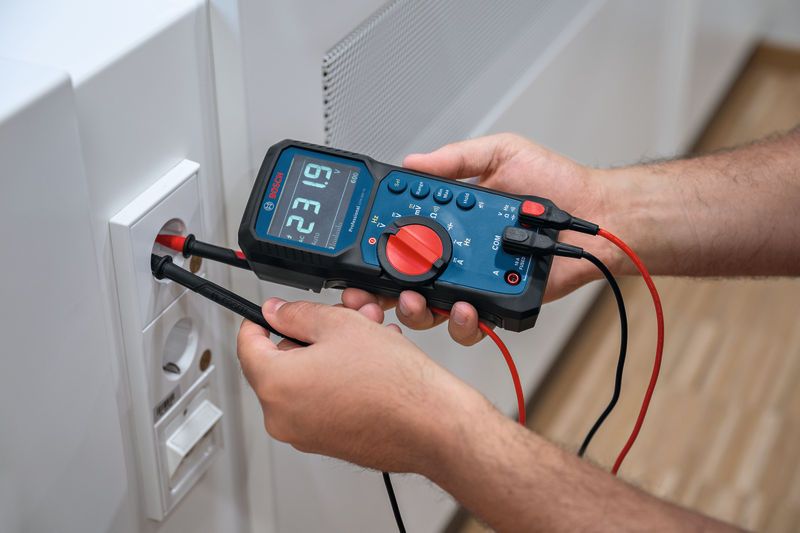

![A person tests a wall electrical outlet using a digital multimeter.]( "GDM 600-15")

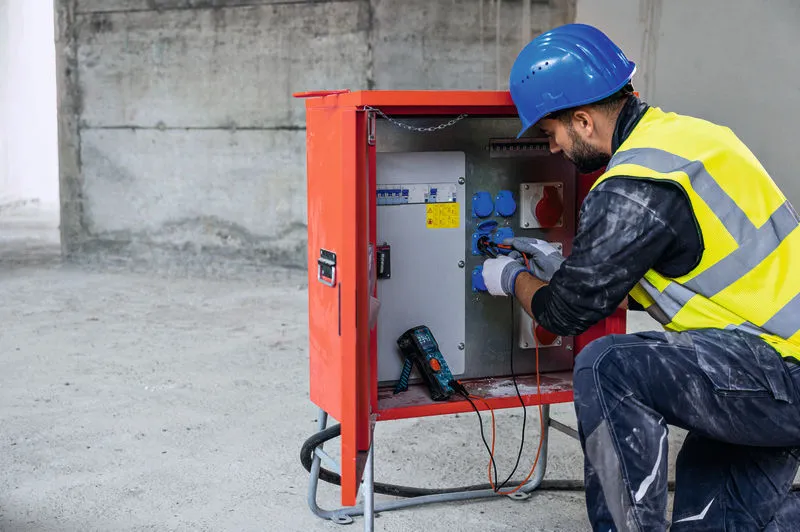

![A person wearing safety equipment uses a digital multimeter to test an electrical panel.]( "GDM 600-15")

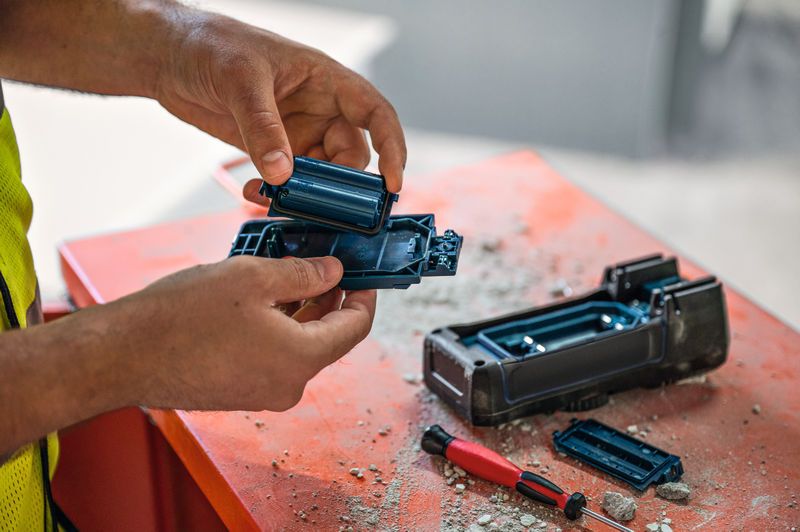

![A person wearing safety equipment changes batteries in a power tool on a dusty workbench.]( "GDM 600-15")
Coming Soon
GDM 600-15 Professional
Digital multimeter
Order number 0.601.077.300
- Handles tough jobsites with an IP65 rating for durability and impact resistance
- Versatile measurements: frequency, continuity, resistance, and capacitance with Min/Max/Average recording
- Compact design for one-handed use, plus a kickstand and magnetic hanging solution for hands-free operation
with 2 x battery (AA), Pouch
0 601 077 300
GDM 600-15 Professional
Your Selection
New

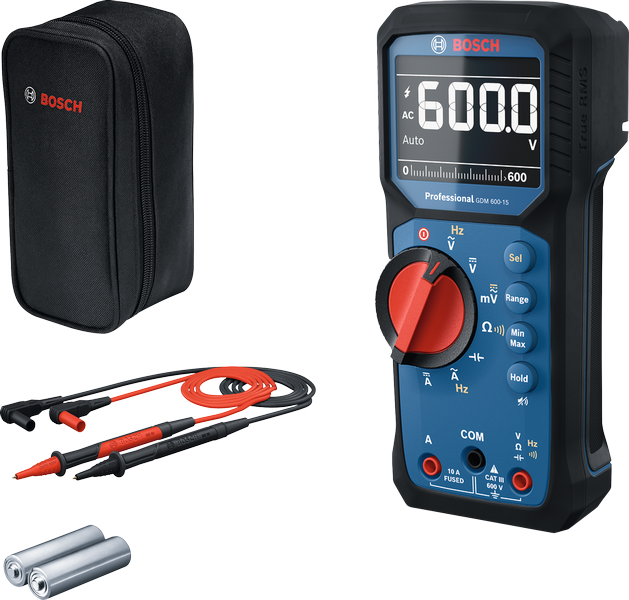

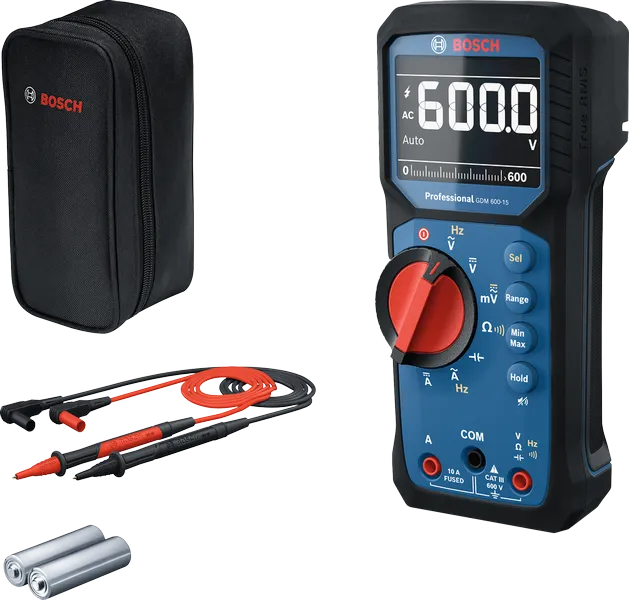

with 2 x battery (AA), Pouch
Order number: 0 601 077 300
Find a local dealerIncluded in this variant
-
Pouch
-
MS 90 ProfessionalOrder number: 1 600 A03 8D2
-
2 x 1.5 V LR6 battery (AA)
Technical data
The most important data
AC voltage
600 V
AC voltage resolution
0.1 mV
AC voltage accuracy
± 1.0 % + 3
AC current
10 A
AC current resolution
0.001 A
AC current accuracy
± 1.5% + 3
DC voltage
600 V
DC voltage resolution
0.1 mV
DC voltage accuracy
± 0.5 % + 2
DC current
10 A
DC current resolution
0.001 A
DC current accuracy
± 1.0 % + 3
Resistance
40 MΩ
Resistance resolution
0.01 MOhm
Resistance accuracy
± 2.0 % + 5
Capacitance
1000 µF
Capacitance accuracy
± 1.9 % + 2
Continuity
yes
Continuity resolution
0.1 Ohm
Continuity accuracy
± 1.0 % + 5
Frequency AC A min
600
Frequency AC A max
10
Frequency resolution
0.01 Hz
Frequency accuracy
± 0.1 % + 2
IP-Protection
IP65
True RMS
yes
Safety class
CAT III 600 V
Display type
LCD Inverted
Acoustic feedback
yes
Measuring range for frequency
50 kHz ACV / 2 kHz ACA
Cable Break Detection
no

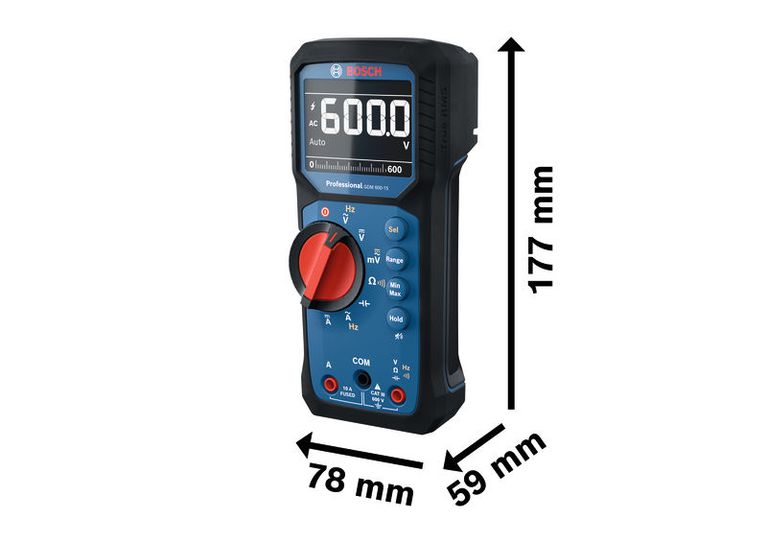

Packaging dimensions (width x length x height)
59 x 177 x 78 mm
GDM 600-15 Professional: Further information
Product Highlights
The GDM 600-15 Professional is designed to enhance your efficiency with precise True RMS measurements. Its large inverted LCD display ensures clear readings across various applications. This versatile tool measures frequency, continuity, resistance, and capacitance, and also records signal fluctuations with Min/Max/Average measurements. Built to withstand tough jobsites, it has an IP65 rating for enhanced durability and protection against falls from up to 2m. And with a comfortable grip that helps reduce fatigue, you can rely on the GDM 600-15 Professional for the performance you need - even in the most demanding conditions.
Equipment & Application
Ideal for electricians, HVAC technicians, facility managers and electronics technicians, the GDM 600-15 Professional is your go-to for electrical installations, maintenance and repairs. It measures voltage, current and resistance in diverse electrical systems to ensure proper function and find faults. The compact design allows for easy one-handed operation, while a built-in kickstand and a separate magnetic hanging solution offer hands-free convenience.
Additional Information
Compatible with the Li-ion battery pack, the GDM 600-15 Professional offers long-lasting power. It is tested for safety with a measuring circuit category of CAT III 600V, and also includes high-quality measuring strips made of flexible, durable silicone to ensure reliability. Compact and efficient, this multimeter is built to support you in all your electrical tasks.
