Coming Soon

GDI38-500

Concrete Vibrator

Order number 0.601.9P9.400

  • Cordless high-frequency power: in-head motor delivers up to 11,600 vpm no-load and 10,600 vpm under load

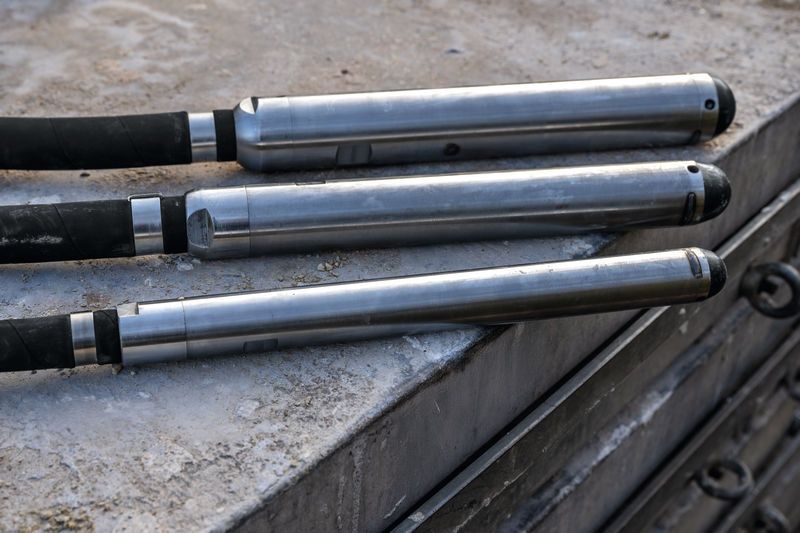

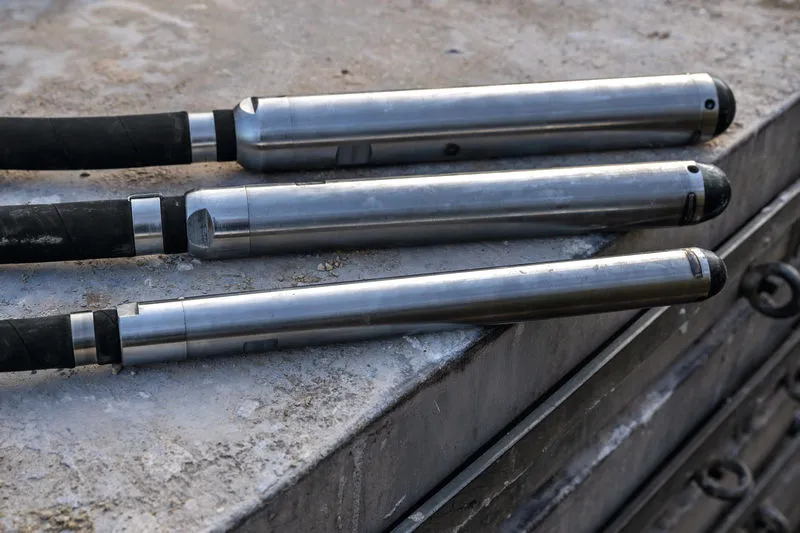

  • Choose the right size for any job: 38 mm, 50 mm, or 59 mm heads handle tight rebar or large pours
  • Built to withstand tough conditions: IP67 protection, hardened head, and thermal protection ensure durability
  • Tailored for walls and columns: 5 m whip for vertical applications
View more
Heavy duty.

in cardboard box 0 601 9P9 400

GDI38-500

Your Selection

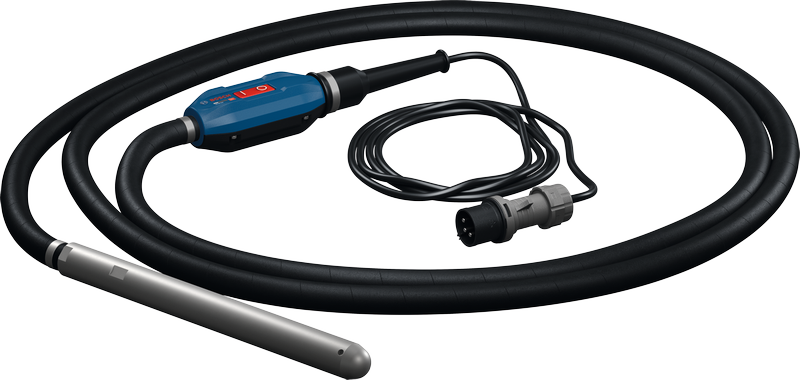

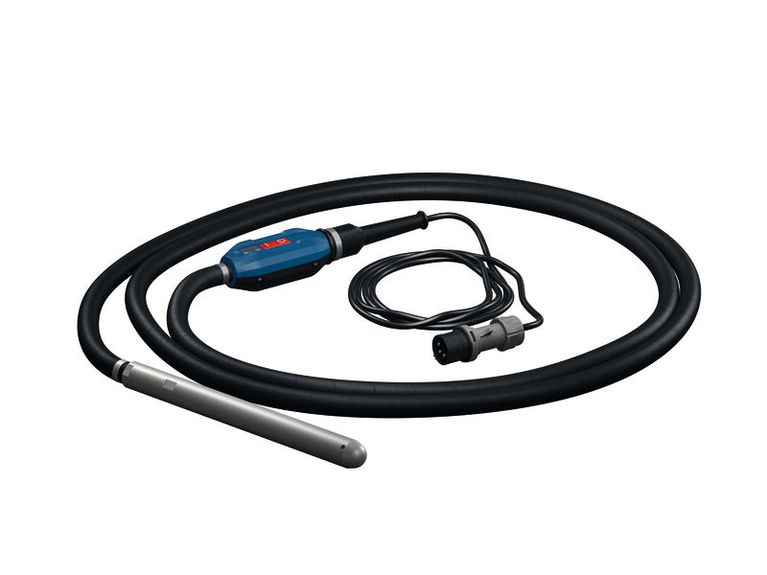

Bosch GDI38-500 concrete vibrator with attached power cable.

New

in cardboard box

Order number: 0 601 9P9 400

Find a local dealer

Included in this variant

  • Cardboard box
Professional 18V System.
Discover more!

Technical data

The most important data

Sound pressure level
75 dB(A)
Uncertainty K
3 dB
Sound power level
83 dB(A)
Amplitude
1.8 mm
Hose fitting system
centric
Hose diameter
31 mm
Hose length
5 m
Frequency
200 Hz
Cord length
5 m
Vibration frequency nominal
11,600 vpm
Whip length
5,00 m
Up to Centrifugal Force
1800 N
Vibrator Head Diameter
38 mm
Show more
Bosch GDI38-500 concrete vibrator with attached power cable.

GDI38-500: Further information

Product Highlights

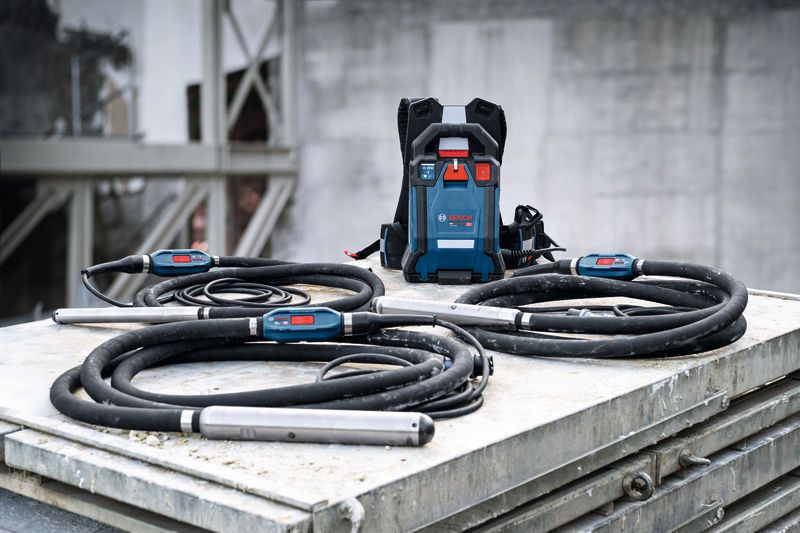

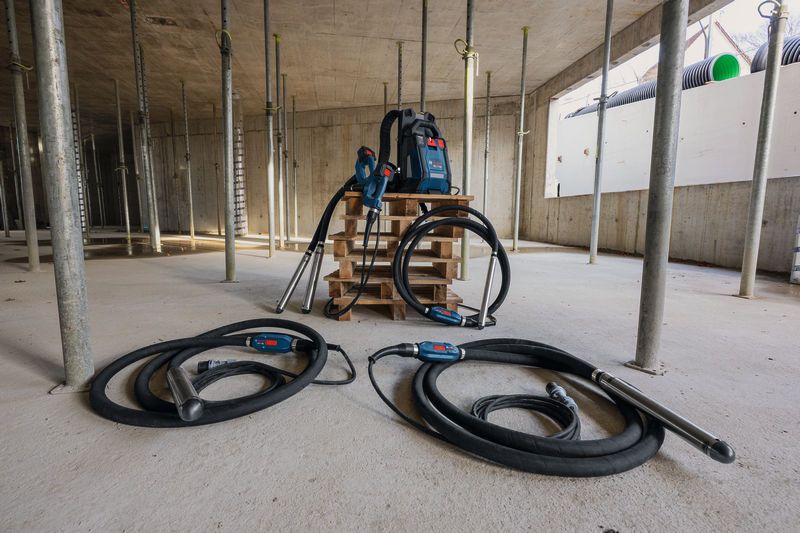

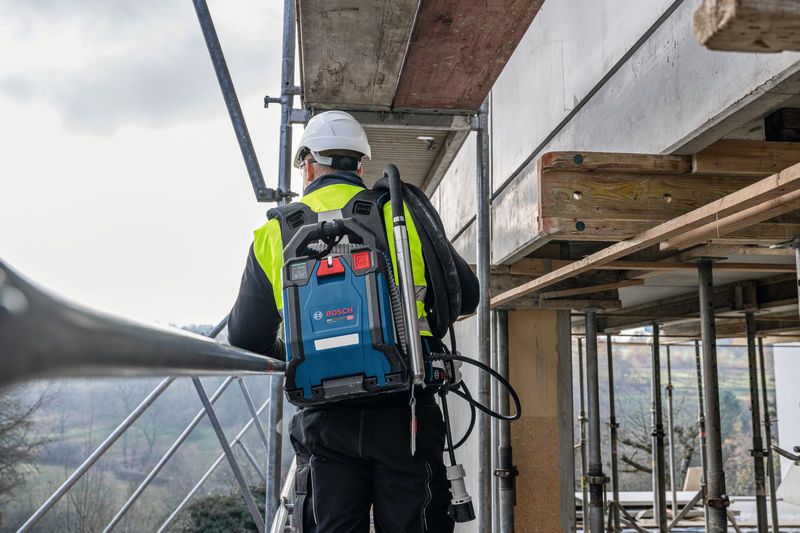

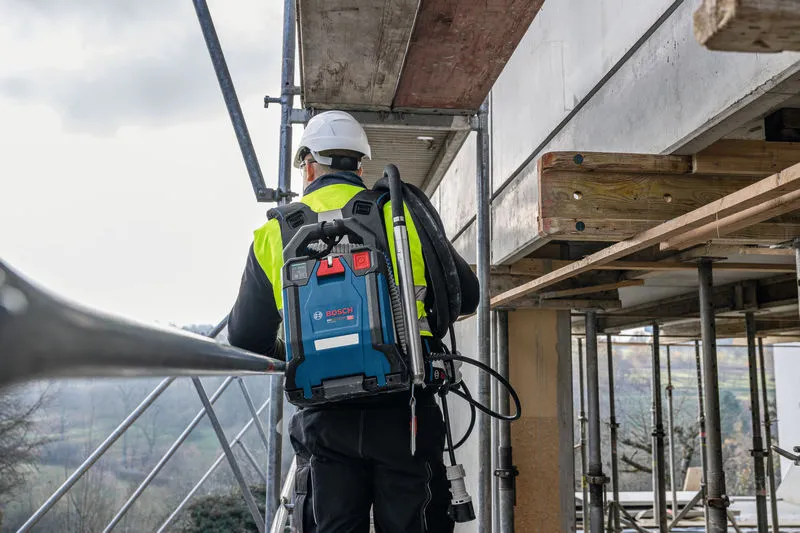

Using a concrete vibrator usually means you’re stuck with frequency converters and tangled cords all over the site. They hold you back, reduce your flexibility, and create tripping hazards. On top of that, you need to keep switching between whip lengths and head sizes for different jobs, while still making sure you’ve got enough power to handle heavy concrete loads. With the PRO GDI38-500, PRO GDI50-500, and PRO GDI59-500 cordless high frequency concrete vibrators, you don’t have to compromise. Their in-head motor design gives you consistent consolidation at 11,600 vpm no-load speed and over 10,600 vpm under load. You can pick the head size that fits your work best, 38 mm, 50 mm, or 59 mm, whether you’re working around tight rebar or covering large pours. Built tough with IP67 protection, a hardened vibrator head, and thermal protection, these tools are made to last. And when paired with the PRO GPU18V2DI, you get a modular system with haptic feedback that keeps you up to date on battery status, so you stay in control.

Equipment & Application

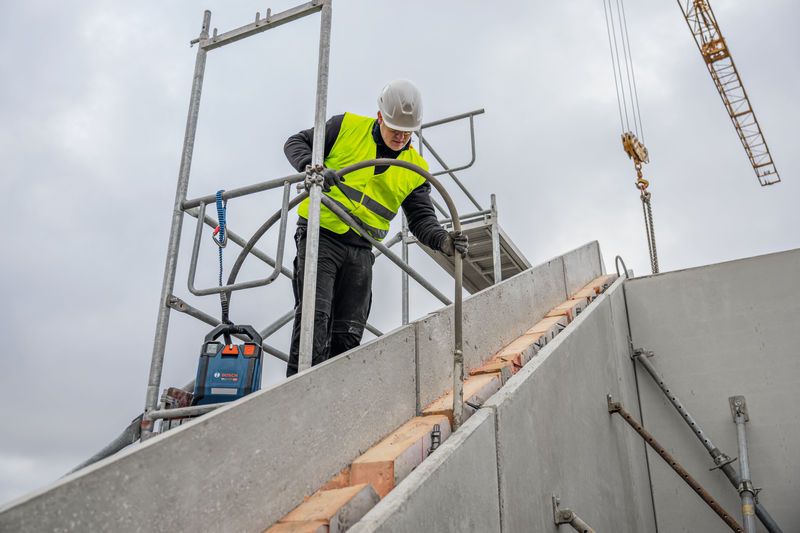

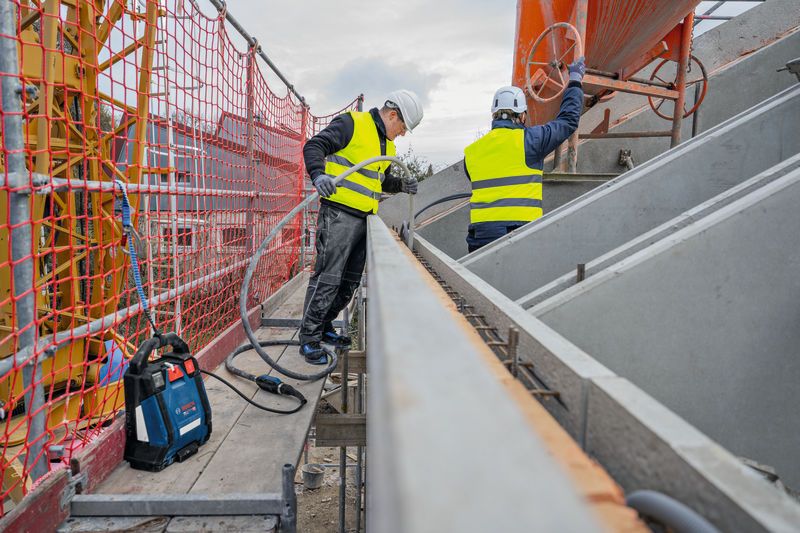

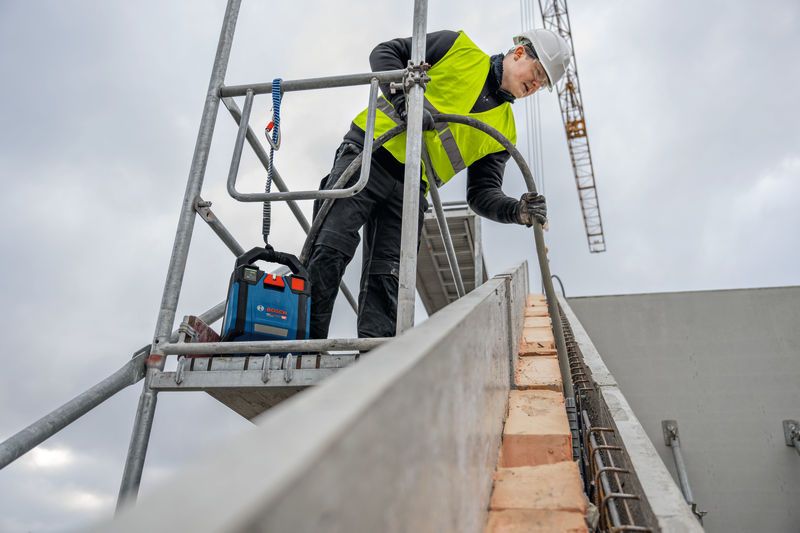

These tools are for concrete consolidation, removing air bubbles from poured concrete to boost durability and strength, especially in vertical applications like structural walls or columns. Cross-compatible with the PRO GPU18V2DI.
