Cordless rotary hammers
![GDE 28 D]( "GDE 28 D")
![GDE 28 D]( "GDE 28 D")
GDE 28 D Professional
Integrated Dust Extractor
The lightweight integrated dust extractor with filter cleaning mechanism
- Compact and lightweight design of 0.8 kg with excellent ergonomics, easy one-click assembly and emptying of the dust box
- Filter cleaning mechanism and HEPA filter helps maintain constant airflow and provide outstanding dust extraction results
- Two interchangeable dust eyes make it ideal for a wide range of jobs
Functions & key features
in cardboard box
1 600 A02 1BH
GDE 28 D Professional
Your Selection
in cardboard box
Order number: 1 600 A02 1BH
Buy nowIncluded in this variant
-

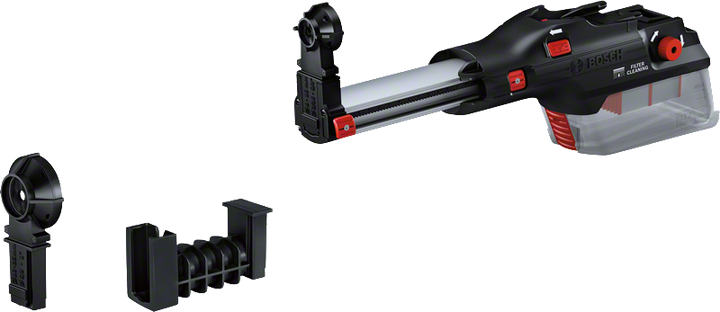

Cardboard box
-
ExtensionOrder number: 1 600 A01 E27
-
Dust eye fixed chuck, 28 mm diameterOrder number: 1 600 A01 E29
-
Dust eye fixed chuck, 16 mm diameterOrder number: 1 600 A01 E28
Technical data
The most important data
Compatible with
GBH 18V-28 DC
Drilling diameter max.
28 mm
Maximum drilling depth
100 mm
Weight*
0.8 kg
Maximum drill bit length
265 mm

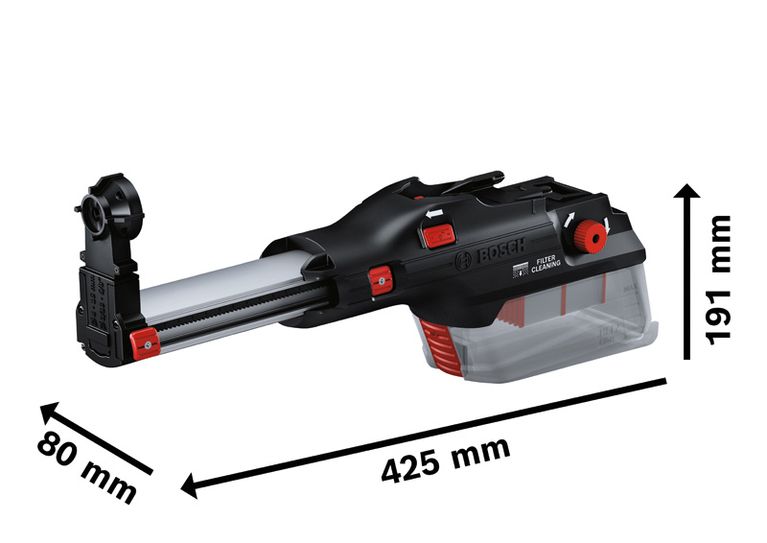

Packaging dimensions (width x length x height)
165 x 470 x 100 mm
* You can find more information about the deviations in the following link:
GDE 28 D Professional: Further information
Product Highlights

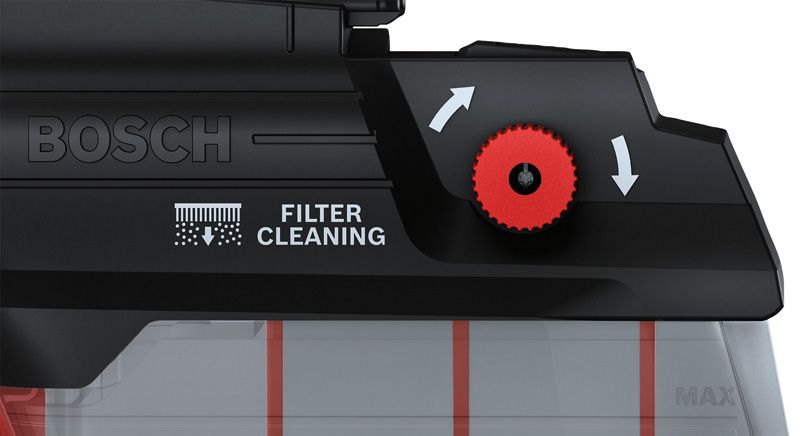

Lightweight integrated dust extraction: the GDE 28 D Professional. With a very compact and lightweight design of only 0.8 kg, it offers excellent ergonomics. It can be easily assembled by just one click, and emptying of the dust box is convenient without removal of the filter. Its filter cleaning mechanism that taps out the high-quality HEPA filter helps maintain constant airflow and provides outstanding dust extraction results. Highly flexible thanks to two interchangeable dust eyes for drilling up to 28 mm in diameter and an extension for bits up to 265 mm in length, it is ideal for a wide range of jobs.
Equipment & Application

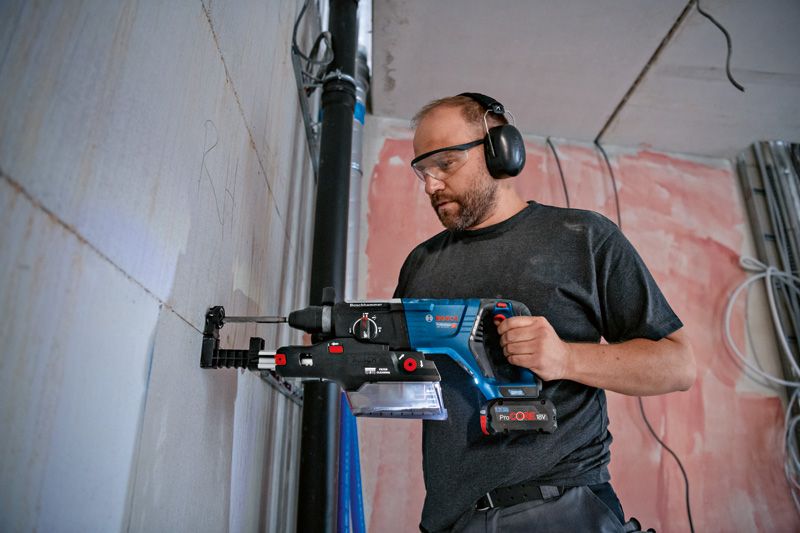

The integrated dust extraction attachment is suitable for use when drilling or hammer drilling with the GBH 18V-28 DC Professional.
Additional Information
The GDE 28 D Professional features a transparent dust box to observe filling ratio and adjustment of drilling depths.
